 Posted - 07/05/2008 : 00:27:22
|

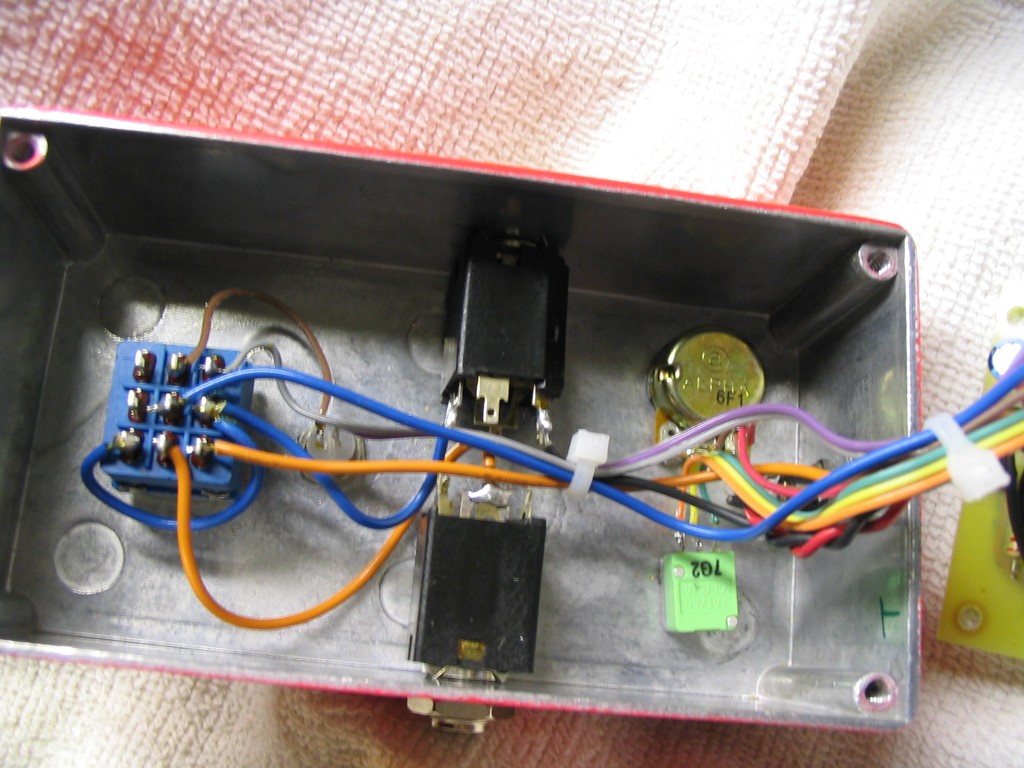

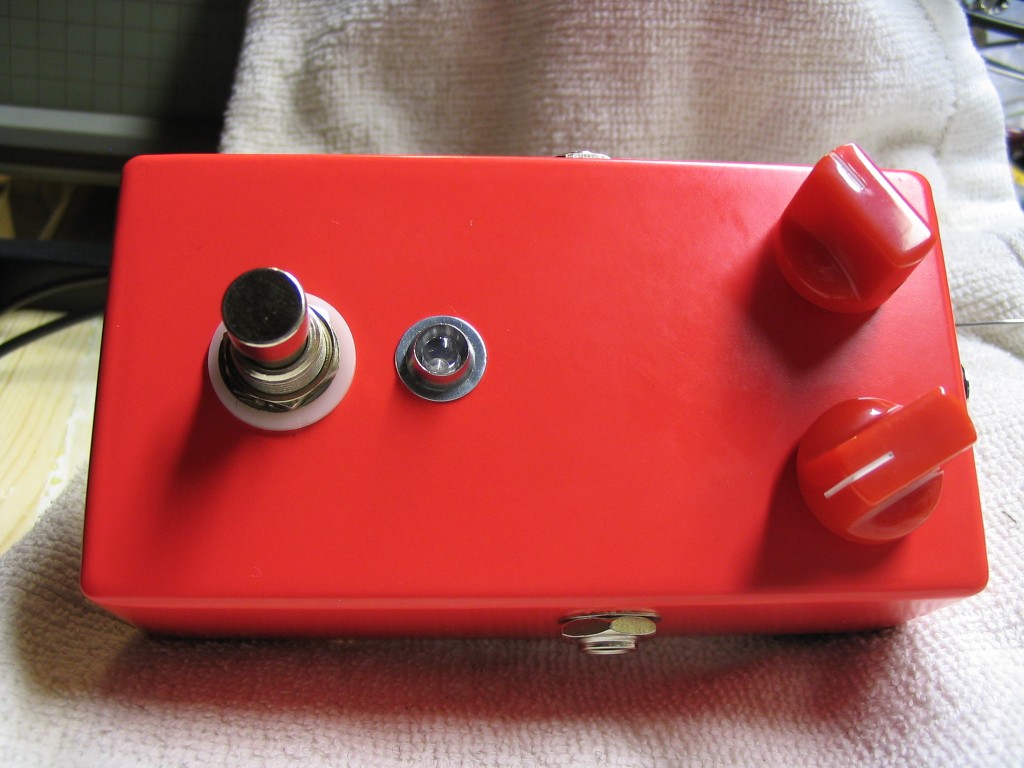

Home-brewed (including laying out and etching the board). WAYYYYYYYYYYYY too many hours - don't try this at home.
My only excuse is that i can't justify $400 for a real one.
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 07/05/2008 : 03:52:01
|
Hi Laurie
Too Cool...
You get my first Banana-Lama.
Now you know how time consuming.
But ultimately rewarding it all is.
So how well does it work? & other Techie questions.
====Shameless plug====
You are welcome to mail me an un-drilled PCB ...
====end Shameless plug====
Did you ever see my Home brew MXR DynaComp Cone?
Some of the pics are a little blurry, I didn't have a Macro mode on
my older digital camera.
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=2729&whichpage=1
Regards Dr. Bob
|
 |
|
|
DarrinPA
Silver Member
USA
221 Posts |
Posted - 07/05/2008 : 20:14:24
|
Is that the silver screw version?  If you had to out a price on it, how much [including labor] do you think it's worth? Maybe you could start a small company that sells to people like us who don't want to pay $400 also.
And yes a Banana llama from me also.
|
|
|
|
FRANZONI
Double Platinum Member
Ireland
3543 Posts |
Posted - 07/05/2008 : 22:38:23
|
your gonna have to move to south america with all the llamas..........excellent job...... |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/06/2008 : 01:09:05
|
Thanks guys! I'll be starting a llama farm next week...
Actually... BYOC have a thing called a "lazy sprocket" kit. You can buy them pre-assembled. http://www.buildyourownclone.com/lazysprocket.html
I couldn't compete with them for price cause they do it for a living
If anyone is interested in the PCB artwork to make your own, I can send a copy - just PM me. FYI - it is true-bypass (so no flip-flop in the circuit).
How does it work? I have never heard a Boss one, but the clone does what the real one is described to do. Sensitivity works exactly like you would expect. Attack adjusts from 0 to about 350ms. Playing single, distinct notes works really well. Fast runs don't work well - as expected (the swell circuit stays "energised" unless you have low/zero volume "space" in the incoming signal for the capacitor to discharge).
Didn't really understand the Boss service notes about adjusting the trimmer, so I adjusted it until the output signal started to fall then backed it off a fraction. Seems to work just fine.
Hardest thing was finding the 0.68µF electrolytic - can't buy them here (easily - they can be ordered!), so had to recover one from an old junk stereo. I used a 2SK30A FET I bought from Thailand - I bought a lot of 10 of them some time ago. I expected them to be out-of-spec, but trying an ex-Boss one (left over from my true-bypass mod on the SD-1) there was no difference. I used BC547 GP small signal transistors for the NPN transistors - no problems.
|
Edited by - Laurie on 07/06/2008 01:37:37 |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 07/06/2008 : 07:42:39
|
Damn, sweet Laurie!
I want one.. |
|
|
|
the-destructor
Silver Member
USA
334 Posts |
Posted - 07/23/2008 : 23:38:01
|
Hi Laurie,
JUST caught this thread. DAMN nice!!! I will, however, forgoe the "banana llama", and instead launch 100 flaming hamsters in a celebratory gesture in your general direction.
YOU ASKED FOR 'EM!
Watch the Canuck skies tonight, those aren't falling stars you're seeing.
Definitely better than my $15 Behringer clone. Hats off to you & congrats. Nice job!!!
I'm in line with the rest, build me one. Screw BYOC, I want (LBMP) Laurie Built My Pedal.
T-D |
Edited by - the-destructor on 07/23/2008 23:48:34 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/24/2008 : 00:41:25
|
You know, if a few people actually do want one of these(?), i could set up a small production run. I'd do them in a black case with black knobs (just like the red one above, but black) - to keep with the SG-1 theme. No screen printed label on the front or anything, and I'd put a 3mm LED in because the 5MM one in a fat silver bezel looks a bit tacky to my eye.
Like the FA-1 I'm looking at building, these would be about $100 plus shipping (trust me - that won't make me a millionaire, it is just the component cost plus a little beer money for the effort).
|
|
|
|
sp-1
Platinum Member
Germany
1454 Posts |
Posted - 07/24/2008 : 09:40:33
|
I missed this thread also somehow.
Looks very nice Laurie  |
|
|
|
Sray10
Silver Member
USA
150 Posts |
Posted - 08/09/2008 : 00:49:37
|
Wow, looks good...but shouldn't it be so dark brown it looks black in color.... I made a couple of A/B boxes, but that's as far as my skills go...( so far ) hey I got one about a month ago for under around $300
yea I'm a sucker for a vintage boss petal....but I absolutely love  the SG-1. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 08/09/2008 : 04:05:46
|
quote:
Originally posted by Sray10
Wow, looks good...but shouldn't it be so dark brown it looks black in color.... I made a couple of A/B boxes, but that's as far as my skills go...( so far ) hey I got one about a month ago for under around $300
yea I'm a sucker for a vintage boss petal....but I absolutely love the SG-1.
Thanks! yeah... the next one (if there is one) would be in a black housing with white pointer black knobs.
|
|
|
|
starr36
Platinum Member
Canada
1172 Posts |
Posted - 09/05/2008 : 17:37:54
|
| WOW... if there ever was a reason to order 'blank' cases from boss that only have the two pot holes in them. Having said that, your Red Box is TOTALLY TOTALLY boutique and understated. remarkably cool. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 09/05/2008 : 17:53:39
|
| THanks |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/24/2009 : 16:49:43
|
G'day! Just reviving this thread to mention that I will be redesigning this SG-1 clone to a "standard" size - which will let me add a battery in the box. It will be a "standard" boutique pedal.
I've tried it side-by-side with my real SG-1 and you really can't tell the difference.
I'll post some pics when I have the new prototype finished. I'm building a couple in the New Year for friends locally. If you are interested in one, let me know and I'll tag one for you.
|
|
|
|
hateandwar
Gold Member
Australia
524 Posts |
Posted - 11/25/2009 : 23:13:25
|
| Hey mate ill be interested in one of these. I don't think ill want to keep my original on my board when I get it |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 11/26/2009 : 00:01:58
|
| your work looks great,you just need some cool graphix on the pedals |
|
|
|
