 need a little CS-3 help		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

gonzofonts
Copper Member

11 Posts
Posted - 09/06/2008 :  23:36:46  Show Profile  Reply with Quote
Can someone post some detailed internal pics of the Boss CS-3?

I found this thread:

http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4147&whichpage=2

but it does not show me what I need to know.

What I need to know is... There is a wire that goes to Pad 13. It is a blue wire. I think that the blue wire goes to the power jack but I am not 100% sure.

Thanks in advance.

GF
Edited by - gonzofonts on 09/06/2008 23:44:58

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 09/07/2008 :  00:15:34  Show Profile  Visit Laurie's Homepage  Reply with Quote

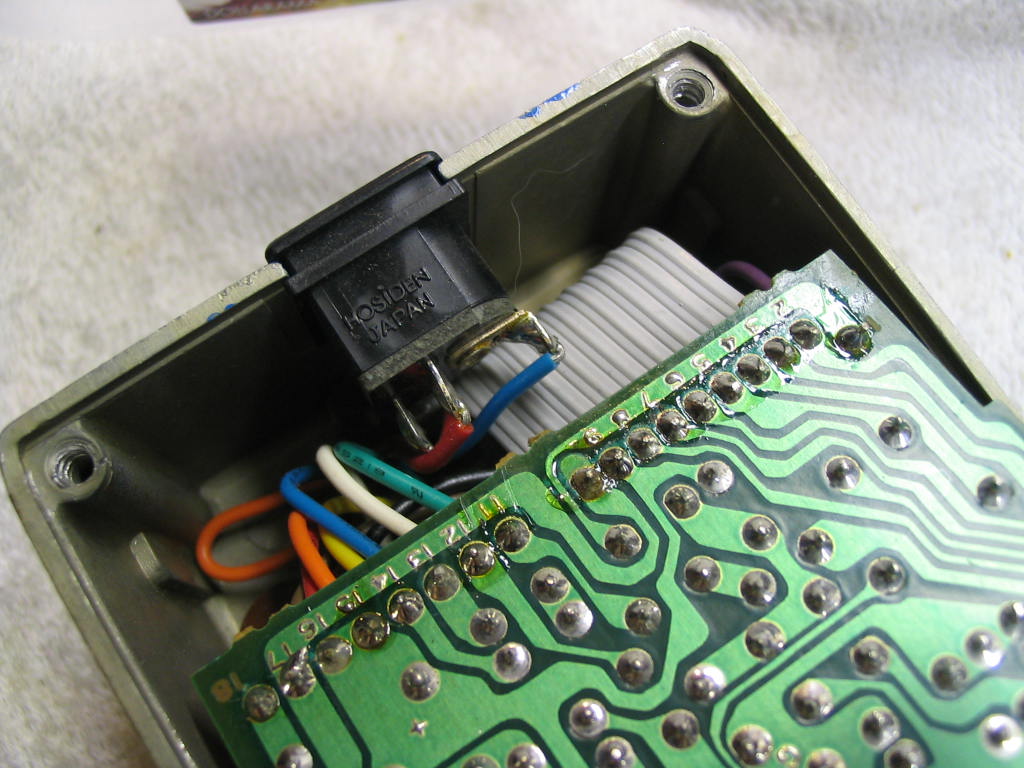

Here you go!
That blue wire on the power jack comes directly from terminal 13.
