hot tubes
Silver Member
Canada
162 Posts |
 Posted - 09/27/2009 : 00:10:57
|
i want to cange the chip on a CE-2 , i open it up to find 4 chips on the board , so my question is what one do i change ? or can i cange them all for better results ?
im going to install a BURR BROWN & socket etc.
thanks for any help .. |
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/27/2009 : 00:44:04
|

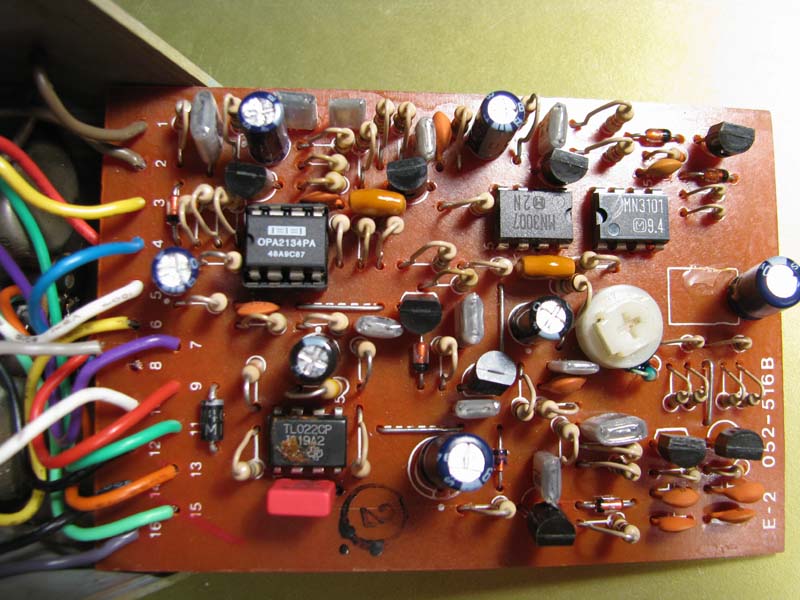

You mean like this?
Download Attachment:  CE2AA59.jpg
103.58 KB |
 |
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/27/2009 : 00:48:02
|
| Don't mess with the MN3007 or the MN3101 - those are the bucket brigade delay chips. The other opamp is involved in the rate and depth controls. No need to touch that one, either. The guitar audio goes through the one that has been changed in the picture above. That's the one people change out to make it more "high fi", etc. |
|
|
|
hot tubes
Silver Member
Canada
162 Posts |
Posted - 09/27/2009 : 01:59:39
|
hey thanks alot , thats the one !
i will just change that one only , thanks for the tip and pic !!
is there any other cap changes you could do to improve this pedal ? |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 09/27/2009 : 10:33:12
|
That Burr Brown 2134 chip is also part of the Monte Allums mod and quite frankly I thought it sounded like crap.
It changed the sound of the pedal too much for my ears, so I put the stock chip back in and liked it much better.
You may like it or not, your choice off course. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 09/27/2009 : 16:49:33
|
quote:
Originally posted by Dirk
That Burr Brown 2134 chip ... quite frankly I thought it sounded like crap.
Yeah, that's my experience too. I haven't left one of the BB chips in any pedal I've either modded or made. Just seems to suck the life out of it with the HiFi transparency.
YMMV of course  |
|
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/27/2009 : 18:14:04
|
| I wouldn't mind a mod that makes the CE-2 rate go faster, but I haven't messed it one yet. I usually "un-mod" pedals that I get that have been modded. |
|
|
|
hot tubes
Silver Member
Canada
162 Posts |
Posted - 09/27/2009 : 18:53:14
|
WOW ! REALLY .....
i was under the impression that the BB chips were some of the best
around for modding etc ....how come you guys don't like them ? |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 09/27/2009 : 20:27:02
|
I thought it sounded way too hifi, it was quite disapponting to my ears.
Which to some degree is a good thing, I then realized I like the old analog, non-hifi sounding pedal better
I don't mean to say that the BB 2134 is bad, on the contrary, I put it in another pedal and I love it there, I just don't like it in the chorus, it transformed the pedal too much into something I didn't like.
When MA claims that it turns a "great sounding analog chorus 10X better!" in my opinion that's just misleading advertisement. |
|
|
|
hot tubes
Silver Member
Canada
162 Posts |
Posted - 09/27/2009 : 21:49:08
|
could you get me going in the right direction , is there other things to change in this pedal that will help improve the overall
sound and tone etc.
thanks again for all the tips on this one ..... |
|
|
| |
