 Posted - 11/15/2008 : 15:32:42
|
Hi,
I've just acquired another early DS-1 from eBay. Totally mint, with box and manual, for �31. I couldn't believe it when it turned out to be a very early version, with skeleton switch and prototype circuit board.
Anyway, when I'd calmed down, I took some pics to compare with my other, slightly later DS-1.

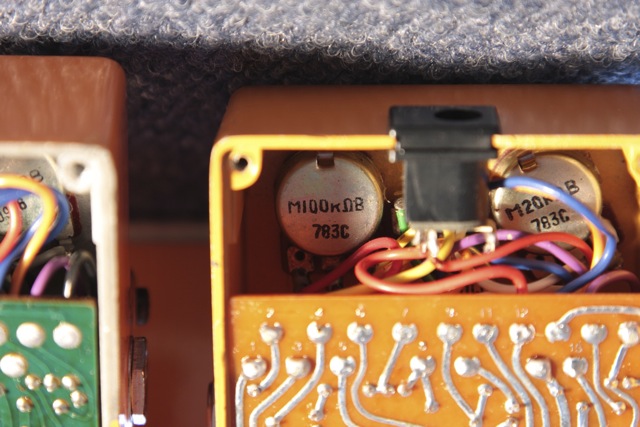

I'm wondering if the number on the pots, is a date code i.e '78
as that is the date given by the serial number decoder.
|
|
|
verivorax
Platinum Member
Canada
1185 Posts |
Posted - 11/15/2008 : 16:28:43
|
I always find pot and IC date codes comply roughly with the serial decoder.. Also remember the "sales dates" will be later than "production dates" - as the TW-1 exists in #7200 while it was not sold until the next month.. (per the data)
I like how the entire chassis is painted orange.. |
 |
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 11/15/2008 : 20:08:58
|
I assume the one on the left the older unit.

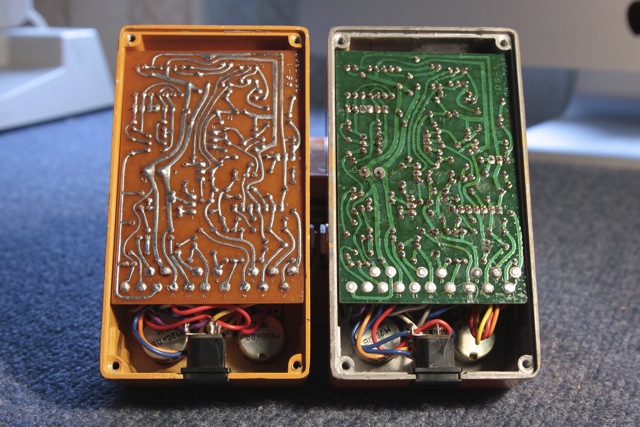

It has full solder traces as opposed to pcb traces with solder pads!
Wow, what a jump in technology eh?
Damn, now everything is micro-nano.. I like the 50s-70s era electonics, the 30s & 40s were too ancient. |
|
|
|
stomper
Copper Member
USA
37 Posts |
Posted - 11/15/2008 : 20:32:15
|
| So how do they compare in tone? |
|
|
|
gurran1928
Gold Member
Sweden
650 Posts |
Posted - 11/16/2008 : 01:37:16
|

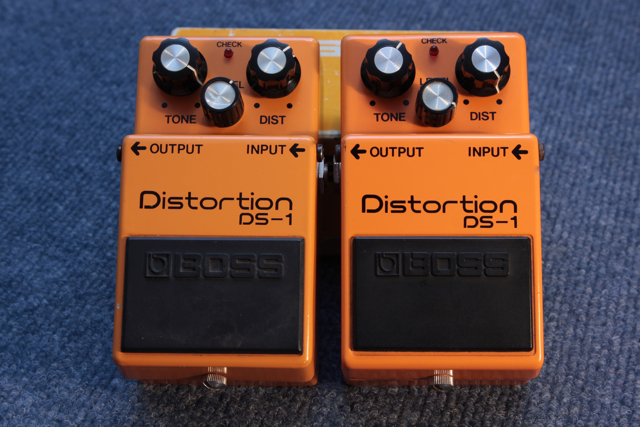

| Can we see the front of them? |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 11/16/2008 : 02:04:34
|
| wow the one on the left looks like it was done buy hand |
|
|
|
stahlhart
Platinum Member
1318 Posts |
Posted - 11/16/2008 : 06:28:16
|
Just out of curiosity, what was the month of the date code on yours?

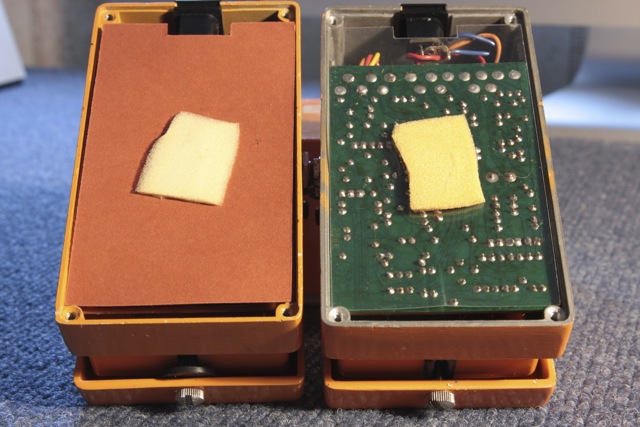

Mine was 11/78 (7600), and looks pretty much identical. I've got the painted bottom edge, but the foam pad is stuck to the board on mine, not the fish paper.
Those are not date codes on the pot, I don't think -- one of mine is designated J81F.
Did your bottom plate screws come with lockwashers?
|
|
|
|
ftwizard
Copper Member
United Kingdom
22 Posts |
Posted - 11/17/2008 : 20:27:23
|

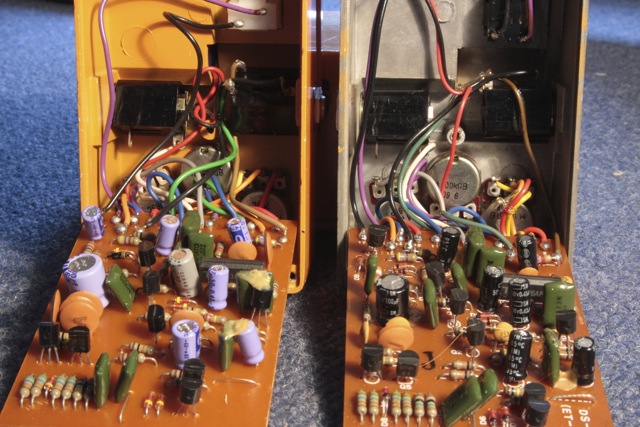

I haven't had time to side by side them for tone yet, but I'd be surprised if there was much difference, as apart from the input resistor, the components are pretty much identical. But I will try it out and let you know.
I need to take a few more pics, serial number etc.
I wondered about the pot codes, as normally they seem to be just a random selection of letters and numbers, but these seem different, and the year would be right. Maybe, maybe not.

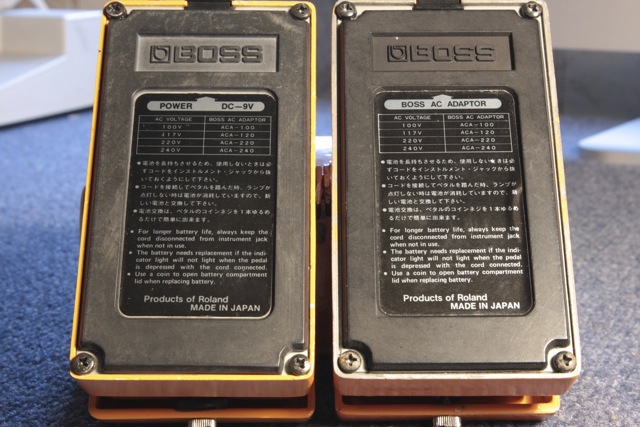

The screws on the back plate had the standard washers, three of one and one of the other, always find that a bit strange.
|
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 11/18/2008 : 02:03:17
|
| I would think the other one would sound better |
|
|
|
ftwizard
Copper Member
United Kingdom
22 Posts |
Posted - 11/18/2008 : 19:36:35
|
quote:
Originally posted by zerksies
I would think the other one would sound better
Why do you think that? |
|
|
|
Mesjoggah
Gold Member
Netherlands
595 Posts |
Posted - 11/18/2008 : 21:15:59
|
 i think i was bidding on that one too..
nice find! |
|
|
|
ftwizard
Copper Member
United Kingdom
22 Posts |
Posted - 11/21/2008 : 23:29:21
|

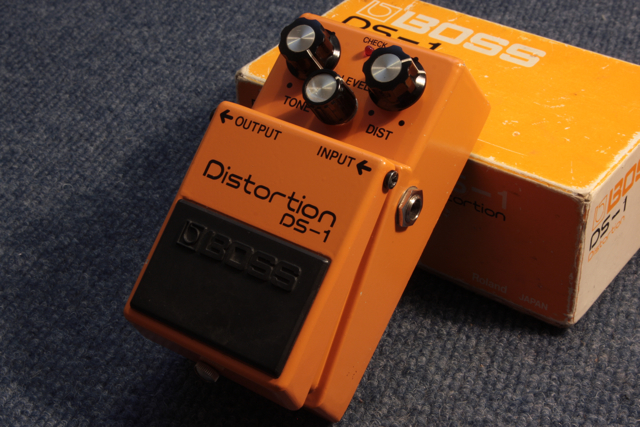

A few more pics. I've just noticed that the box also has the long dash, compared to the later version.
|
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 11/22/2008 : 00:03:59
|
quote:
Originally posted by ftwizard
quote:
Originally posted by zerksies
I would think the other one would sound better
Why do you think that?
Usually older gear sounds better.the one on the left looks like it was done buy hand the other is a pcb board |
|
|
|
Big Boss Man
Gold Member
USA
564 Posts |
Posted - 11/22/2008 : 02:27:28
|
| Nice DS-1s. They both look almost new. |
|
|
| |
