 Posted - 10/31/2008 : 14:36:46
|
Maybe this thread has been made already, but I have not seen it and have read all pages. But there was a lot to go thru, so I apaologise if this has been done before.
Anyway. I thought that the time has come to share our favourite settings on our pedals, or our favourite settings for a sertain kind of sound.
I hate rules, but I think that it�s a must if this will work.
So:
Write all settings as a clock and write down the controls from left to right like this:
SD-1 (natural cruch)
Level: 12
Tone: 12
Drive: 12
12 in this case means that the pointer is right up or 50% if you like. But I prefer the clock cause its always easy to understand. If there is a mode-switch it works too.
Looking forward to your shared settings!  |
Edited by - Shoegazers Anonymous on 10/31/2008 14:37:16 |
|
|
Plush Pile
Bronze Member
Australia
93 Posts |
Posted - 10/31/2008 : 15:06:07
|
All levels are o'clock eg 8.5 = 8:30
SD-1:
Level: 5
Tone: 11
Gain: 8
HM-2:
Level: 12.5
Low: 2.5
High: 1.5
Dist: 8.5
The following are all stolen from another forum
==============================
BOSS MT-2 Distortion Pedal
==============================
Metallica
LEVEL 12:00
LOW 5:00
HIGH 11:00
MID-FREQUENCY 9:00
MID 7:00
DIST 5:00
------------------------------
Trash Metal
LEVEL 1:00
HIGH 12:00
LOW 3:00
MID-FREQUENCY 10:00
MID 8:00
DIST 12:00
------------------------------
Deftones
LEVEL 12:00
HIGH 12:00
LOW 3:00
MID-FREQUENCY 9:00
MID 12:00
DIST 12:00
------------------------------
Loud
LEVEL 12:00
HIGH 12:00
LOW 5:00
MID-FREQUENCY 10:00
MID 7:00
DIST 12:00
------------------------------
Agressive Metal
LEVEL 12:00
HIGH 3:00
LOW 5:00
MID-FREQUENCY 4:00
MID 4:00
DIST 11:00
------------------------------
Heavy Metal
LEVEL 12:00
HIGH 3:00
LOW 3:00
MID-FREQUENCY 3:00
MID 10:00
DIST 9:00
------------------------------
British Rock
LEVEL 12:00
HIGH 5:00
LOW 7:00
MID-FREQUENCY 1:00
MID 7:00
DIST 11:00
------------------------------
Overdrive
LEVEL 12:00
HIGH 9:00
LOW 9:00
MID-FREQUENCY 12:00
MID 3:00
DIST 9:00
------------------------------
Fuzz
LEVEL 12:00
HIGH 2:00
LOW 12:00
MID-FREQUENCY 3:00
MID 3:00
DIST 12:00
------------------------------
Hard Rock
LEVEL 12:00
HIGH 2:00
LOW 2:00
MID-FREQUENCY 10:00
MID 4:00
DIST 12:00
------------------------------
Rock'n'Roll
LEVEL 12:00
HIGH 3:00
LOW 7:00
MID-FREQUENCY 12:00
MID 1:00
DIST 9:00
------------------------------
Death Metal
LEVEL 12:00
HIGH 12:00
LOW 3:00
MID-FREQUENCY 10:00
MID 7:00
DIST 12:00
------------------------------
Slayer
LEVEL 12:00
HIGH 3:00
LOW 5:00
MID-FREQUENCY 1:00
MID 7:00
DIST 12:00
------------------------------
Warm Overdrive
LEVEL 2:00
HIGH 11:00
LOW 5:00
MID-FREQUENCY 3:00
MID 11:00
DIST 8:00
------------------------------
Punk/Thrash/Grunge
LEVEL 2:00
HIGH 5:00
LOW 5:00
MID-FREQUENCY 12:00
MID 7:00
DIST 3:00
------------------------------
Nirvana
LEVEL 3:00
HIGH 5:00
LOW 5:00
MID-FREQUENCY 5:00
MID 5:00
DIST 12:00
------------------------------
Fat Metal
LEVEL 12:00
HIGH 3:00
LOW 3:00
MID-FREQUENCY 1:00
MID 10:00
DIST 5:00
------------------------------
70s Power Rock
LEVEL 12:00
HIGH 12:00
LOW 2:00
MID-FREQUENCY 10:00
MID 12:00
DIST 5:00
------------------------------
Korn
LEVEL 12:00
HIGH 11:00
LOW 12:00
MID-FREQUENCY 10:00
MID 7:00
DIST 12:00
------------------------------
Heavy Metal #2
LEVEL 10:00
HIGH 1:00
LOW 4:00
MID-FREQUENCY 2:30
MID 2:30
DIST 10:00
------------------------------
Metallica #2
LEVEL 12:00
HIGH 3:00
LOW 5:00
MID-FREQUENCY 1:00
MID 7:00
DIST 5:00
------------------------------
Metallica #3
LEVEL 10:00
HIGH 10:00
LOW 5:00
MID-FREQUENCY 5:00
MID 5:00
DIST 1:00
Most of those settings sounded pretty good in front of my solid state amp, but pretty average in front of my tube amp - just a heads up.
|
Edited by - Plush Pile on 10/31/2008 15:37:46 |
 |
|
|
Shoegazers Anonymous
Silver Member
Sweden
257 Posts |
Posted - 10/31/2008 : 15:12:38
|
Cool!
Thanks for the other tips.
Just a question. When you write Level: 7 to me it sounds like the level is set at zero. Is it possible that you mean 5 instead - at maximum?
quote:
Originally posted by Plush Pile
All levels are o'clock eg 8.5 = 8:30
SD-1:
Level: 7
Tone: 11
Gain: 8.5
|
Edited by - Shoegazers Anonymous on 10/31/2008 15:14:07 |
|
|
|
Plush Pile
Bronze Member
Australia
93 Posts |
Posted - 10/31/2008 : 15:38:25
|
Thanks for picking that up.
Yes, I mean 5 o'clock MAX POWER
I've been up too long studying (it's 1.30 over here on a friday night and I'm not at the pub  )
|
|
|
|
Right Foot Boss
Gold Member
USA
881 Posts |
Posted - 10/31/2008 : 15:46:53
|
CE-2
Rate: 11 o'clock
Depth: Max |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 10/31/2008 : 22:15:52
|
tr-2
rate 10
wave 2
depth 3 |
|
|
|
Ollie
Gold Member
United Kingdom
729 Posts |
Posted - 10/31/2008 : 23:41:16
|
tr-2
Rate = 2 o'clock
Wave = 7 o'clock
Depth = 2 o'clock |
|
|
|
Fabius
Silver Member
320 Posts |
Posted - 11/01/2008 : 11:10:57
|
My reply is on Fabius' style (noblesse oblige):

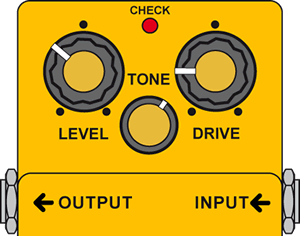

OD-3
Level 10 oc
Tone 1 oc
Drive 9 oc

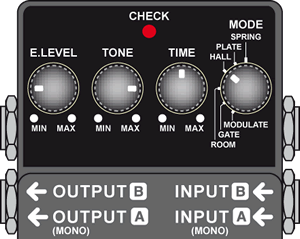

RV-5
E-Level 9 oc
Tone 3 oc
Time 12 oc
Mode Hall
These settings are intended to be used at home, believe me or not I haven't try my p.b. live yet!
These times are intended +1 on Greenwich time (Rome, Paris, etc.)
"No Animals Were Harmed� on the creation of these pedals.
I will not reveal my TU-2 settings!  |
Edited by - Fabius on 11/01/2008 11:13:03 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/01/2008 : 11:34:28
|
Hi Fabius
quote:
I will not reveal my TU-2 settings!
OK - OK... But will you be kind enough to tell us your PSM-5 settings?
The Graphics are great Fabius
Regards Dr. Bob |
|
|
|
Fabius
Silver Member
320 Posts |
Posted - 11/01/2008 : 11:54:54
|
quote:
Originally posted by Dr. Bob
OK - OK... But will you be kind enough to tell us your PSM-5 settings?
Eheheheh... I can't 'cause I haven't.
quote:
The Graphics are great Fabius
Thanks
but I could do more better if I have the original Boss fonts for the pedals titles and if I'll find the way to do a good dither on the inside of the knob, as the gold in the OD-3 or TR-2 or the silver in the others.
Back on topic!!! |
Edited by - Fabius on 11/01/2008 11:55:51 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/01/2008 : 13:56:27
|
quote:
OK - OK... But will you be kind enough to tell us your PSM-5 settings?
Someone once found out what I had all my PSM-5 knobs set to, and I had to kill him |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/01/2008 : 13:58:09
|
quote:
Originally posted by Dr. Bob
The Graphics are great Fabius
Yes - fantastic work on the graphics Fabius! Do you have any more pedals drawn, or just those two?
EDIT: nevermind! I just found the thread with the graphics! Thank you Fabius! Very much appreciated!
|
Edited by - Laurie on 11/01/2008 14:05:59 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/01/2008 : 14:03:27
|
This is WAY off topic, but here goes... My favorite settings for an SD-1.
Take a soldering iron and do the following (it won't matter what you set the knobs to afterwards, it will sound good!)
C1: 1�F
C2: 0.056�F
C3: 0.22�F
C4: 0.147�F (0.1�F + 0.047�F in parallel)
C5: 0.147�F (0.1�F + 0.047�F in parallel)
C7: 22�F tantalum
C8: 22�F tantalum
C10: 22�F tantalum
R5: 10K
R6: 1K
R7: 1K
R9: 1K
R10: jumper
R11: 1K
R16: jumper
R17: 470K
Drive pot: 100K LOG
Tone pot: 5K LIN
Level pot: 100K LOG
C6: remove
C-NEW: 0.47�F monoblock across C11 (stabilizes 4.5V rail)
R4: 1M
R18: 10k (stabilizes 4.5V rail)
R19: 10k (stabilizes 4.5V rail)
R30: 6k8 (for LED)
LED: BRIGHT WHITE
From this thread: http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4346
|
|
|
|
FRANZONI
Double Platinum Member
Ireland
3543 Posts |
Posted - 11/01/2008 : 14:38:16
|
Hi all
CS-3
.................
Volume.... 3 o'clock
Tone.... 1 o'clock
Attack....5 o'clock..(all the way)
Sustain.... 10 o'clock
CE-2
.............
Rate... 10'o clock
Depth..... 3 o'clock
TR-2
..............
Rate... usually around 10 o'clock
Depth.... 3 o'clock
Wave.... 1 o'clock
DD-3's
...............
E.Level on both about 10'clock
F.Back..... 10 o 'clock (although i do change all the settings on the newer one for multi taps and deeper echo and repeats for some of the 80's stuff on gigs)
D.Time... usually No.1 set at around 10'clock and No.2 at around 2 o'clock cascading one into the other for satriani type ambience instead of reverb....although for the rockabilly/country stuff i set the older one onto the 200 ms setting with ..
Effect... 11 o'clock
F.Back... 0
D.Time.... 1 o'clock
the newer one is my 'multitap' pedal for gilmour/Edge type delays as i find it a cleaner sounding echo than the older one with is more analog to my ears,the LS-2 level controls for the loops are set at around 1 o'clock........
|
Edited by - FRANZONI on 11/01/2008 14:40:45 |
|
|
|
Shoegazers Anonymous
Silver Member
Sweden
257 Posts |
Posted - 11/02/2008 : 14:24:06
|
Hi Fabius!
I have never said this before, but you do an awasome job on that graphocs!
For me it would be heaven on earth to have those for all pedals to write down a settings-list for all pedals at the board, so even a roadie could set the pedals as they should be after adjusting themselves on transport to gigs.
I have noticed that you have a own thread with pedals on the forum. But is it possible to make these "settings-memo" pics too? And in a way to set the marker (but that can be written on a printed paper, so that would not be a problem)
Do you have these? Or can I "buy" them somewhere?
I hope that I have explained it so that you understand. My english is not that good always.
Short, I think that have pics like the one you posted below for each pedal wold be perfect for a controlfreak like me.
quote:
Originally posted by Fabius
My reply is on Fabius' style (noblesse oblige):
OD-3
Level 10 oc
Tone 1 oc
Drive 9 oc
RV-5
E-Level 9 oc
Tone 3 oc
Time 12 oc
Mode Hall
These settings are intended to be used at home, believe me or not I haven't try my p.b. live yet!
These times are intended +1 on Greenwich time (Rome, Paris, etc.)
"No Animals Were Harmed� on the creation of these pedals.
I will not reveal my TU-2 settings!
|
|
|
|
Fabius
Silver Member
320 Posts |
Posted - 11/02/2008 : 17:29:59
|
Thanks Shoegazers,
any job I do, I do with passion, otherway I dont!
Don't be afraid of your english mine it's absolutely the baddest of this forum.
As I wrote in a post days ago I haven't problem to create a sort of memo-board to write settings, but there are other sorts of problem:
- I can't create ANY kind of Boss pedals 'cause I didn't ALL pedals: some are very laborious and hard to do.
- I could create three, four prototypes of the basic pedals: three knobs, four knobs and so on... but also in this way there are problems, for example OD-3, DS-1 and CS-2 are both 3 knobs but OD-3 has (left to right) Level, Tone, Drive; DS-1 has Tone, Level, Dist; and CS-2 has Level, Attack, Sustain. I can't continues for many other pedals, without mention four knobs pedals (DD-3, RV-5, etc.).

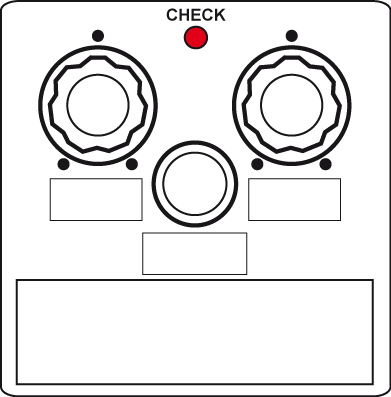

The only solution that I can find at now is something like this:
In the three small boxes you can write the name of the effect
In the big box you can write the name of the pedal
In the three knobs you can draw a line as you set in your pedal
|
|
|
|
