Dr. Bob
Moderator

Australia
6593 Posts
Posted - 10/21/2008 :  14:18:36  Show Profile  Visit Dr. Bob's Homepage  Reply with Quote
Hi Guys
I mentioned that I have one of these pedals a long time ago.
In my pre-moderator days.

I seem to remember that Whurly & some other member here had one as well.

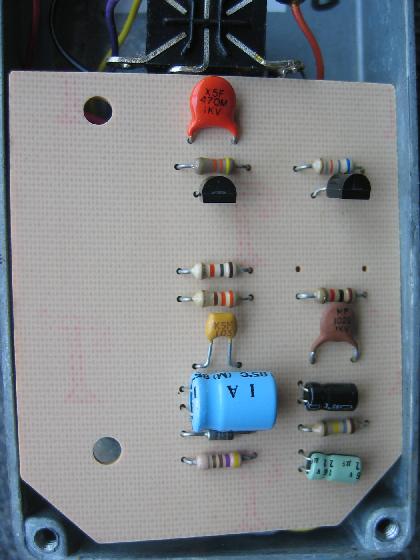

I need some internal pics of the PCB
Mine appears to have a component missing, either by design or poor workmanship.
I am trying to find out if it was by design.

The link to all the pics is here:
http://filters.muziq.be/model/dunlop/hendrix/fuzzunit

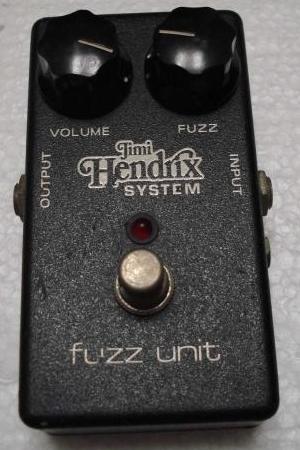

And below are two pics of the unit, including the PCB"



Any Help would be appreciated

BTW, MXR Dunlop in their wisdom have two different pedals with the same model number JH-2S ...

Regards Bob

starr36
Platinum Member

Canada
1172 Posts
Posted - 10/21/2008 :  20:58:21  Show Profile  Visit starr36's Homepage  Reply with Quote
I am laughing my head off looking at that PCB 15 components and one spot glaringly possibly missing a component ... gotta love the qc guys in the 70's ...

heh heh ... but seriously you forgot to mention if your pedal WORKS or not.
