 Posted - 06/25/2008 : 04:26:58
|
Not having any trouble with an EH-2, but just bought one and am curious about how it works. Can't find the schem at any of the usual locations.
Thanks in advance,
Laurie. |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 06/25/2008 : 10:41:17
|
Hi Laurie
Check your PM.
Your getting old man...
Regards Dr. Bob |
 |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 06/25/2008 : 15:57:58
|
| Thank you kindly! |
|
|
|
Sray10
Silver Member
USA
150 Posts |
Posted - 07/21/2008 : 02:35:20
|
I have one of these, it quit working when the input jack became loose. I tighten it by still didn't work. After opening I noticed the input jack only has one lead, so I spun the jack so the other wire post hit the metal housing and that fix it. Not sure if that's it's specs I bought it used ( eBay )
I'm new here...what does PM stand for?
S. Ray |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/21/2008 : 03:16:11
|
Hi Sray10! Welcome!
PM = personal message
The input jack should have 3 or 4 wires on it... Can you send pictures of the pedal around the input jack? We can probably help you fix it. |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 07/21/2008 : 12:02:43
|
Hi Sray10
Welcome to the forum from Australia.
Regards Dr. Bob |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 07/21/2008 : 12:10:05
|
Hi Sray10 & Guys
Or:
PM -- Private Mail.
Essentially the same thing.
Regards Dr. Bob |
Edited by - Dr. Bob on 07/21/2008 12:10:31 |
|
|
|
Sray10
Silver Member
USA
150 Posts |
Posted - 07/22/2008 : 00:41:35
|
Thanks,

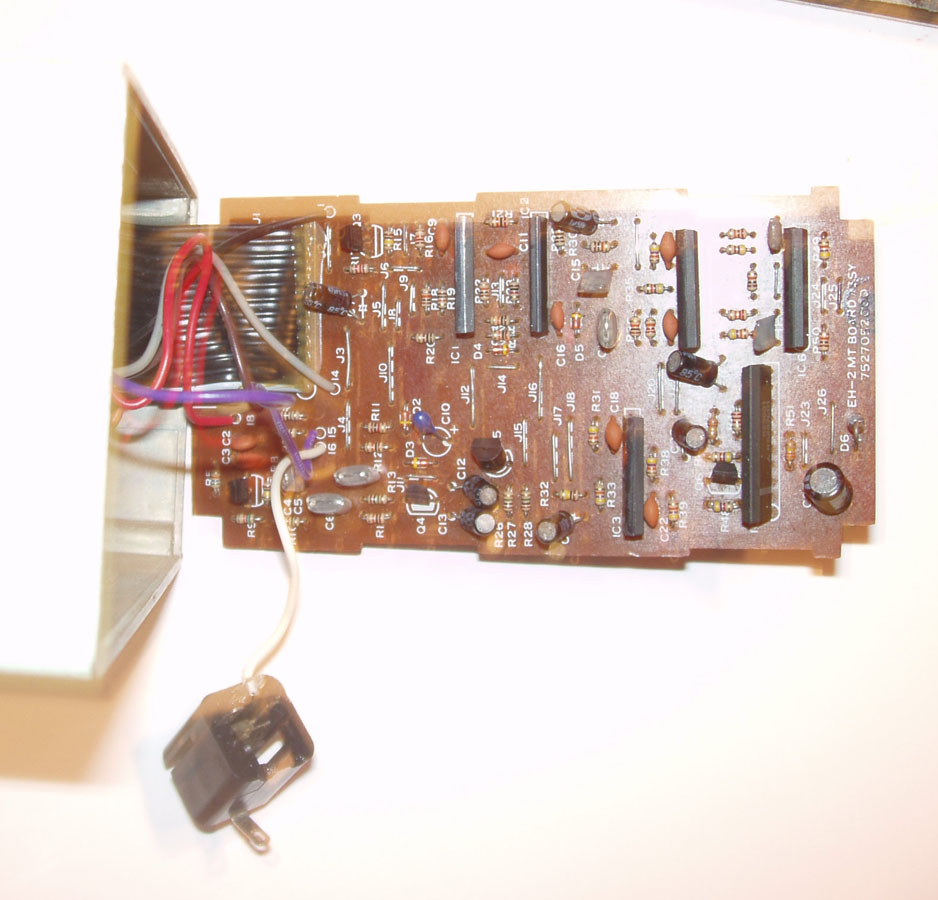

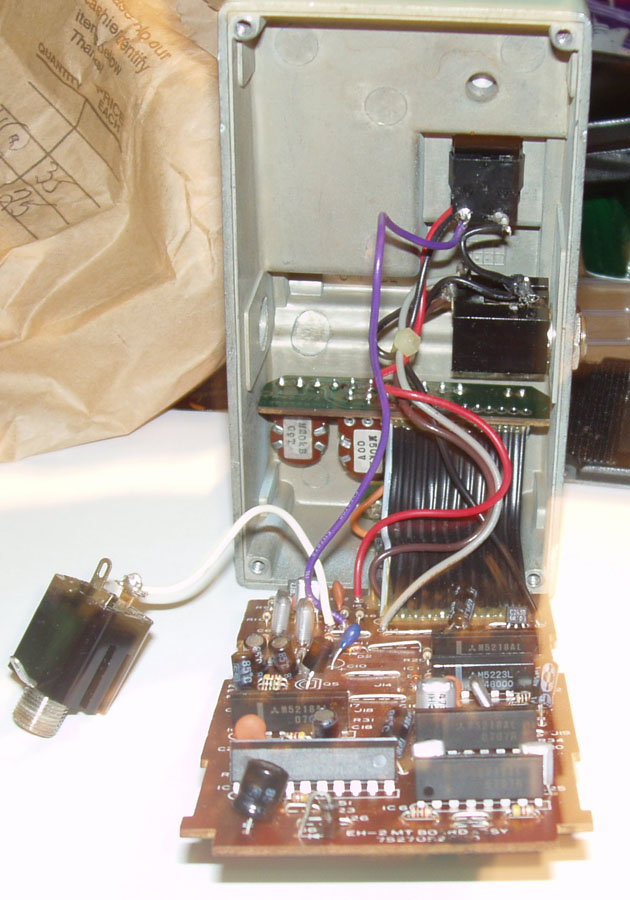

I opened it back up and I was mistaken, it is the output jack that has only one led wire.
S. Ray
Download Attachment:  LM_2_Pic2.jpg
156.14 KB
Download Attachment: LM_2_Pic1.jpg
156.14 KB
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/22/2008 : 01:14:16
|
quote:
Originally posted by Sray10
Thanks,
I opened it back up and I was mistaken, it is the output jack that has only one led wire.
S. Ray
Download Attachment: LM_2_Pic2.jpg
156.14�KB
Download Attachment: LM_2_Pic1.jpg
156.14�KB
One wire on the output is fine. The "sleeve" of the jack is grounded to the body of the pedal. Curious as to why it started working when you spun it around...
|
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 07/22/2008 : 09:29:29
|
Hi Sray10, Laurie & Guys
quote:
Laurie
Curious as to why it started working when you spun it around...
Perhaps it was shorting out on something?
or maybe, there was a bad ground connection through the metal case, of the pedal.
Regards Dr. Bob
|
|
|
| |
