| Author |
 Topic  |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
 Posted - 03/08/2008 : 19:46:02
|

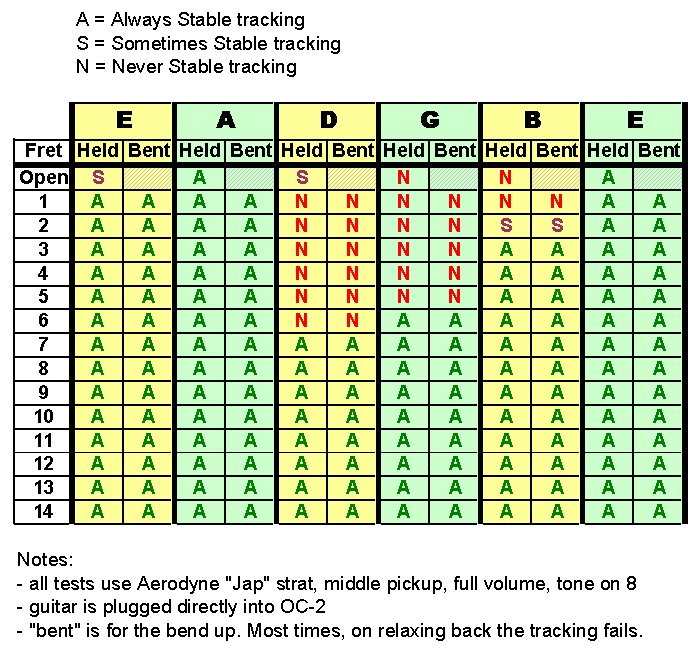

I'm providing for "reference" a chart of how well the octave oscillators track the incoming note from the guitar on my recently repaired OC-2.
|
Edited by - Laurie on 03/08/2008 19:46:28 |
|
|
sp-1
Platinum Member
Germany
1454 Posts |
Posted - 03/08/2008 : 19:49:35
|
| Interesting stuff |
 |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/08/2008 : 19:56:05
|
Yeah... from discussions with Dr. Bob, I'm led to believe this is a "good one".
I can tell you it's really fun to play with and if you run past the non-tracking notes quickly, the tracking failure isn't annoying.
|
Edited by - Laurie on 03/08/2008 19:56:26 |
|
|
|
sp-1
Platinum Member
Germany
1454 Posts |
Posted - 03/08/2008 : 20:03:10
|
I understand there are different versions of the OC-2 ? which one should be the better one ? I got two of 'm maybe I can test the tracking also.
I got a mij octaveR nov. '82 and a mit from july '90 |
Edited by - sp-1 on 03/08/2008 20:16:20 |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 03/08/2008 : 20:59:38
|
| Very interesting! I should make up a chart for the OC-3. A single-coil guitar should be better right? I think I'll use my Ric. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/08/2008 : 21:31:08
|
Yep DeFrag, single coil, probably middle pickup, no fret buzz, and I plucked with my thumb rather than a pick.
sp-1: I'm not sure about versions of the OC-2. Dr.Bob or DeFrag might be able to help? |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 03/09/2008 : 02:22:38
|
| The OC-2 had originally a much lighter non-metallic brown colour and it was labeled "Octaver". I don't think there is anything intrinsically different with the guts. Perhaps it was another legal maneuver as like the DF-2. |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 03/09/2008 : 04:42:18
|
quote:
Originally posted by lauries2
Yep DeFrag, single coil, probably middle pickup, no fret buzz, and I plucked with my thumb rather than a pick.
sp-1: I'm not sure about versions of the OC-2. Dr.Bob or DeFrag might be able to help?
Hi lauries2
try using the neck pickup & roll back the tone, so the guitars signal looks more sinusoidal.
This trick works best on my older "Tracks like Sh!t" Yamaha Effector series - Pre-Boss Octave pedal.
as for the OC-2 differences, Ssanyee posted a pic of his, that shows the PCB with 2 long 14 or 16 pin IC's
Regards Dr. Bob |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 03/09/2008 : 05:37:10
|
| I know one thing, the OC-3 seems to track a bit better with its poly mode. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/09/2008 : 08:52:20
|
quote:
Originally posted by Dr. Bob
Hi lauries2
try using the neck pickup & roll back the tone, so the guitars signal looks more sinusoidal.
This trick works best on my older "Tracks like Sh!t" Yamaha Effector series - Pre-Boss Octave pedal.
Regards Dr. Bob
G'day Dr. Bob! Thanks for the thoughts! I mucked around some more for maybe an hour trying both guitars on various settings (I have the Aerodyne strat and a PRS). This setting is the best one I've found. I think if I had a normal strat it would be cleaner? (the Aerodyne is maybe 3dB hotter than a normal USA strat)
 |
|
|
|
ronster
Gold Member
Australia
645 Posts |
Posted - 03/09/2008 : 12:19:01
|
Nice work!!! Useful info to have available
 |
|
|
| |
Topic |
|
OC-2 tracking chart
