Dr. Bob
Moderator

Australia
6593 Posts
Posted - 11/10/2008 :  07:18:48  Show Profile  Visit Dr. Bob's Homepage  Reply with Quote
Hi rhodrijen

Welcome to the forum from Australia

I have re-posted your PS-2 question from the other thread:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4147&whichpage=11

Please leave the "Internal Pictures" thread mainly for internal Pics.

Moderator.

quote:

hi i joined this forum in hope of fixing my PS-2, any chance anybody has any internal pictures of that. it would help me a lot.


Regards Dr. Bob

ssanyee
Silver Member

Hungary
288 Posts
Posted - 11/10/2008 :  11:25:07  Show Profile  Reply with Quote
Hi rhodrijen,

Welcome to the forum!

I have a PS-2, I can upload pictures about but would be better if you could describe what kind of problem does your pedal have just to create pictures more accurately about your intrests!

cheers
Go to Top of Page

rhodrijen
Copper Member

United Kingdom
5 Posts
Posted - 11/10/2008 :  18:35:56  Show Profile  Reply with Quote
im having problems with the input and output jacks, if you could take pictures of where they are soldered to on the main circuit board, it would help me greatly.

thanks very much.
Edited by - rhodrijen on 11/10/2008 18:37:52
Go to Top of Page

ssanyee
Silver Member

Hungary
288 Posts
Posted - 11/10/2008 :  21:47:58  Show Profile  Reply with Quote

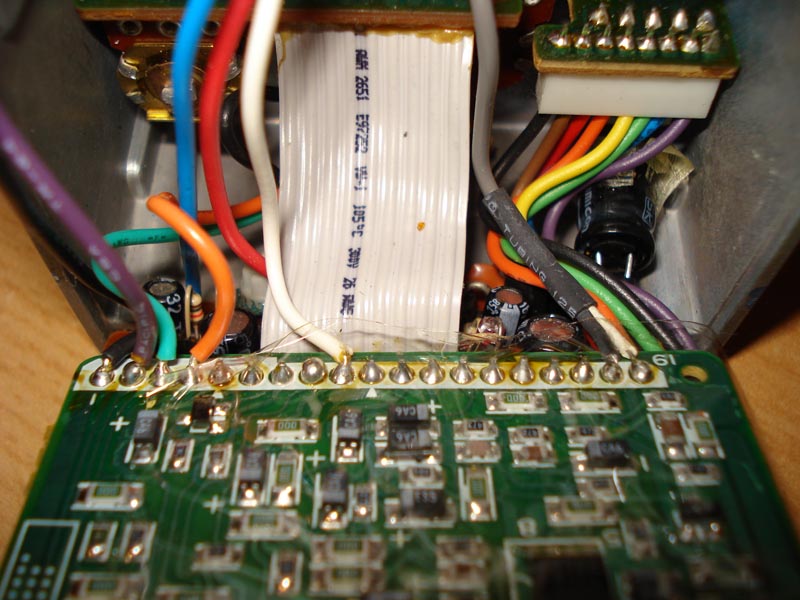

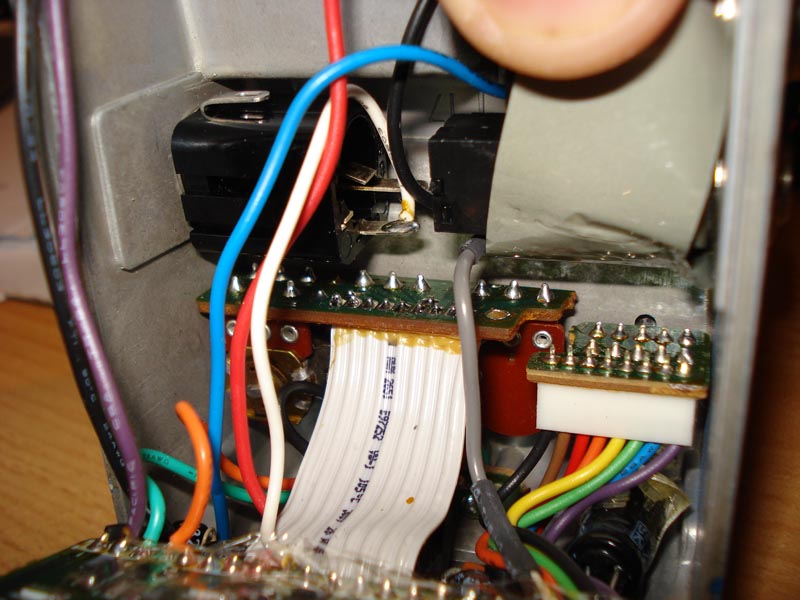

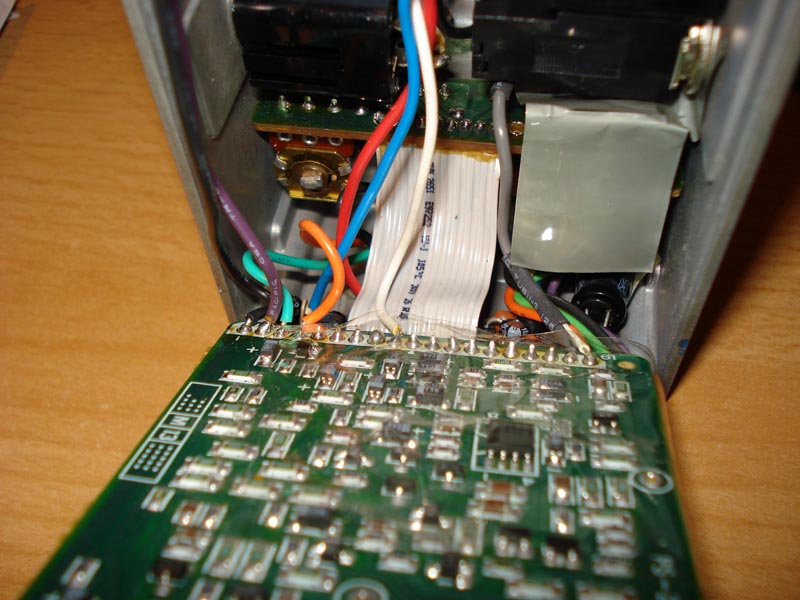

Hi, I hope these photos will help you out!





cheers
Go to Top of Page

rhodrijen
Copper Member

United Kingdom
5 Posts
Posted - 11/10/2008 :  21:54:46  Show Profile  Reply with Quote
thank you so much, thats exactly what i needed!

that has saved me aout �60 trying to get another one of these!

thanks so much for the help.
Go to Top of Page

rhodrijen
Copper Member

United Kingdom
5 Posts
Posted - 11/10/2008 :  23:38:58  Show Profile  Reply with Quote
i know this is a bit of an ask, but im still having trouble with it. ive sorted the input jack but its still not working properly.

if i could get some overall internal views it would help.

thanks so much.
