The pedal is often grounded through the input jacks or pots so if it's still spread out across the table you might experience that the voltages doesn't make sense at all.
True that. Just figured this out as I discovered the voltages are readable, and normal (as far as the voltage regulator) using the jack sleeves as a ground.

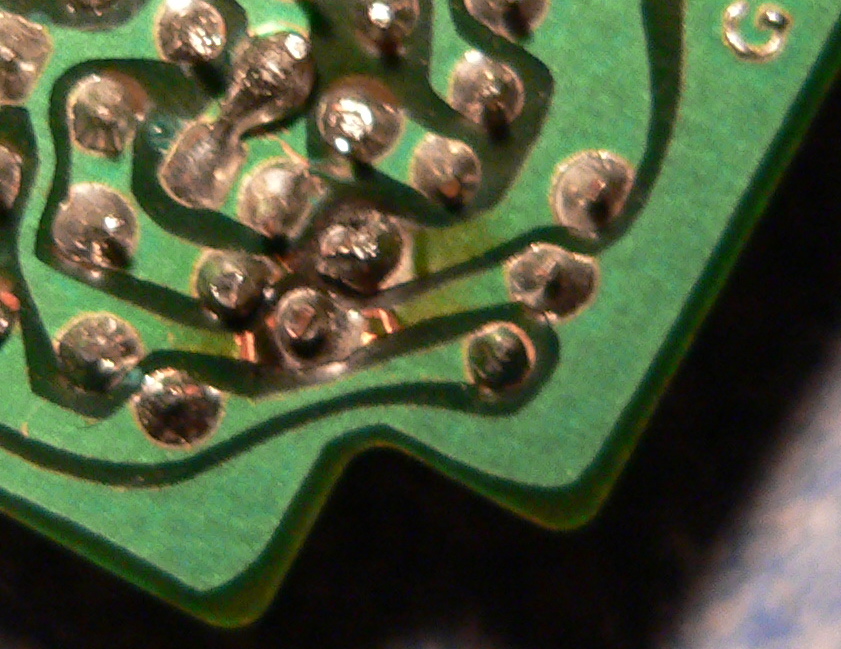

The track that connects R59 to the 9v supply had fried along with the diode. This track is very thin and runs alongside the track that connects D6. All was revealed after a damn good scrubbing with a toothbrush and some alcohol.
Check it out:
Took a bit or creative soldering to remedy but I''m very pleased with the results and the pedal is ship shape now.
New DD-2 day.
Posted - 11/28/2008 : 22:33:30
