 Posted - 11/11/2008 : 14:40:39
|
I buyed online a 1990 EH-2.
Finish is perfect, but there is something I think is a fabric problem:
The cover plate to stomp (that metal part with black rubber and input/output writing) doesn't align perfectly with the rest of the pedal.
So it looks a little "diagonal".
Is it common this kind of defect?, I never saw a Boss like this.
It's minimal, but strange anyway.
First EH-2 are better then late ones?
I'm thinking about give this away and find another... |
|
|
verivorax
Platinum Member
Canada
1185 Posts |
Posted - 11/11/2008 : 15:01:59
|
I'd try to see if there are any cracks or problems before taking the screws out.. open the pedal (from the black thumbscrew) and look above the battery compartment. You should see the part where the treadle (that's the part with the pedal's name and rubber pad on it) is screwed to the rest of the pedal. Look for any bends or damage. A screw might have just been cross-threaded at some point.
It doesn't happen much, but they can break.. I have an old TW-1 which failed at exactly that point - I then lost the little beige chunk of aluminum which flew off..
IF your EH-2 looks to be in undamaged condition, you can try to GENTLY back those two screws out to remove the treadle.. It may be as easy as just feeding them back in properly. It may not..
Others here may have better ideas...
Good luck! |
 |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/11/2008 : 15:03:40
|
Hi spatescroll
Do you mean he entire top metal & rubber foot pad?
Or just the rubber foot pad?
Can you upload a picture to show us?
If it's the black rubber foot pad, these can be removed (carefully) & re-stuck re-glued into the proper position.
IF it's the alignment of the top metal part, it might be just that the screws that hold it in place are loose, or slightly bent.
The screws are 3mm diameter.
Regards Dr. Bob |
|
|
|
Mesjoggah
Gold Member
Netherlands
595 Posts |
Posted - 11/11/2008 : 15:04:27
|
| What i think is that the pedal has been tried to close with a battery in it that was on its small size and therefore the pedal couldn't close, when they applied pressure it bent. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/11/2008 : 17:58:14
|
I have one (can't recall what model) where the rubber pad is misaligned to the medal treadle. spatescroll's description sounds just like mine.
Looking at the glue used, I don't think there is any way to fix it other than tearing it off, cleaning the area, and gluing a new on on (assuming you can actually get a new one from Roland).
I just left mine and called it eccentric... |
|
|
|
bossarea
Forum Admin
United Kingdom
3652 Posts |
Posted - 11/11/2008 : 19:34:19
|
| It's definitely not a common thing. I've seen pedals where the treadle has been misaligned because of bent screws but I haven't seen any that has come out of the factory that way. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/11/2008 : 19:50:44
|
| I'll see if I can find mine and take a pic... |
|
|
|
strat714
Silver Member
USA
156 Posts |
Posted - 11/11/2008 : 19:57:14
|
| Could it be that the printing is misaligned? Have you ingested any psychotropic substances? Is the metal actually bent? Hmmmm |
|
|
|
spatescroll
Copper Member
Italy
45 Posts |
Posted - 11/11/2008 : 19:58:50
|
| It's the metal pad, not the rubber! I even changed screws but it looks like a problem with the screw holes! |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/11/2008 : 22:25:29
|
| Oh.... I haven't ever seen one like that. |
|
|
|
bossarea
Forum Admin
United Kingdom
3652 Posts |
Posted - 11/11/2008 : 23:02:39
|
Are the screws identical?
If you remove the screws, does it look like one of the holes has had work done to it? |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 11/12/2008 : 03:35:10
|
| please upload a pic |
|
|
|
spatescroll
Copper Member
Italy
45 Posts |
Posted - 11/12/2008 : 14:27:20
|
| Ehm, how can I post a pic? |
Edited by - spatescroll on 11/12/2008 14:30:09 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
|
|
spatescroll
Copper Member
Italy
45 Posts |
Posted - 11/12/2008 : 17:35:03
|

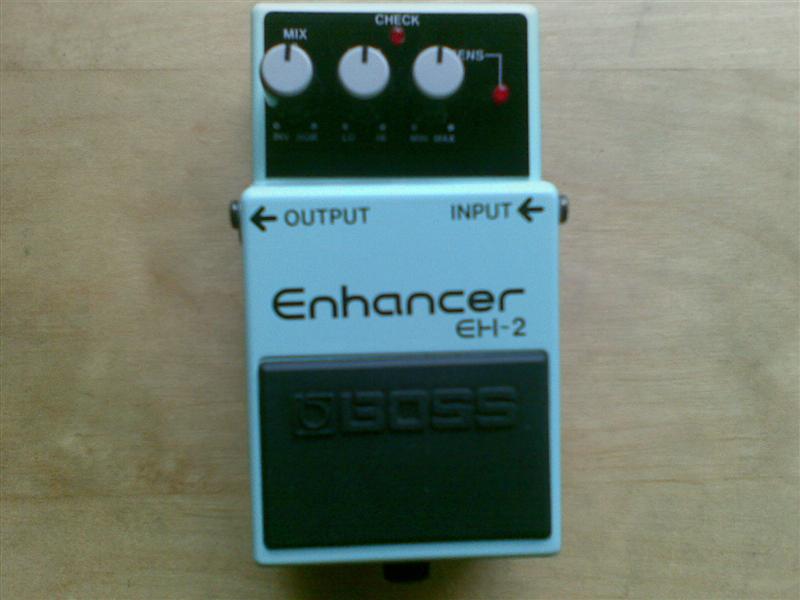

Here is the mighty picture:
uploaded/spatescroll/eh2.jpg
To a closer look, it' wrong not only the metal plate (I belive holes not regular) but even the print. |
|
|
|
stahlhart
Platinum Member
1318 Posts |
Posted - 11/12/2008 : 17:43:17
|
Looks to me from the photo as though both the treadle and the printing on it are misaligned, and in the same direction. Note points of arrows with respect to the screws, and upper edge of treadle with respect to the label plate.
|
|
|
|
