 Posted - 07/14/2008 : 19:38:27
|
here's a different pic
I do think this is one track - but then again... I HAVE NO CLUE WHAT I'M DOING - hehe
the green and the yellow start from the same end of the desoldered resistor and simply go to the next solder point in each direction |
Edited by - MullyFX on 07/14/2008 19:39:23 |
 |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/14/2008 : 19:50:43
|
OK - that angle looks better.
When you say it doesnt work at all, what happens? You hit the switch and it doesn't turn on/off?
|
|
|
|
MullyFX
Gold Member
Germany
753 Posts |
Posted - 07/14/2008 : 20:00:52
|
quote:
Originally posted by Laurie
OK - that angle looks better.
When you say it doesnt work at all, what happens? You hit the switch and it doesn't turn on/off?
well it sounds like it switches to a place inbetween if that makes sense
sometimes it works okay (still plopping though)
sometimes it simply doesn't switch and goes dead for a second or two
sometimes it switches back to the off state
and sometimes it sounds like the clean and the overdriven signal come out at the same time
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/14/2008 : 20:16:56
|
OK... that is all consistent with a failure of the flip-flop.
Like Dr. Bob said... I wish you were closer, we could put this on the scope and have it diagnosed and fixed in less than an hour!
|
|
|
|
Mesjoggah
Gold Member
Netherlands
595 Posts |
Posted - 07/14/2008 : 21:17:55
|
quote:
Originally posted by Laurie
OK... that is all consistent with a failure of the flip-flop.
Like Dr. Bob said... I wish you were closer, we could put this on the scope and have it diagnosed and fixed in less than an hour!
Laurie, english is not my native language and i don't want to look stupid but: what's a scope?? |
|
|
|
MullyFX
Gold Member
Germany
753 Posts |
Posted - 07/14/2008 : 21:20:06
|
quote:
Originally posted by Mesjoggah
quote:
Originally posted by Laurie
OK... that is all consistent with a failure of the flip-flop.
Like Dr. Bob said... I wish you were closer, we could put this on the scope and have it diagnosed and fixed in less than an hour!
Laurie, english is not my native language and i don't want to look stupid but: what's a scope??
scope is short for oscilloscope - a device to display electrical current as a waveform (if I understand it correctly) |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
|
|
MullyFX
Gold Member
Germany
753 Posts |
Posted - 07/15/2008 : 16:16:12
|
I actually know what they look like but thanks anyway  |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/25/2008 : 14:48:01
|
So Mully sent me his OD-1 to repair and here is what I found.

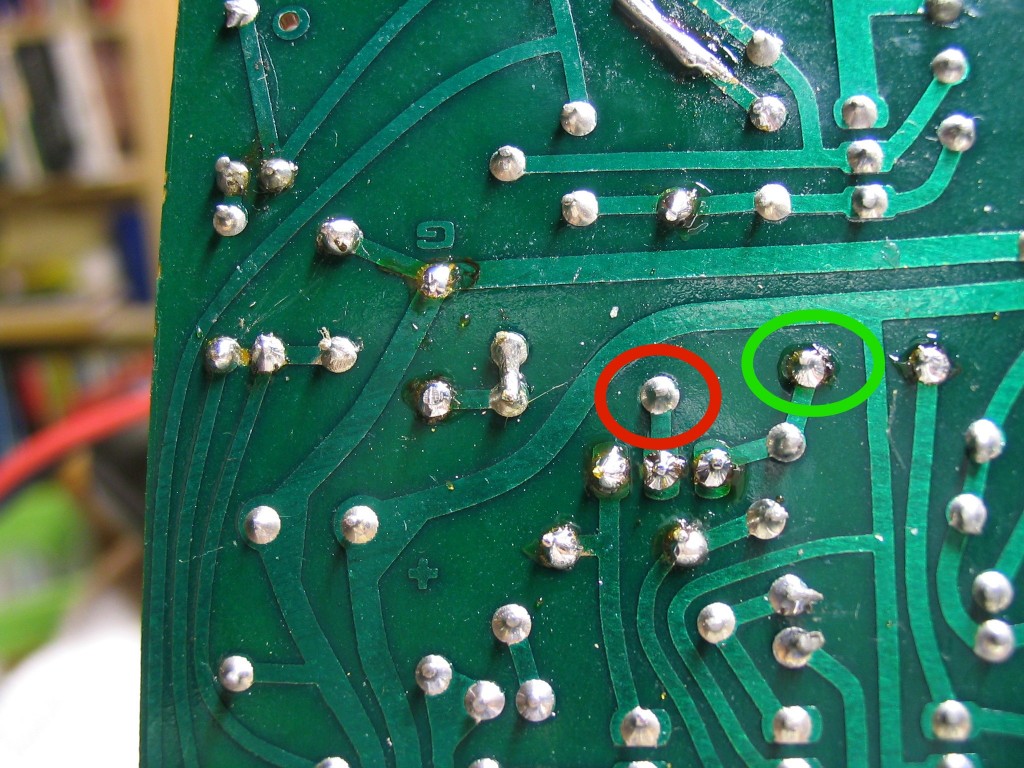

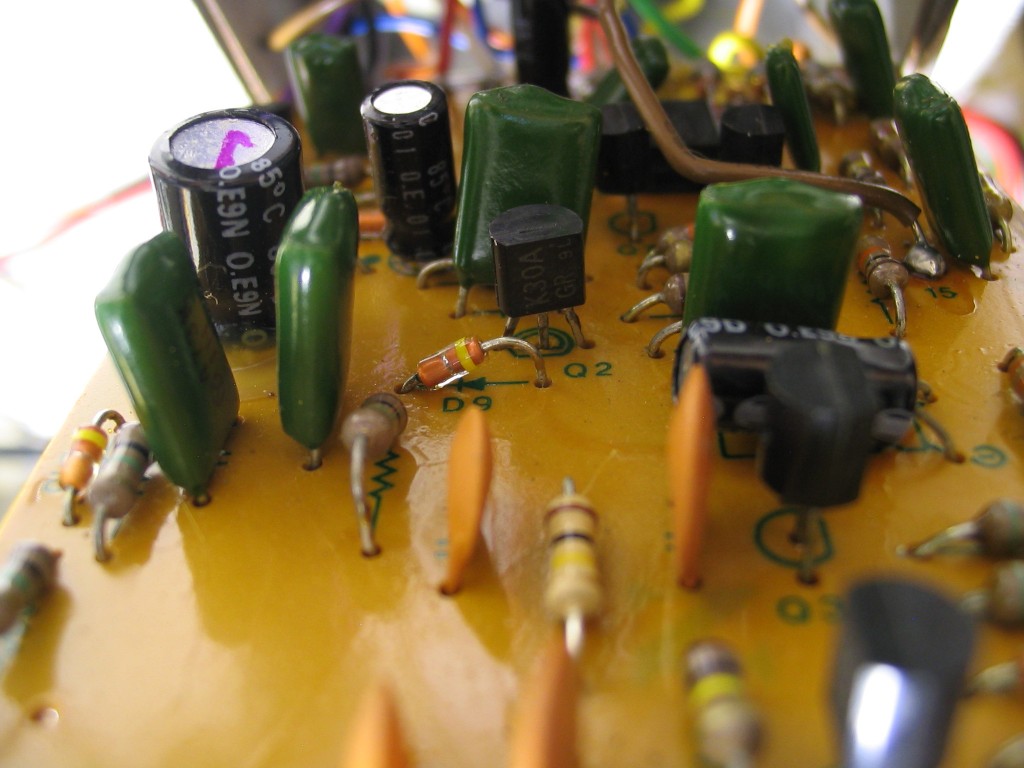

Take a look at D9 in the attached pic. It is around the wrong way!! This is a factory fault... the solder on D9 was pristine (see the red circle on the second pic for D9, compared to the green circle which is a joint I redid when i was fault-finding). The pedal has been like this since it was built!
So it's fixed, no more 'plop'. On it's way back to Mully today.
|
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 07/25/2008 : 15:28:46
|
Hi Laurie & Guys
Execellent observational & detective work Laurie.
I'll bet even money MullyFX is more pleased that you are.
You deserve a nice weekend away with Mrs Laurie.
Somewhere pleasant, by the ocean perhaps...
Regards Dr. Bob |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 07/25/2008 : 16:33:24
|
Hehe, Laurie.. prepare for the barrage of pedals to be repaired coming your way! That's great you did that for ol' Mully. Cheers bro!  |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 07/25/2008 : 17:54:54
|
Thanks guys! There is a pic on page 1 of this thread where it is kinda obvious if you know what you are looking for.
One more observation - it looks like there has been a lot of "poking around" done on the board over the years. I'm guessing the pedal has been through a string of owners who couldn't figure out the plop and sold it on. I think it might explain the pristine condition. Of course, Mully may have had it since new (i never asked him!)
|
Edited by - Laurie on 07/25/2008 18:00:15 |
|
|
|
MullyFX
Gold Member
Germany
753 Posts |
Posted - 07/26/2008 : 11:01:25
|
I "just" got it... was a trade.
I am REALLY happy that it's working now and HONESTLY THANKFUL
Laurie.. next time you're over here it'll be  time or  time depending on which kind of beer you like most.
cheers,
mully |
|
|
|
MullyFX
Gold Member
Germany
753 Posts |
Posted - 09/01/2008 : 11:42:28
|
the custom officer gave me a hard time (well not really) but now it's back here
thanks L |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 09/01/2008 : 12:05:30
|
Hi MullyFX
Good to hear you have you son back home.
I heard from Laurie that you were having a little headache with Customs.
And how they wanted to charge you import duty, thinking you got it off evilBay.
What finally convinced the Customs clerk to release it to you?
Regards Dr. Bob
|
|
|
|
