 Posted - 03/13/2009 : 20:23:44
|
Just got me a TS808 modded MIJ SD-1 for �16 UK' or $22 US'

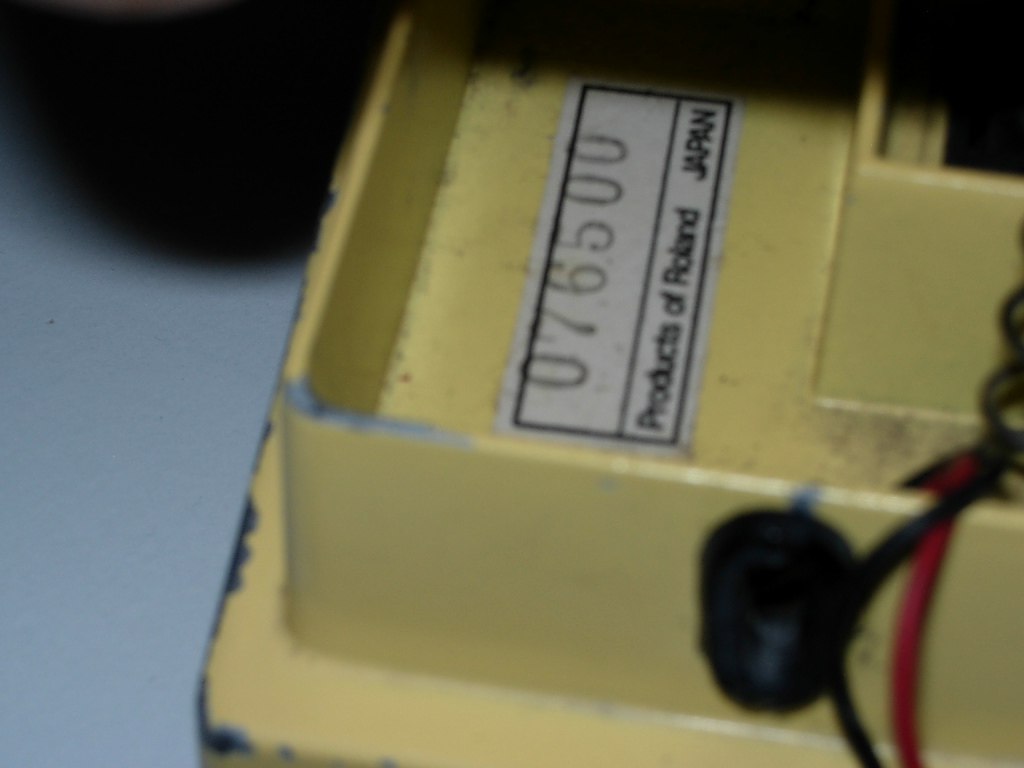

It's a 'little' bruised but proper ROCKS!! serial number 076500
which according to the boss decoder dates it from June 1981. I've gotta go' the blue lights calling!!!  |
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 03/13/2009 : 23:07:20
|
| how about some pics |
 |
|
|
hateandwar
Gold Member
Australia
524 Posts |
Posted - 03/14/2009 : 01:02:01
|
| yes pictures please |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/14/2009 : 01:16:19
|
Internal ones please  |
|
|
|
DasBeef
Gold Member
United Kingdom
704 Posts |
Posted - 03/14/2009 : 03:15:31
|
quote:
Originally posted by guitarMAD
Just got me a TS808 modded MIJ SD-1 for �16 UK' or $22 US'
It's a 'little' bruised but proper ROCKS!! serial number 076500
which according to the boss decoder dates it from June 1981. I've gotta go' the blue lights calling!!!
Sounds like you got a proper score buddy!!!!!!! Some pics would be nice! |
|
|
|
verivorax
Platinum Member
Canada
1185 Posts |
Posted - 03/14/2009 : 14:05:23
|
June 81 is nice and early for an SD-1..
WTG..
the same pedal, unmodded, would be VERY sweet, I think. |
|
|
|
guitarMAD
Copper Member
United Kingdom
12 Posts |
Posted - 03/14/2009 : 15:04:03
|
Not to sure what particular mod it is? the previous owner said a friend of his mods his pedals? he seemed to think it based on the the Keeley mod?? I'll post some pics later and maybe somebody can tell??? Unfortunately the rubber plus label has come off of the base plate? but other than a few scrapes and chips she's sweet!

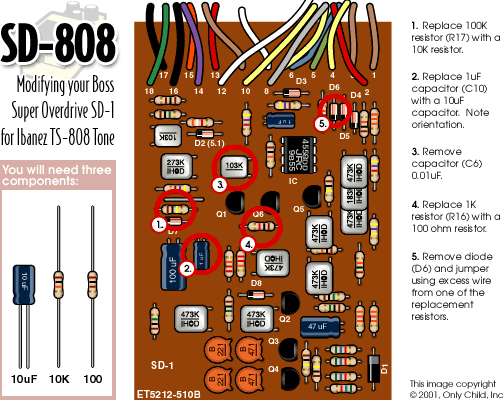

Looks like this but with a JRC 4558D added?
Download Attachment:  boss-sd1mod-050615-2.jpg
46.58�KB |
Edited by - guitarMAD on 03/15/2009 12:39:24 |
|
|
|
guitarMAD
Copper Member
United Kingdom
12 Posts |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/15/2009 : 15:30:54
|
| That's a helluva good score |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 03/15/2009 : 16:18:07
|
Hi guitarMAD

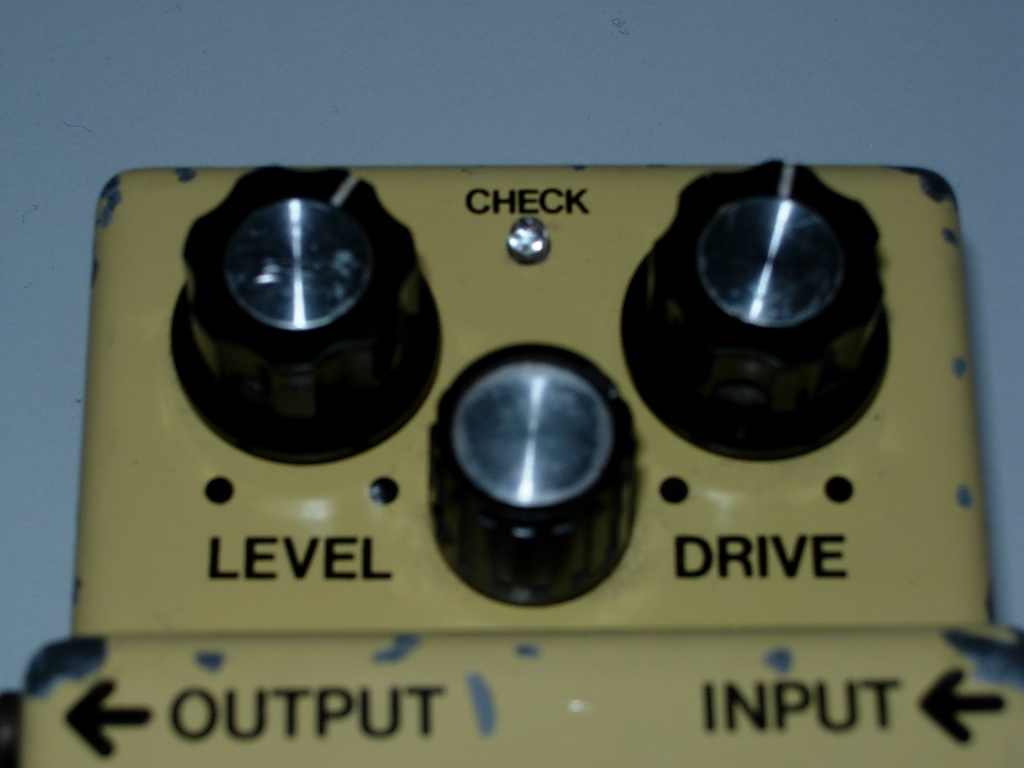

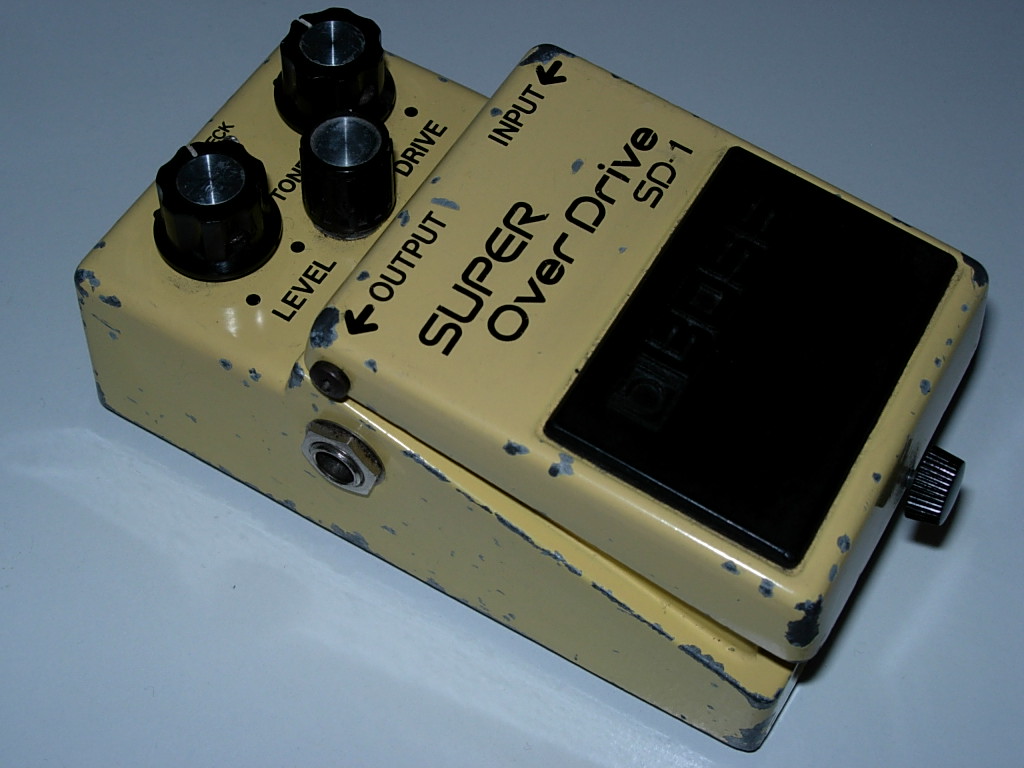

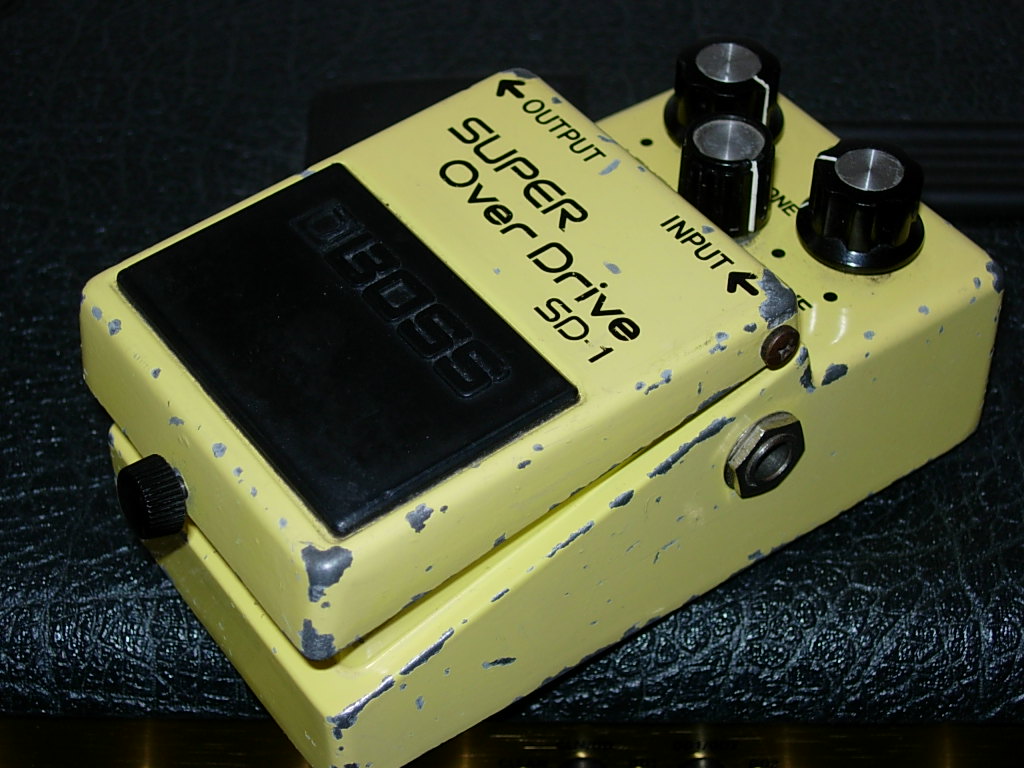

Nice, good pictures as well.
What camera are you using?
Looks it's a Symmetrical clipping mod.
If you click on edit, you will see the HTML code I added to your post, to display the pictures.
Please make a copy of this code, and put it in your notepad for future use.
You will only have to change the file-name part.
regards Dr. Bob  |
Edited by - Dr. Bob on 03/15/2009 16:19:33 |
|
|
|
cctsim
Silver Member
United Kingdom
418 Posts |
Posted - 03/15/2009 : 17:29:49
|

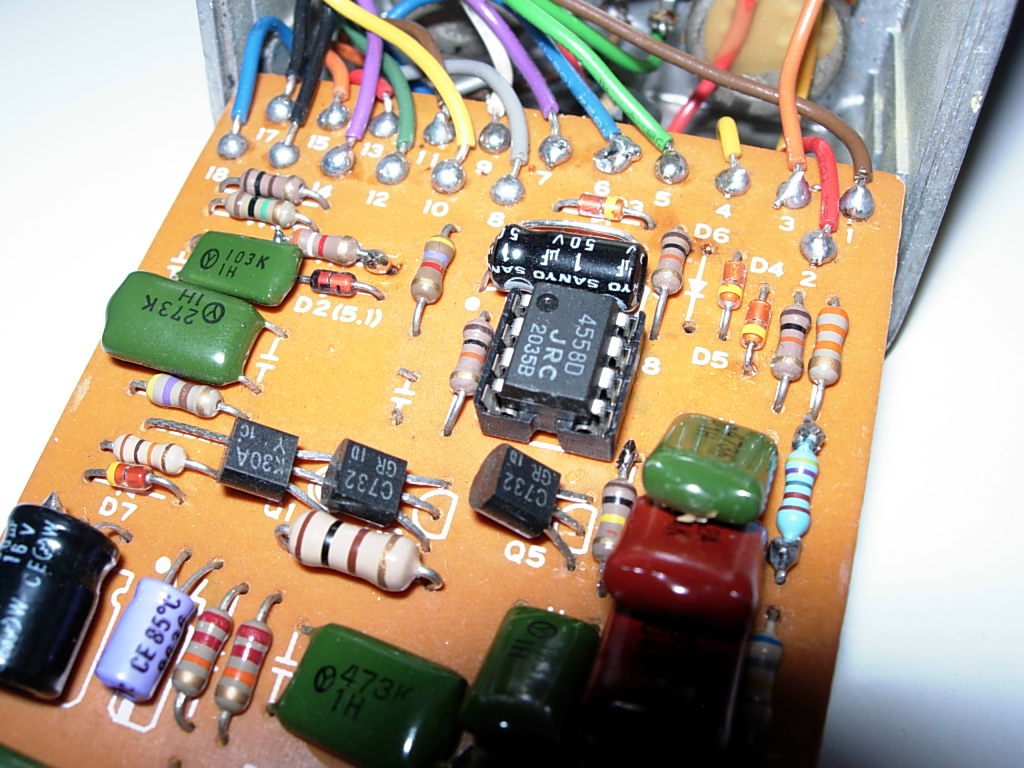

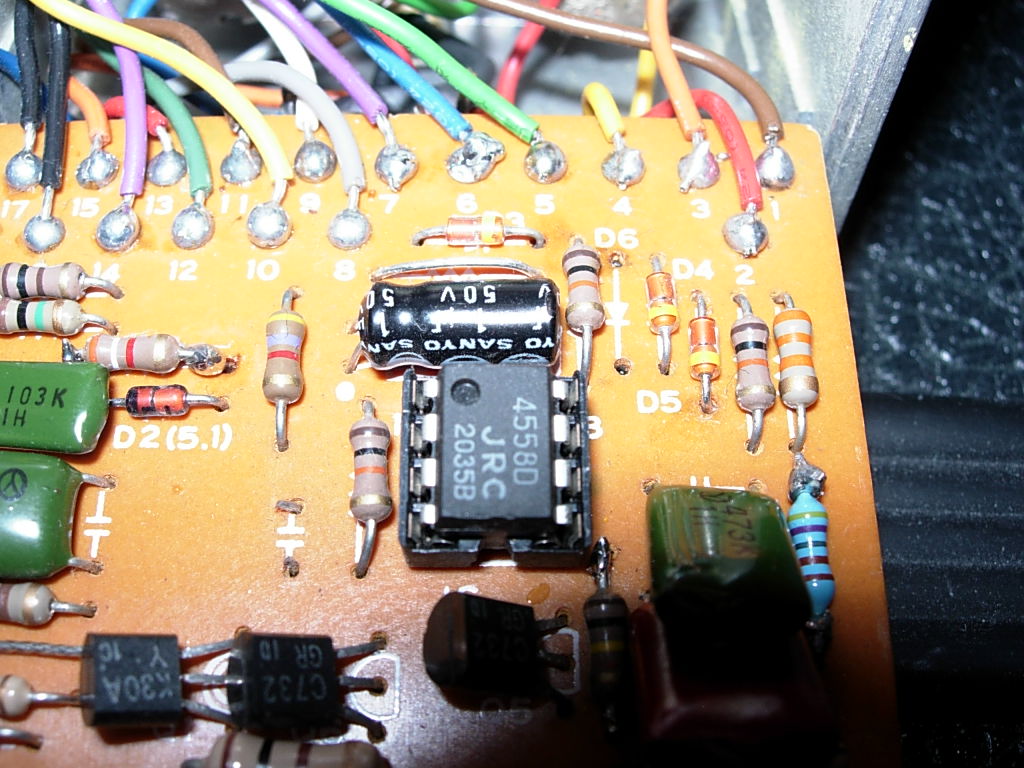

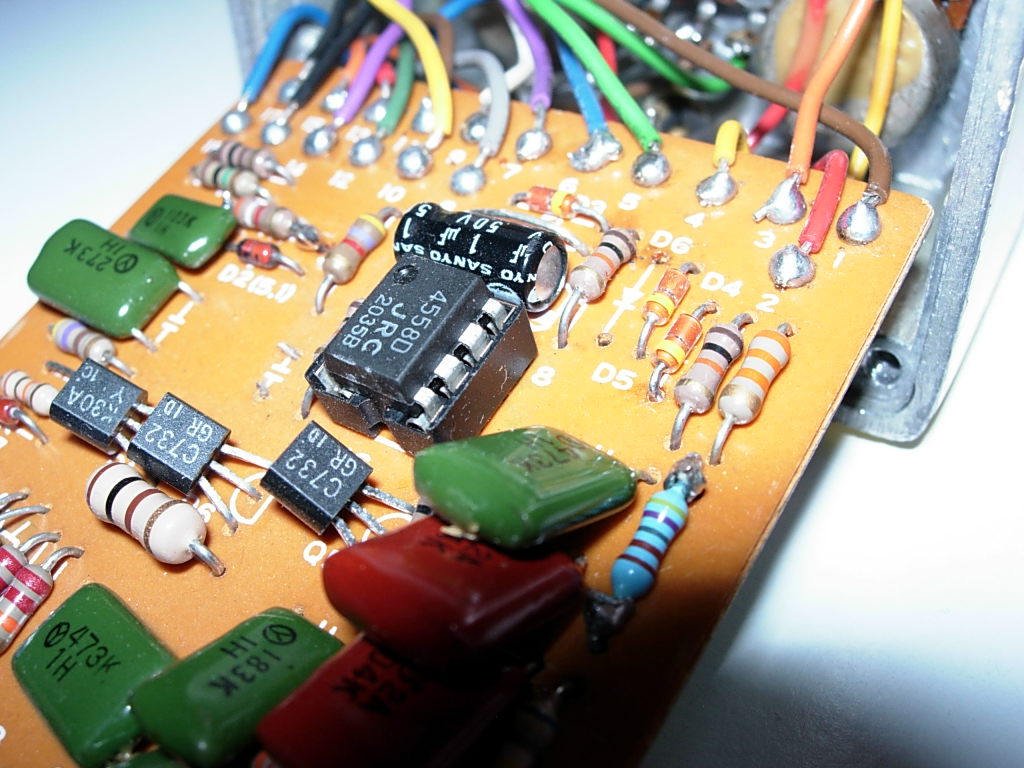

It looks like D6 is open which leaves D5 also open. This means that clipping of negative signal amplitudes has been disabled.
Judging from the rest of the mods this was not the original intent of the mod (conversion to TS808).
I would jumper D6 with a short wire. Otherwise what you have is a very asymmetric clipping arrangement, i.e. positive voltages above 0.6 V are clipped, while negative voltage pass through without clipping at all.
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/15/2009 : 17:47:57
|
quote:
Originally posted by cctsim
It looks like D6 is open which leaves D5 also open. This means that clipping of negative signal amplitudes has been disabled.
Judging from the rest of the mods this was not the original intent of the mod (conversion to TS808).
I would jumper D6 with a short wire. Otherwise what you have is a very asymmetric clipping arrangement, i.e. positive voltages above 0.6 V are clipped, while negative voltage pass through without clipping at all.

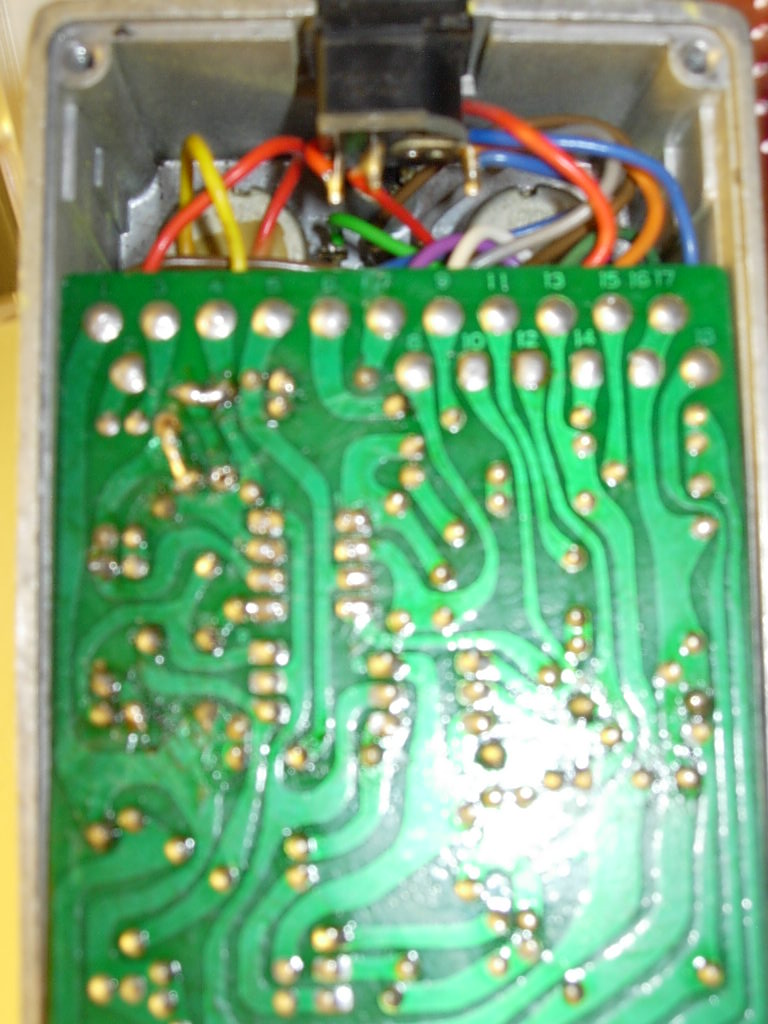

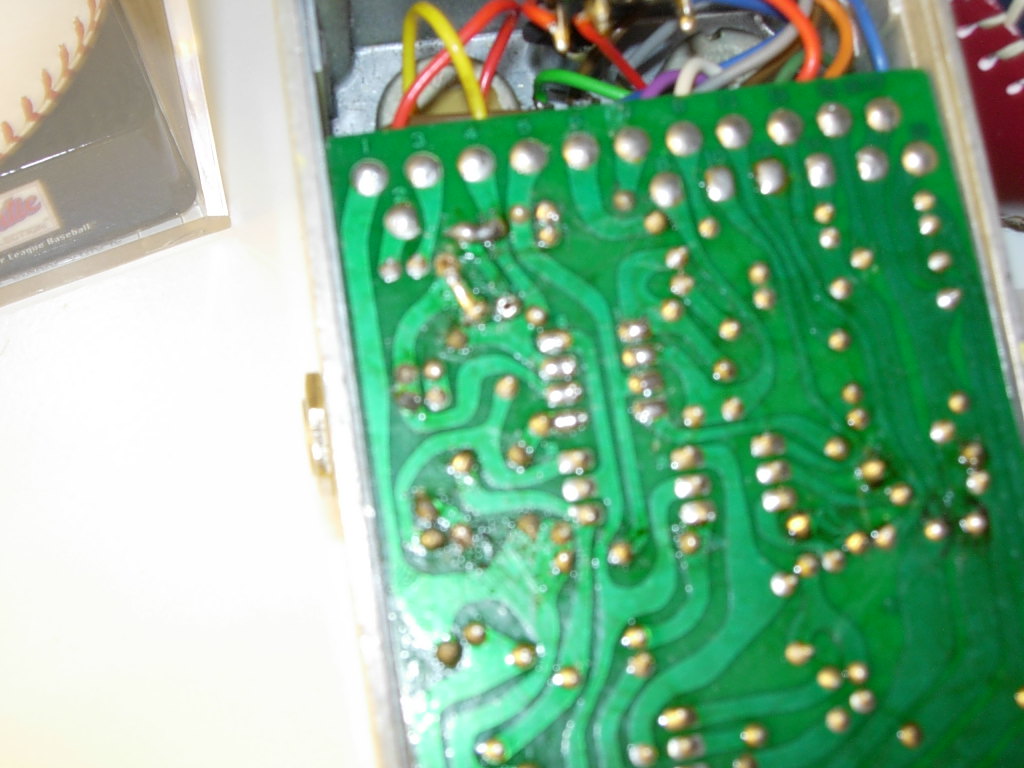

There might be a jumper on the track side? Can we have pics of the track side please? |
|
|
|
cctsim
Silver Member
United Kingdom
418 Posts |
Posted - 03/15/2009 : 18:01:15
|
If that is the case, then there would be no need to cut D6.
A picture of the track side will definitely sort this out. |
|
|
|
guitarMAD
Copper Member
United Kingdom
12 Posts |
Posted - 03/15/2009 : 21:58:45
|

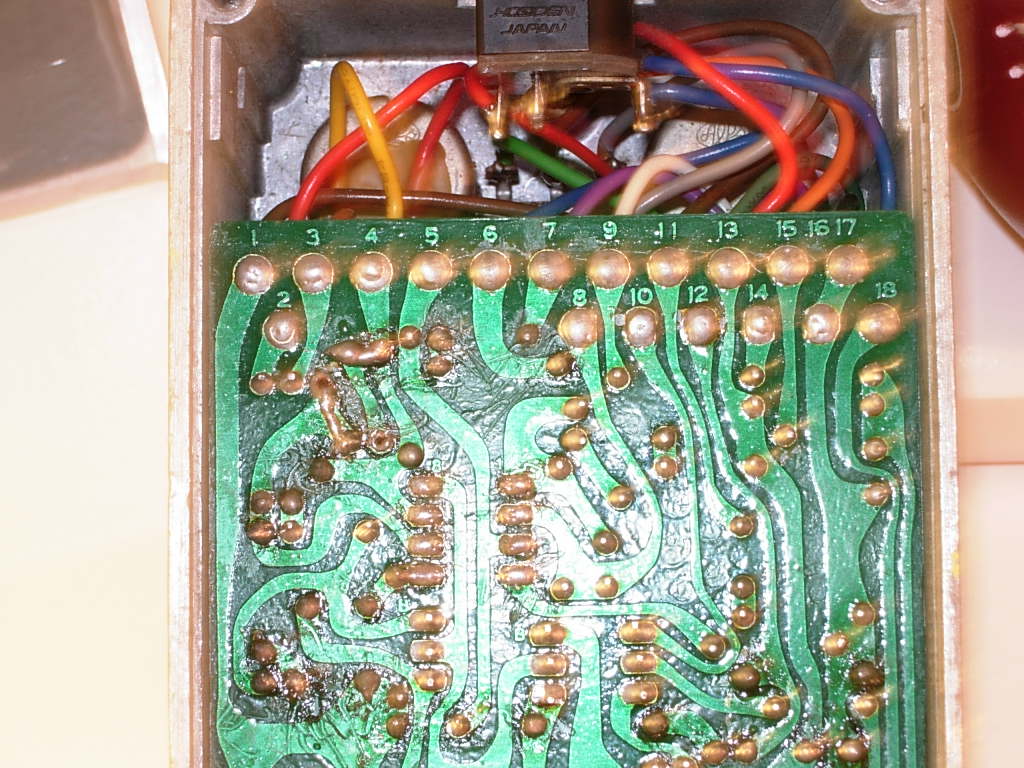

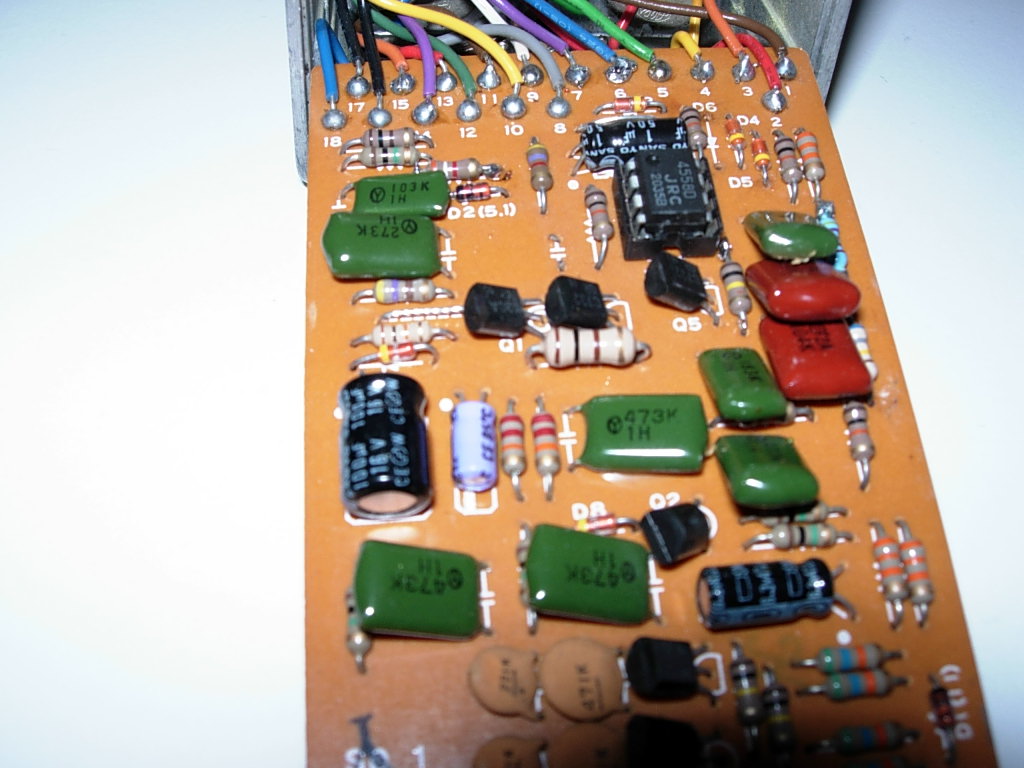

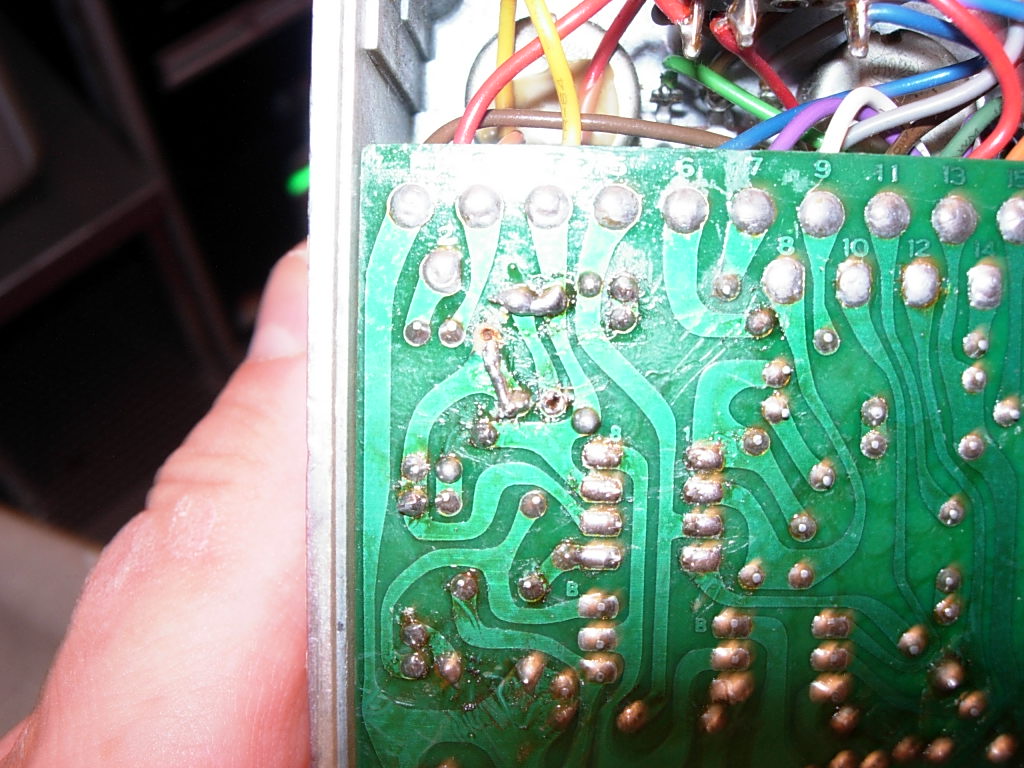

a couple more pics that may help??
BTW Dr bob I'm using a Nikon coolpix 5200' takes pretty good pics
|
Edited by - guitarMAD on 03/15/2009 23:12:52 |
|
|
|
cctsim
Silver Member
United Kingdom
418 Posts |
Posted - 03/15/2009 : 22:48:28
|
| It looks that D5 is connected properly via a short. The guy who applied isn't very professional for sure. Very messy work, considering this is a rare pedal. |
Edited by - cctsim on 03/15/2009 23:20:08 |
|
|
|
guitarMAD
Copper Member
United Kingdom
12 Posts |
Posted - 03/15/2009 : 23:08:48
|
|
Edited by - guitarMAD on 03/15/2009 23:15:34 |
|
|
| |
