 Posted - 01/11/2006 : 14:37:44
|
i'm using my PS-2 since 1990 until it ceased to work a few days back. I surf around for help and thank goodness to find this site.
My problem lies on a few wires inside the pedal which ripped off from its original soldered point.
Can anyone help me to figure out which wire goes where so that i won't fry that pedal.
The affected wires were BLACK,PURPLE,GREEN,ORANGE AND WHITE. I think those wires were for the input, output and tuner port of the pedal.
I would appreciate if anyone can help me to sort out the problem. i just can't play without it. Please help. THANK YOU.. |
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 01/11/2006 : 21:15:08
|
I don't have a PS-2 to compare to. Anybody out there willing to open theirs up?
Grace and peace,
Steve
|
 |
|
|
bossarea
Forum Admin
United Kingdom
3652 Posts |
Posted - 01/11/2006 : 22:08:20
|
No PS-2 and no schematic I'm afraid.  |
|
|
|
pawnshop_trash
Gold Member
USA
603 Posts |
Posted - 01/12/2006 : 18:16:27
|
I happen to have a PS-2 (although I'm somewhat reluctant to open up any pedal with a double-decker circuit board), and I'm pretty sure I can obtain access to a copy of the PS-2's service manual. work has kept me insanely busy lately,  but I'll try to take a look this weekend. is there any chance you can post a picture of the inside of your pedal here, to get an idea of the scope of the problem? |
|
|
|
boss freak
Gold Member
USA
663 Posts |
Posted - 01/12/2006 : 19:55:38
|
| I just sold mine, but it hasn't shipped out yet. Let me try to find a few minutes to open it up and get back to you. |
|
|
|
uzkezbalakh
Copper Member
Malaysia
2 Posts |
Posted - 01/14/2006 : 05:24:12
|
| I would highly appreciated the effort from u guys. i'll have a gig this sunday night so your prompt response will be crucial.. |
|
|
|
pawnshop_trash
Gold Member
USA
603 Posts |
Posted - 01/16/2006 : 05:31:59
|
uzkezbalakh, sorry about the delay. I didn't open up my PS-2 (yet), but did look at an (incomplete) schematic. it does not mention wire color codes, but maybe the info below will help:
* input jack -- tip feeds terminal no. 19 on the analog board (which then feeds R1); sleeve is grounded to no. 18 on the analog board
* output jack -- tip originates from terminal no. 9 on the analog board (which in turn is fed by R27); sleeve is grounded (to the casing?)
* tuner out jack -- tip originates from terminal no. 1 on the ET board (fed by an op amp, type unknown, with C1, R1, and R2 on its output side); sleeve is grounded (to the casing?)
good luck! |
|
|
|
Angelusdemonicus
Copper Member
Mexico
2 Posts |
Posted - 10/03/2006 : 22:24:15
|
| Hi! I�m From Mexico and I own too a Ps-2, and i need the schematic to fix it, can anyone send it to me? thanks! |
|
|
|
opetme
Copper Member
Philippines
7 Posts |
Posted - 10/09/2006 : 00:23:23
|
| i once opened my PS-2 and all those wires and stuff just told me to put them back together and don't ever mess with them. |
|
|
|
numeroh_unoh
Copper Member
Philippines
2 Posts |
Posted - 11/19/2007 : 06:42:48
|
Hi guys, I also have the same wiring problems... Sir pawnshop, do you happen to know where terminals 2 and 3 (on the ET board) connects? as well as terminals 1, 2,3 and 4 on the analog board as well... the thing that remains unwired is the battery (+ and -), the LED (+, - and ground) and the switch (two terminals)... thanks in advance!  |
Edited by - numeroh_unoh on 11/19/2007 17:23:05 |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 12/13/2007 : 16:40:47
|
Hi Everyone,

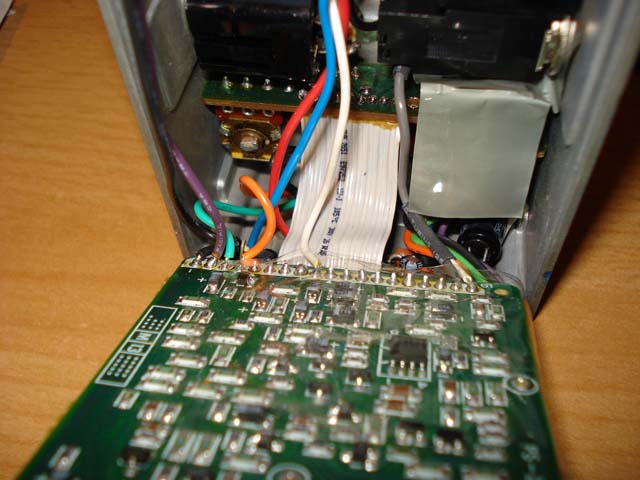

Hope this information is not so late, let's see my pictures about my PS-2 (Blue label, Taiwan, ZF07218):
Download Attachment:  DSC00212_1.jpg
84.21 KB
Download Attachment: DSC00213_1.jpg
61.28 KB
If I can help with other picture please inform!
Go to success! |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 12/14/2007 : 06:53:21
|
quote:
Originally posted by ssanyee
Hi Everyone,
Hope this information is not so late, let's see my pictures about my PS-2 (Blue label, Taiwan, ZF07218):
Download Attachment: DSC00212_1.jpg
84.21 KB
Download Attachment: DSC00213_1.jpg
61.28 KB
If I can help with other picture please inform!
Go to success!
Hi ssanyee & Guys

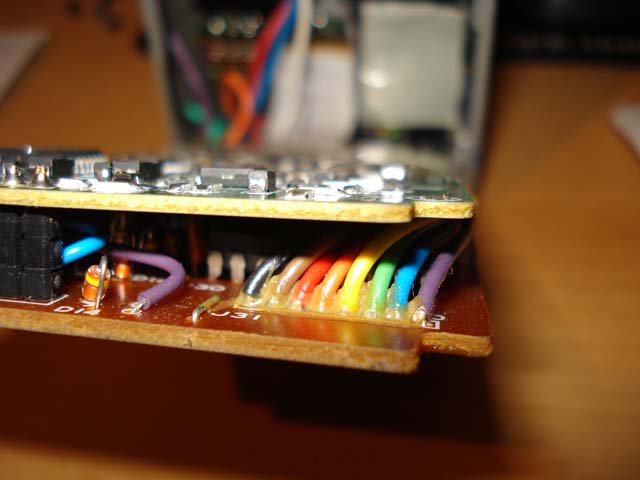

In the second picture,
the wires are left to right, the resistor colour code.
0 Black
1 Brown
2 Red
3 Orange
5 Green
6 Blue
7 Violet
and the rest are:
8 White
9 Grey - or Gray.
Don't know if any of this is interesting or useful?
Might be worth remembering this if any other wires come off.
Regards Dr. Bob |
Edited by - Dr. Bob on 12/14/2007 06:54:09 |
|
|
|
