 Posted - 06/08/2007 : 18:59:40
|
lets see em! i just made mine one afternoon. i decided i needed one like steps so the back ones would be easier to reach.
http://img528.imageshack.us/my.php?image=chain03ca5.jpg
http://img522.imageshack.us/my.php?image=cahin01oh0.jpg
DD-5----PS-2----AW-2----HF-2----FZ-3----HM-2----SD-1----NS-2
BF-2----PH-1r---CE-2----CE-5----TW-1----CS-2----LS-2----wah
RC-2----RV-2----PS-5----GE-7----EH-2----OD-1----DF-2----TU-2
you can kinda see how the board is set up. my guitar is plugged into the wah, which then goes to the input of LS-2. Line A of the LS-2 goes to the input of the NS-2 throught to the DD-5 then the out of the DD-5 comes to the return of NS-2, and the NS-2 output goes to return Line A of the LS-2. then LS-2s Line B goes to the CS-2 through to the BF-2, which comes back to Return of LS-2. then the LS-2s output goes straight to the TU-2 and through to the RC-2 which goes to my amp!! which does mean that the last line is also always used when using Line A or B but thats what noise suppression and EH-2s are for
SIMPLE AINT IT!
lets see yours
|
|
|
Rich_S
Silver Member
USA
219 Posts |
Posted - 06/09/2007 : 05:51:07
|

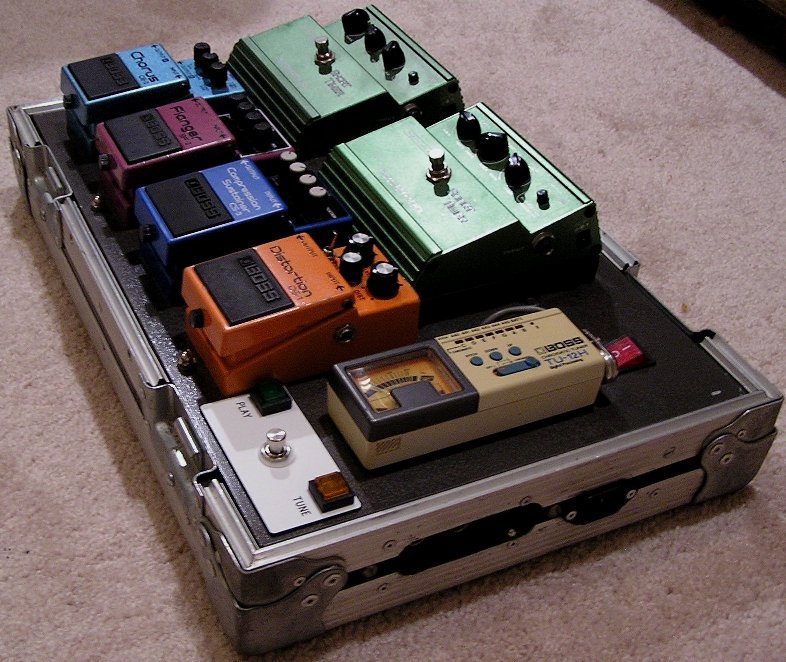

Since this pic was taken, I replaced the CE-3 with a CE-2. Very soon, I'm adding an SD-1, but I don't know yet if I'll replace the CS-3 or the Keeley DS-1 Ultra. |
Edited by - Rich_S on 06/09/2007 05:56:19 |
 |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 06/09/2007 : 07:10:56
|
Hey Strato.
Regards Dr. Bob |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 06/09/2007 : 13:23:50
|
| @Rich_S: what are those big green pedals on the top of your board? |
|
|
|
Rich_S
Silver Member
USA
219 Posts |
Posted - 06/09/2007 : 18:50:11
|
| Rocktron Short Timer delays - a digital delay designed to sound "analog". |
|
|
|
mattoqua
Silver Member
Canada
438 Posts |
Posted - 06/10/2007 : 01:24:44
|
DD-6----EH-2----GE-6----BF-2----PH-3----|Wah|----TU-2
CE-3----MT-2----MD-2----DS-1----SD-1----|Wah|----OC-2
In though TU-2, down to OC-2, into Wah, into SD-1 Through to MT-2, then up to GE-6 into EH-2, then down to CE-3, across to PH-3 to BF-2, jump over to DD-6, then to amp.
I dont normally use both outputs of the DD-6, but it was set up for recording when I took this, and thats when I use both |
Edited by - mattoqua on 06/10/2007 01:25:27 |
|
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 06/10/2007 : 05:30:35
|
http://i179.photobucket.com/albums/w283/ChristoMephisto/2.jpg
Got a CS-2 this morning, then had to go out and get a second Boss daisy chain right after so everything would work
CS-2->OC-2->FT-2->NS-2 input
NS-2 send FZ-2->MZ-2->SD-1->LS-2 input->NS-2 return
LS-2 loop A PH-2 loop B HF-2
from the NS-2 output ->EH-2->DD-3
the DS-1 and HM-2 can be swapped around with the other dirt pedals
or swap the MZ-2 for the DD-3 if I get a second amp
mixing the phaser and/or flanger is nice sounding too, and the knobs colours are the same as the pedals they control
 |
|
|
|
StratoSphere
Double Platinum Member
Canada
2232 Posts |
Posted - 06/10/2007 : 05:49:50
|
ncie boards so far, guys.
mattoqua... no noise suppression??? |
|
|
|
mattoqua
Silver Member
Canada
438 Posts |
Posted - 06/10/2007 : 06:11:57
|
ive got one sitting in its box
i dont like it too much since I feel like it cuts out some of my tone. I hate playing around with the decay knob too. I do remember the first time I got it though, I loved it, so maybe ill try it out again.
I only get buzz when im facing certain directions though. I dont get why. Other times, its not too bad, so i can do without |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 06/10/2007 : 07:26:27
|
quote:
Originally posted by ChristoMephisto
http://i179.photobucket.com/albums/w283/ChristoMephisto/2.jpg
Got a CS-2 this morning, then had to go out and get a second Boss daisy chain right after so everything would work
CS-2->OC-2->FT-2->NS-2 input
NS-2 send FZ-2->MZ-2->SD-1->LS-2 input->NS-2 return
LS-2 loop A PH-2 loop B HF-2
from the NS-2 output ->EH-2->DD-3
the DS-1 and HM-2 can be swapped around with the other dirt pedals
or swap the MZ-2 for the DD-3 if I get a second amp
mixing the phaser and/or flanger is nice sounding too, and the knobs colours are the same as the pedals they control
Hi ChristoMephisto
Congrats. on the CS-2 Find.
PM me, & tell me what it's really like, is the the hype true, or is the Hype just Hype?
I'm about to Mod my CS-3, I tell you what it's like after I mod it.
Nice setup. is that your new place?
Our Monday your Sunday. is a public holiday over here in OZ, it the Queen's Birthday long weekend.
Regards Dr. Bob |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 06/10/2007 : 12:44:15
|
My old pedalboard, I sold the ODB-3, replaced the CS-3 with an RCL-10, have no need for the wah in my new band, and never use chorus and flanging live anymore, cause it generally gets eaten by loud cymbals and guitars anyway, so right now I have one switch which I use to turn on the distortion channel of my Ampeg SVP-BSP (the Billy Sheehan model preamp).
The RCL-10 is used in the loop of Ampegs clean channel and is on all the time, I do have an RDD-10 in there as well just in case I'd like to use some chorus or a delay.
I still have my CS-3 which I use for some band rehearsals or jams.
The microracks waiting to get built in with the BSP unit.
 |
Edited by - Dirk on 06/10/2007 12:49:20 |
|
|
|
Leeroyfunk
Silver Member
United Kingdom
400 Posts |
Posted - 06/10/2007 : 13:10:43
|
 |
Edited by - Leeroyfunk on 02/16/2009 14:22:47 |
|
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 06/10/2007 : 13:53:10
|
Dr. Bob,
havn't a chance to even try it out i've been so busy.
later today for sure.
Leeroyfunk, get an expression pedal for the ft-2 if you can. Its no crybaby or dimebag but its a smooth wah that can be tweeked to woh |
|
|
|
bosshog
Silver Member
Canada
493 Posts |
|
|
mattoqua
Silver Member
Canada
438 Posts |
Posted - 06/11/2007 : 02:23:12
|
Hey bosshog,
I have a couple suggestions to try out:
have you tried putting the GE-7 after the OD-2? To me it makes a huge difference, and you get much more control
Also, when you use the chorus, do you use the LS-2 to turn everything else off (like swtich A-B)? If you dont, you could drop the LS-2, and just turn the CE-3 on/off manually cant you?
Or does it change the effect if its in "parallel"?
Ive never used one, so im not sure, and would like to find out
Very nice setup though |
Edited by - mattoqua on 06/11/2007 02:23:36 |
|
|
|
StratoSphere
Double Platinum Member
Canada
2232 Posts |
Posted - 06/11/2007 : 03:39:12
|
| nice setup bosshog.. does the NS-2 actually kill any noise when its set up using only the input/output jacks? i thought you had to run it through send and return jacks. |
|
|
|
