| Author |
 Topic  |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
 Posted - 06/22/2008 : 16:56:30
|
Good artical Laurie, where can i find a knob that goes to 11?
here's more to add to it...
http://www.geofex.com/article_folders/potsecrets/potscret.htm
Another good point is to avoid cheap commercial audio pots, the taper is horrible.
Snagged four 250k from evilbay for $20, and at 7 on the dial, or 1:00 its just starting to reach 100k.
|
 |
|
|
lohworm
Copper Member
France
27 Posts |
Posted - 02/25/2009 : 23:49:11
|
Hello everyone !
It's my first post here !
quote:
the meaning of "A" and "B" was swapped a few years ago
Does anyone know when the swap occured ?
In my DSD-2, I have to replace three broken pots : original ones are marked as type B for feedback and level, type A for Time...
But in the mid 80's, which one is linear, which one is log ??
|
|
|
|
bossarea
Forum Admin
United Kingdom
3652 Posts |
Posted - 02/26/2009 : 09:26:04
|
Doh, I didn't know they swapped A and B. I'm waiting for delivery of a bunch of pots and I may just have ordered the wrong type.  |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
|
|
lohworm
Copper Member
France
27 Posts |
Posted - 02/27/2009 : 17:48:20
|
be careful for your replacement pots orders !
http://www.banzaieffects.com/support/index.php?_m=knowledgebase&_a=viewarticle&kbarticleid=59&nav=0,6
quote:
USA and Asia:
A = logarithmic (also called 'positive logarithmic', 'audio', 'log' or '+ log')
B = linear ('lin')
C = negative logarithmic (also called 'reverse log', 'rev log', 'reverse audio', or '- log')
Europe:
A = linear (lin)
B = logarithmic (also called 'positive logarithmic', 'audio', 'log' or '+ log')
Y = negative logarithmic (also called 'reverse log', 'rev log', 'reverse audio' or '- log')
|
|
|
| |
Topic |
|

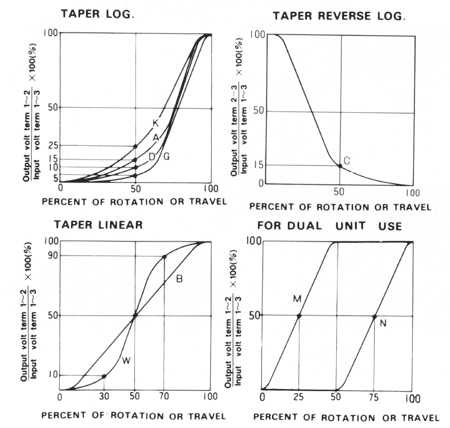

Potentiometer tapers
