| Author |
 Topic  |
|
ssanyee
Silver Member
Hungary
288 Posts |
 Posted - 09/15/2008 : 19:40:05
|

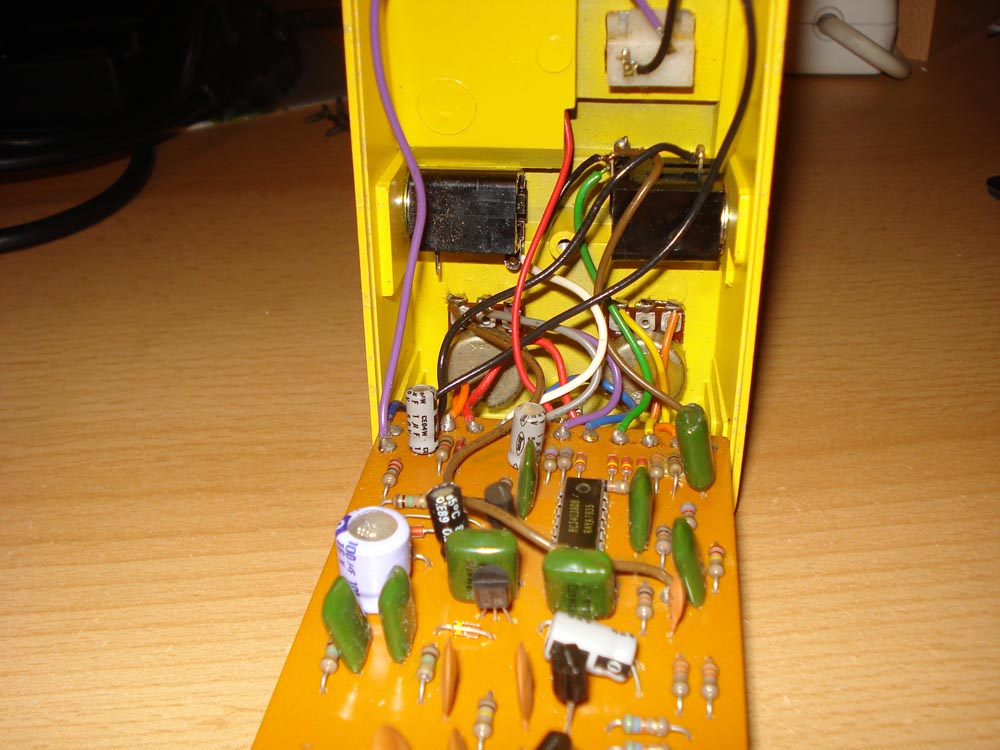

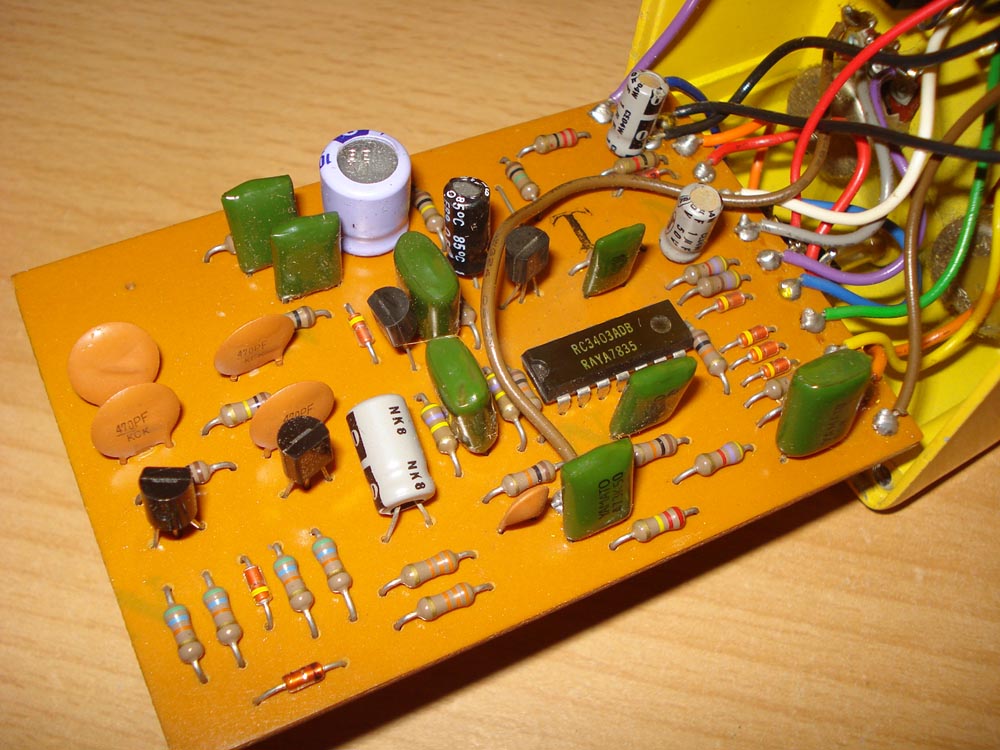

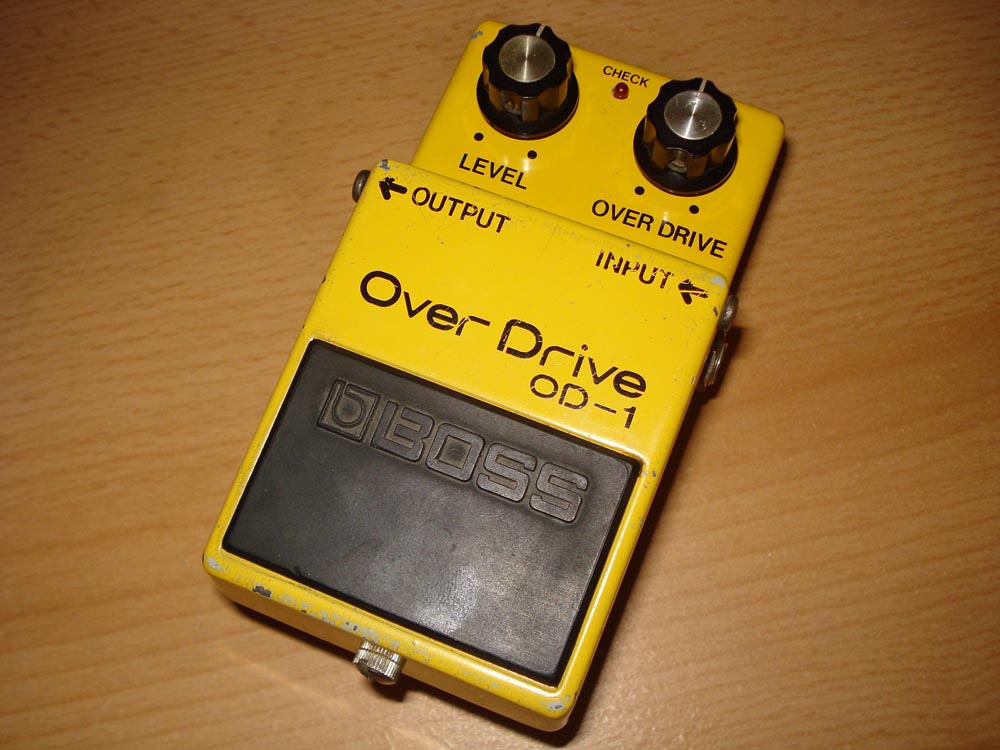

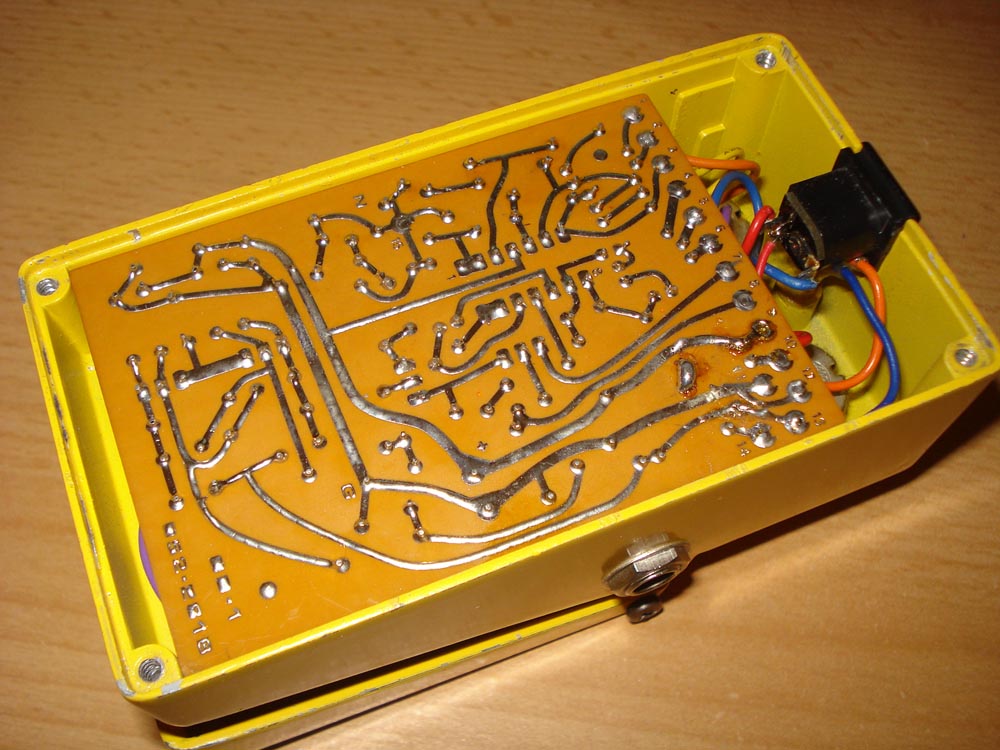

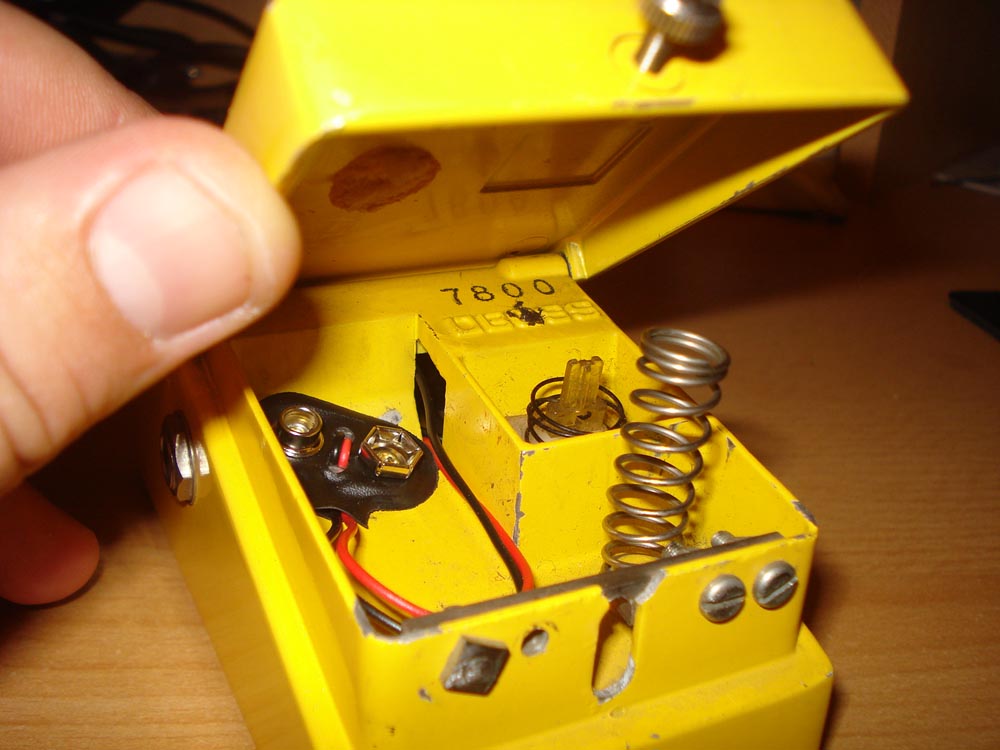

BOSS OD-1, Overdrive, MIJ, 7800, 1979, January, SS, longdash
cheers |
 |
|
|
martinsomerville
Copper Member
Australia
14 Posts |
Posted - 09/16/2008 : 16:27:07
|
rc-20xl. don't know how much help these pics are to anyone but thought I'd put in here.
cheers
martin |
Edited by - martinsomerville on 09/16/2008 16:30:18 |
|
|
|
TomCray
Bronze Member
USA
75 Posts |
Posted - 09/20/2008 : 10:56:50
|
MXR 6 Band EQ M109
(Newer version)
The Bottom
Foam protector thing
Sliders
 |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 10/03/2008 : 20:14:09
|

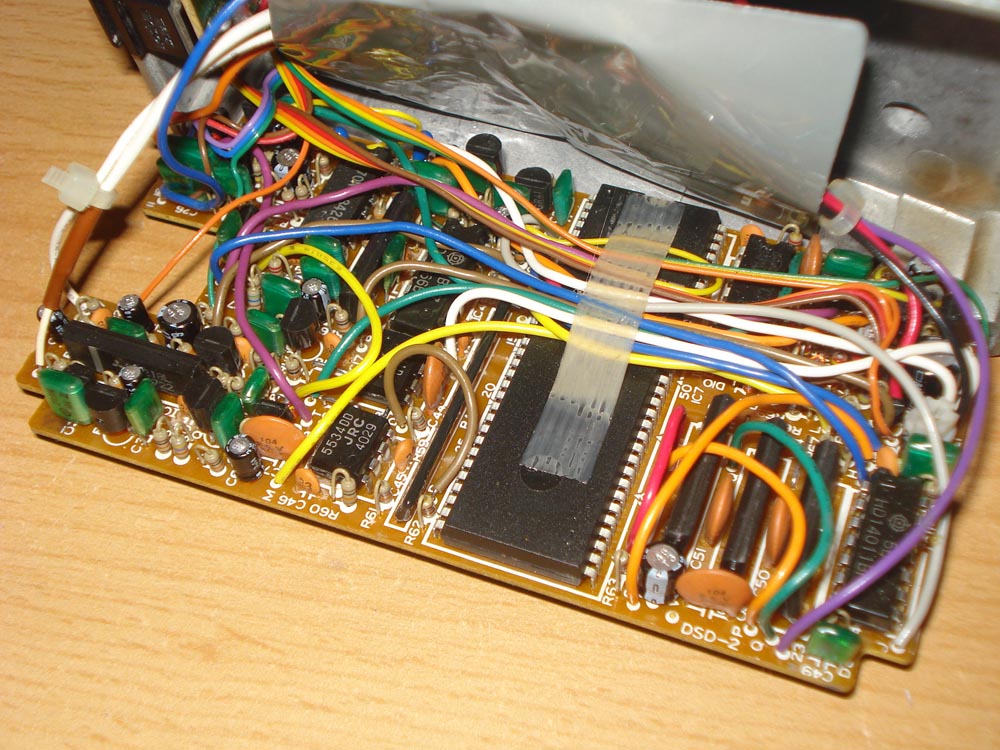

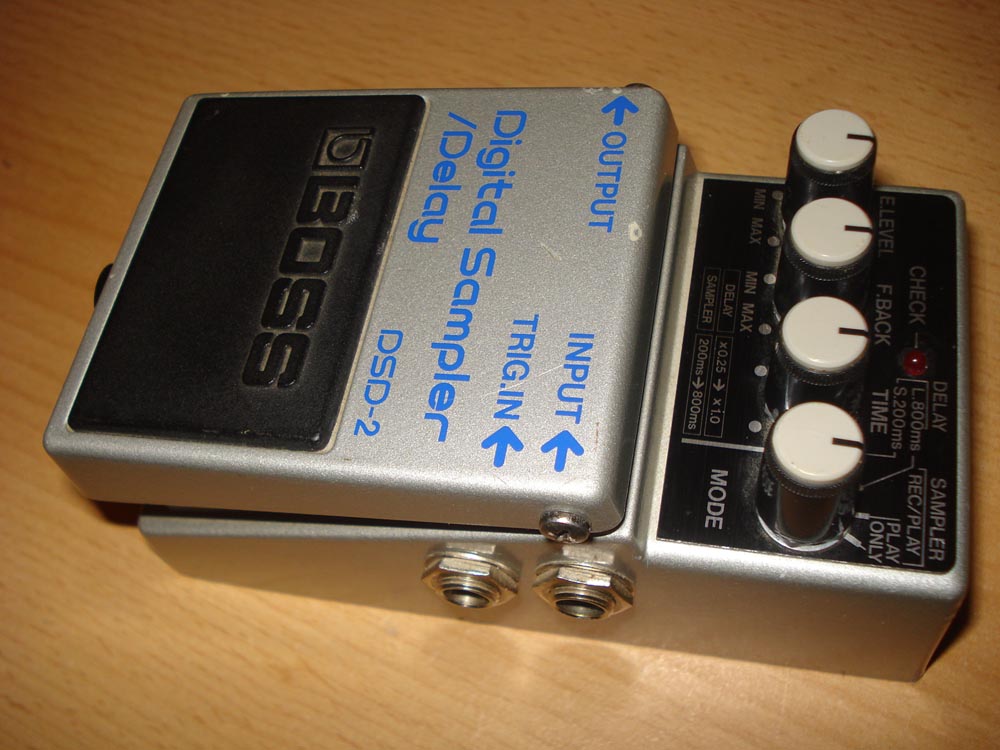

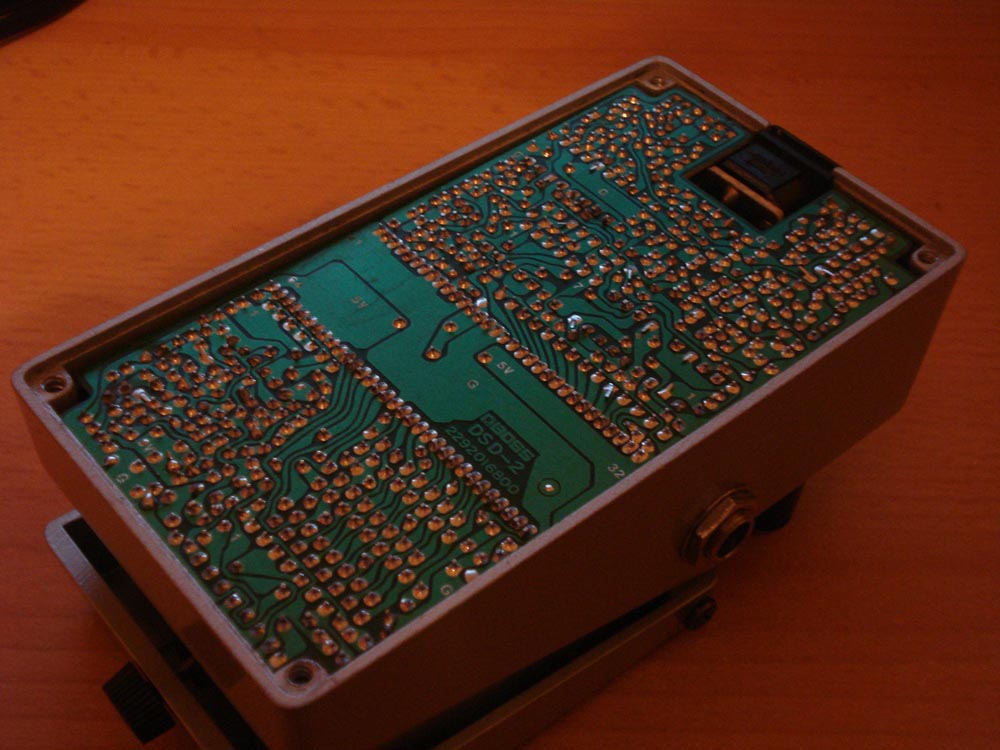

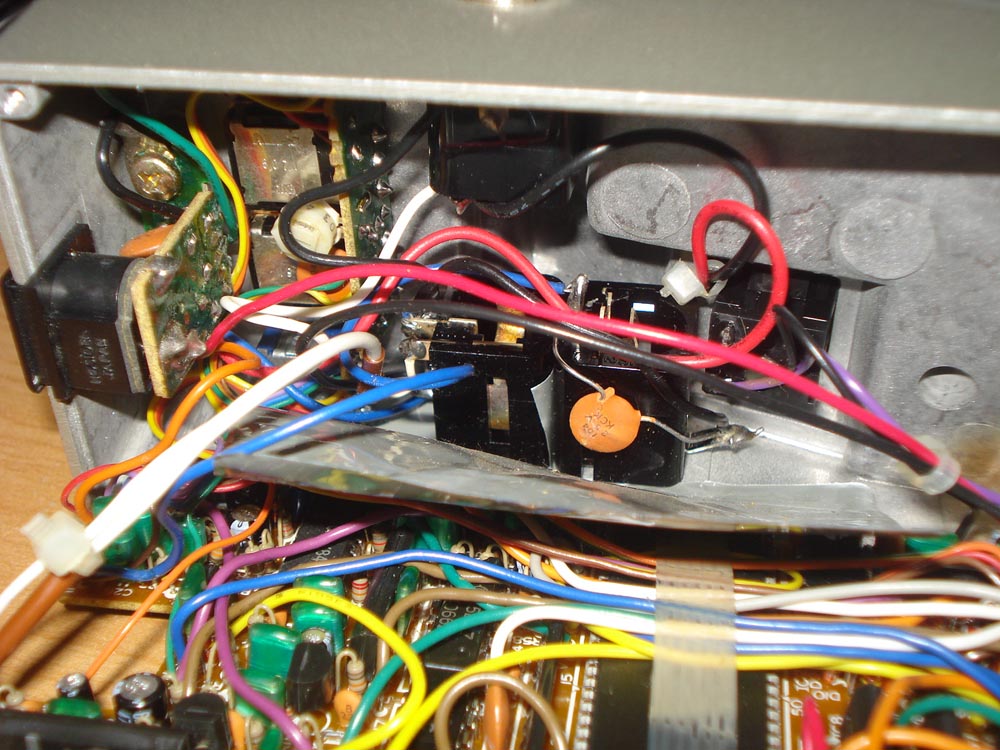

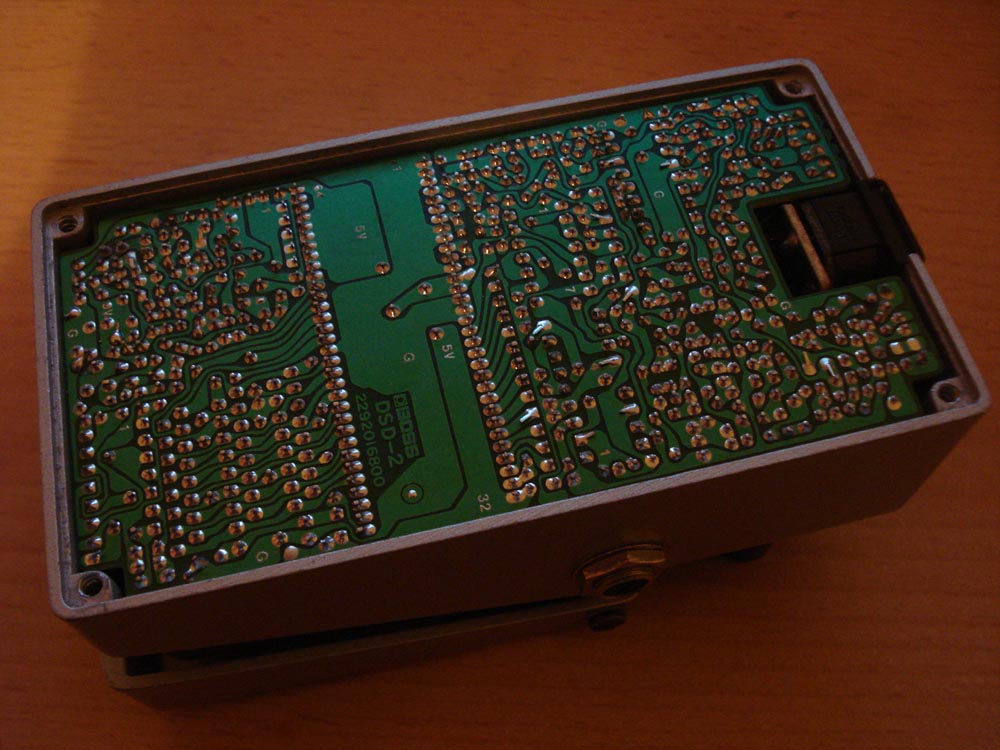

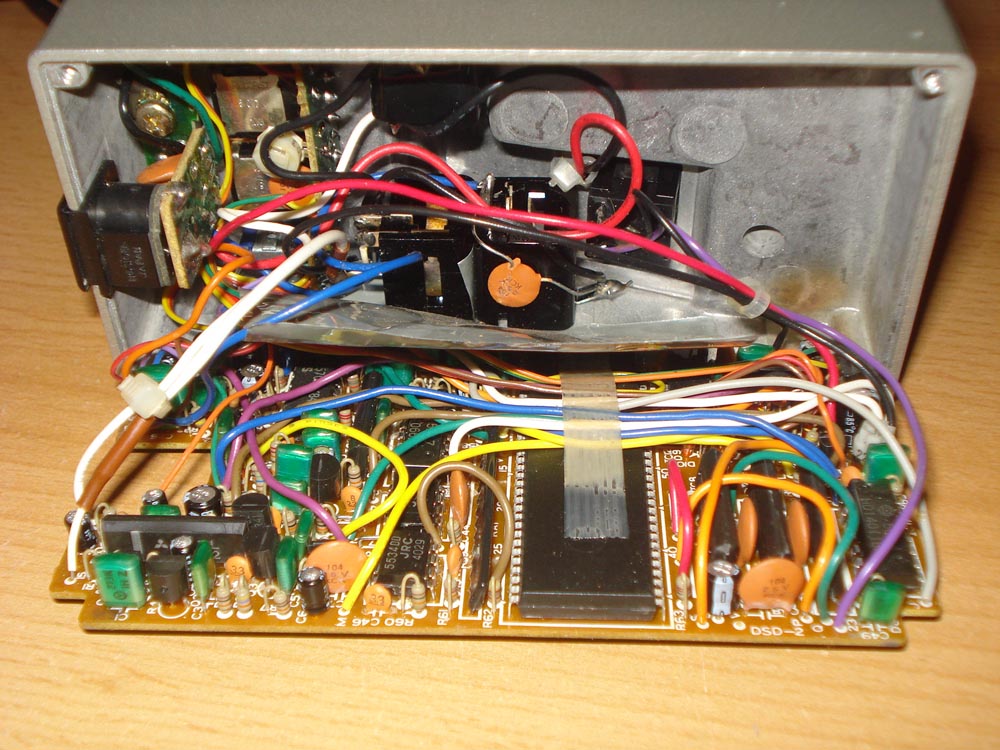

BOSS DSD-2, Digital Sampler/Delay, MIJ, 532500, 1985, April
cheers |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 10/03/2008 : 21:02:07
|
quote:
Originally posted by ssanyee
BOSS OD-1, Overdrive, MIJ, 7800, 1979, January, SS, longdash
cheers
I missed this post when it went up... that's a sweet pedal ssanyee! Congrats! |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 10/04/2008 : 10:11:57
|
quote:
Originally posted by Laurie
quote:
Originally posted by ssanyee
BOSS OD-1, Overdrive, MIJ, 7800, 1979, January, SS, longdash
cheers
I missed this post when it went up... that's a sweet pedal ssanyee! Congrats!
Thanks Laurie,
I am happy with it and its sound is quite different (let me say much better) to compare with my other OD-1 what made by 4558 chip as the last version!
cheers |
|
|
|
fabs
Silver Member
France
213 Posts |
Posted - 10/04/2008 : 17:23:08
|
Boss DC-3
(Space-D) MIJ S/N AB97276 (oct 1990)
 |
|
|
|
fabs
Silver Member
France
213 Posts |
Posted - 10/05/2008 : 10:25:59
|
Boss HF-2
Flanger MIJ S/N 612900 (dec 1985)
 |
|
|
|
fabs
Silver Member
France
213 Posts |
Posted - 10/05/2008 : 11:16:06
|
Boss DSD-3
Digital Sampler/Delay MIJ S/N 857794 dec 87
|
|
|
|
rogeryu
Copper Member
Philippines
7 Posts |
Posted - 10/06/2008 : 12:09:33
|
Hi Guys  ,
I'm new here...anyone interested on BBE Sonic Maximizer inside?
8 pin IC is TL072
20 pin IC is BBE2150AD / JRC A5041C
My camera isn't nice when closed up
Roger |
|
|
|
rogeryu
Copper Member
Philippines
7 Posts |
Posted - 10/07/2008 : 10:00:41
|
IBANEZ MIJ 2007 RE-ISSUE MODDED 808 WITH TWIN STACK OPAMP IC
|
|
|
|
ugufru
Copper Member
USA
3 Posts |
Posted - 10/10/2008 : 20:10:50
|
Boss DD-3A
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
|
|
|
|
starr36
Platinum Member
Canada
1172 Posts |
Posted - 10/27/2008 : 23:07:26
|
quote:
Originally posted by ssanyee
BOSS OD-1, Overdrive, MIJ, 7800, 1979, January, SS, longdash
cheers
That OD-1 is so clean, one can clone right off of those pics!!!
WOW is all I can say.
I also appreciate your note about it sounding better than the 4558 based OD-1s ... way cool. |
|
|
|
KurtOchka
Copper Member
Ukraine
10 Posts |
Posted - 10/29/2008 : 17:52:27
|
Boss ME-50
 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 10/30/2008 : 15:32:16
|
Hi KurtOchka
Welcome to the forum from Australia.
Thanks for the Internal pics of your ME-50.
I have also added it to the Index - text.
Regards Dr. Bob
|
|
|
|
