| Author |
 Topic  |
|
4evrnewB
Silver Member
Canada
322 Posts |
 Posted - 11/01/2007 : 20:51:13
|
Hi Folks~
A while back I bought a used BF-2. It has a knob missing, but worked well. I ended up using a couple of other flangers for a while and but the BF-2 in a drawer in my desk. That was a couple of years agao.
The other day I took it out, powered it up and...nothing. Any suggestions on what to look for and anyone know where I can get a knob (if I get this working!)
Thanks,
Brian |
Edited by - 4evrnewB on 11/03/2007 14:12:55 |
|
|
Ken
Copper Member
Norway
25 Posts |
Posted - 11/01/2007 : 21:17:41
|
Hello!
Did you use battery or power supply?
I screwed earlier up by using a psa adapter on aca pedal.
Otherwise, need more info.
/ken |
 |
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 11/01/2007 : 22:10:21
|
Think I may have screwed mine up too last night making my hf2 self occilate. Along with the dd3 in hold, and a ph1r&2
Did you look inside? Anything look bad? |
|
|
|
pedals 4 pv
Platinum Member
Canada
1351 Posts |
Posted - 11/01/2007 : 22:27:37
|
You can get the knobs from Roland for $1.42 each.
Roland Canada Ltd.
5480 Parkwood Way
Richmond B.C. V6V 2M4
phone: 604.270.6626
Roland Canada Ltd.
170 Admiral Blvd.
Mississauga ON L5T 2N6
phone: 905.362.9707
|
Edited by - pedals 4 pv on 11/01/2007 22:28:37 |
|
|
|
4evrnewB
Silver Member
Canada
322 Posts |
Posted - 11/02/2007 : 14:26:13
|
Hi Folks, thanks for the help...pedals 4 pv - re: the knobs, would I just tell them the model and serial number so that I got the right vintage knob?
Re: the BF-2, I have only used a battery. I'm going to open it up today and look inside, bt I can already see there are mismatched screws on the bottom...uh oh...
Thanks fpr metnioning things about psa and aca - I was just noticing that myself, last night...I just bought a PSM-5 (which is psa, right?) so that means I can't use it with my old aca pedals?? Oh turd... |
|
|
|
StratoSphere
Double Platinum Member
Canada
2232 Posts |
Posted - 11/02/2007 : 17:20:28
|
as far as mixing PSA with ACA i dont think theres a problem. ive been doing it from the start and have never had a pedal malfunction. there is a rule though about putting a PSA between 2 ACAs or something like that. i dont know exactly but im sure someone on here knows and can clear it up |
|
|
|
Ken
Copper Member
Norway
25 Posts |
Posted - 11/02/2007 : 17:35:39
|
Hey
As I understand it, you can mix and match aca/psa pedals as long as they share common ground(ing).  That just means that they are connected together with patchcables between them(which they usually are anyway)
Still, if you used just the battery, and it still is no life, well ...
I would start checking for corrosion inside since it just has layed unused for years. Did you leave it with the battery connected?
/ken |
|
|
|
4evrnewB
Silver Member
Canada
322 Posts |
Posted - 11/02/2007 : 19:04:47
|

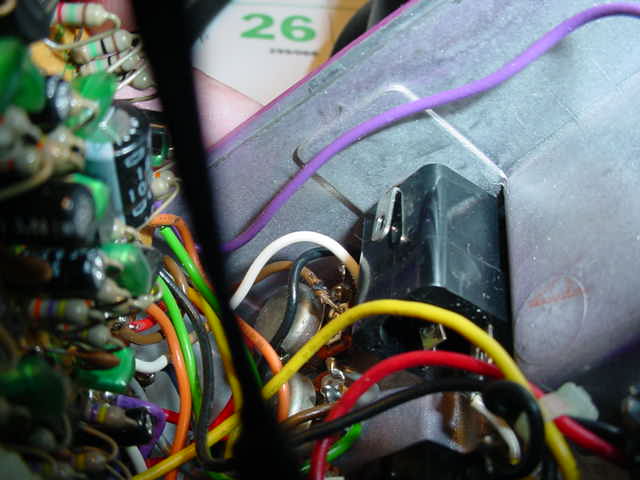

Hi Ken. No, there was no battery inside. I opened the BF-2 up and the only thing that looked funky to my eyes was a couple of the wires going to the "manual" pot. I've tried to show a picture here, and if you look closely at the brown wire in the center, there's a black "burned" looking spot a few millimetres up from the connection. The white wire looks simliar.
BTW - what is supposed to be in the bottom of the pedal between the pcb and the metal baseplate? When I opened this, there was just a piece of paper towel separating them!
Download Attachment:  MVC-015S.JPG
41.43 KB |
|
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 11/02/2007 : 22:40:00
|
Just took a look at mine, and the brown wire (pad 10) is to the lug towards the center of the pedal, and the white one (pad 9) leads to the center lug of the Manual pot. Someone rewired it wrong in the past?
Paper towel? like real paper towel (scott, bounty...) or thick paper
The thick paper was the old way of insulating it, the newer ones have plastic. Get some mylar or thick plastic and cut it to shape
Good luck |
|
|
|
pedals 4 pv
Platinum Member
Canada
1351 Posts |
Posted - 11/02/2007 : 23:18:37
|
quote:
Originally posted by 4evrnewB
Hi Folks, thanks for the help...pedals 4 pv - re: the knobs, would I just tell them the model and serial number so that I got the right vintage knob?
Yep. I got a new knob for my MIJ OD-2, no problem. They probably have the insulator plate for the bottom too.
|
|
|
|
Ken
Copper Member
Norway
25 Posts |
Posted - 11/02/2007 : 23:18:47
|
ChristoMephisto said it all |
|
|
|
4evrnewB
Silver Member
Canada
322 Posts |
Posted - 11/03/2007 : 00:15:20
|
Thanks folks. Yeah, it was paper towel, like Bounty. I know what you mean by the mylar and we have tons of it at work.
The only thing that confuses me about the wrong re-wiring is - it used to work just fine? |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/03/2007 : 09:14:54
|
Hi Guys
Christo is that pot wired as a variable resistor(2 wires), & not a pot (3 wires)
That would explain why it WAS working OK, because on a (2 wire) variable resistor, it doesn't really matter which way around the wires go.
It was hard to tell from that posted pic.
Regards Dr. Bob |
|
|
|
4evrnewB
Silver Member
Canada
322 Posts |
Posted - 11/03/2007 : 14:27:13
|
Thanks to everyone for your input. Combined, it all led me to a happy conclusion!
Christo & Dr. Bob, you were both right about the pot wiring. Turns out the 'manual' pot was working backwards - just never noticed that before!
As for the "problem", well, whoever had reversed the wires had put that oil-soaked paper towel in there with the best of intentions. I will say it kept the pcb and metal bottom plate in great condition, but what I think happened is that all those years in the drawer, opening and closing, sliding a little one way then the other, must have allowed some of the sharp solder points to dig through the insulator and come in contact with the metal plate. Last night I hooked it back up without the bottom plate et voila! - nice thick flanging, and a reverse "manual" pot...
So, since my new BF-3 just arrived yesterday... anyone want to buy a brand new BF-3? Or the BF-2, I guess, although I think I prefer it!
Thanks again, all |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/03/2007 : 16:45:48
|
quote:
Originally posted by 4evrnewB
Thanks to everyone for your input. Combined, it all led me to a happy conclusion!
Christo & Dr. Bob, you were both right about the pot wiring. Turns out the 'manual' pot was working backwards - just never noticed that before!
As for the "problem", well, whoever had reversed the wires had put that oil-soaked paper towel in there with the best of intentions. I will say it kept the pcb and metal bottom plate in great condition, but what I think happened is that all those years in the drawer, opening and closing, sliding a little one way then the other, must have allowed some of the sharp solder points to dig through the insulator and come in contact with the metal plate. Last night I hooked it back up without the bottom plate et voila! - nice thick flanging, and a reverse "manual" pot...
So, since my new BF-3 just arrived yesterday... anyone want to buy a brand new BF-3? Or the BF-2, I guess, although I think I prefer it!
Thanks again, all
Hi 4evrnewB
Regards Dr. Bob |
|
|
|
4evrnewB
Silver Member
Canada
322 Posts |
Posted - 11/03/2007 : 18:11:00
|
Hi - What's up, Doc? Wanna buy a flanger?
|
|
|
|
