the-destructor
Silver Member
USA
334 Posts |
 Posted - 04/03/2009 : 01:37:43
|
TU-2 "should" probably be 1st in line. Sound off evil counterparts...
Un-afflicted signal to the tuner!!! OR.. run on the A or B side of an A/B'ed LS-2.
 T-D |
Edited by - the-destructor on 04/03/2009 01:39:49 |
 |
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 04:33:49
|
where would i plug my wireless into?
|
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 07:43:36
|
ok..this is what i have so far that is working
wireless>
PSM-5 GUITAR>
PSM-5 SEND>
NS-2>
TU-2>
CS-3>
SD-1>
MT-2>
DS-1>
GE-7>
CH-1>
DD-7 A IN>
DD-7 A OUT>
PSM-5 RETURN
PSM-5 AMP>
RECORDING INTERFACE
DD-7 B OUT>
GE-7>
DD-7 B IN>
where would i put the LS-2 in the above chain with out altering it, if any very little?
other pedals i have other than above available for another loop are
of course LS-2
DS-1
HM-2
AC-2
flanger
|
Edited by - kelmaur on 04/03/2009 07:44:23 |
|
|
|
FRANZONI
Double Platinum Member
Ireland
3543 Posts |
Posted - 04/03/2009 : 09:05:35
|
I'm not quite clear how your hooking up the DD-7's..... are you trying to use them in stereo....?....
if you are intent on using the PSM-5 i would try the LS-2 after the amp send and before any recording devices... as they say a picture tells a thousand words so.....
this is my original pedalboard......
this is more or less what i use now.......
.... as you can see from both pics the LS-2 is controlling the top row plus a send to the TU-12 for silent tuning from Loop B....never had any problems except when a drunken polishman pushed a PA cab on top of the pedalboard breaking the switch(fixed thanks to the kindness of Laurie... )...and the LS-2 is still going strong.....best thing to do is try the LS-2 on it's own with a few pedals in one of the loops and see if it works ok..... then lett us know and we can take it from there.....personally i think it's something simple that were missing....go through all your cables for broken or bad connections and i wouldn't use either the PSM-5 or the LS-2 as distribution points for daisy chaining the power to other pedals...i link only one(the last on the board before the amp) just because it was handier that way but i wouln't try to power 7 or 8 pedals off it....it's not designed to do this especially if your using a cople of digital delays which take a lot of power..i camn only imagine what a COSM pedal like the DD-7 uses.. .... |
Edited by - FRANZONI on 04/03/2009 09:10:46 |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 12:55:48
|
all i have is one DD-7
it is just going into the second Ge-7 and back into the DD-7 fom there
just an EQ for the delay itself (nothing else) |
Edited by - kelmaur on 04/03/2009 23:37:22 |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 23:55:07
|
[URL=http://www.mediafire.com/imageview.php?quickkey=nygenyqmywg&thumb=5] [/URL]

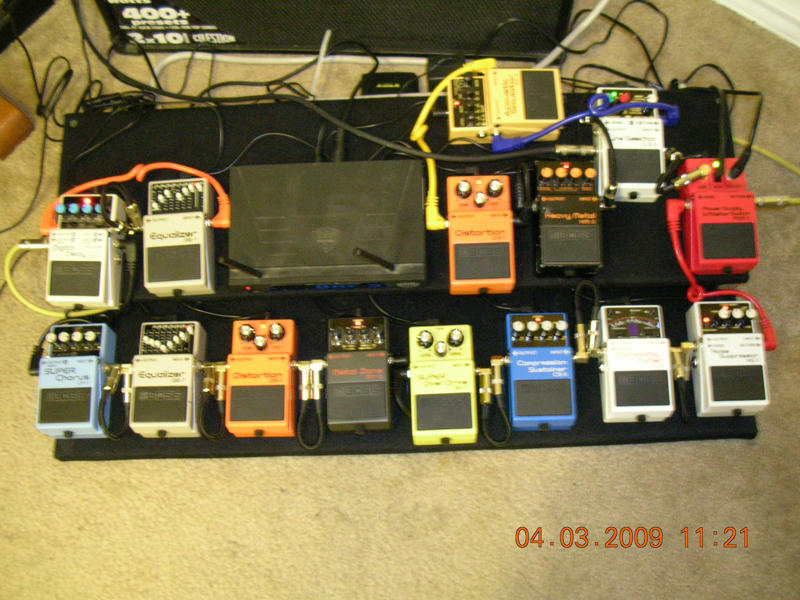

ok here it is the way i have it now...i took out the HM-2 from inbeteween the MT-2 and the DS-1 just tentatively to see if i could get a different dist sound...
so you are saying run from the AMP output on the PSM-5 into the LS-2 (A or B) for a second loop there and then from there into my interface?
|
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 23:56:40
|
FRANZONI
how do i get this picture as big here like the pic you posted
Image display code added by moderator.
I copied the file from mediafire, to my desktop.
Renamed it kel.jpg, as it was some horrible 18-20-100 digit name from mediafire.
I Uploaded it to the server, it ustomatically goes into a folder there with your name.
Click on edit to see the HTML code snippet, copy this to a safe place & reuse it when you upload some pics,
Just rename the filename.jpg to suit your new uploads
|
Edited by - Dr. Bob on 04/04/2009 08:38:31 |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/03/2009 : 23:58:51
|
| i figured out the other nightthat now i am going to have to build me a bigger pedal board...HA HA HA |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 05:19:28
|
my wireless receiver is screwing me as far as room on my pedal board for pedal room
any body have any suggestions to make room for pedals and room for the receiver? |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 06:07:47
|
ok....i have my LS-2 working in my chain (only A), but i need to figure out now how to get the pedals on the booton level of my board in to the "B" loop
do i need to just come from where the GE-7 goes back into the DD-7 from there into the "B" return of the LS-2
from the out of the GE-7 (instead of back in to the DD-7 like i had it, but in to the return of the LS-2 to complete the B loop? |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 06:36:03
|
this is what i have now
[URL=http://www.mediafire.com/imageview.php?quickkey=nygenyqmywg&thumb=5][/URL] |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 07:55:40
|
this is the correct pic...sorry
[URL=http://www.mediafire.com/imageview.php?quickkey=zqzzneoozjg&thumb=4] [/URL]
do i need to just come out of the GE-7 after the DD-7 and into the LS-2 "B" for that loop?
what about the LS-2 B out, into what?....the TU-2....for the chain of the pedals on the bottom..NS-2 thru DD-7 |
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 08:48:39
|
| thanks, Dr. Bob.....i figured it out earlier |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 04/04/2009 : 13:32:25
|
quote:
Originally posted by kelmaur
thanks, Dr. Bob.....i figured it out earlier
Hi kelmaur
Yes I saw that just a few seconds after I hit post.
Just a quick heads up to everyone:
Long term, it's probably better to upload pictures to bossarea, & host them from here.
As many times I have gone through older posts, & the pictures are missing, seems that some of the free image hosting companies, delete-move-or loose files from time to time.
If you go back & the click edit icon, on your post that I edited,
you will see the HTML code snippet, that we use to display pics uploaded to the bossarea/forum.
They pics go into a per individual members folder.
Once you have done it one or twice, it will become second nature.
Some Browsers, seem to be able to automatically display the pic?
It might be older versions of Explorer?
I have never been able to figure out that little quirk.
I guess it's a secret only Bossarea-admin knows.
Regards Dr. Bob
|
|
|
|
kelmaur
Gold Member
USA
505 Posts |
Posted - 04/04/2009 : 22:49:13
|
| thanks for the info anyway............. |
|
|
|
