| Author |
 Topic  |
|
Laurie
Double Platinum Member
Canada
4854 Posts |
 Posted - 01/05/2009 : 04:20:38
|

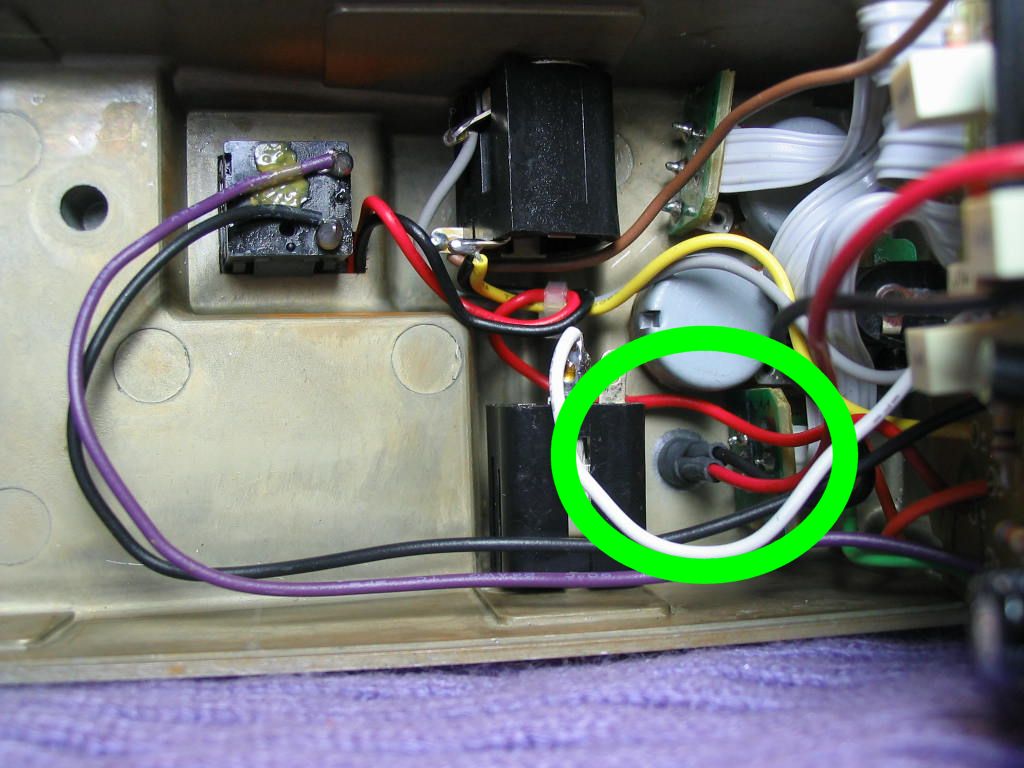

DS-1, MIT, unknown date and S/N (label missing) - think it's around 2002. Keeley SEM and Ultra as described here (done by me):
http://www.robertkeeley.com/audio6l6/dstech.html
Note:
- I didn't add the switch to kick in the extra LED for the "D-Ultra" mod as it didn't take the sound where I wanted it to go
- the resistor for the "check LED" is 6k8, not the 2k4 on the Keeley site, and the "check LED" is a 3mm bright white
|
Edited by - Laurie on 01/12/2009 20:15:31 |
 |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/05/2009 : 09:02:38
|
Hi Laurie
I like your 20K resistor, I guess you don't have the r24 range in your collection, just the r12 series.
I imagine you do that for the vintage mojo, with the carbon composition type resistors.
Remind me to put a few in your goodies stash.
Regards Dr. Bob |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/06/2009 : 17:20:46
|

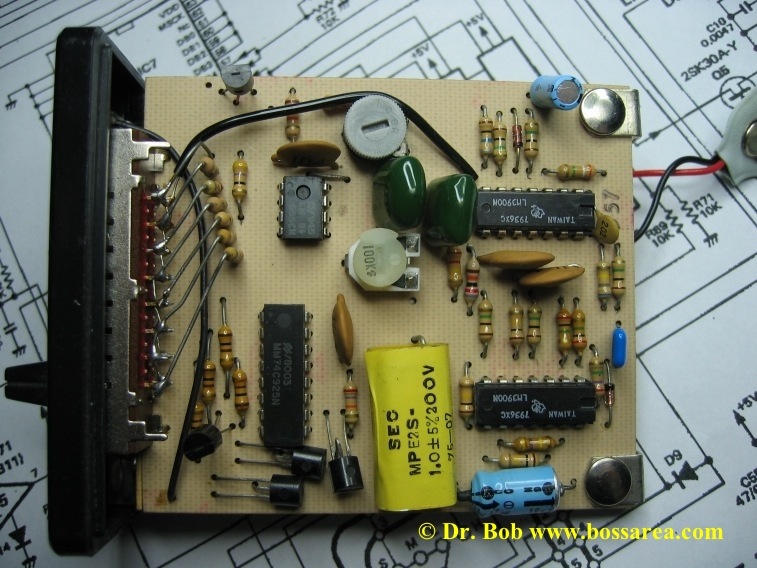

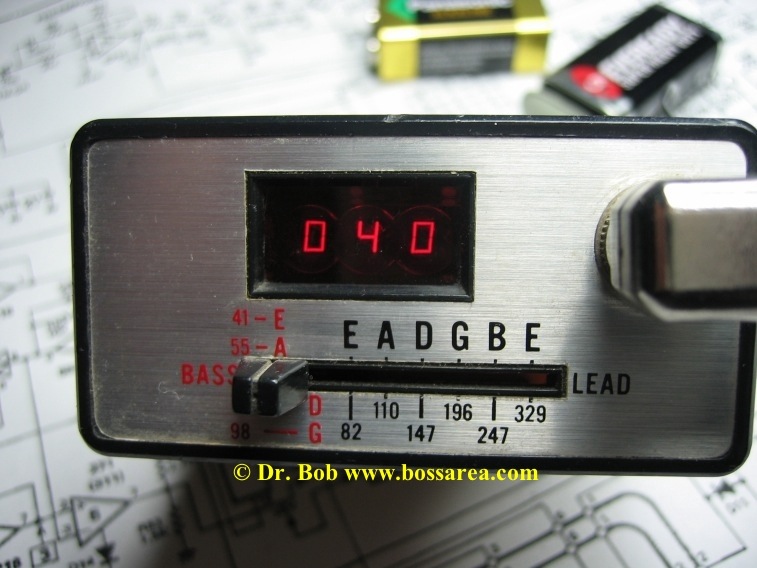

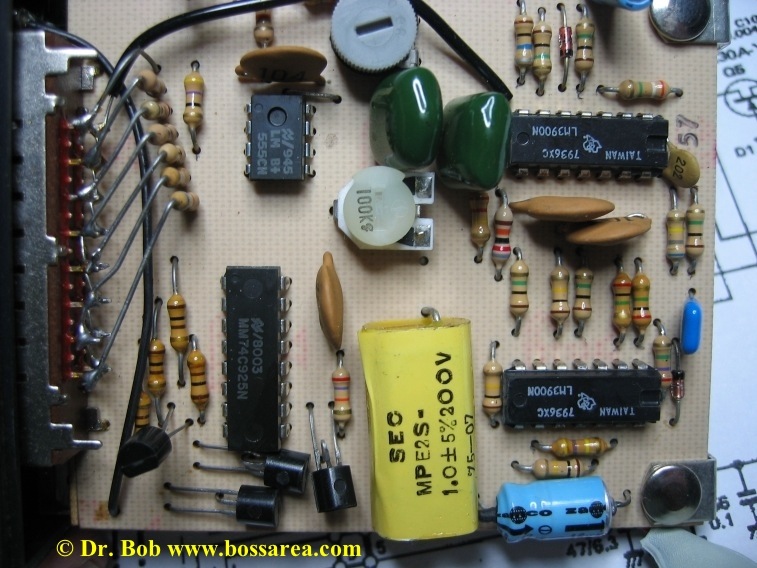

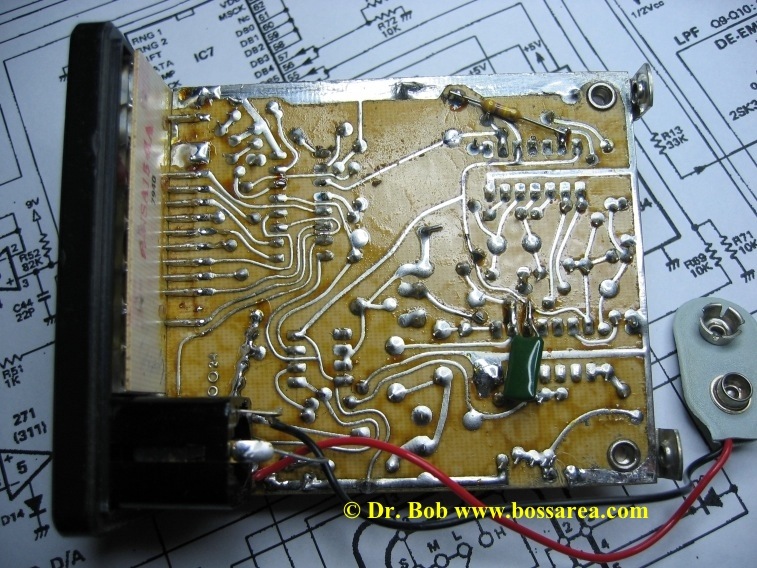

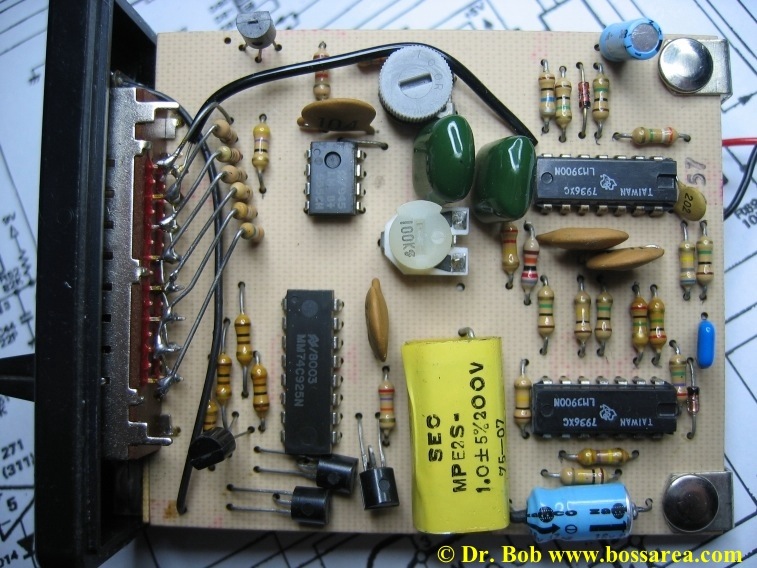

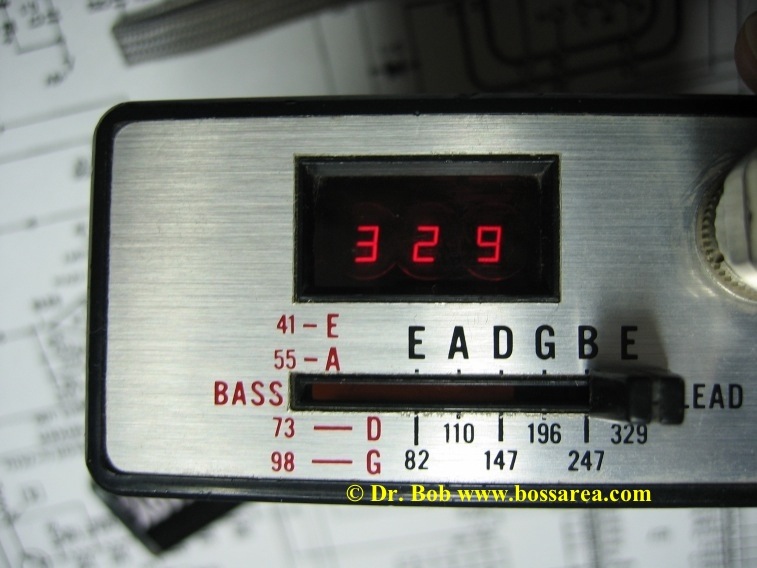

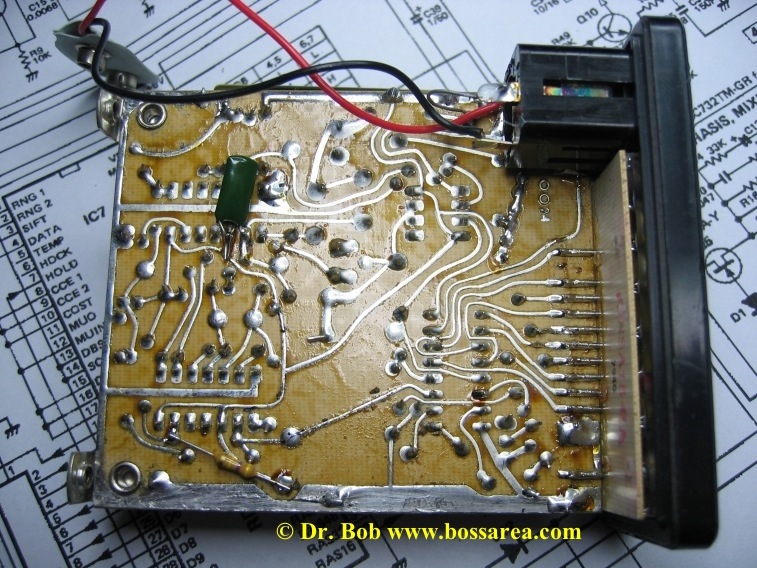

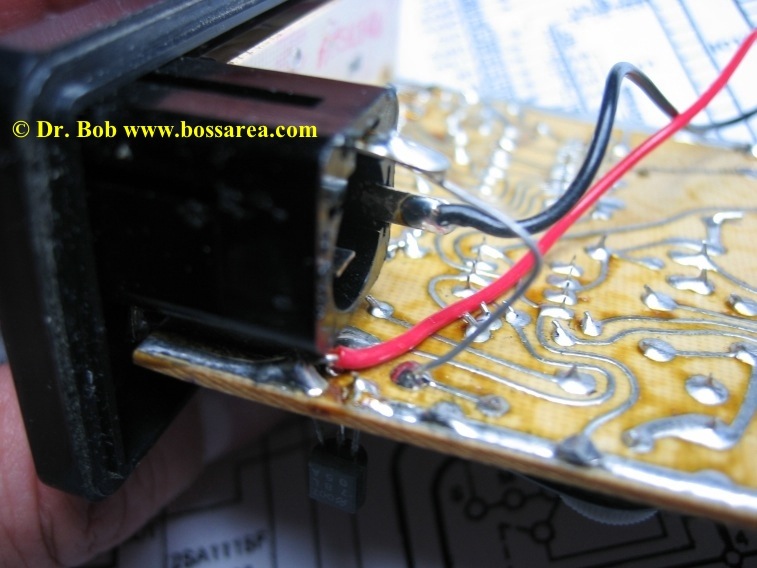

Morley Fastune Tuner
No serial number.

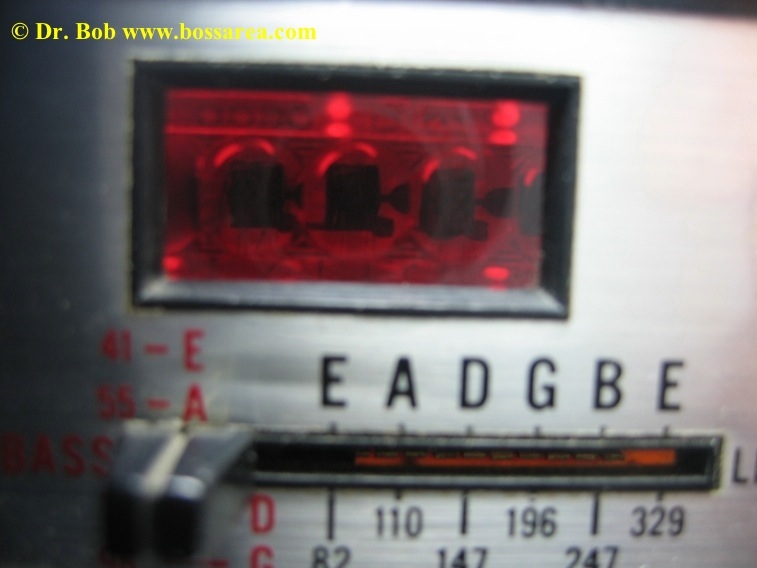

In one of the pics, you can just make out the Bubble lenses over the LED displays.
These were commonly used to magnify the very small displays.
For those that are wondering, the background is the sch. of a long chip DD-2
|
Edited by - Dr. Bob on 01/06/2009 17:24:49 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/07/2009 : 05:26:04
|

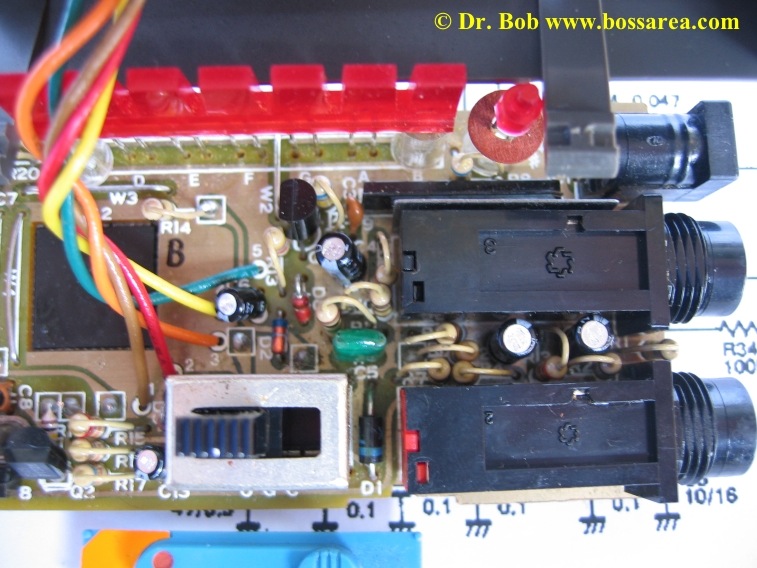

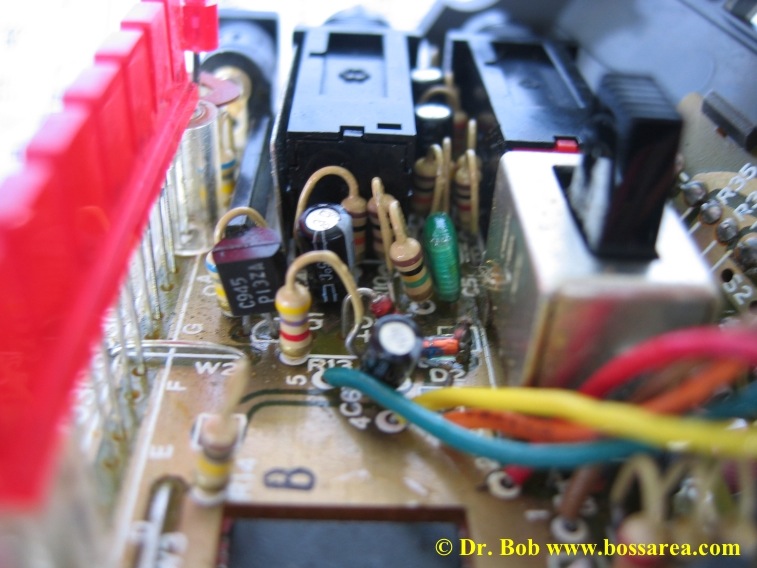

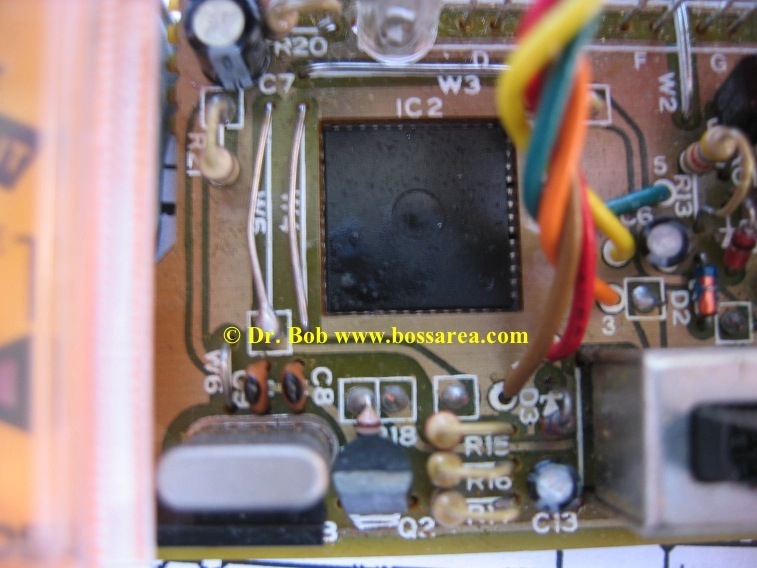

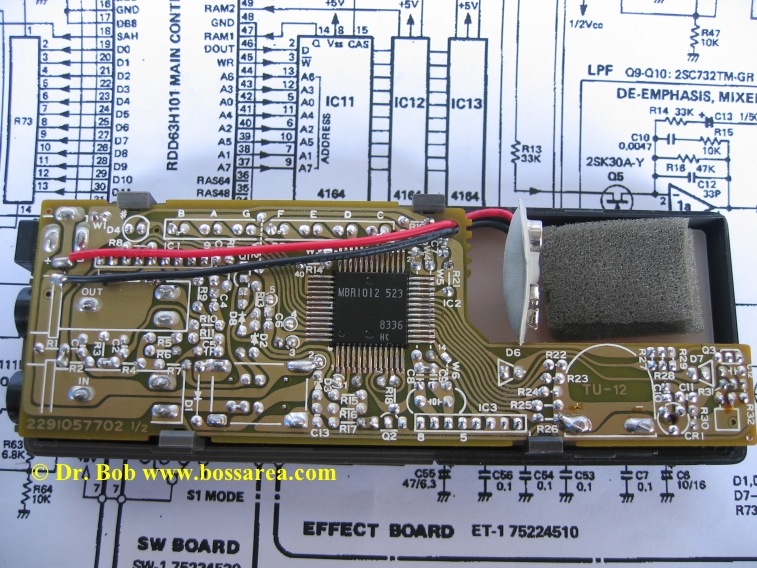

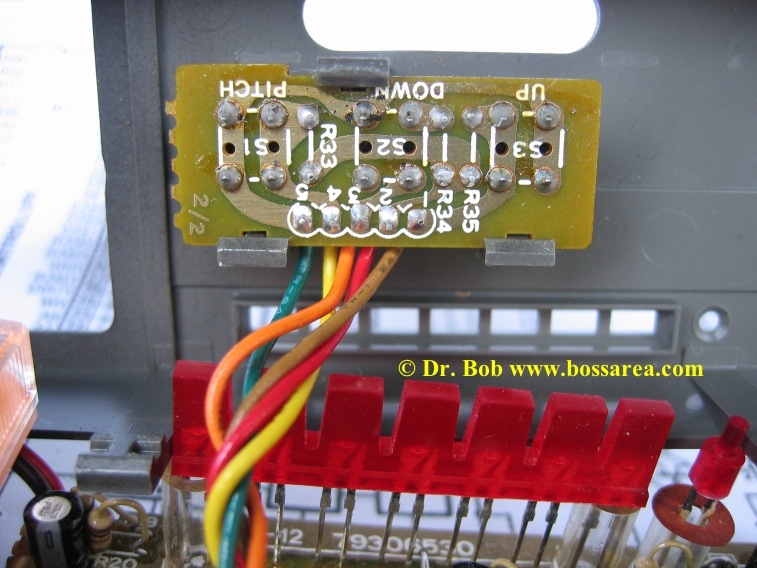

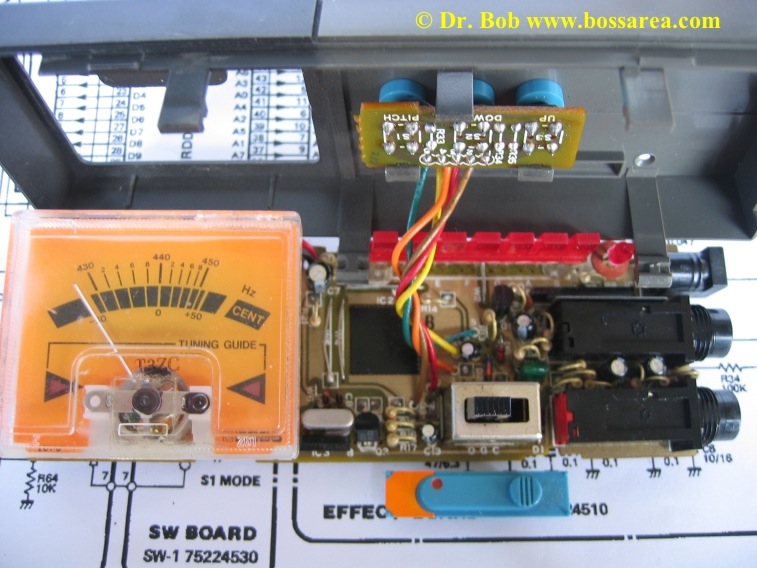

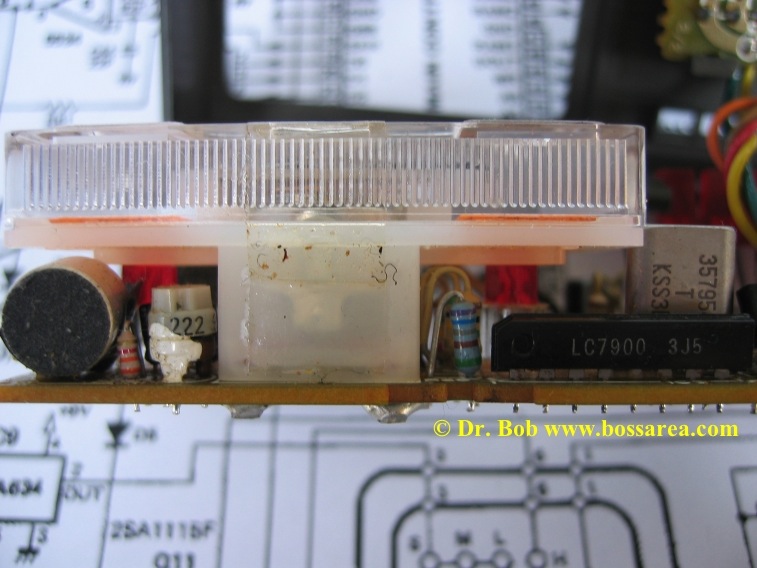

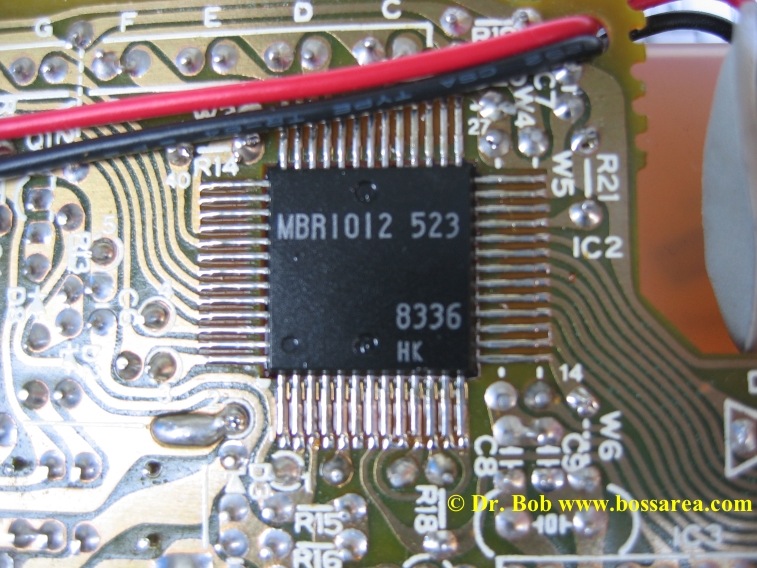

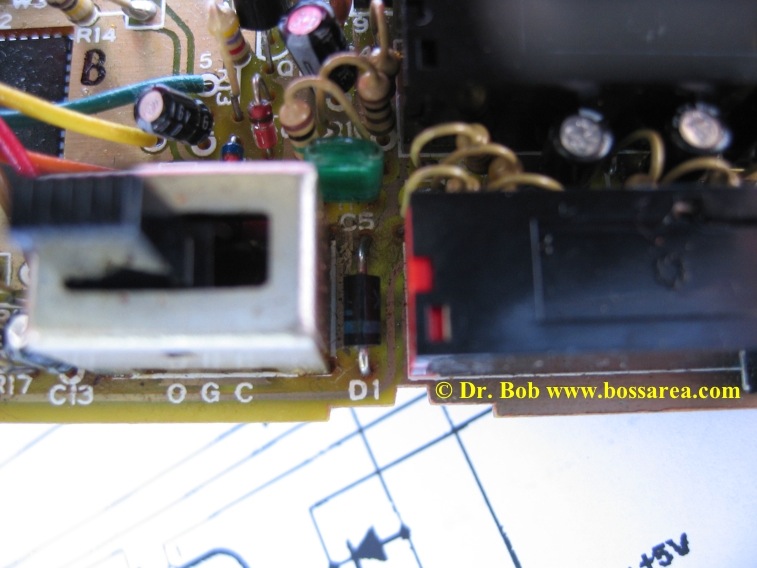

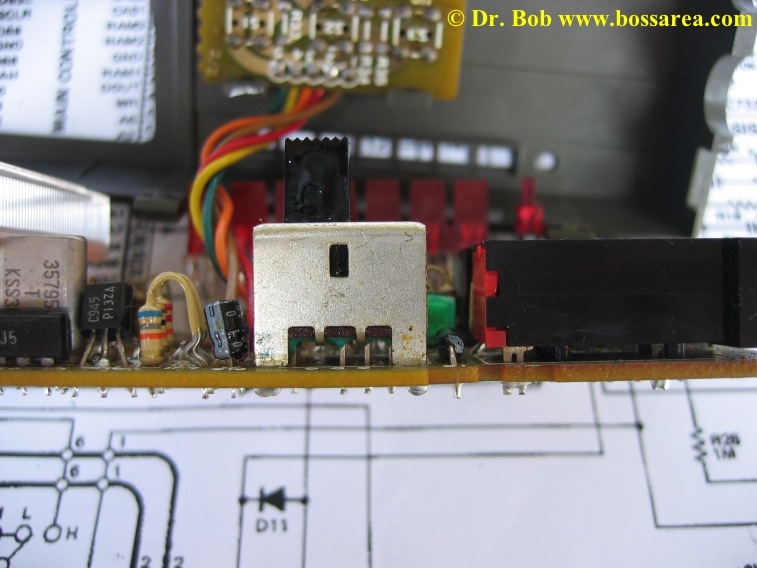

Boss TU-12 Tuner
Faded serial number.
|
|
|
|
whiskeytown
Copper Member
United Kingdom
16 Posts |
Posted - 01/09/2009 : 00:47:47
|
Ibanez AD9 Analog delay reissue MIJ
 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/14/2009 : 16:03:54
|

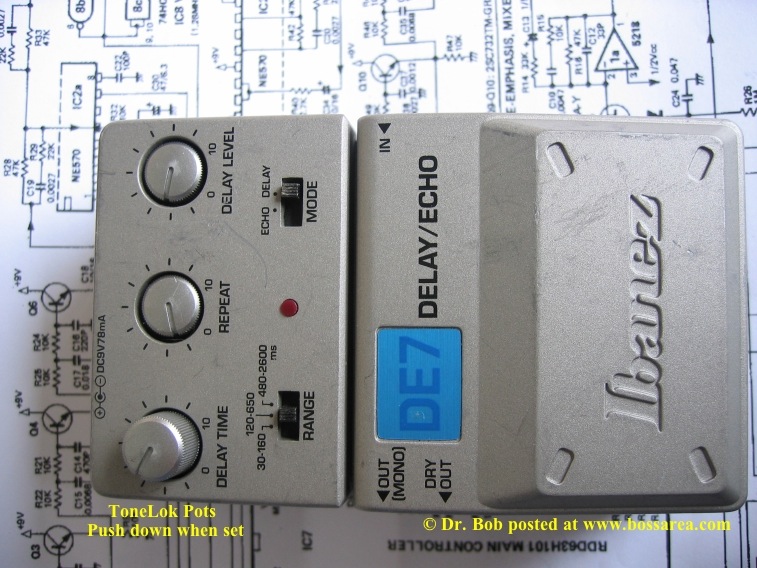

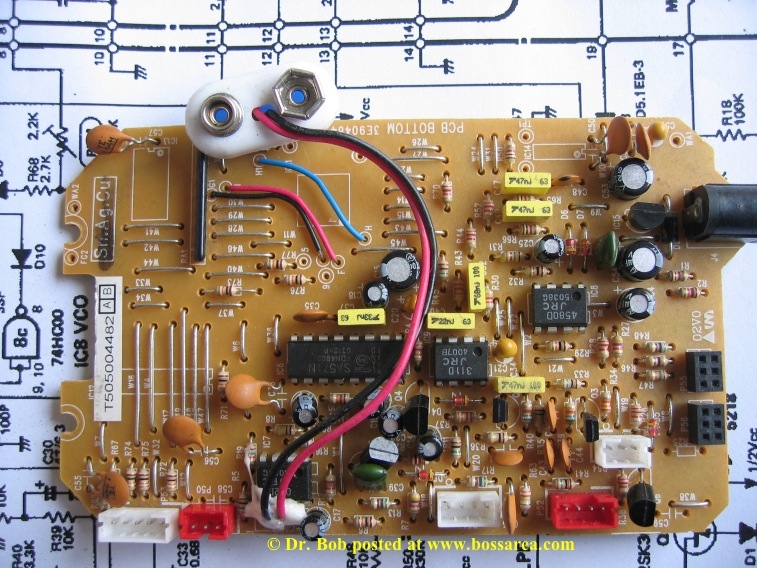

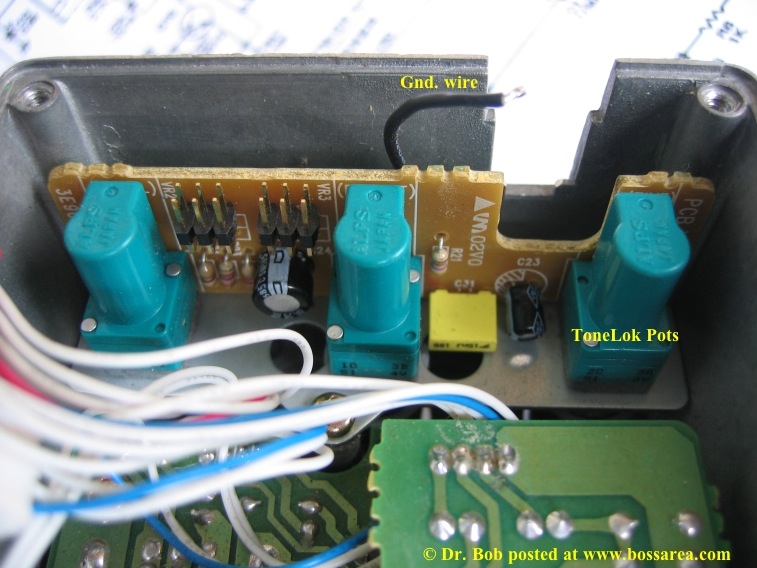

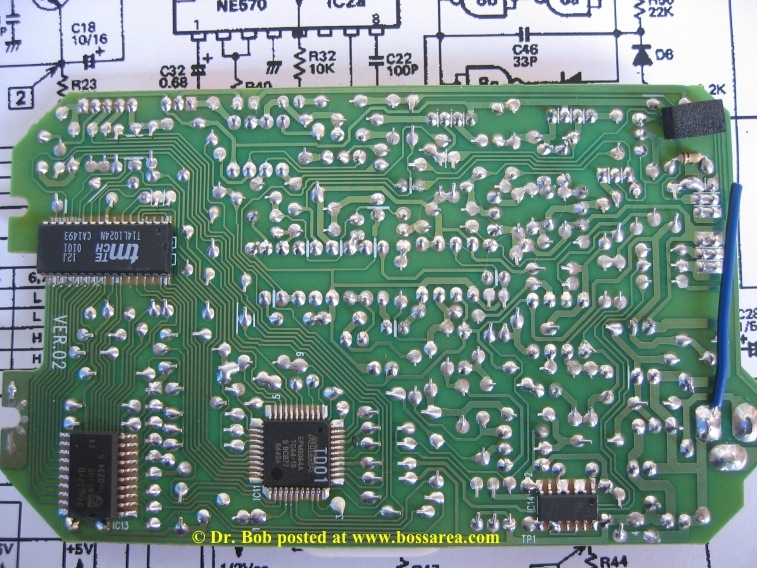

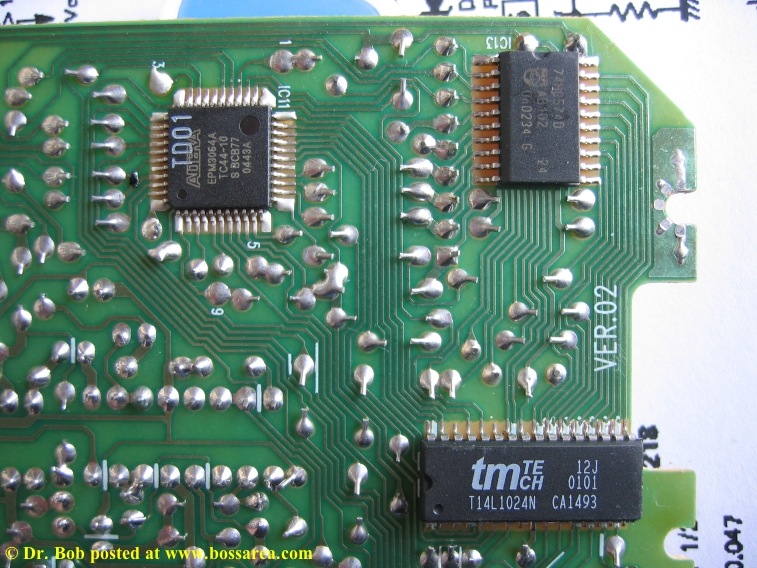

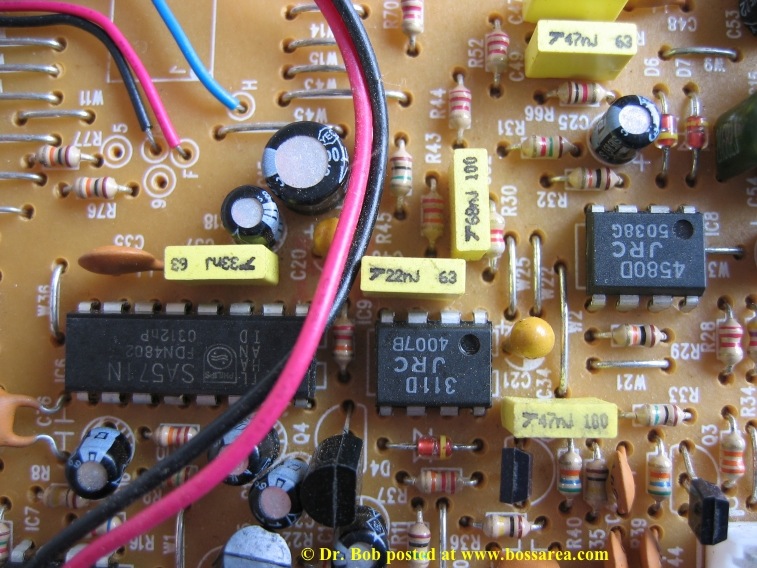

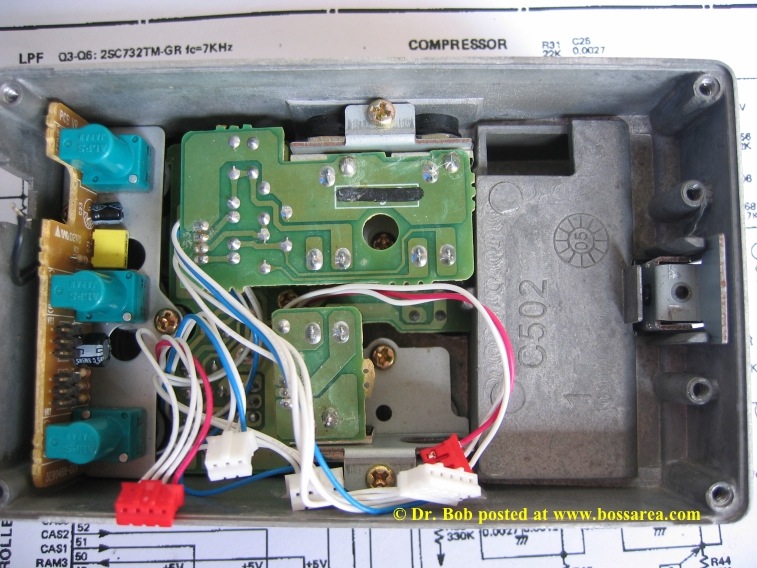

Ibanez DE7 Delay/Echo with ToneLok pots
This pedal can now officially be named:
Worlds Smelliest Pedal:
To keep this thread mainly filled with pictures;
Please post any comments regarding this here:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=6245
The plastic used in the ToneLok pots, is the new stuff that seems to be coming pout of Various Asian countries, & smells like wet musty old socks.
Or think of "old wet Gym towels", that you forgot about in the boot/trunk of your car.
It's really foul, & worse on hot days.
As Lurie knows, it took me months, to figure out what the foul smell in my Lab was, I literally pulled everything out of he room piece by piece.
The smell in the warmer part of the late afternoon was overpowering.
I even had to start using a small cooling fan, to move some of the air out of the room.
When I finally found out what it was:
I put this pedal outside, pulled apart for over 4 months, & the smell just doesn't go away.
I washed it with various PCB & other cleaners, & the smell still persists.
It seems that more & more stuff, is being made out of this smelly plastic material.
My daughter bought a new & expensive hair brush, the handle was made of the same smelly plastic,
If you held onto the handle, for even just a few seconds, the smell transferred itself to your hand/s & skin, & you really had to scrub your hands hard with soap, to get rid of the transferred smell.
It went back to the store for a refund.
The bank note acceptors on some newer vending/gambling machines, is also made of this smelly plastic.
The soles of some women's shoes, are also made from this plastic.
NO! This is not a Joke, but it's funny in a strange way.
Sound wise, It is a really great pedal, 2.6 seconds of possible delay.
Regards Dr. Bob
|
Edited by - Dr. Bob on 01/15/2009 07:11:01 |
|
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 01/14/2009 : 18:56:27
|
Great shots & nice copyright.
Do you turn off your camera flash when you snap or zoom from further away? |
|
|
|
KurtOchka
Copper Member
Ukraine
10 Posts |
Posted - 01/16/2009 : 09:19:25
|

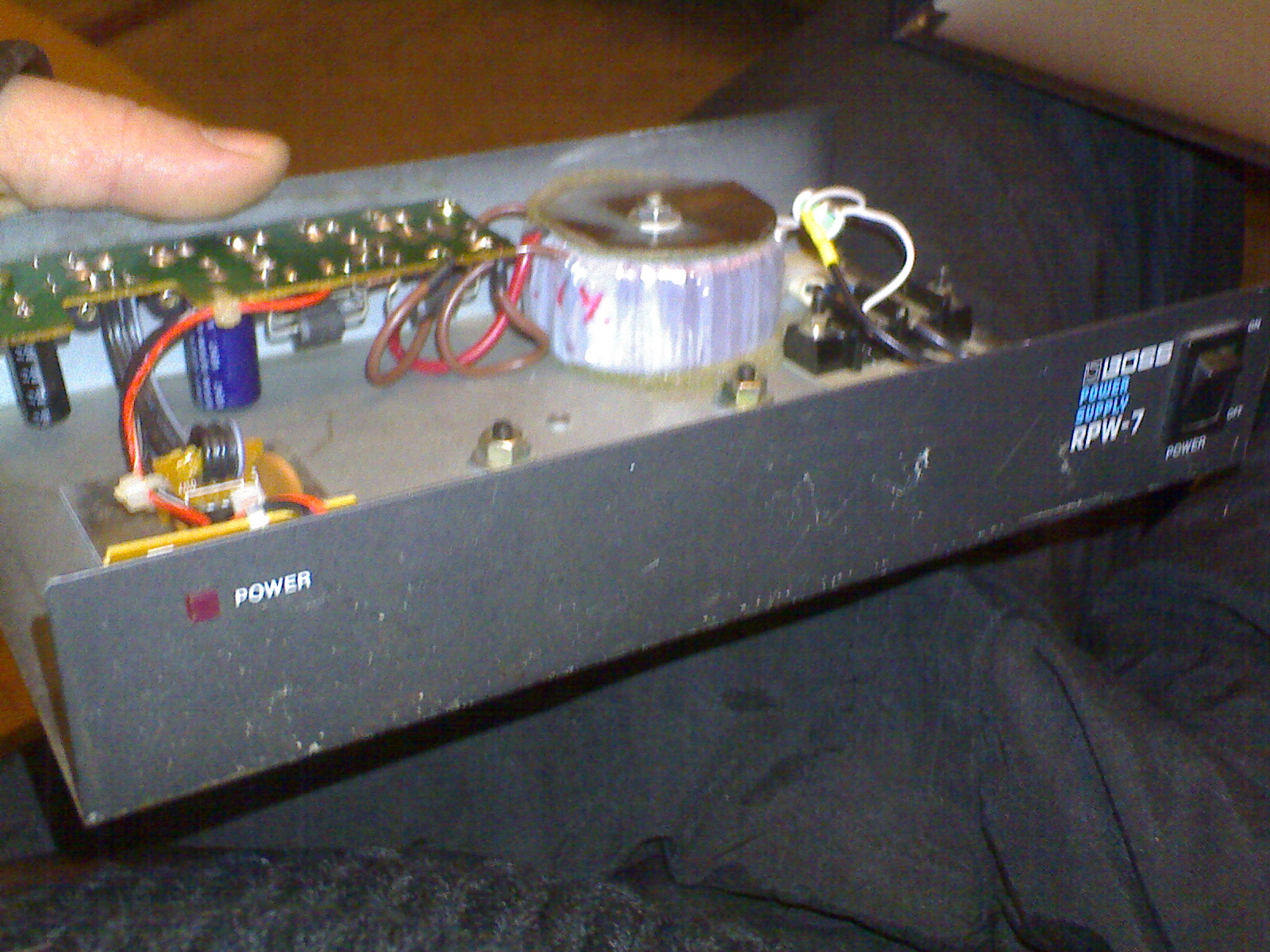

Boss RPW-7
|
Edited by - KurtOchka on 01/16/2009 09:24:51 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/16/2009 : 15:13:50
|
FV-50H Foot Volume High Impedance (Z)
Originally posted by Disco Stu: - Moderator
Some blurry internal pics
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=6272
These are probably useless... I may have to try again with some better lighting.
Moderator, feel free to delete these.
Disco Stu, these are the only internal Pics of the FV-50H, that we have, so we will keep them.
If you manage to take any better ones, please upload those as well. - Moderator
 |
Edited by - Dr. Bob on 01/16/2009 15:16:43 |
|
|
|
Disco Stu
Silver Member
USA
303 Posts |
Posted - 01/18/2009 : 03:30:31
|
BBE Stinger Compact Pedal
Year of production, unknown. Box says Model 601, same as label on bottom of pedal.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
non-component side of PCB with electrical tape...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
couple pics of the component side:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
 |
Edited by - Disco Stu on 01/18/2009 03:34:29 |
|
|
|
tazzboy
Copper Member
USA
46 Posts |
Posted - 01/25/2009 : 04:33:36
|

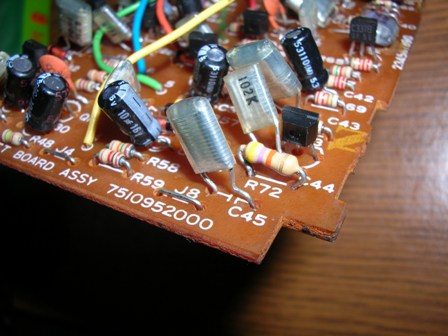

Here is the Boss Dm-3 Echo Delay. Pretty Much like the DM-2
|
|
|
|
moonmarkcus
Silver Member
Nicaragua
224 Posts |
Posted - 01/26/2009 : 00:59:36
|

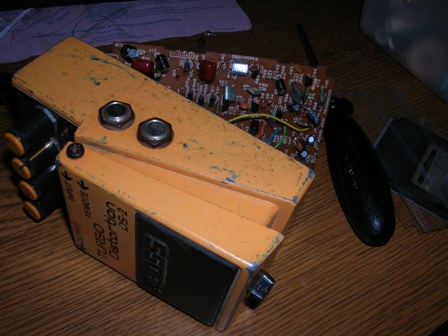

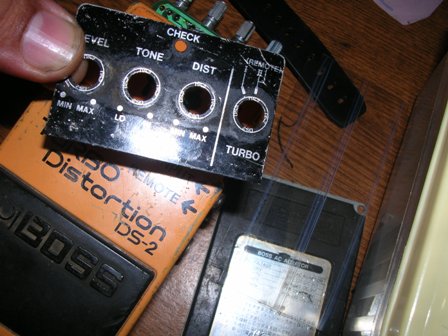

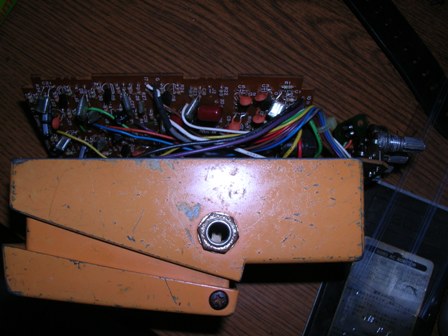

BOSS DS-2 MIT (Gently used and Gently modified)
Enjoy !!!
Yesterday I took this pics in a break from my Cs-3 restoration... |
Edited by - moonmarkcus on 01/26/2009 01:01:14 |
|
|
|
nathanscribe
Silver Member
United Kingdom
376 Posts |
Posted - 01/31/2009 : 15:56:11
|
Yamaha DI-01 Distortion, s/n 125115 (date unknown)
Exterior:
Backplate removed:
Overview of component side (IC is AN360 from what I can make out):
Beneath the PCB, showing connections to pots/LED:
No shots of track side, as that would mean desoldering several tightly-packed wires, and I don't fancy that job today.  |
Edited by - nathanscribe on 01/31/2009 16:00:12 |
|
|
|
fabs
Silver Member
France
213 Posts |
Posted - 02/01/2009 : 15:45:46
|

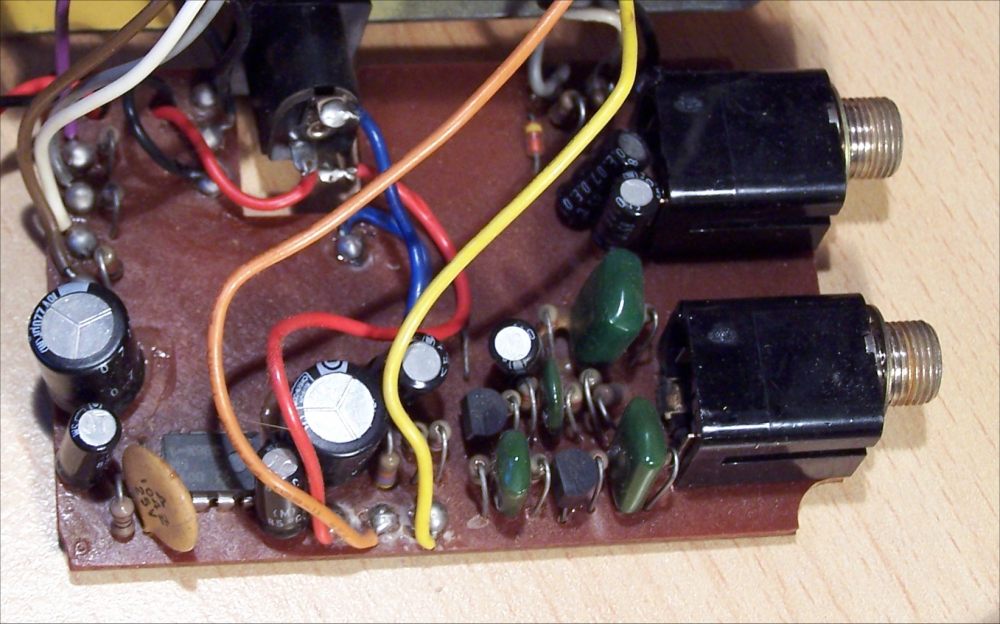

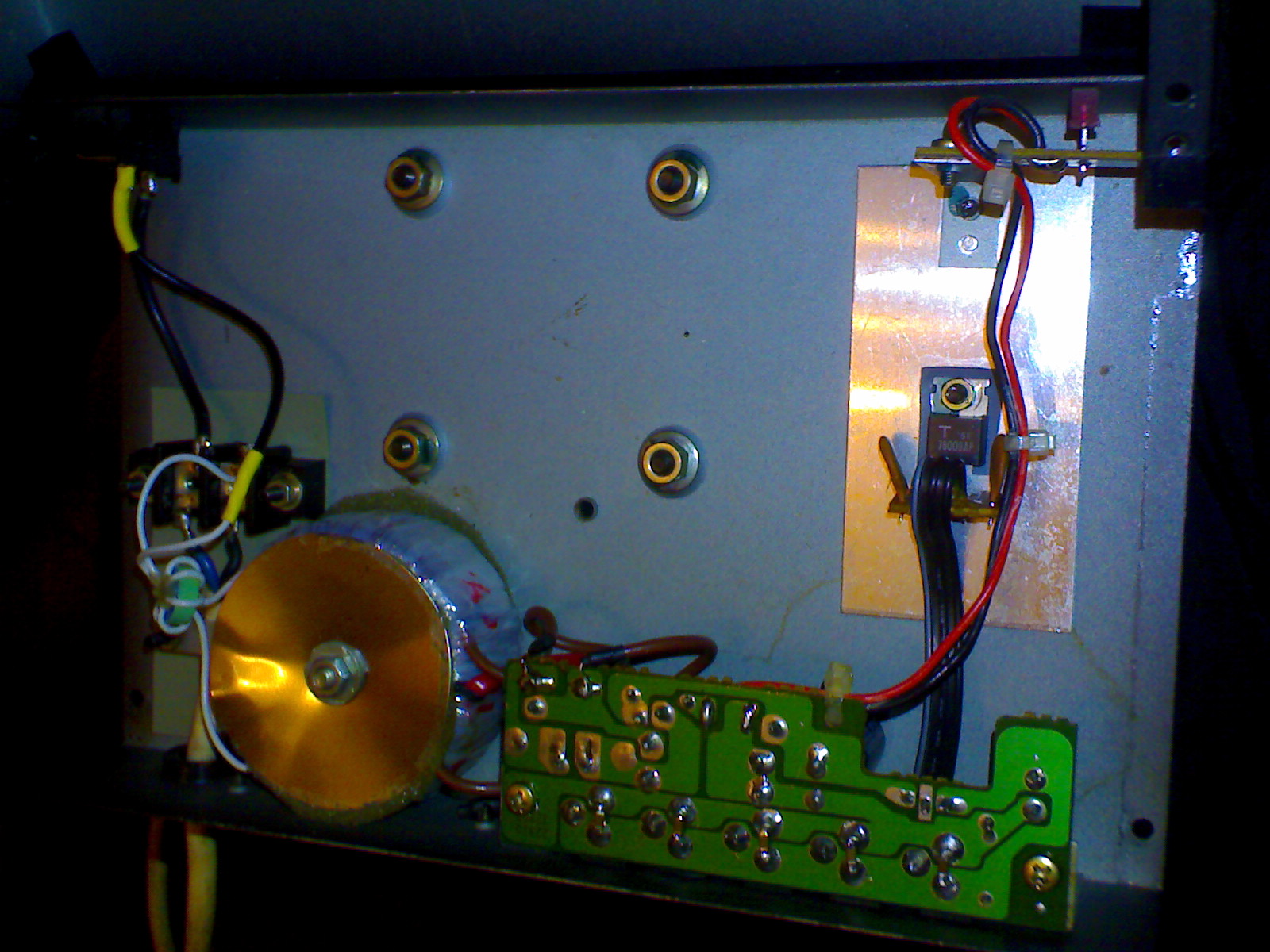

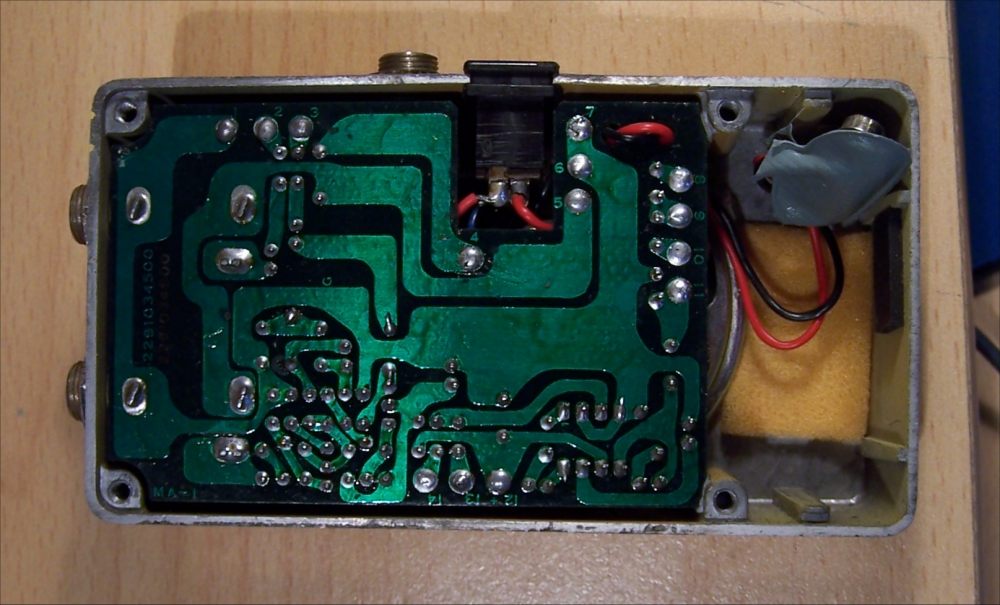

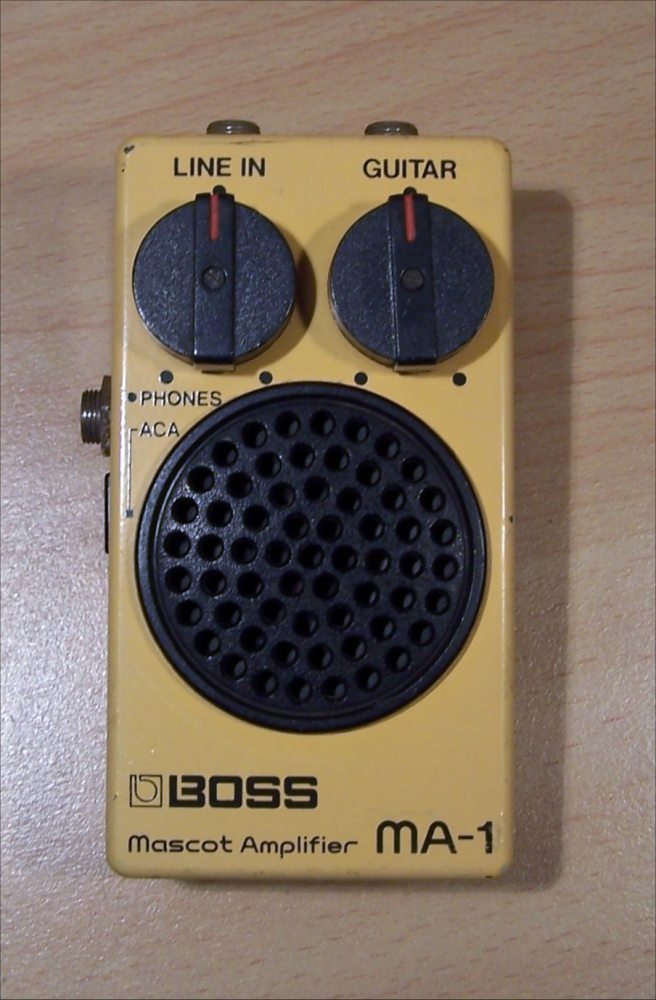

MA-1 Mascot Amplifier, unkown serial number and date (80-83)
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 02/06/2009 : 04:47:50
|

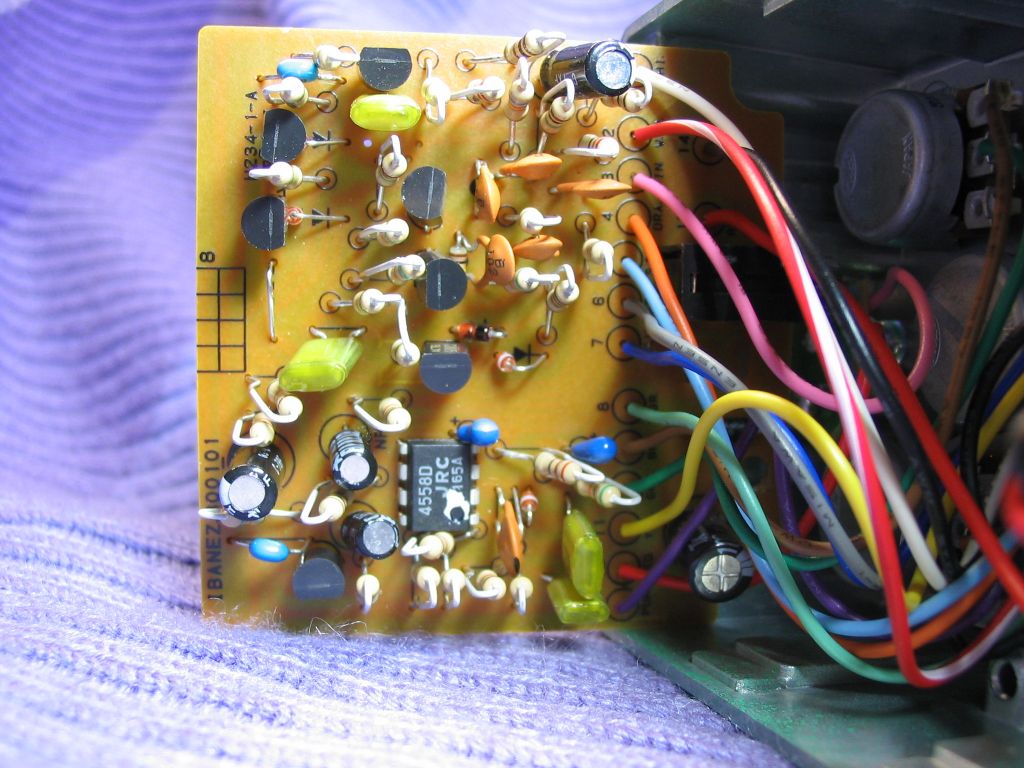

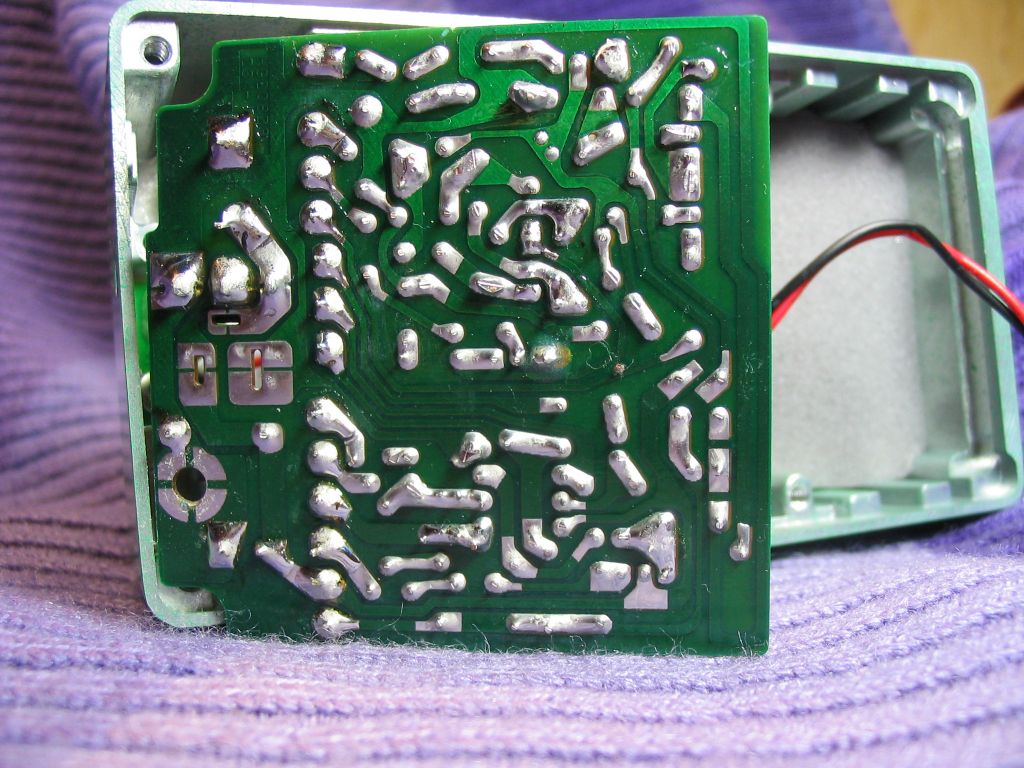

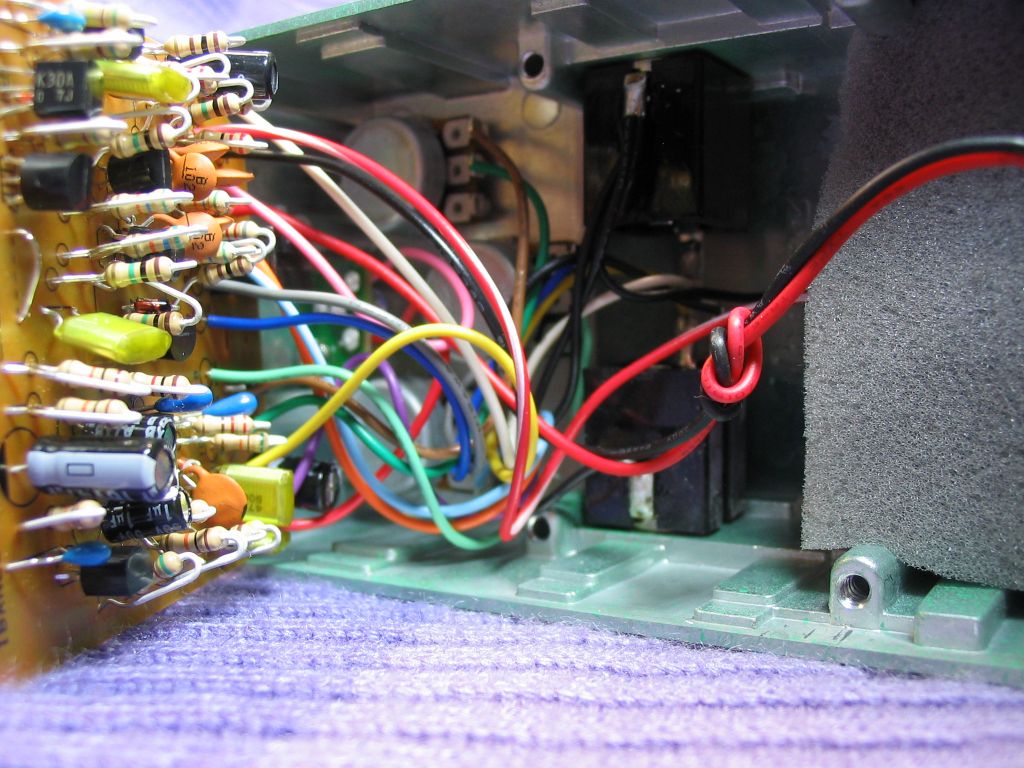

Ibanez TS808 reissue MIJ SN: 0811301
|
|
|
|
