 Posted - 01/26/2009 : 14:42:47
|

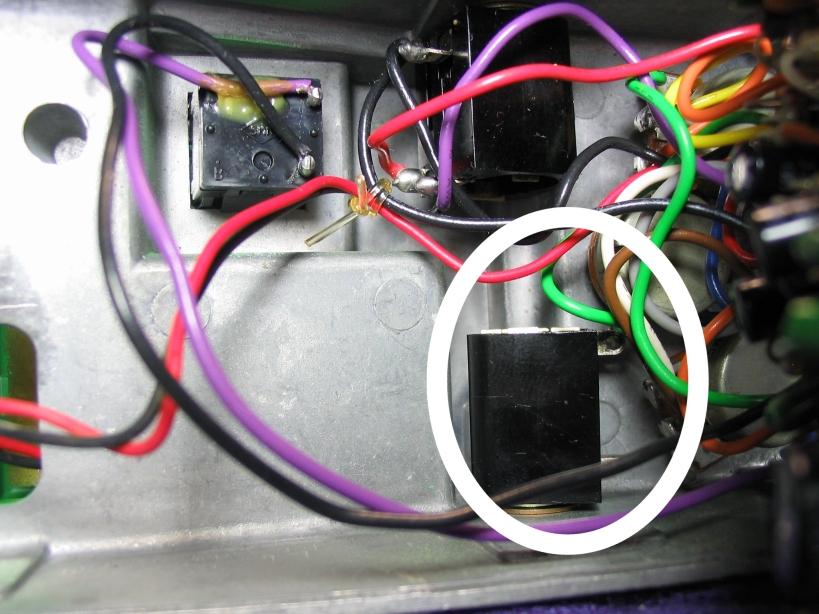

This is my "P under S" PH-1R.
The factory has used an input jack for the output jack. It took me a couple of minutes to figure out why the jack wouldn't sit properly...
It is completely factory standard - never been resoldered (at either end). Notice the lead colour is green too (instead of the standard white). I guess they ran out of output jacks that day
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/26/2009 : 14:49:08
|
Very observant Laurie...
Nice find.
Should we now add pedals with substituted parts, to the hard to find collection?
Regards Dr. Bob |
 |
|
|
Goran
Double Platinum Member
Sweden
2203 Posts |
Posted - 01/26/2009 : 15:07:16
|
quote:
Originally posted by Dr. Bob
Very observant Laurie...
Nice find.
Should we now add pedals with substituted parts, to the hard to find collection?
Regards Dr. Bob
Shit, this could be very expensive   |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 01/26/2009 : 16:02:07
|
This is the second one I've found recently:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=6049
And a 3rd one was a 470R resistor in place of the 100R resistor as the "ACA" resistor (part of the resistor/diode combo in an ACA pedal). This was in a MIT CE-2 which wouldn't switch on a PSA adapter - not enough voltage to the flip-flop.
|
|
|
|
nathanscribe
Silver Member
United Kingdom
376 Posts |
Posted - 01/26/2009 : 16:53:05
|
| Does that mean the output is no longer a switch for the power? IIRC, doesn't the ground switch terminal function as the power switch on a normal unit, but the input type jack lacks the switch terminal? (hope that makes sense...) |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 01/26/2009 : 17:03:12
|
quote:
Originally posted by Laurie
This is my "P under S" PH-1R.
The factory has used an input jack for the output jack. It took me a couple of minutes to figure out why the jack wouldn't sit properly...
It is completely factory standard - never been resoldered (at either end). Notice the lead colour is green too (instead of the standard white). I guess they ran out of output jacks that day
Hey, mine's completely the same, it also has the switching stereo jack for output and the green wire.
How old is yours Laurie? Mine's from oct '81. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 01/26/2009 : 18:35:18
|
quote:
Originally posted by Dirk
Hey, mine's completely the same, it also has the switching stereo jack for output and the green wire.
How old is yours Laurie? Mine's from oct '81.
I'll check the serial when I get home tonight. Be interesting if they are very close. Interesting too if they aren't! |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 01/26/2009 : 18:36:40
|
quote:
Originally posted by nathanscribe
Does that mean the output is no longer a switch for the power? IIRC, doesn't the ground switch terminal function as the power switch on a normal unit, but the input type jack lacks the switch terminal? (hope that makes sense...)
Nah... works just fine. Switching is on the input jack, which is standard. |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 01/27/2009 : 00:06:00
|
| gonna have to get boss on top of there quality control |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 01/27/2009 : 00:40:17
|
quote:
Originally posted by Dirk
Hey, mine's completely the same, it also has the switching stereo jack for output and the green wire.
How old is yours Laurie? Mine's from oct '81.
Serial is 083600. What's yours? |
|
|
|
Dirk
Platinum Member
Netherlands
1309 Posts |
Posted - 01/27/2009 : 16:57:31
|
quote:
Originally posted by Laurie
Serial is 083600. What's yours?
116400.
This learns us that likely all PH-1r's and maybe some other pedals between July and October 1981 have this phenomenon. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 01/27/2009 : 17:10:55
|
quote:
Originally posted by Dirk
This learns us that likely all PH-1r's ..... have this phenomenon.
I know of at least 3 others that don't have it, so probably not...
|
|
|
| |
