| Author |
 Topic  |
|
Mesjoggah
Gold Member
Netherlands
595 Posts |
 Posted - 09/12/2009 : 08:44:53
|
Boss PS-2 Pitch Shifter/Dealy s/n ca70319 october 1989
|
 |
|
|
cctsim
Silver Member
United Kingdom
418 Posts |
Posted - 09/18/2009 : 16:39:52
|
My new TR-2
It worth noticing that TR2 comes now with a trim potentiometer to adjust the output volume. So by default there is no volume drop.
The serial number is KX55304 (October 2008). |
Edited by - cctsim on 09/18/2009 16:41:57 |
|
|
|
fabs
Silver Member
France
213 Posts |
|
|
starr36
Platinum Member
Canada
1172 Posts |
Posted - 09/22/2009 : 01:01:56
|

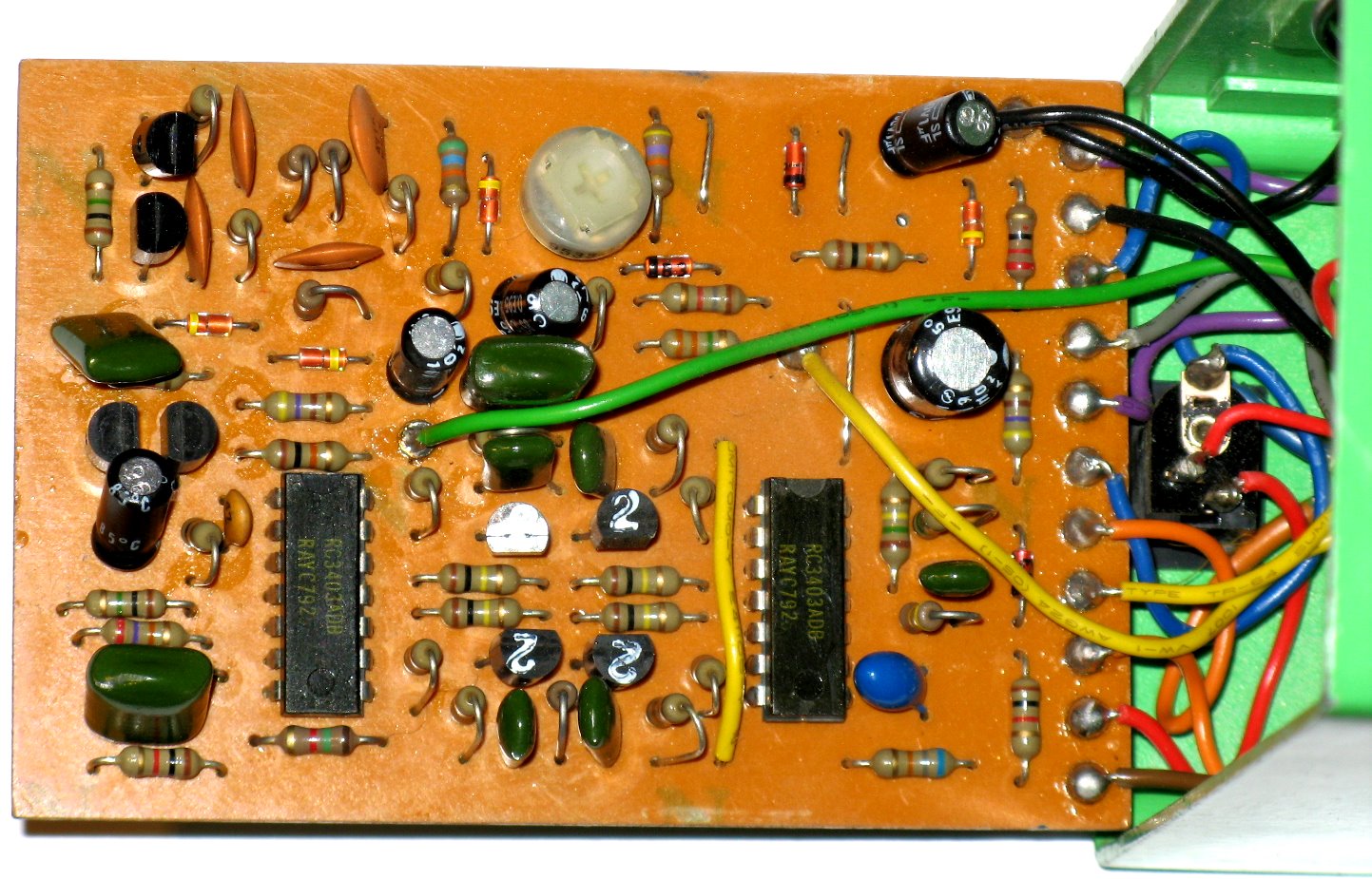

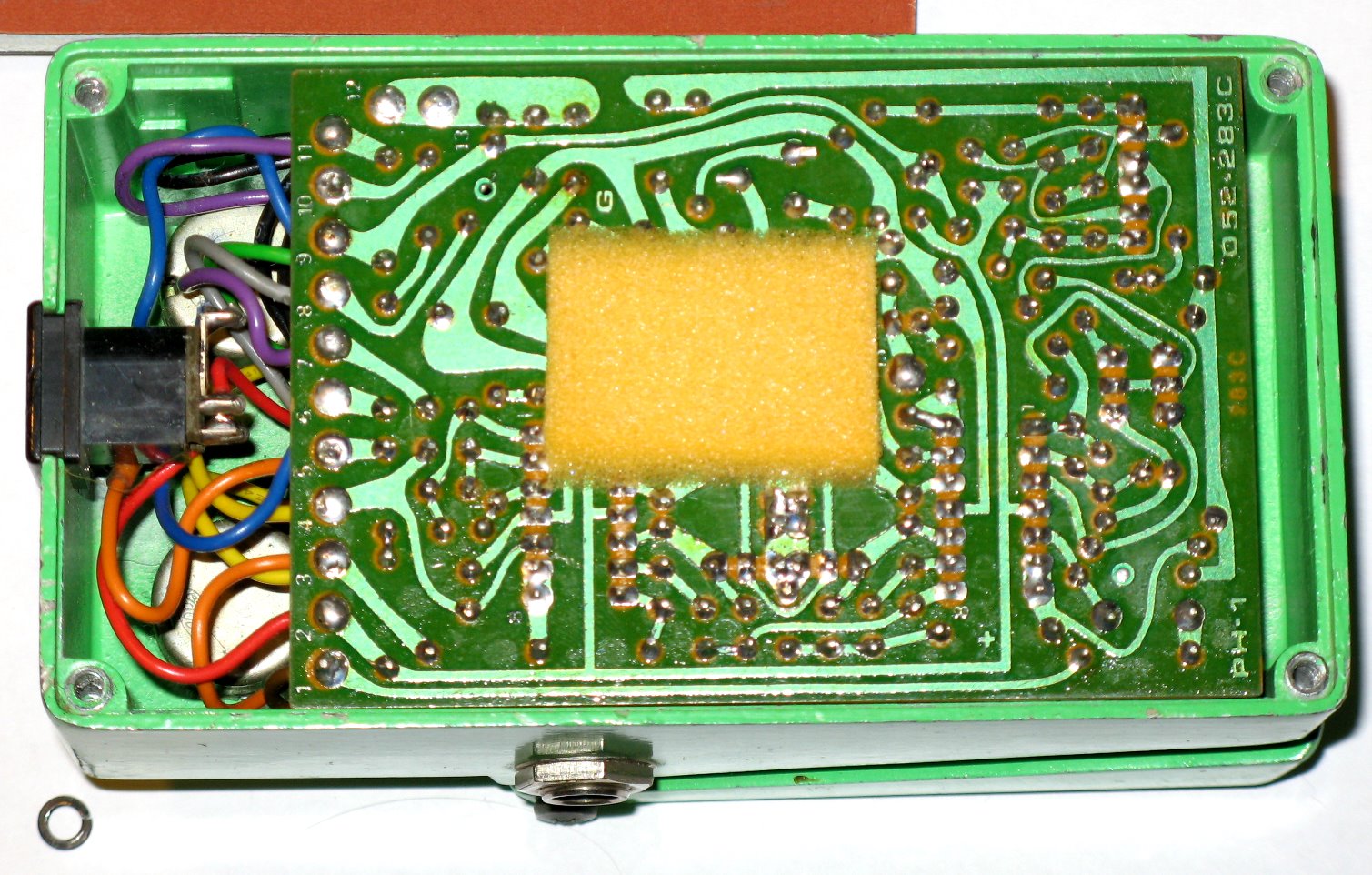

Boss PH-1 #8400 Skeleton Switch and Silver Screw.
- and its broken  |
Edited by - starr36 on 09/22/2009 01:03:27 |
|
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/22/2009 : 01:37:41
|
quote:
Originally posted by Mesjoggah
Boss PS-2 Pitch Shifter/Dealy s/n ca70319 october 1989
What's all the white fuzz on that top board? |
|
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/22/2009 : 01:38:48
|
quote:
Originally posted by cctsim
My new TR-2
It worth noticing that TR2 comes now with a trim potentiometer to adjust the output volume. So by default there is no volume drop.
Where's the trim pot? Interesting that some of the caps are missing. |
|
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 09/22/2009 : 01:40:58
|
quote:
Originally posted by starr36
Boss PH-1 #8400 Skeleton Switch and Silver Screw.
- and its broken
What's wrong with it? |
|
|
|
starr36
Platinum Member
Canada
1172 Posts |
Posted - 09/22/2009 : 03:47:22
|
quote:
Originally posted by phostenix
quote:
Originally posted by starr36
Boss PH-1 #8400 Skeleton Switch and Silver Screw.
- and its broken
What's wrong with it?
Works great for about 5 minutes, then garbles up like a liquid distortion and goes quieter and ... rather unpleasant sounding; regardless of using the correct ACA adapter, or through a PSM-5, or a 9V battery, or a 9V "battery elliminator" connected to the battery snap. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 09/26/2009 : 06:22:40
|
quote:
Originally posted by starr36
Works great for about 5 minutes, then garbles up like a liquid distortion and goes quieter and ... rather unpleasant sounding; regardless of using the correct ACA adapter, or through a PSM-5, or a 9V battery, or a 9V "battery elliminator" connected to the battery snap.
So bring it around and I'll have a look at it... |
|
|
|
cctsim
Silver Member
United Kingdom
418 Posts |
Posted - 09/29/2009 : 04:44:43
|
quote:
Originally posted by phostenix
quote:
Originally posted by cctsim
My new TR-2
It worth noticing that TR2 comes now with a trim potentiometer to adjust the output volume. So by default there is no volume drop.
Where's the trim pot? Interesting that some of the caps are missing.
The trim pot is near R50 and it is fixed with glue. It seems to have replaced R9. |
|
|
|
Mesjoggah
Gold Member
Netherlands
595 Posts |
Posted - 09/29/2009 : 06:54:08
|
quote:
Originally posted by phostenix
quote:
Originally posted by Mesjoggah
Boss PS-2 Pitch Shifter/Dealy s/n ca70319 october 1989
What's all the white fuzz on that top board?
Ah, it's protective foil, it does look a bit weird because of the flashlight. |
|
|
|
phostenix
Gold Member
USA
754 Posts |
Posted - 10/06/2009 : 02:47:34
|

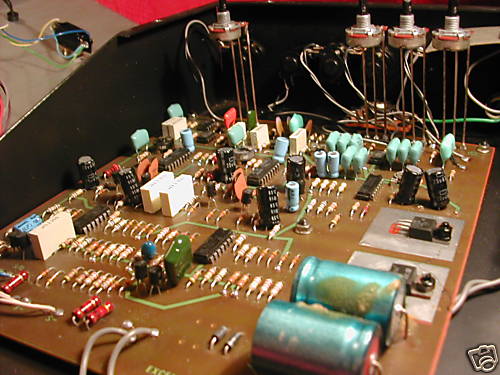

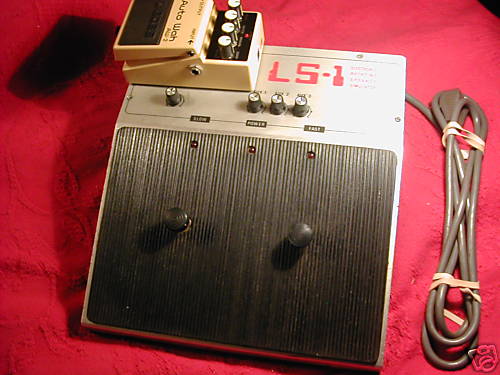

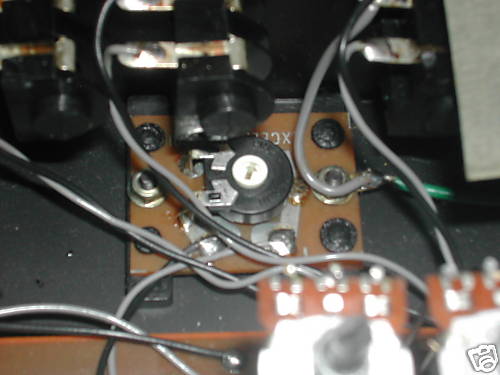

Excelsior LS-1 Leslie Speaker emulator (pics from ebay listing)
Look at the standoffs on those pots!
Look at that thing - it's HUGE! Or, as the seller said, "made for big foot to stomp on!"
Download Attachment:  LS-1a.jpg
45.81�KB
Download Attachment: LS-1b.jpg
25.28�KB
Download Attachment: LS-1c.jpg
33.29�KB |
Edited by - phostenix on 10/06/2009 02:48:20 |
|
|
|
nosi0
Gold Member
Netherlands
511 Posts |
Posted - 10/07/2009 : 23:12:48
|

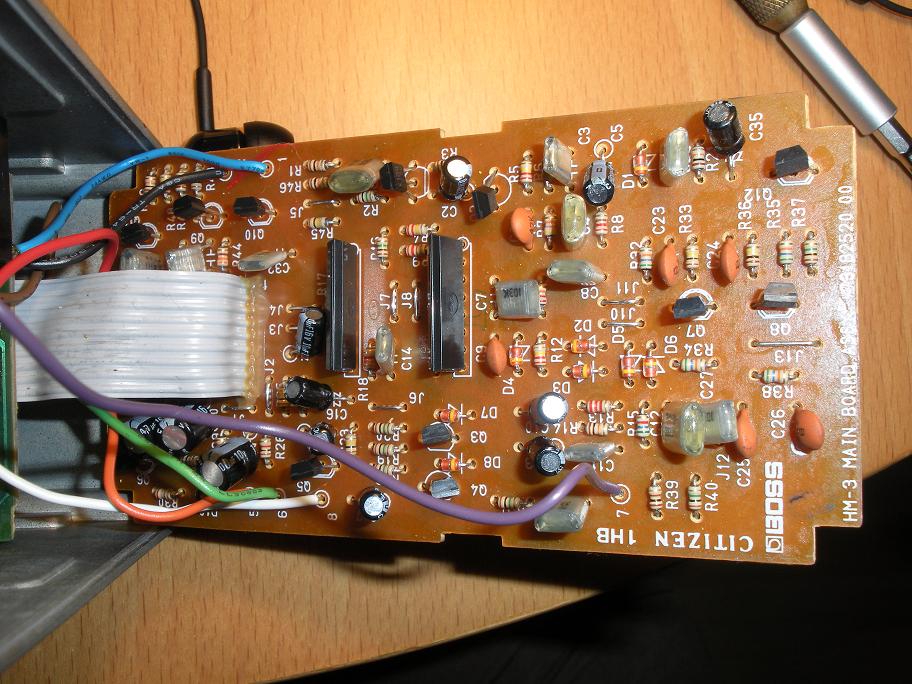

HM-3:
 |
Edited by - nosi0 on 10/07/2009 23:14:51 |
|
|
|
nosi0
Gold Member
Netherlands
511 Posts |
Posted - 10/12/2009 : 21:03:48
|

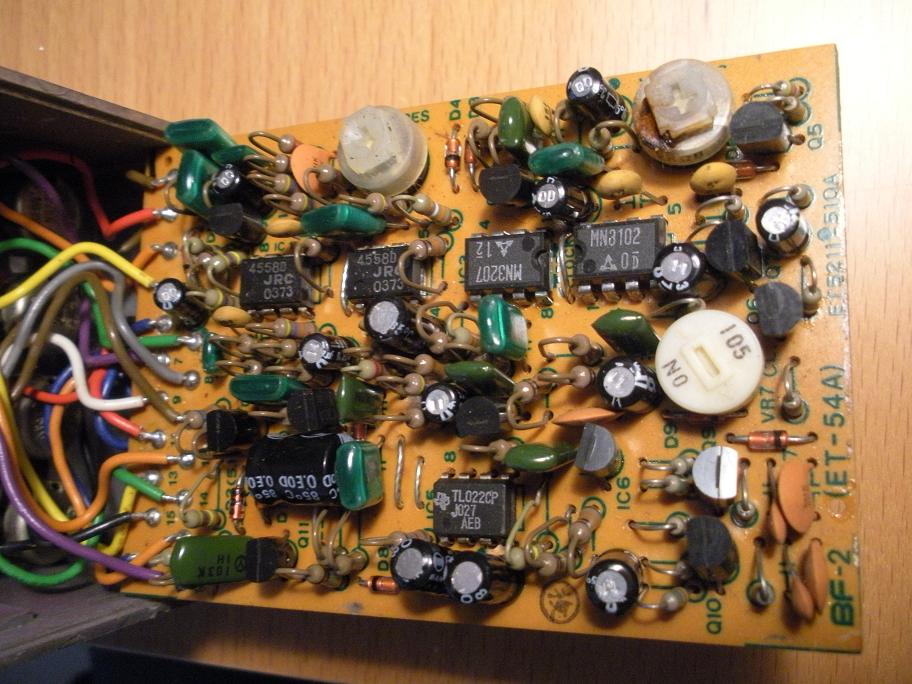

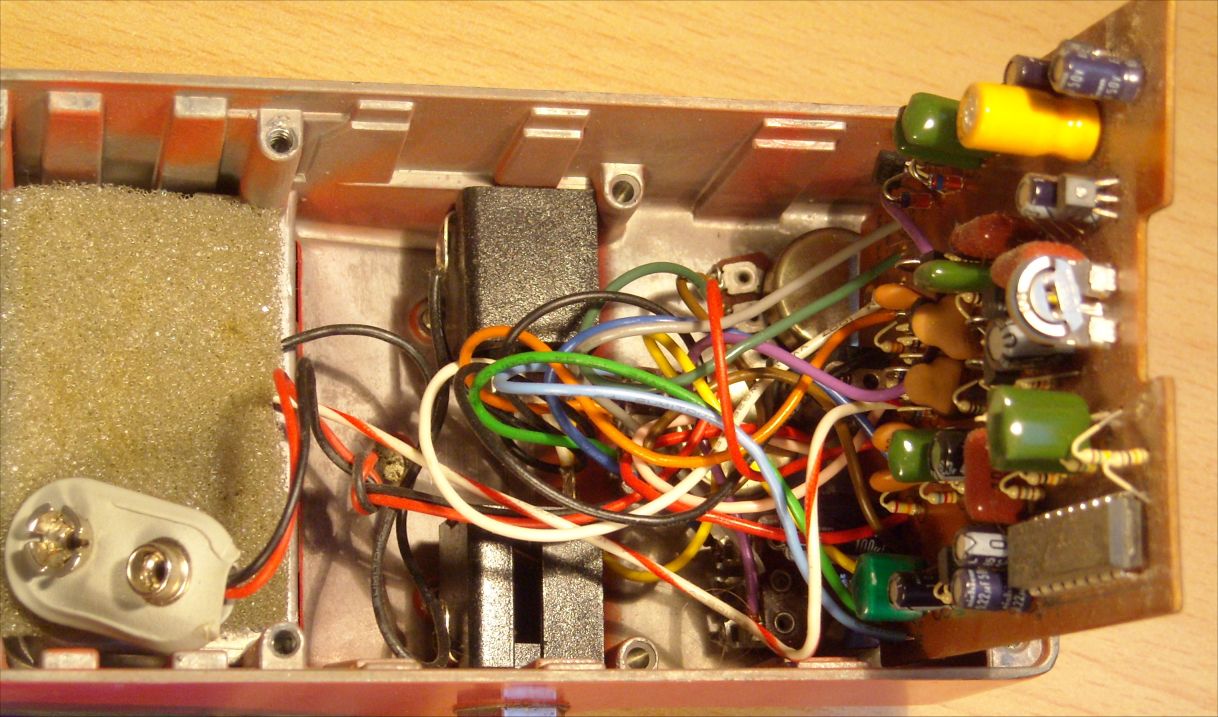

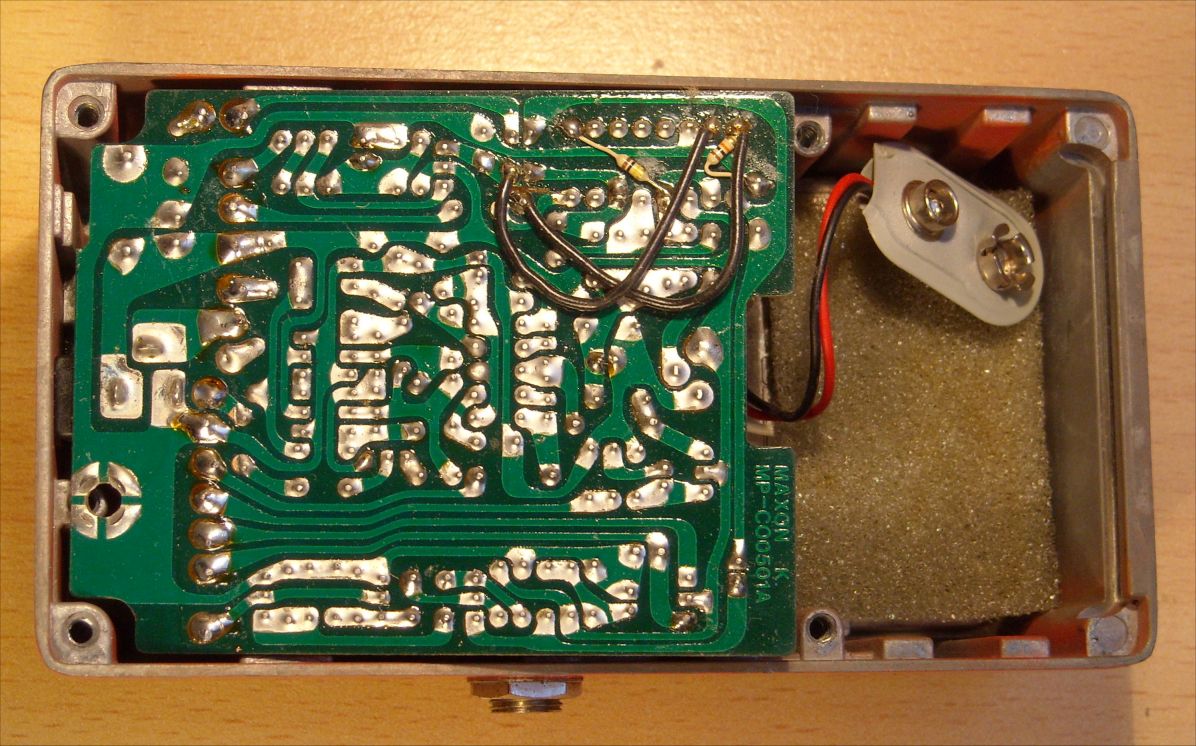

MIJ Silver Screw BF-2 March 1981 SN: 0400
 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 10/18/2009 : 07:28:28
|

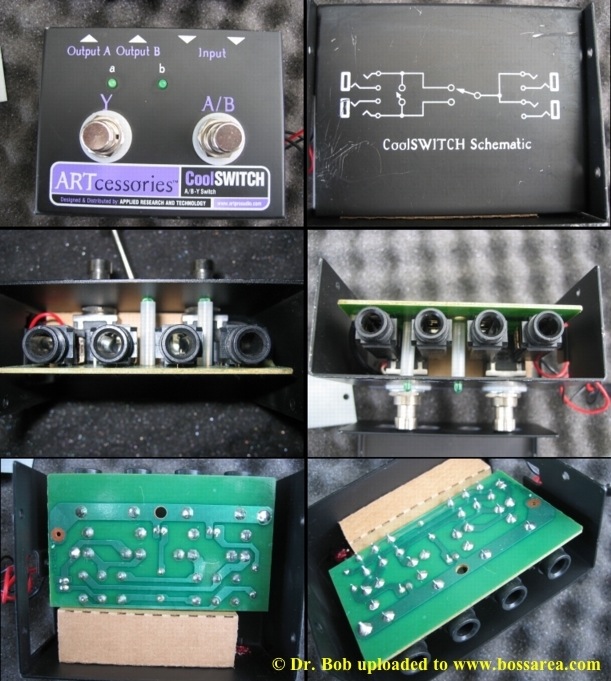

ARTcessories A/B-Y switch
Made by Applied Research & Technology.
No serial number found on unit.
Except for a 9V battey that powers two LED's & the current limiting resistors, the unit is "Totally Passive".
|
Edited by - Dr. Bob on 10/18/2009 07:45:35 |
|
|
|
