 Posted - 11/13/2008 : 06:21:48
|
| Did someone have this artwork? |
 |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/13/2008 : 11:13:49
|
quote:
Originally posted by mwichni
Did someone have this artwork?
Hi mwichni
Please send me a PM via the forum's email icon.
Second icon from the left, top of this post.
I will see what I can dig up.
CE-3 is about 560K
OD-1 is about 350K
Regards Dr. Bob |
Edited by - Dr. Bob on 11/13/2008 11:40:23 |
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/13/2008 : 18:48:37
|
PM sent, waiting for your kind reaction.  |
Edited by - mwichni on 11/13/2008 18:48:57 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/14/2008 : 12:33:35
|
quote:
Originally posted by mwichni
PM sent, waiting for your kind reaction.
Hi mwichni
Please check your email.
Regards Dr. Bob |
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/14/2008 : 14:42:11
|
| Thank you very much for those pcb's. :) |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/14/2008 : 14:53:22
|
quote:
Originally posted by mwichni
Thank you very much for those pcb's. :)
Hi mwichni
Please send a PM to our Brazilian friend "plautz"
It was all his fantastic work.
But we haven't heard from from him in a while.
I hope he is still around, maybe lurking in the background, & reading the threads.
Regards Dr. Bob |
|
|
|
mwichni
Copper Member
Poland
17 Posts |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/15/2008 : 14:47:47
|
Hi mwichni
Great work.
And boy, you didn't waste any time.
Tell us a bit more about the methods you used, to transfer the image, & etch the PCB?
I know a lot of the guys here will be interested.
Please keep us up to date with your build.
I hope you don't mind:
Your picture is now part of the forums pics, I did this, because every so often.
I go back & look at old posts, & the files on some of the image sharing/hosting sites, seem to get deleted or removed.
So all get to see is a stupid placeholder.
Regards Dr. Bob
|
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/15/2008 : 15:27:57
|
About posting picture on forum, it is great idea.
Methods that I use to make PCB is very simple:
1. Print PCB artwork on laser printer using glossy paper.
2. Measure width and length of printed PCB and then draw it (using pencil) on the copper side of forthcoming PCB.
3. Cut PCB from laminate and clean it using sand paper, cif and wash-up liquid (don't touch copper after the PCB is washed) and dry PCB.
4. Iron printed PCB on laminate.
5. After ironing put PCB into cold water for 15-20 minutes.
6. Remove paper and any leavings (don't scratch the toner instead).
7. Put PCB into etching liquid (I am using Na2S2O8). (Moderator - Sodiumpersulfate Na2S2O8)
8. After etching take out PCB and clean it using NITRO and wash-up liquid. |
Edited by - Dr. Bob on 11/15/2008 15:53:35 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/15/2008 : 16:17:40
|
Hi mwichni
Thanks for your PM.
I don't have the PCB artwork for the GE-7.
It is actually cheaper to get a Behriger EQ700
http://behringer.com/EQ700/index.cfm?lang=ENG
and rebuild it into a better case & use better pots.
It is much quieter than most GE-7's, as it uses TLO72 SMD FET opamps.
And it's a direct copy of the GE-7, other than for the better op-amps.
I have a couple of the EQ700's, that I got as part of a bulk buy of pedals, & I use them as a backup. or when I need a second EQ to experiment with.
Regards Dr. Bob
|
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/15/2008 : 16:33:21
|
| Thanks, and BTW what kind of music you are playing? |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/15/2008 : 16:48:56
|
quote:
Originally posted by mwichni
Thanks, and BTW what kind of music you are playing?
Hi mwichni
This might help you out with your search for the artwork for a GE-7?
There is a really PCB copper side picture of a MIT GE-7 posted by " plautz" here on the internal thread:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4147&whichpage=1
But be aware, that the GE-7 has a sub PCB for the slide pots.
I play mostly original stuff, and many different styles, it even scares me sometimes.
What about you mwichni, what sty;es do you play?
Did "plautz" write back to you? we haven't heard from him for a long time.
Regards Dr. Bob
|
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/15/2008 : 16:52:43
|
| No, he didn't reply me yet. I am playing mainly David Gilmour style because I love Pink Floyd. And I need CE-3 and GE-7 for Gilmour tone. I'll be building pedalboard like David's. |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/15/2008 : 17:01:03
|
quote:
Originally posted by mwichni
Ok I'll send him a message with big thanks.
EDIT:

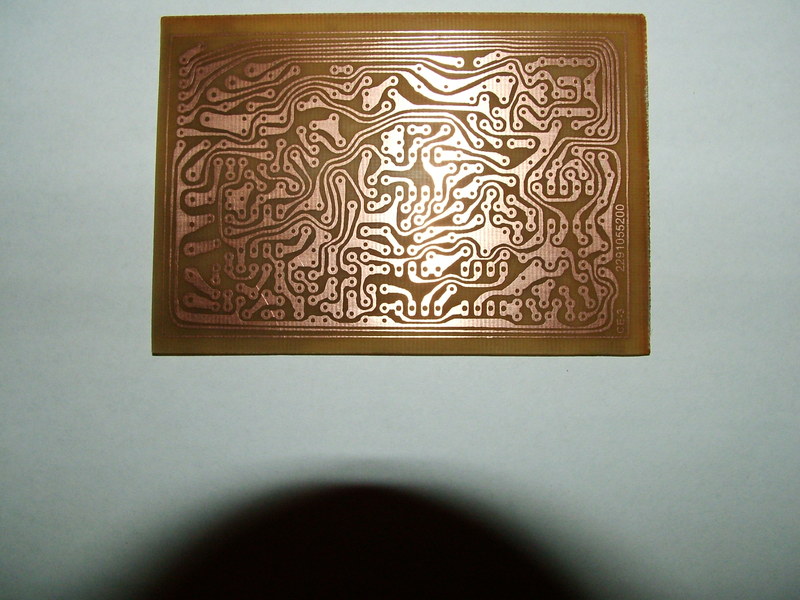

Here is a picture of my yesterday CE-3 pcb making.
http://img217.imageshack.us/my.php?image=dscf1947fx7.jpg
Image posted by Moderator
G'day mwichni! To echo Dr. Bob's comments - fantastic job! Thank you for sharing all this with us!
|
|
|
|
mwichni
Copper Member
Poland
17 Posts |
Posted - 11/15/2008 : 17:08:26
|
Hi Laurie,
Thanks for kind words and when I'll be making next board I upload it here too. Of course when I finish soldering CE-3 next picture is guaranteed.  |
Edited by - mwichni on 11/15/2008 23:33:06 |
|
|
|
