 FA-1 clone is complete!
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Laurie
Double Platinum Member

Canada
4854 Posts

Posted - 01/04/2009 :  08:00:58  Show Profile  Visit Laurie's Homepage  Reply with Quote

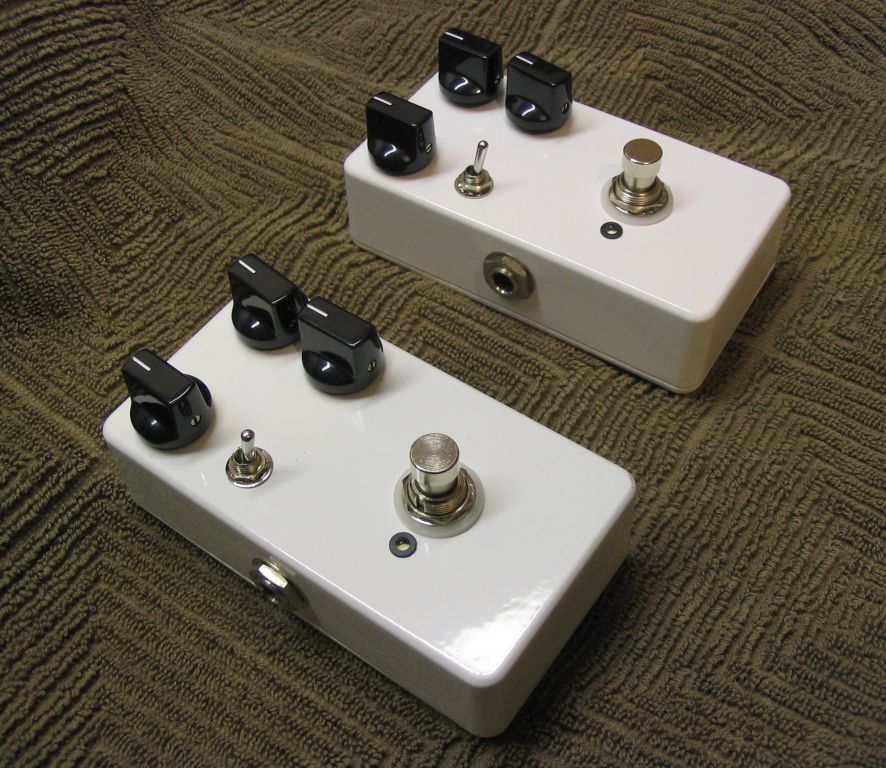

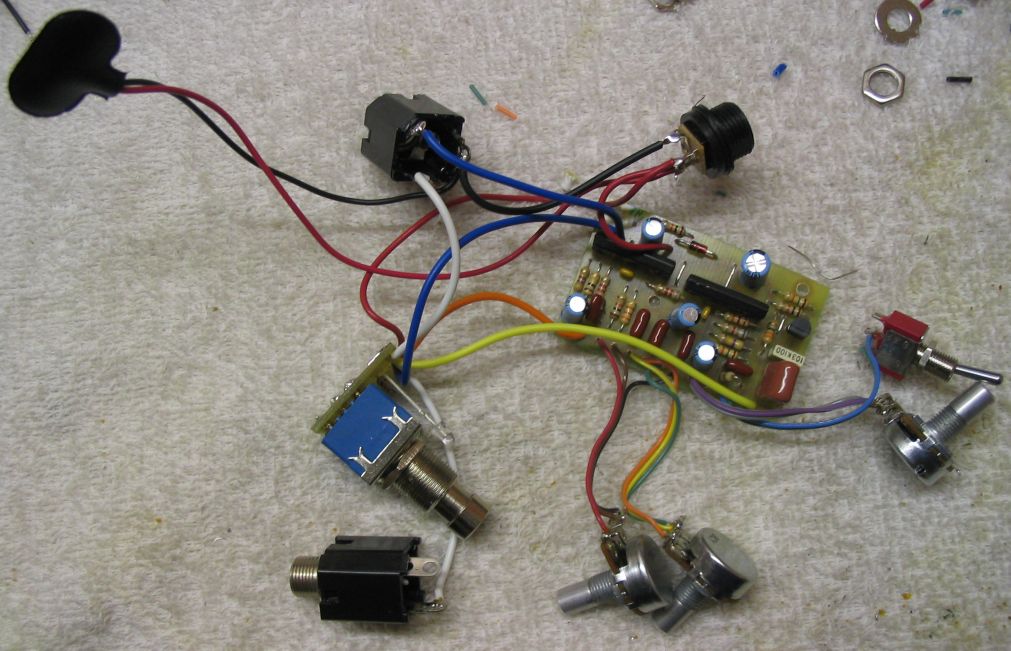

Just finished a couple of FA-1 clones for myself. Stompable, with true bypass.

I really like the way they came out and the way they sound, but it was WAY too much effort! (days...)






verivorax
Platinum Member

Canada
1185 Posts

Posted - 01/04/2009 :  08:06:24  Show Profile  Reply with Quote
Beautiful work.. can't wait to try the Laurie custom I have coming next week!
Go to Top of Page

DeFrag
Moderator

USA
3409 Posts

Posted - 01/04/2009 :  09:18:08  Show Profile  Visit DeFrag's Homepage  Click to see DeFrag's MSN Messenger address  Reply with Quote
Beautiful! Did you simply spray paint those or what?

I assume you left copper traces & simply soldered over those right?

Edited by - DeFrag on 01/04/2009 09:22:01
Go to Top of Page

Dr. Bob
Moderator

Australia
6593 Posts

Posted - 01/04/2009 :  11:11:36  Show Profile  Visit Dr. Bob's Homepage  Reply with Quote
Fabulous work Laurie.
and you deserve my second only bananallama

Regards Dr. Bob
Go to Top of Page

FRANZONI
Double Platinum Member

Ireland
3543 Posts

Posted - 01/04/2009 :  12:26:45  Show Profile  Visit FRANZONI's Homepage  Reply with Quote
That is amazing bro,these look like real high quality boutique stuff....... well done......
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts

Posted - 01/04/2009 :  17:30:12  Show Profile  Visit Laurie's Homepage  Reply with Quote
Thanks all!

Defrag:
- the boxes come pre-painted in various colours (powder coated) from Small Bear. I chose the white/black theme because it thought it looked "clean".

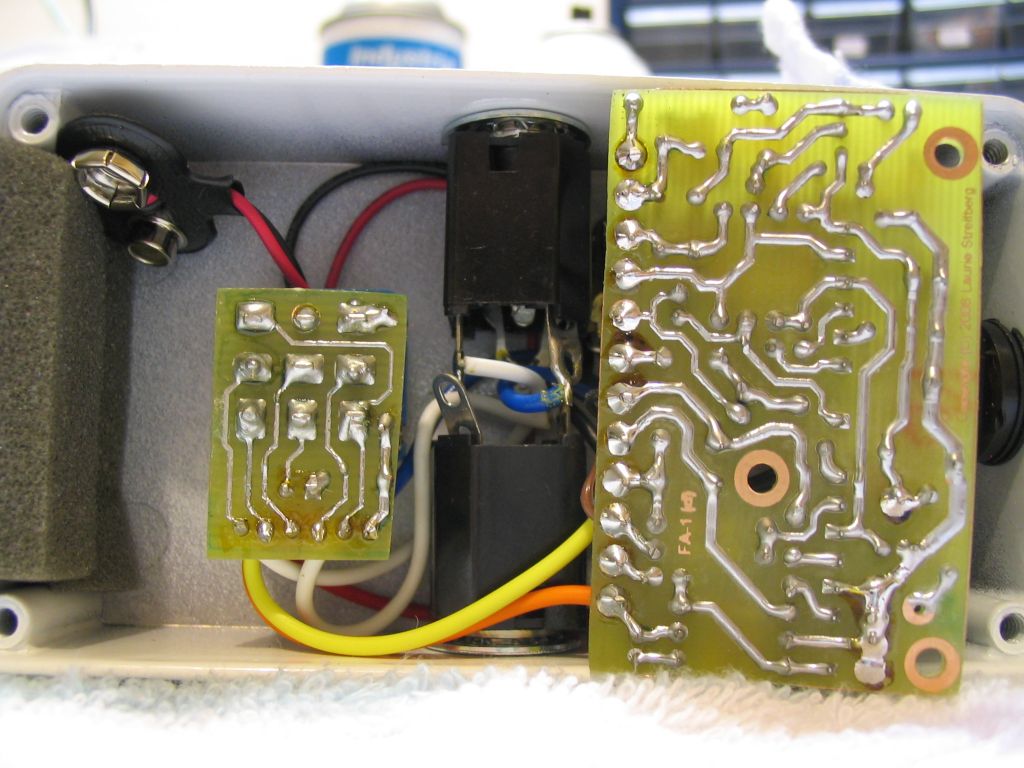

- yes, the traces are "tinned" copper. I usually do that in case the fabrication process has left a hairline crack in the copper. The optical transfer of the image can be a little tricky.
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts

Posted - 01/04/2009 :  21:41:21  Show Profile  Visit Laurie's Homepage  Reply with Quote
I've played with the FA-1 a bit now and I can say that I probably wont be able to live without it in front of my Fender from now on. Just brings it to life! If you have a Fender, you gotta get an FA-1.

Not such a difference in front of the Marshall though.

Best position for it (no surprise) is directly after the guitar - the FA-1 almost completely removes the load from the pickups. Current setup is:
Strat - FA-1 - A-B switch (A=pedal chain, B=TU-2) - MT-2 - etc etc.

Wind the distortion down on the dirt box, and the volume, treble and bass on the FA-1 up a little and it brings out a really nice Fender-y dirt with a little colour from the dirt box plus the Fender pre-amp overdrive from the increased volume.

Edited by - Laurie on 01/04/2009 21:44:10
Go to Top of Page

nathanscribe
Silver Member

United Kingdom
376 Posts

Posted - 01/05/2009 :  00:50:20  Show Profile  Visit nathanscribe's Homepage  Reply with Quote
Very nice...

What do you use to design your PCB layouts? And is that normal copper etch stuff?

Edited by - nathanscribe on 01/05/2009 00:50:58
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts

Posted - 01/05/2009 :  02:00:37  Show Profile  Visit Laurie's Homepage  Reply with Quote
quote:
Originally posted by nathanscribe

Very nice...

What do you use to design your PCB layouts? And is that normal copper etch stuff?


I use a freeware program called "FreePCB" for the layouts. It's the right price and it works just fine.

Boards are etched normally - then tinned (tracks are soldered) then the flux and resist are removed with flux remover.
Go to Top of Page

Right Foot Boss
Gold Member

USA
881 Posts

Posted - 01/05/2009 :  13:03:04  Show Profile  Visit Right Foot Boss's Homepage  Send Right Foot Boss an AOL message  Reply with Quote


Works of art!
