ssanyee
Silver Member

Hungary
288 Posts
Posted - 04/13/2008 :  18:51:48  Show Profile  Reply with Quote
Verivorax,
Thanks for your TW-1 photos -> great, pls do not hesitate to put photos about your other TW-1 as well!
Also thanks for DC-2, I am (or would be ) happy with it, this is one of my missing milestone of my collection !
And finally also thanks for your additional photos about your OD-1 regaring to Raytheon 3404 IC!

Bob,
This is the best thread here what I have ever seen!

cheers
Go to Top of Page

TomCray
Bronze Member

USA
75 Posts
Posted - 04/21/2008 :  07:02:03  Show Profile  Reply with Quote
Boss TU-2 MIT Serial# CV22309 November 2006




Here's the bottom of the LED assembly (sorry, I didn't feel like totally dismantling my TU-2)
Edited by - TomCray on 04/21/2008 07:05:12
Go to Top of Page

TomCray
Bronze Member

USA
75 Posts
Posted - 04/21/2008 :  07:03:20  Show Profile  Reply with Quote
Boss AC-2 MIT Serial# N/A
Edited by - TomCray on 04/21/2008 07:05:18
Go to Top of Page

TomCray
Bronze Member

USA
75 Posts
Posted - 04/21/2008 :  07:04:43  Show Profile  Reply with Quote
Boss OS-2 MIT Serial# DC21647 Januarary 1991
Go to Top of Page

TomCray
Bronze Member

USA
75 Posts
Posted - 04/21/2008 :  07:05:54  Show Profile  Reply with Quote
Boss PH-1 MIJ Serial# 7000 May 1978
Edited by - TomCray on 04/21/2008 07:31:41
Go to Top of Page

verivorax
Platinum Member

Canada
1185 Posts
Posted - 04/24/2008 :  16:07:27  Show Profile  Reply with Quote
TomCray: your Ph-1 is the stuff of dreams.. love the Raytheon 3403 chips!

We should catalogue their production/import in the early years..

What other pedals employ that IC?
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 04/26/2008 :  05:37:55  Show Profile  Visit Laurie's Homepage  Reply with Quote

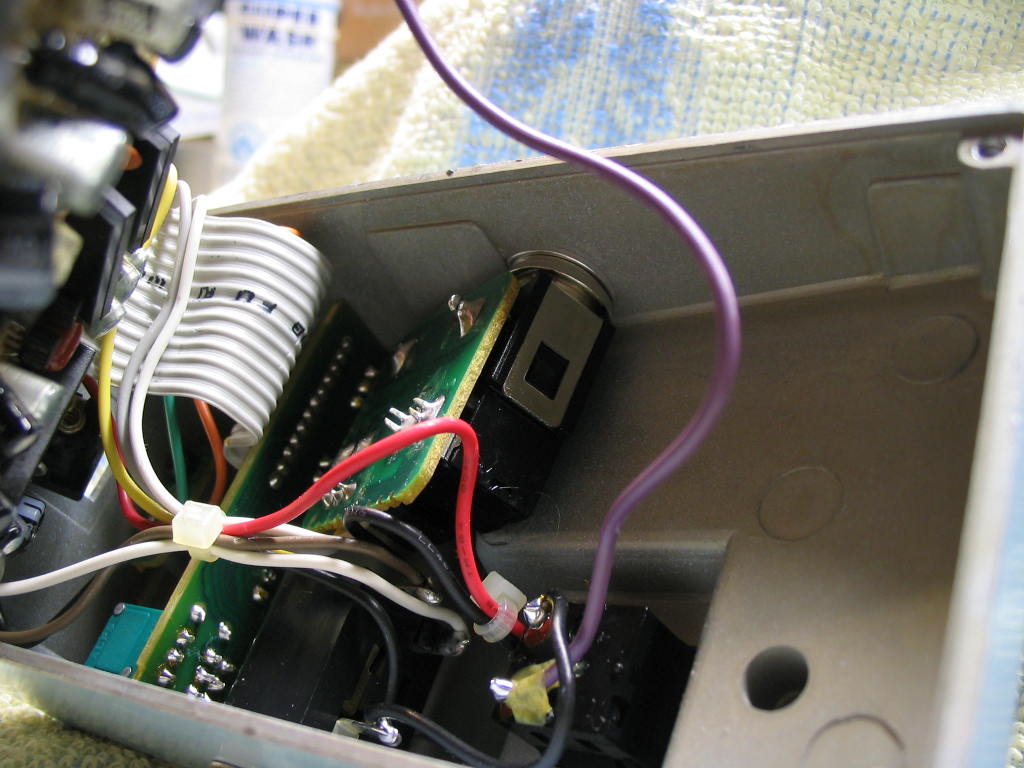

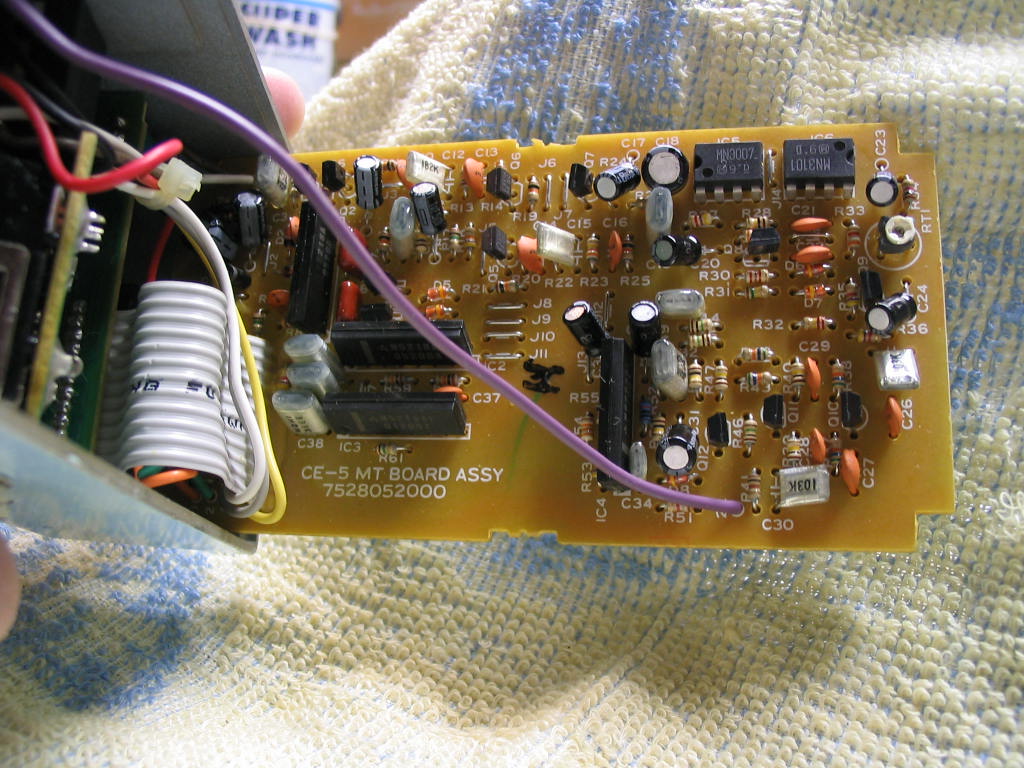

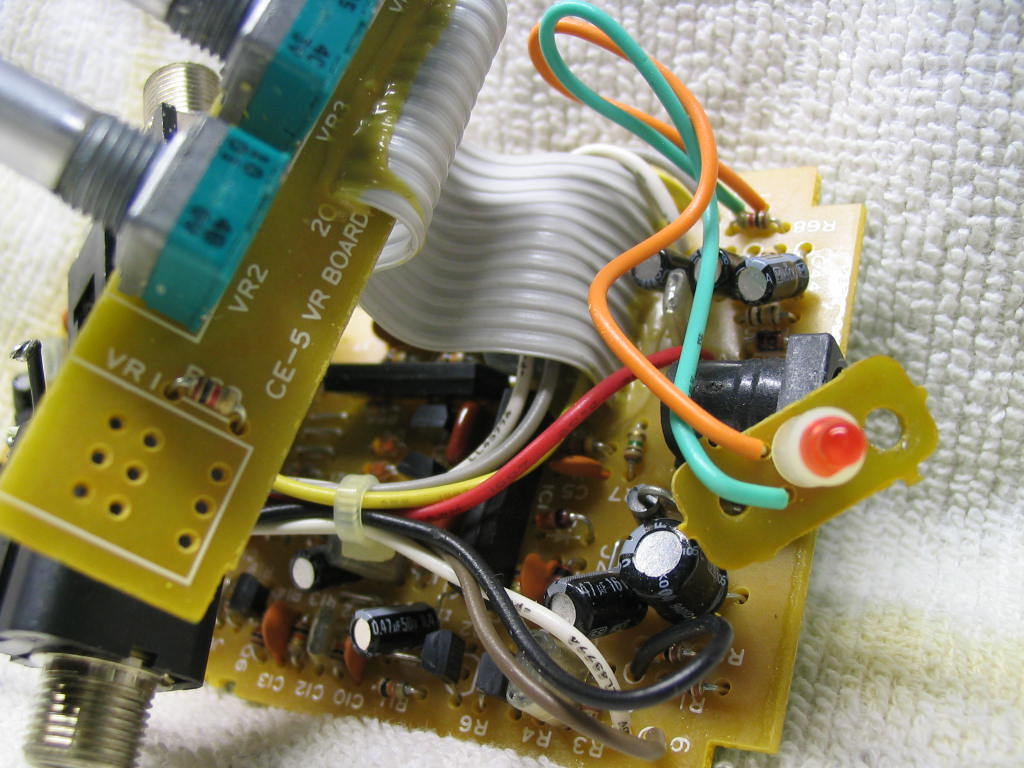

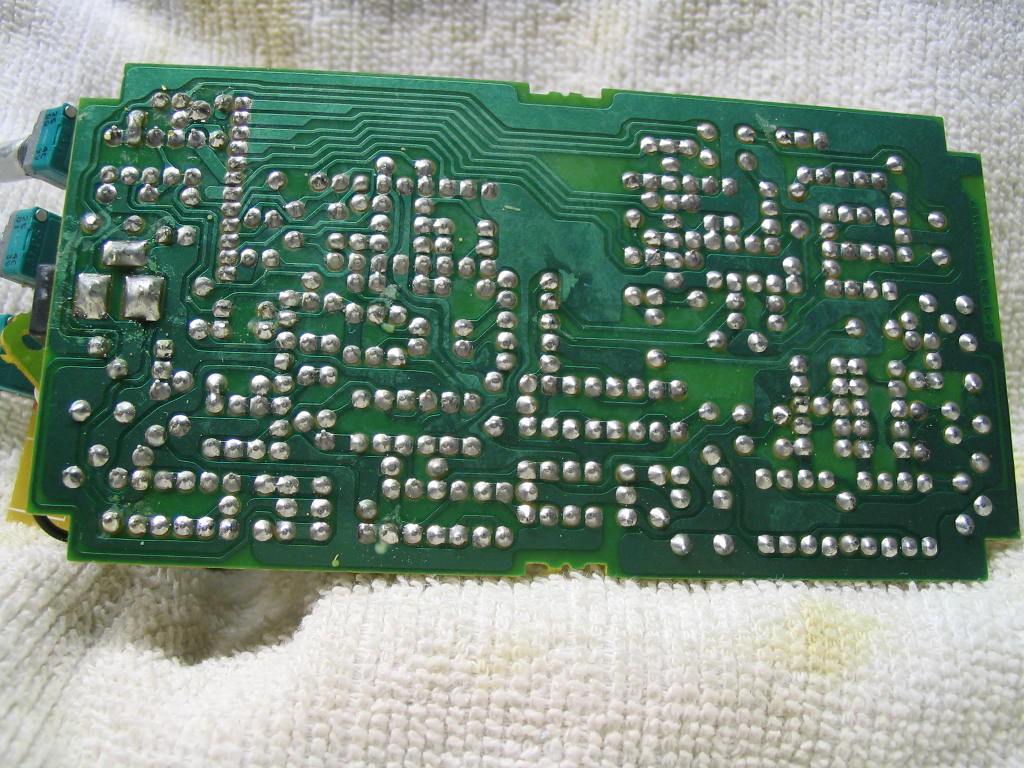

CE-5 MIT serial JN53647
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 04/29/2008 :  03:31:09  Show Profile  Visit Laurie's Homepage  Reply with Quote

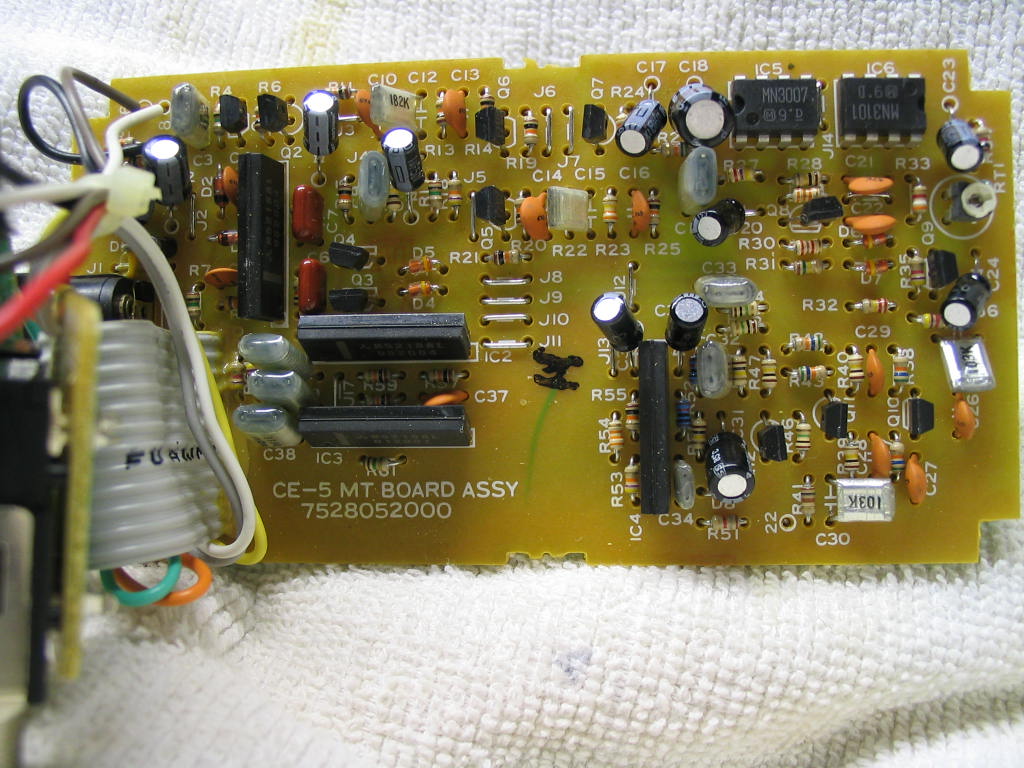

CE-5 MIT Serial JN53647 (repaired)
Edited by - Laurie on 04/29/2008 03:32:15
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 05/04/2008 :  17:15:14  Show Profile  Visit Laurie's Homepage  Reply with Quote

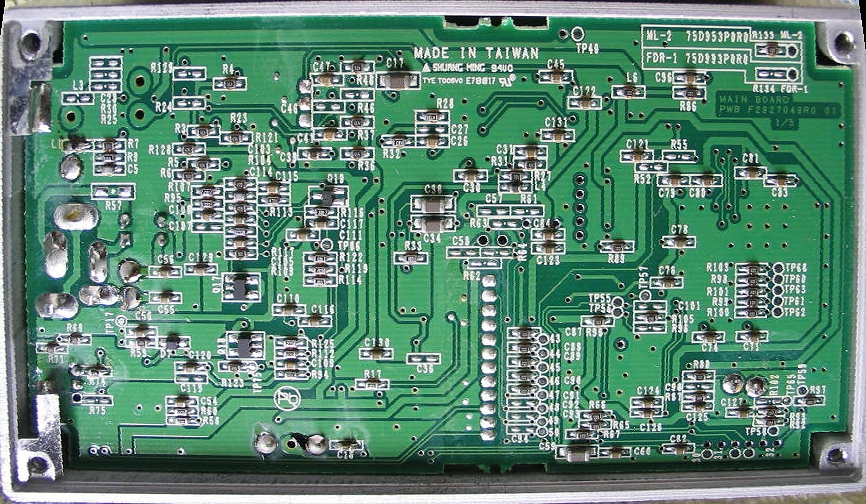

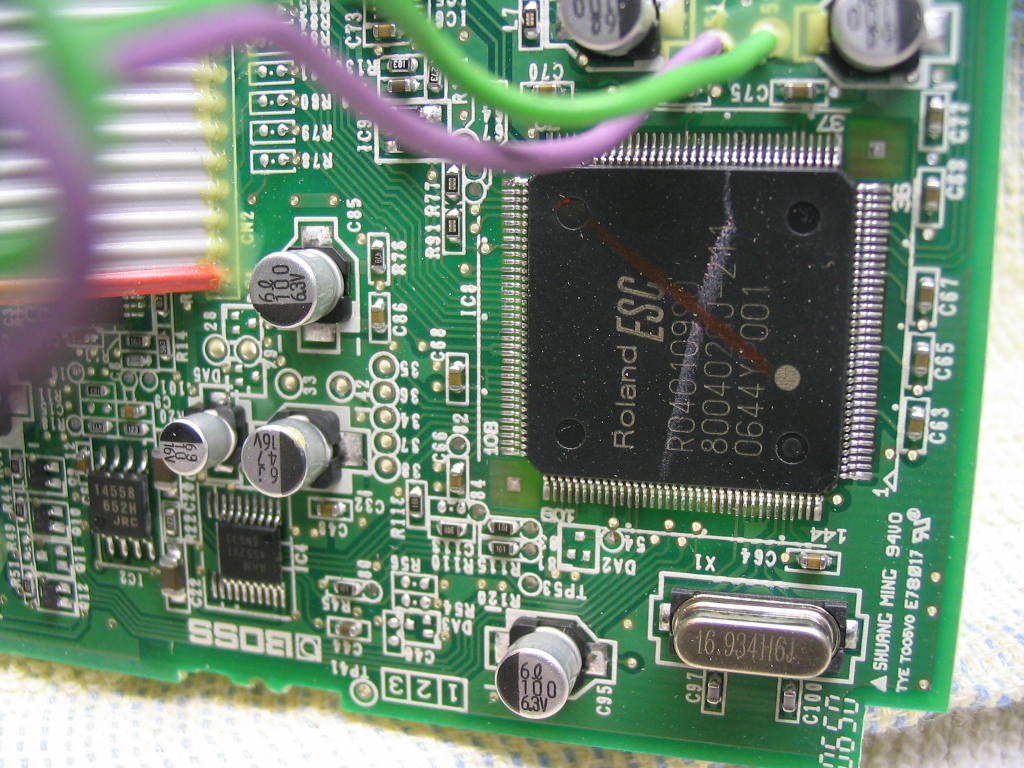

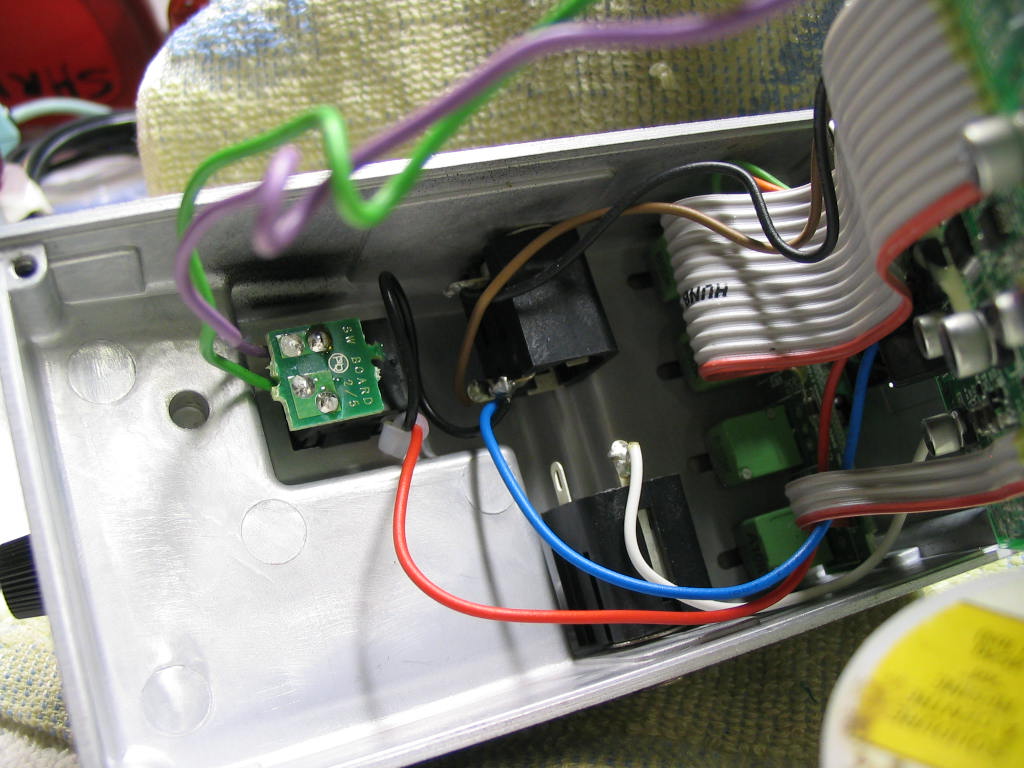

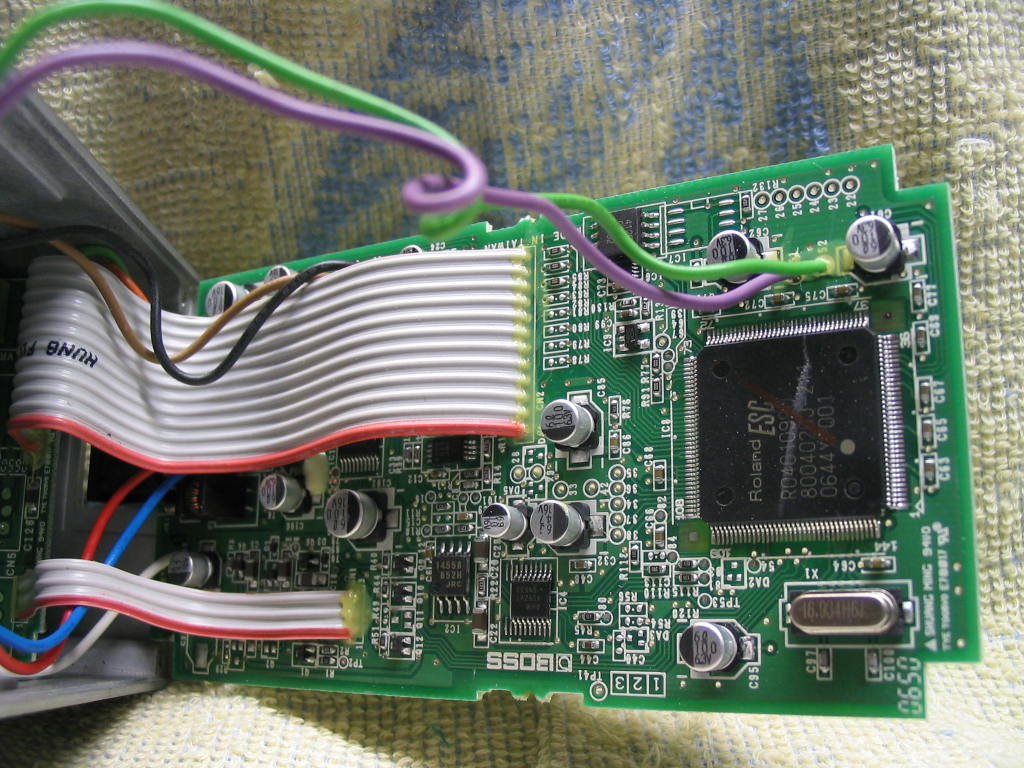

ML-2 MIT (d'oh!) Serial: ZV55241
Go to Top of Page

Dr. Bob
Moderator

Australia
6593 Posts
Posted - 05/10/2008 :  16:22:17  Show Profile  Visit Dr. Bob's Homepage  Reply with Quote

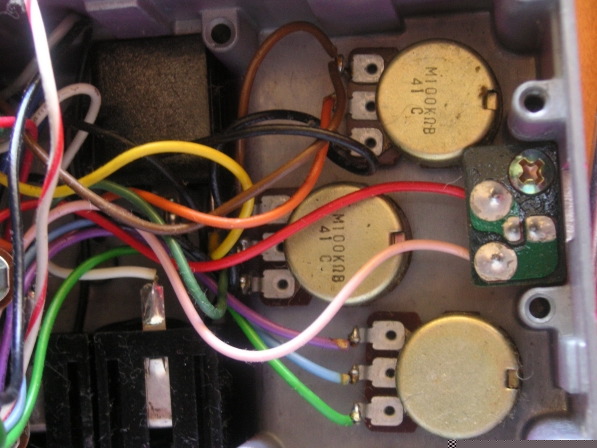

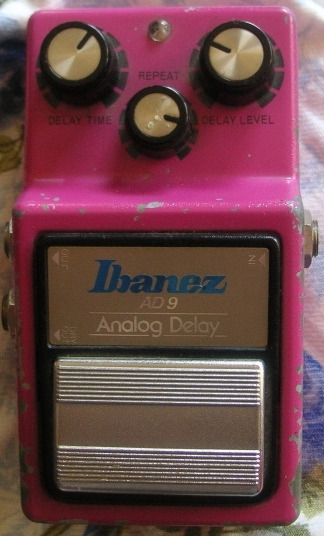

AD9 Ibanez Analog Delay S/N Early 80's

My friend Justin, was kind enough to take some pics of his Ibanez AD9.
Look at the 8347 date code (1983 week 47) on the NE570N Compander IC.

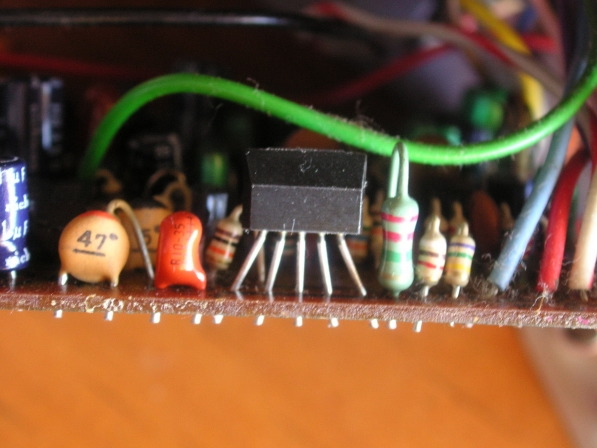

And the 5 legged Dual matched transistor.
Edited by - Dr. Bob on 05/10/2008 16:50:29
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 05/11/2008 :  08:13:25  Show Profile  Visit Laurie's Homepage  Reply with Quote

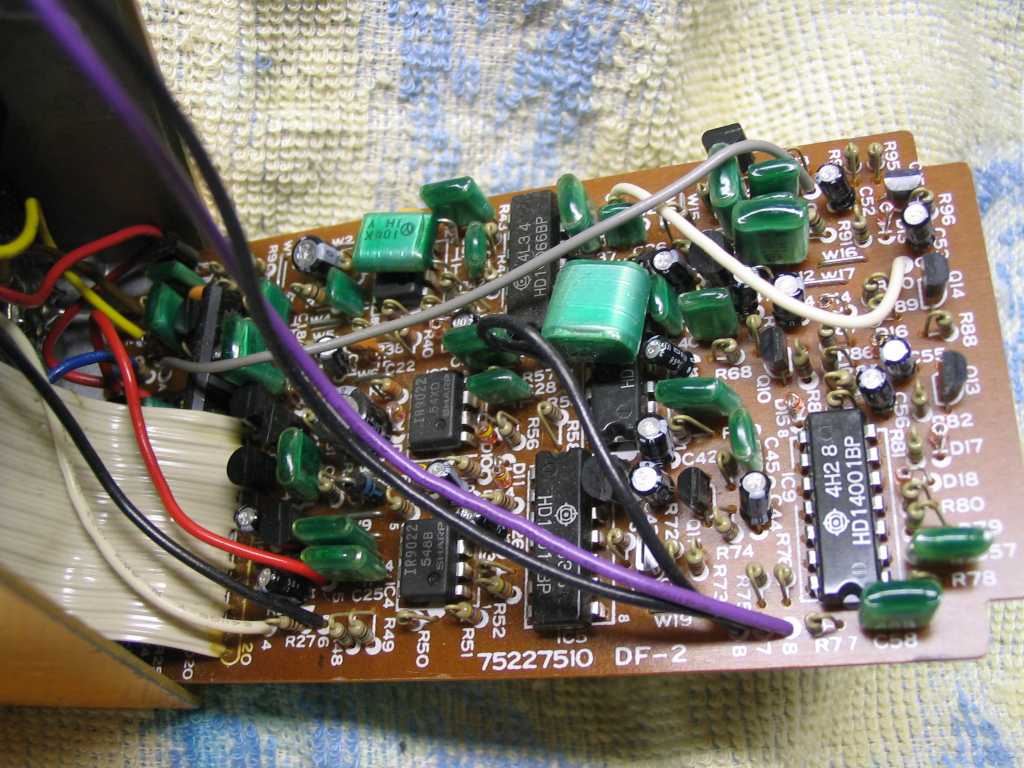

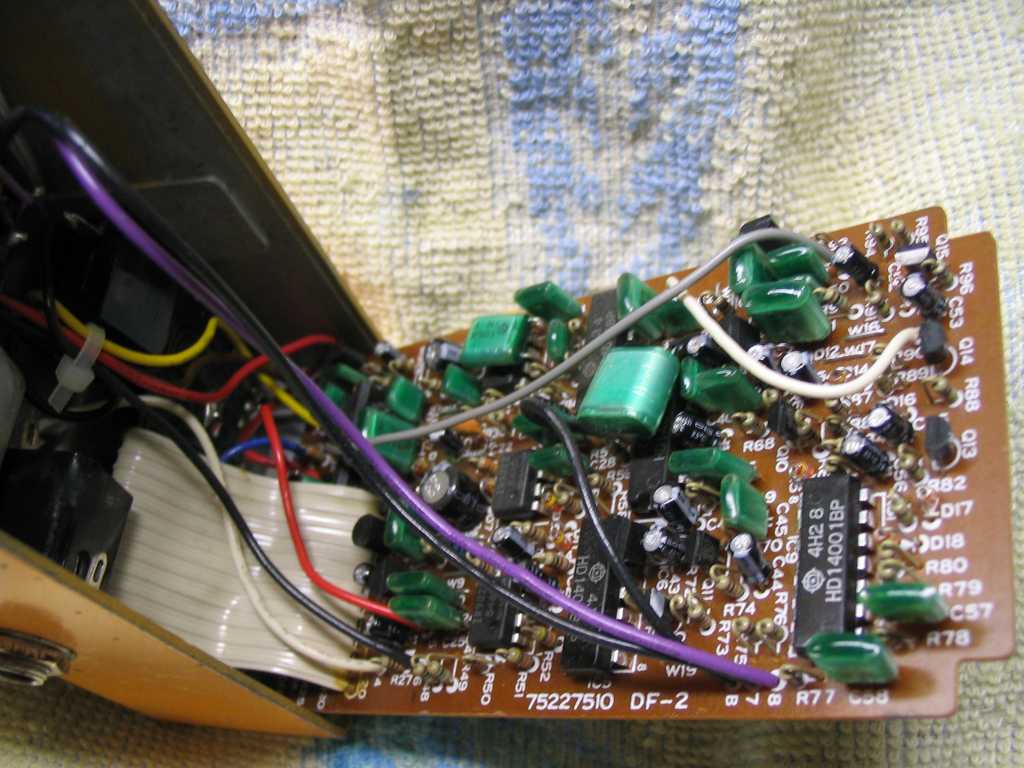

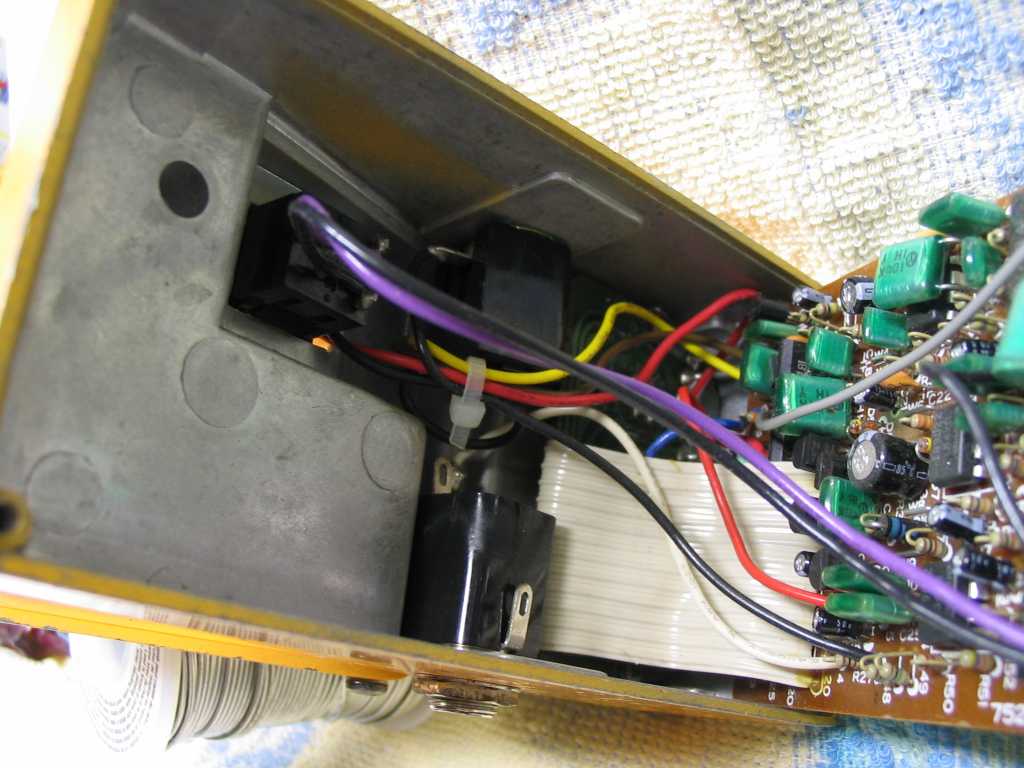

Boss DF-2. MIJ. S/N: 498300 December 1984
Edited by - Laurie on 06/14/2008 16:49:29
Go to Top of Page

albertprio
Copper Member

Indonesia
16 Posts
Posted - 05/13/2008 :  18:32:04  Show Profile  Reply with Quote
really nice topic dudes...really helpful!!
Go to Top of Page

MullyFX
Gold Member

Germany
753 Posts
Posted - 05/14/2008 :  19:44:14  Show Profile  Visit MullyFX's Homepage  Reply with Quote
DOD Grunge FX69



Edited by - MullyFX on 05/15/2008 09:53:18
Go to Top of Page

MullyFX
Gold Member

Germany
753 Posts
Posted - 05/16/2008 :  14:20:33  Show Profile  Visit MullyFX's Homepage  Reply with Quote
DM-2 - seems like it's been modded doesn't it?

The unit with serial number 161900 was produced March 1982
Edited by - MullyFX on 05/16/2008 14:24:46
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 05/21/2008 :  14:20:06  Show Profile  Visit Laurie's Homepage  Reply with Quote

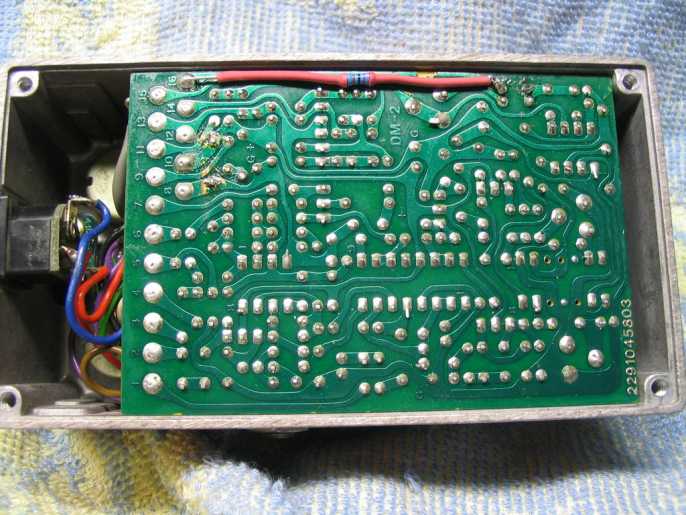

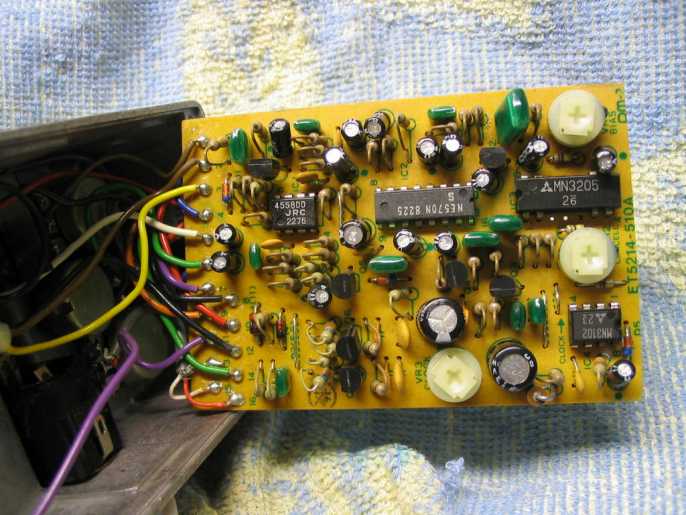

DM-2 Serial 221400 (mid 1982) Rev A board. No diode mod.

The bridging resistor appears to be because R48 was replaced at some point with a 16k resistor for some reason, and the track is cut and a 2k2 is added to bring it back up to the original 18k. D4 has also been replaced (oops).



Edited by - Laurie on 05/21/2008 15:29:29
Go to Top of Page
