 Posted - 10/30/2008 : 13:14:28
|
Hi Guys
As promised a few days ago.
Here are the pics for Dr. Bob's Simple Audio Probe.
This was an idea that originally popped up in this thread, & there was one other one, that I can't remember.
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=5096&whichpage=1
The probe can be used for both tracing signals - with a small amp.
Or.
It can be used as the injector probe, when connected to a Signal Generator.

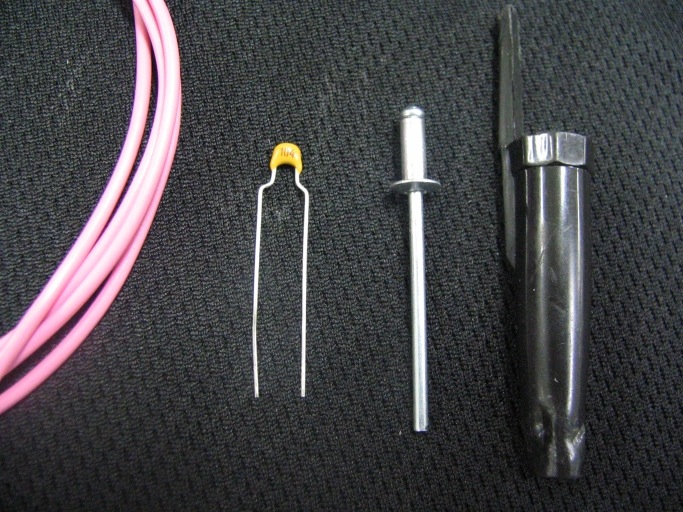

The probe is capacitivly coupled with a 100nf (nanofarad)= (0.1uf) Chip cap, of about 50VDC, to block any DC & offset voltages.
I used a very small low voltage cap, as we will only be using this with low voltage pedals.

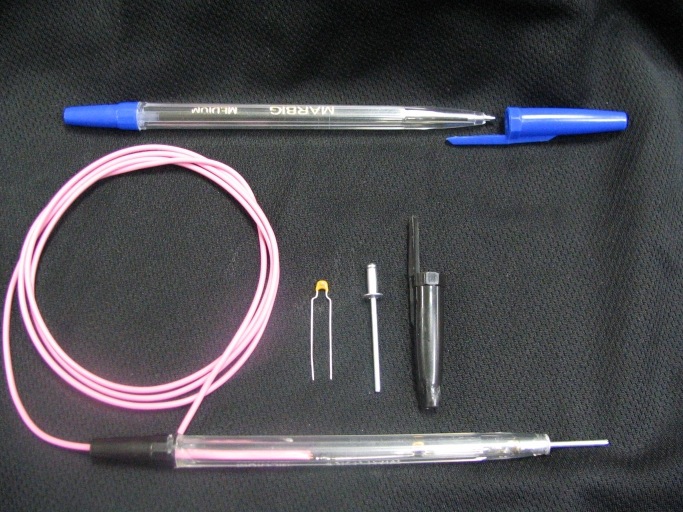

As well as, to keep the size small enough to fit into a spent or other-wise new biro case.
More text to follow: (if anyone needs more instructions)

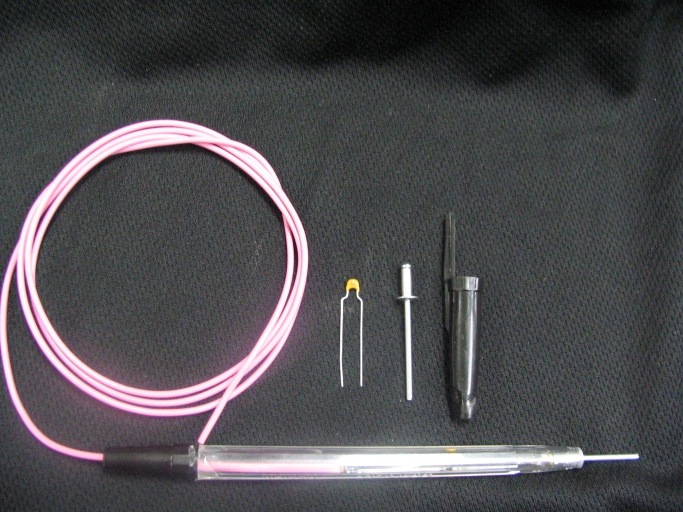

Here are the pics.
(Note the pre-chewed pen-top lid, this makes the probe work even better).

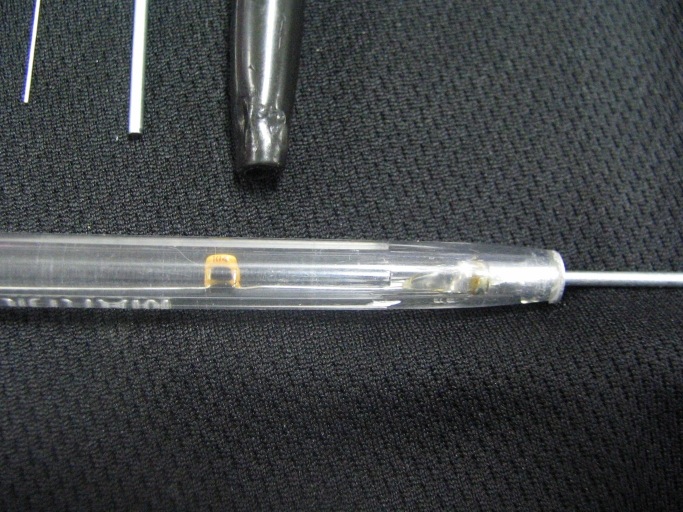

I used a hot glue gun & hot glue to quickly assemble everything.
The end of the pop-rivet has been cut a bit shorter, so that the top of the pen, can be placed back over the tip, when not in use.
WARNING - DO NOT USE THIS ON HIGH VOLTAGES as found in Tube Amps
Regards for now Dr. Bob
|
Edited by - Dr. Bob on 10/30/2008 14:13:30 |
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 10/30/2008 : 13:52:17
|
Looks good Dr. bob!
I am just waiting for the-destructor to chime in about "the probe"... |
 |
|
|
DeFrag
Moderator
USA
3409 Posts |
Posted - 10/30/2008 : 14:37:56
|
Yeah, where the hell is TD at when you need him most?  heh
Looks great Bob, very frugal! I suppose you could probably fix a jeep with a paperclip & rubberband as well.. Who says one must keep Fluke in business?  |
Edited by - DeFrag on 10/30/2008 14:38:16 |
|
|
|
bossarea
Forum Admin
United Kingdom
3652 Posts |
Posted - 10/30/2008 : 16:50:15
|
Dr.Bob: previously known as McGyver
Looks like a great tool.  |
|
|
| |
