moreyag
Copper Member
USA
6 Posts |
 Posted - 11/07/2009 : 02:30:07
|
Thanks for the welcome Dr. Bob,greetings from New York's Hudson Valley Region and a BIG thank you to Laurie for the picture. On my way to grab my soldering iron now!  |
Edited by - moreyag on 11/07/2009 02:31:00 |
 |
|
|
DavidLopezJr
Copper Member
2 Posts |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 12/31/2009 : 13:37:20
|
Hi DavidLopezJr
Hi & Welcome to the forum from Australia.
I have looked at the power supply on the link you posted.
I downloaded the hi-res image that shows the label on the back.
While it does say 9VDC x5 @ 400mA.
It does not specifically state, if it is fully regulated.
Perhaps you can email them & ask for more detailed specifications,
and ask them specifically, if the unit is fully regulated.
You will not get hum if it's a regulated type
The simpler units, just use a rectifier & a medium value,
330uf to 2200uf electrolytic capacitor,
as a filter, these types typically have a much high hum level.
So as I said, it's best to ask them & get the details in writing.
Regards Dr. Bob  |
|
|
|
stevengeorge
Copper Member
United Kingdom
3 Posts |
Posted - 01/07/2010 : 12:38:46
|
You seem massively clued up!
Can I run it with a Nobels PH-D Analog phaser as the daisy chain item?
The phaser states 'use ac adaptor which delivers 9 colts DC'
I use an AC > DC power pack and it works fine.
The polarity required is positive external and negative internal on the back of the phaser.
I dont want to 'hook it up and fuck it up' (that was an accidental rhyme, but i may coin it future!)
Thanks a bunch if you can help! |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 01/07/2010 : 13:23:18
|
Hi stevengeorge
I have replied to this question in your other first post.
DM - 2B ACA Adaptor or other options.
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=8759
On a different note:
As Moderator.
I have to ask you to please watch your explicatives & language in general.
We have some young adult members here, & Female members as well.
Not to mention, also being monitored by the relevant musical industry associations & companies.
We try to keep our forum "Family Friendly".
Thanks for understanding.
Regards Dr. Bob - Moderator. |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 03/19/2010 : 17:40:06
|
quote:
Originally posted by blueswah
Thanks copper.

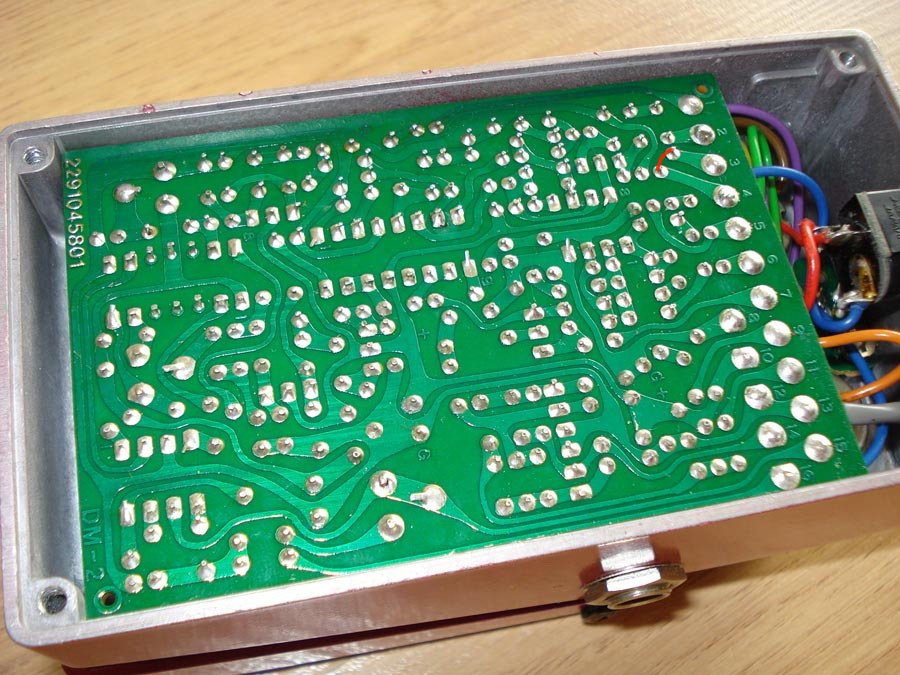

In another thread about my DM-2 I posted this pic of the jumper (points "A" to "B") fix. Red line showed where to put the jumper on the DM-2.
Couldn't i just jumper out the diode and the resistor, like you do in the ce-2 mod |
|
|
|
zerksies
Double Platinum Member
USA
3406 Posts |
Posted - 03/19/2010 : 19:00:30
|
| I read around and found that if i jumpered the diode and resistor like my ce-2 i am ok.well it works without a problem,I was only doing this cause i had a problem with my ce-2.The chorus was not as deep of a sound with the dm-2 running off a power cable or vice versa. i find it funny the little things can get you |
Edited by - zerksies on 03/19/2010 22:16:05 |
|
|
|
