 Posted - 11/01/2009 : 23:02:35
|
| nosi, i just got around to fixing my silver screw bf2. it turns out my d1(11v) was shorted. can you get a picture of it? i got some replacement zener diodes (unfortunately i could only find 10v and 12v versions), so i will probably use the 10v one. i need to know which side the black stripe goes on if the wires are at the top. thanks a lot. |
 |
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 11/02/2009 : 15:23:00
|
quote:
Originally posted by metal0822
nosi, i just got around to fixing my silver screw bf2. it turns out my d1(11v) was shorted. can you get a picture of it? i got some replacement zener diodes (unfortunately i could only find 10v and 12v versions), so i will probably use the 10v one. i need to know which side the black stripe goes on if the wires are at the top. thanks a lot.
Hi metal0822
I suggest you use the 12V zener,
& I'm sure Laurie, ccsim & the other Tech guys will agree.
You will find detailed pictures of the BF-2 here on pages 9 & 17 of the internals thread.
Page 9 an 1983 BF-2 posted by Ssanyee:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4147&whichpage=9
And a really nice (SS) Silver Screw BF-2 on.
Page 17 posted by nosi0:
http://www.bossarea.com/forum/topic.asp?TOPIC_ID=4147&whichpage=17
I hope this helps?
Please keep us informed of your progress-success.
Good luck.
Regards Dr. Bob
5885 |
Edited by - Dr. Bob on 11/02/2009 15:26:49 |
|
|
|
archaos
Copper Member
France
23 Posts |
Posted - 11/03/2009 : 11:34:10
|
Maxon AF201
 |
Edited by - archaos on 11/03/2009 11:42:08 |
|
|
|
archaos
Copper Member
France
23 Posts |
Posted - 11/03/2009 : 11:41:39
|
Maxon AF01
 |
|
|
|
archaos
Copper Member
France
23 Posts |
Posted - 11/04/2009 : 21:41:10
|
electro-harmonix 'Classic' DELUXE MEMORY MAN guts (MN3005 chips)
 |
|
|
|
archaos
Copper Member
France
23 Posts |
Posted - 11/04/2009 : 21:49:03
|
electro-harmonix 'Classic' QTRON
overview
guts |
|
|
|
metal0822
Copper Member
11 Posts |
Posted - 11/05/2009 : 01:47:44
|
hey, thanks. i threw in the new zener and i guess that wasnt the only problem
my professor went away on a trip so tuesday is the earliest i will be able to look at it with him (and a DMM) again. |
|
|
|
verivorax
Platinum Member
Canada
1185 Posts |
Posted - 11/09/2009 : 16:35:28
|
Here are the guts of the AF-100 BeeBaa.  If there ever was a serial number, it should have been in the area behind the pots (the underside of the top plate, where all the wires cross) - but there's no residue or other evidence that a sticker was ever there.. were some of these non-serialized perhaps?
 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 11/09/2009 : 16:42:02
|
quote:
Originally posted by verivorax
Here are the guts of the AF-100 BeeBaa. If there ever was a serial number, it should have been in the area behind the pots (the underside of the top plate, where all the wires cross) - but there's no residue or other evidence that a sticker was ever there.. were some of these non-serialized perhaps?
This thing looks seriousl cool. We'll need to see if we can find a schem so we can clone it. With the Bee"Baa" name, we can call the clone "Dolly"  |
|
|
|
verivorax
Platinum Member
Canada
1185 Posts |
|
|
starr36
Platinum Member
Canada
1172 Posts |
Posted - 11/18/2009 : 00:18:04
|
quote:
Originally posted by archaos
electro-harmonix 'Classic' DELUXE MEMORY MAN guts (MN3005 chips)...
YIKES Trimpot heaven! |
Edited by - starr36 on 11/18/2009 00:19:56 |
|
|
|
starr36
Platinum Member
Canada
1172 Posts |
|
|
archaos
Copper Member
France
23 Posts |
|
|
Goran
Double Platinum Member
Sweden
2203 Posts |
Posted - 12/05/2009 : 14:33:59
|

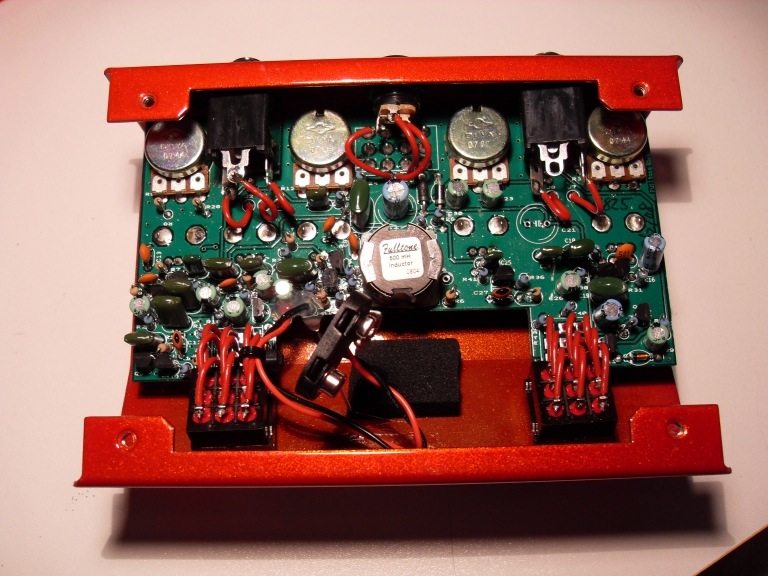

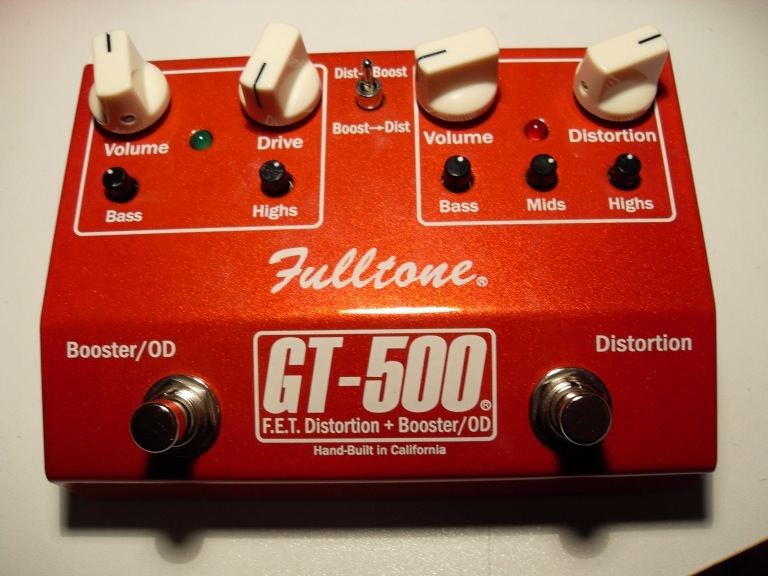

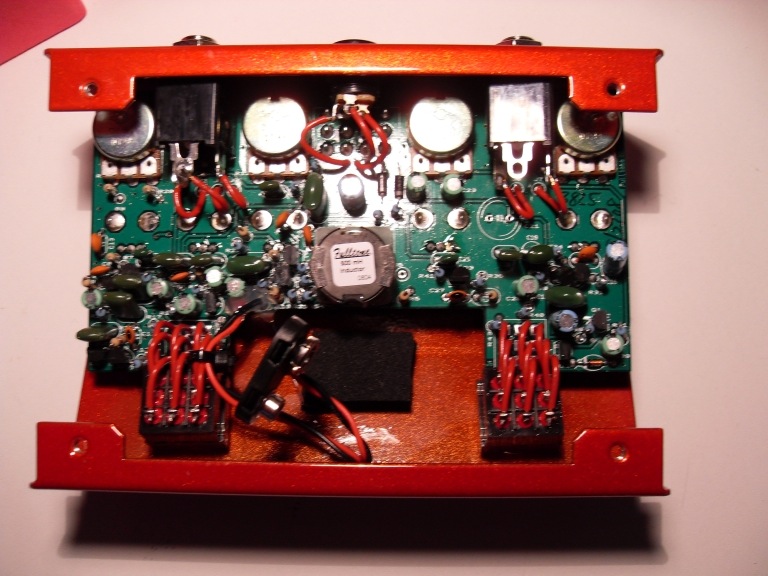

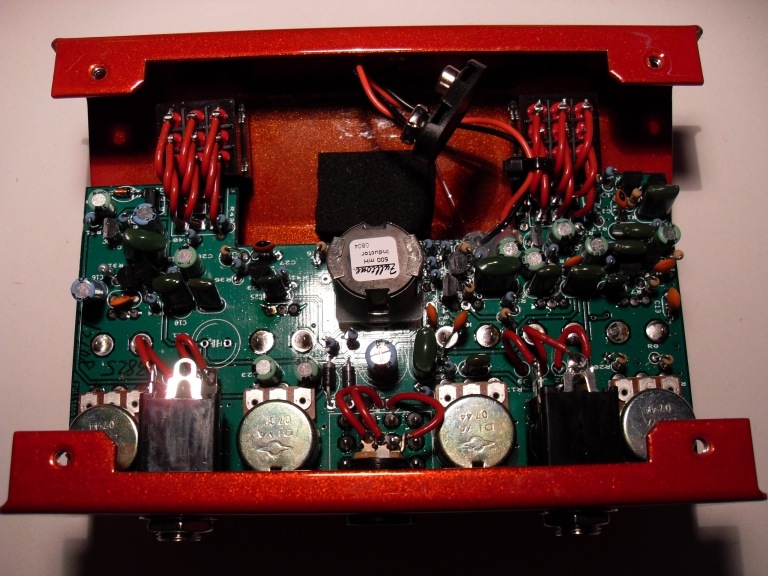

Fulltone GT-500 FET Distortion + Booster/Overdrive

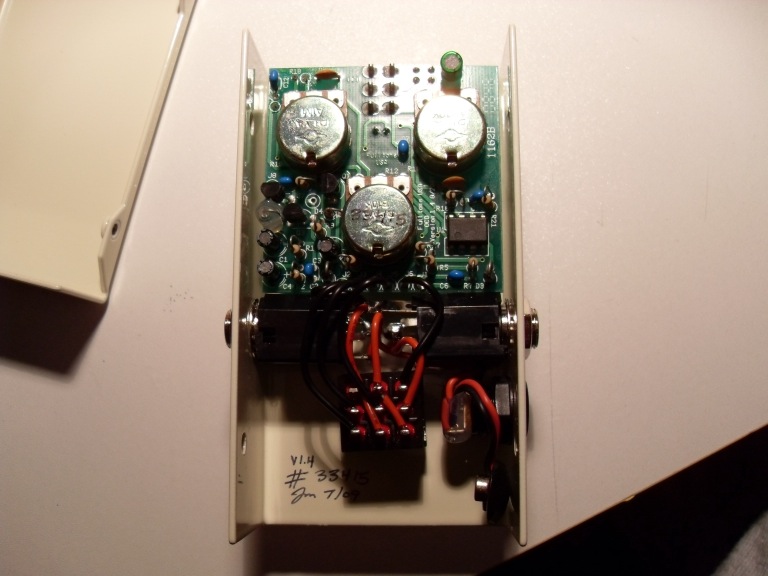

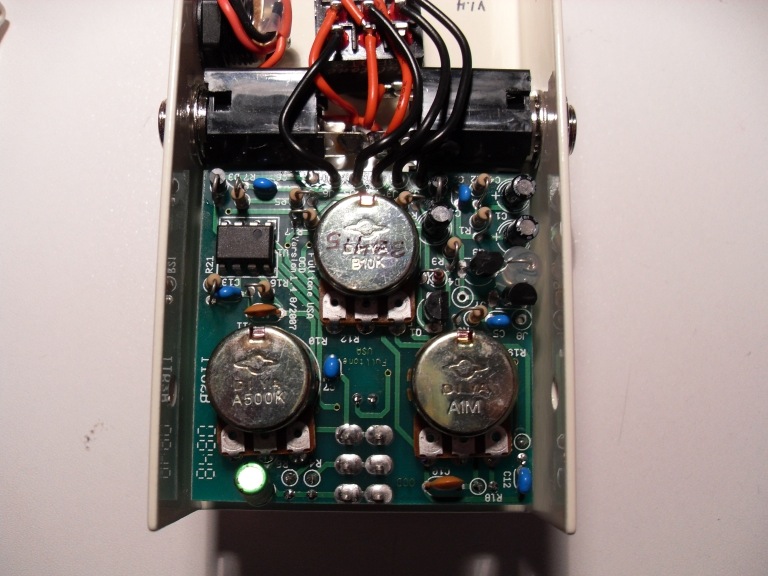

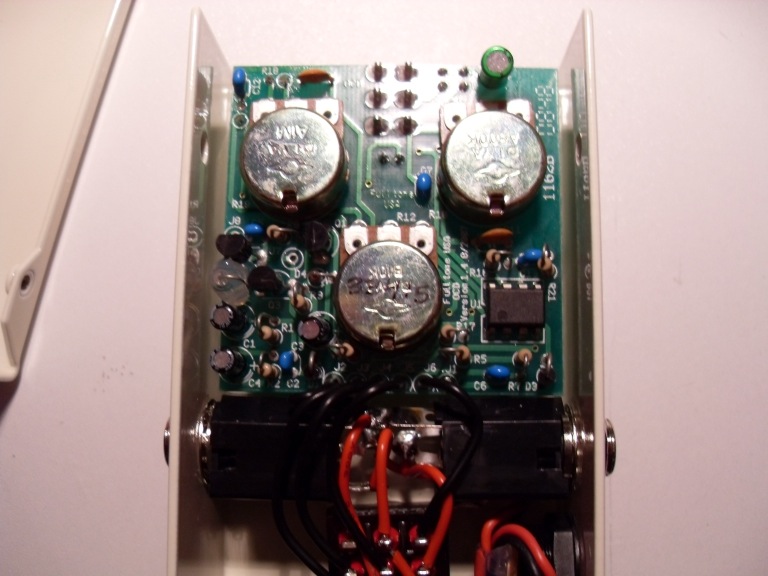

Fulltone OCD V1.4

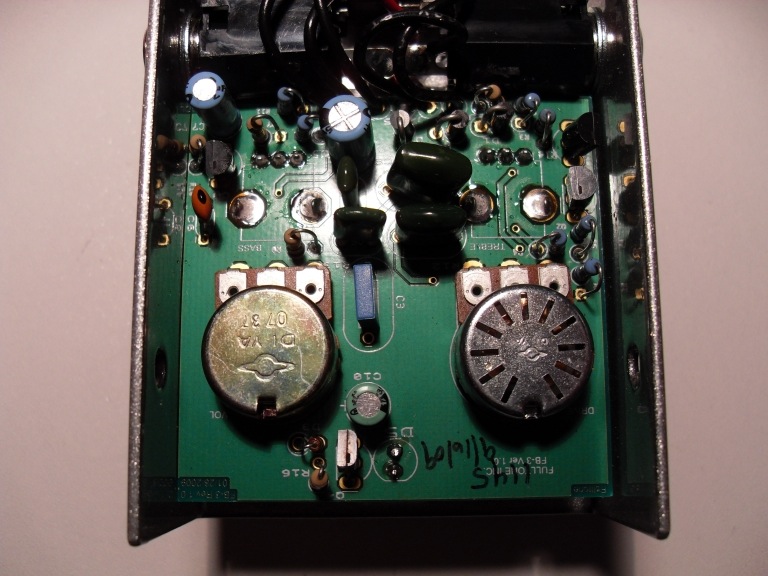

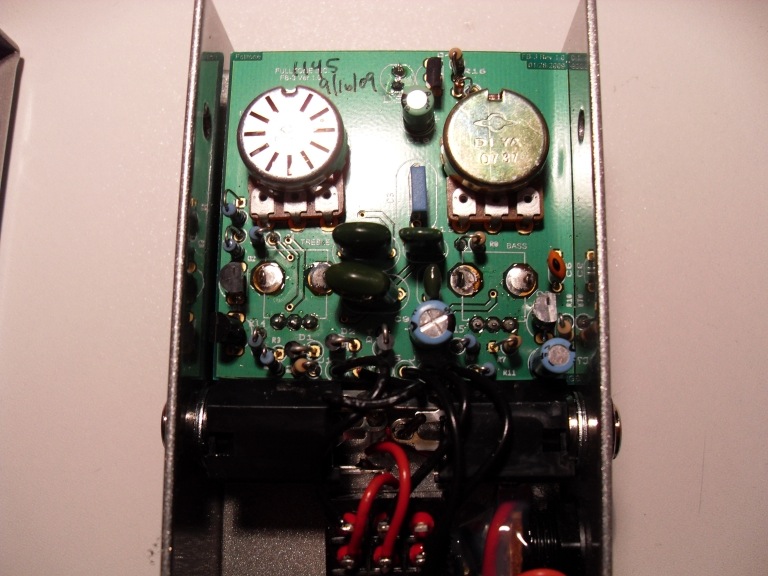

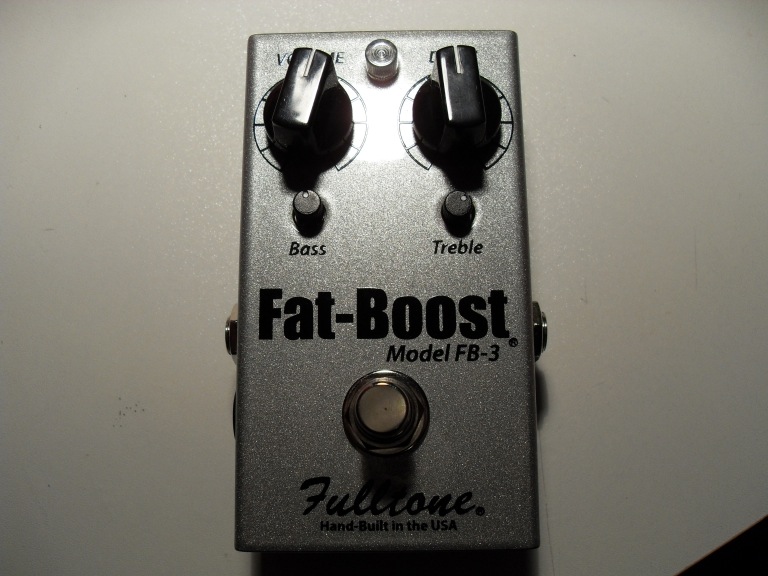

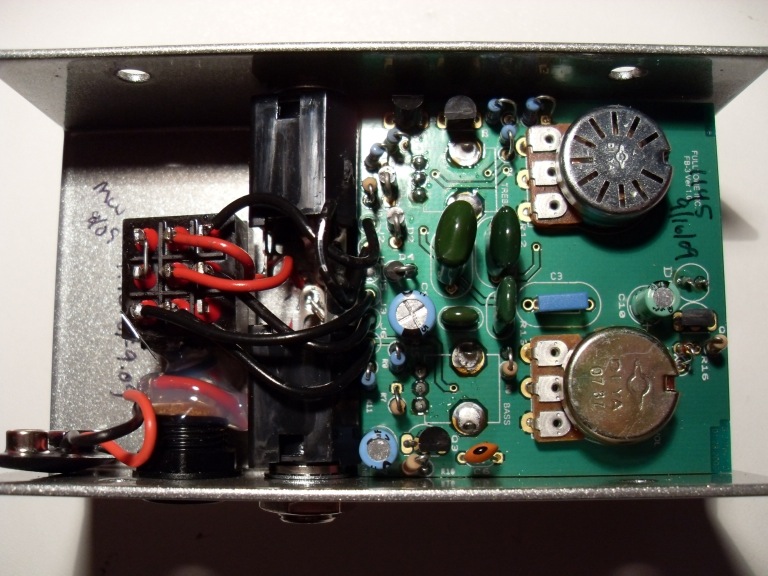

Fulltone Fat Boost FB-3
Posted on behalf of Goran - Moderator
Regards Goran
|
Edited by - Dr. Bob on 12/05/2009 16:18:58 |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 12/09/2009 : 20:15:01
|

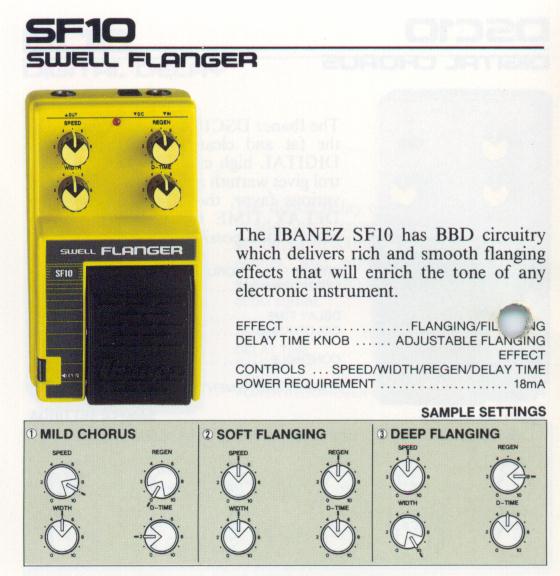

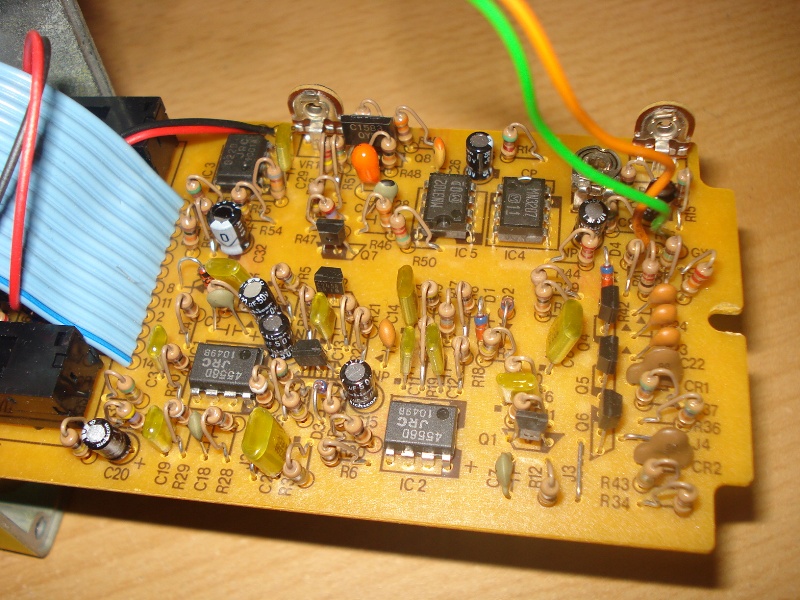

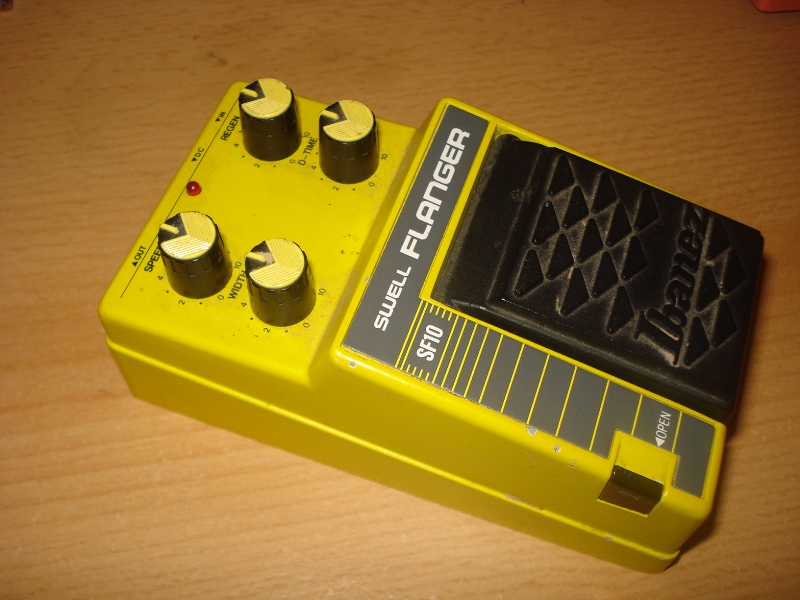

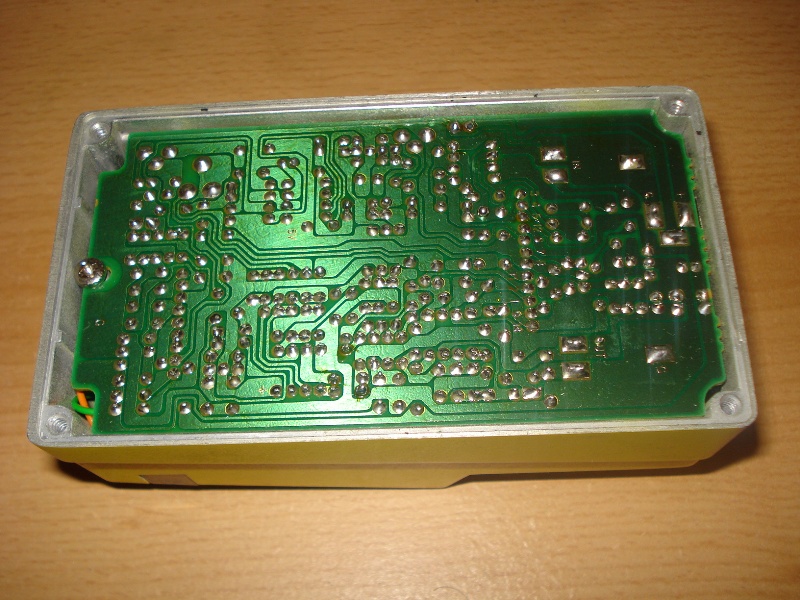

IBANEZ SF10, Swell Flanger, MIJ, SN:434924
Legend:
cheers |
Edited by - ssanyee on 12/12/2009 12:24:10 |
|
|
|
