 Posted - 04/02/2008 : 14:24:16
|

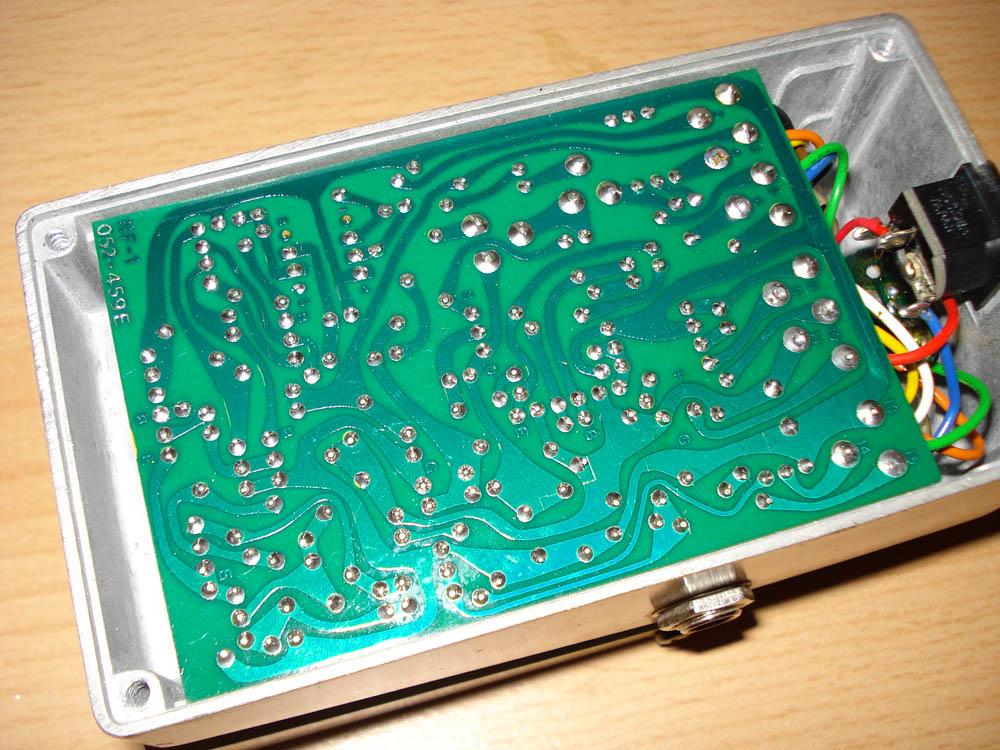

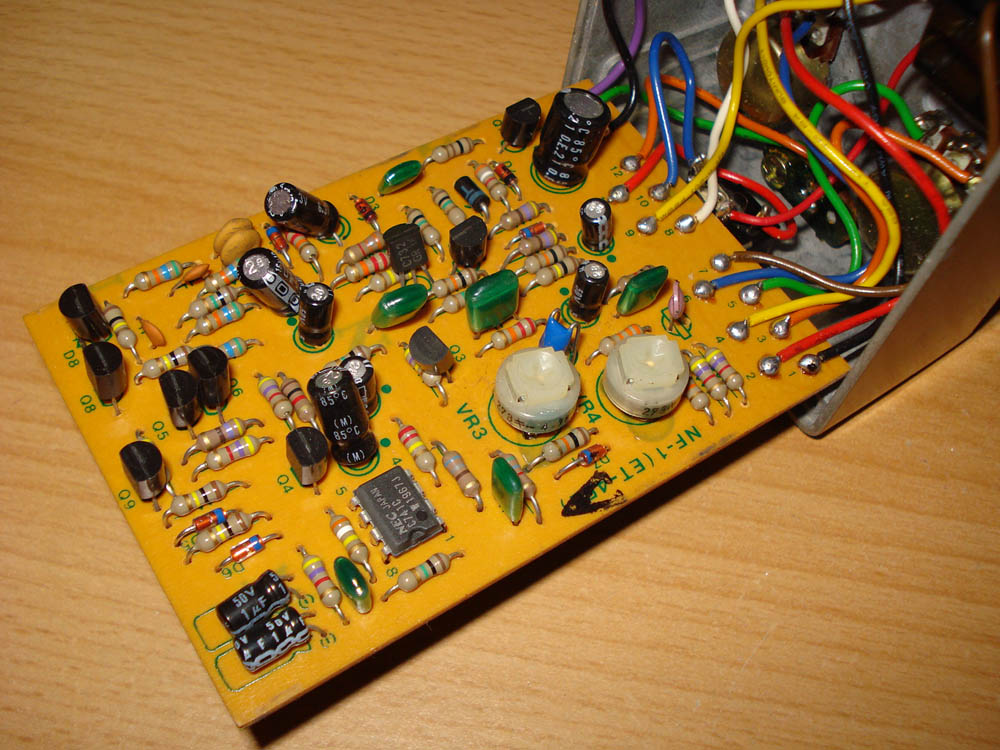

BOSS NF-1, Noise Gate, MIJ, 233600, 1982, October
cheers |
 |
|
|
verivorax
Platinum Member
Canada
1185 Posts |
Posted - 04/03/2008 : 14:20:48
|
OD-1B w/Raytheon 3403 - SN#7900 (Feb/79)
EDIT: For the purists.. some better pics of the chip:
|
Edited by - verivorax on 04/12/2008 16:12:01 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 04/03/2008 : 15:11:32
|
quote:
Originally posted by verivorax
OD-1B w/Raytheon 3403 - SN#7900 (Feb/79)
Awesome! |
Edited by - Laurie on 04/03/2008 15:11:51 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 04/05/2008 : 05:05:12
|

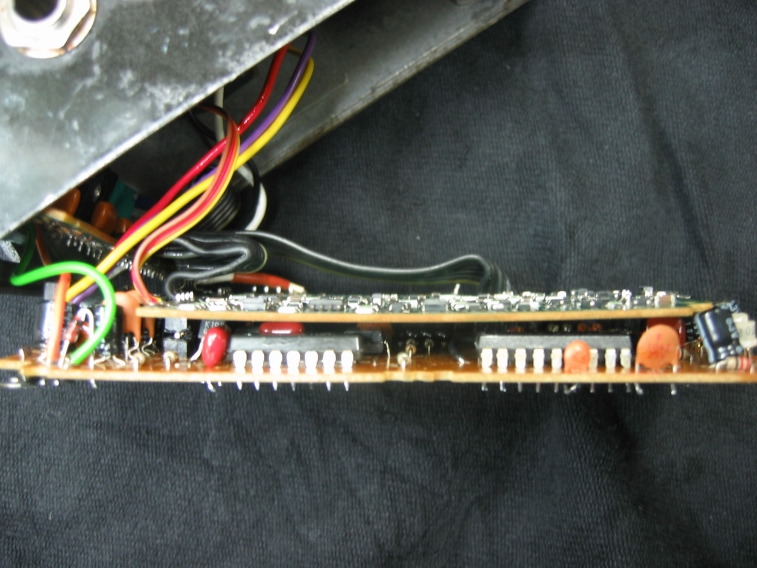

MZ-2 MIJ Blue Label S/N 865104 January 1988
The Digital Board

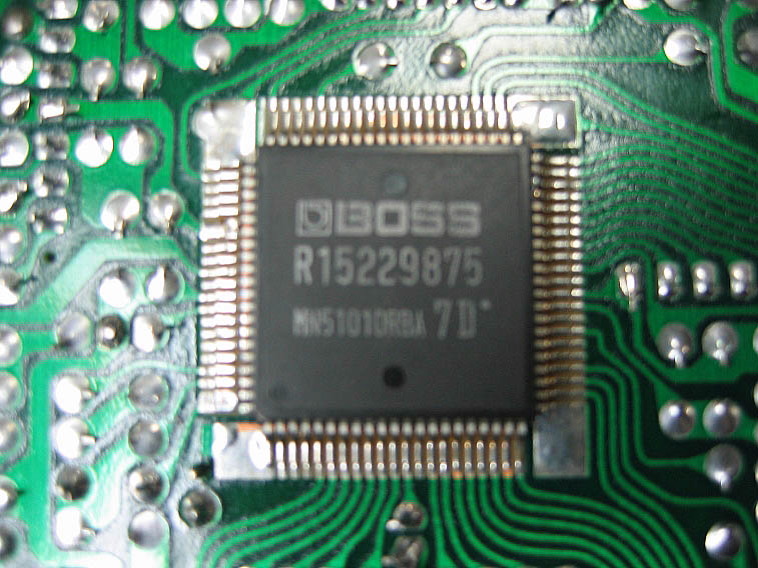

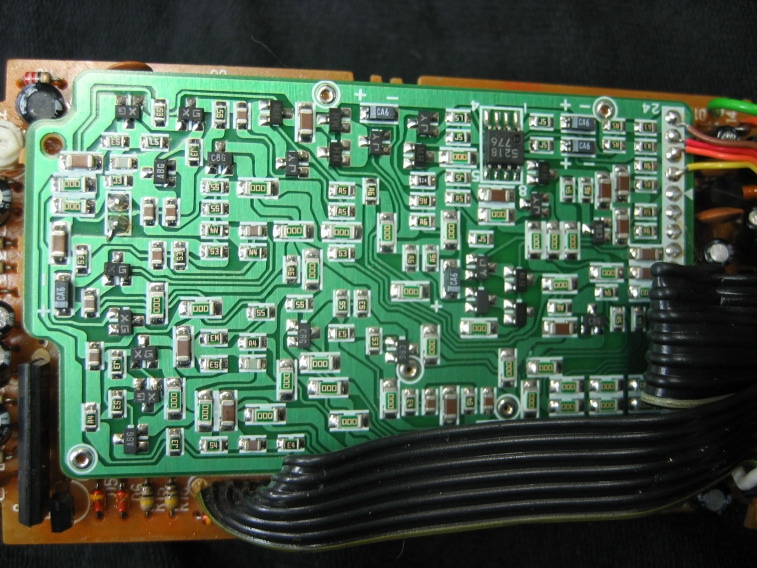

The DSP

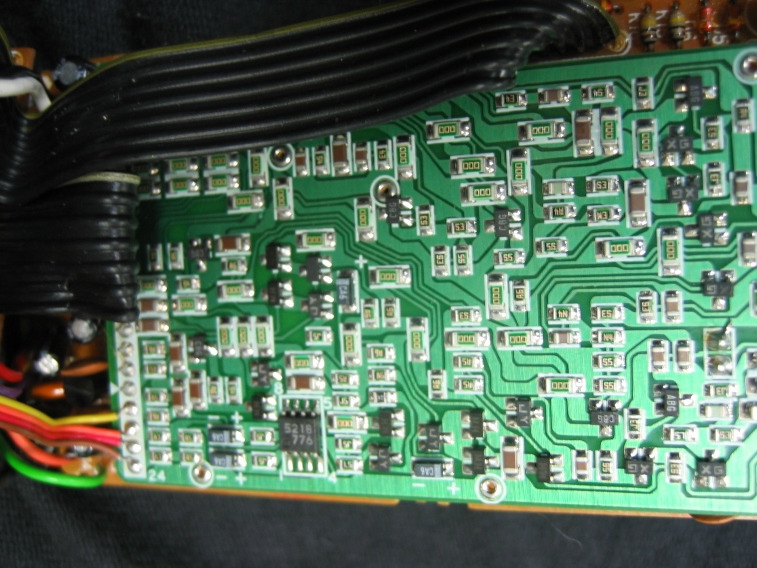

The Analog Board - The distortion on the MZ-2 is analog
Left Side (Output)
Right Side (Input)
Regards Dr. Bob |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 04/05/2008 : 06:38:33
|
Hi Guys
Please check out the "Index-List" that I have put onto the first page,
at the bottom of the first post.
(Thanks to everyone who has contributed)
The response has been so great, that it was starting to get difficult to find, which pedal pics have been upload, & to where?
I'll try to keep the list up to date, as more pictures are added.
If I missed your pic or your name, let me know.
Regards Dr. Bob |
Edited by - Dr. Bob on 04/05/2008 06:39:17 |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 04/05/2008 : 15:43:45
|

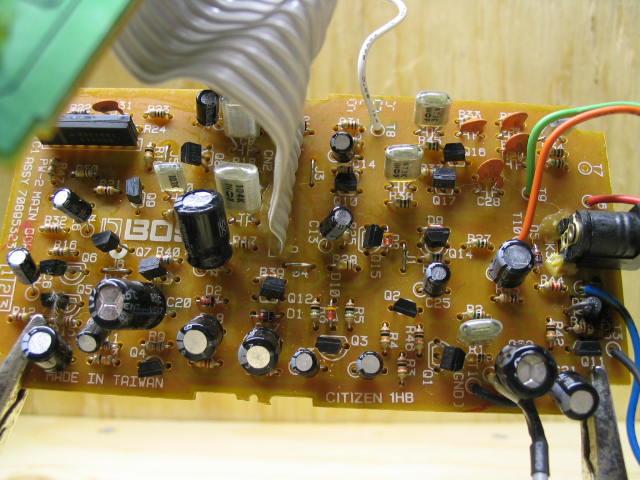

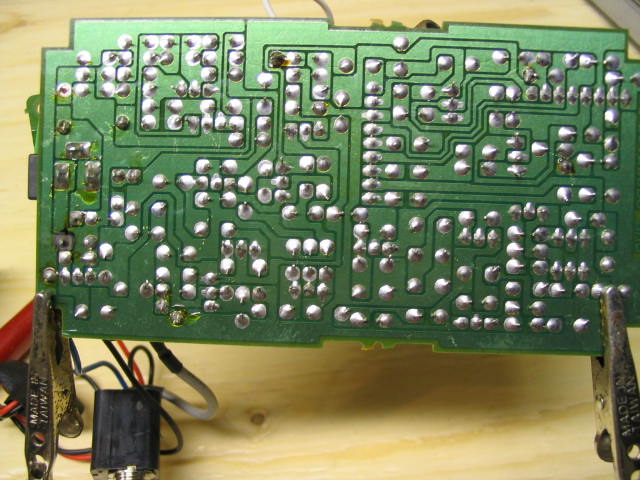

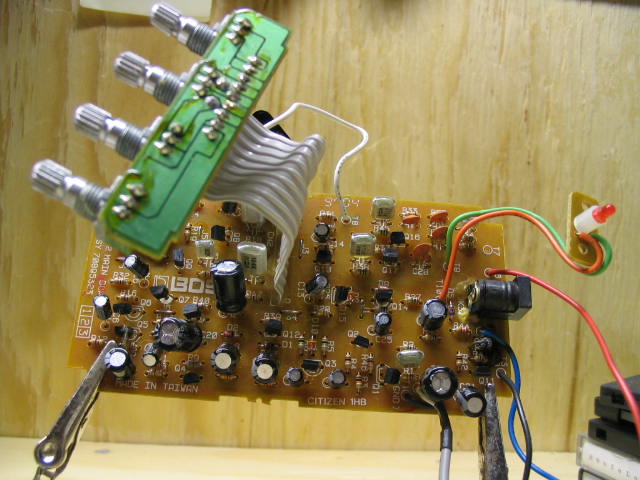

PW-2 MIT S/N: AJ88707 May 1997
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 04/06/2008 : 06:36:22
|

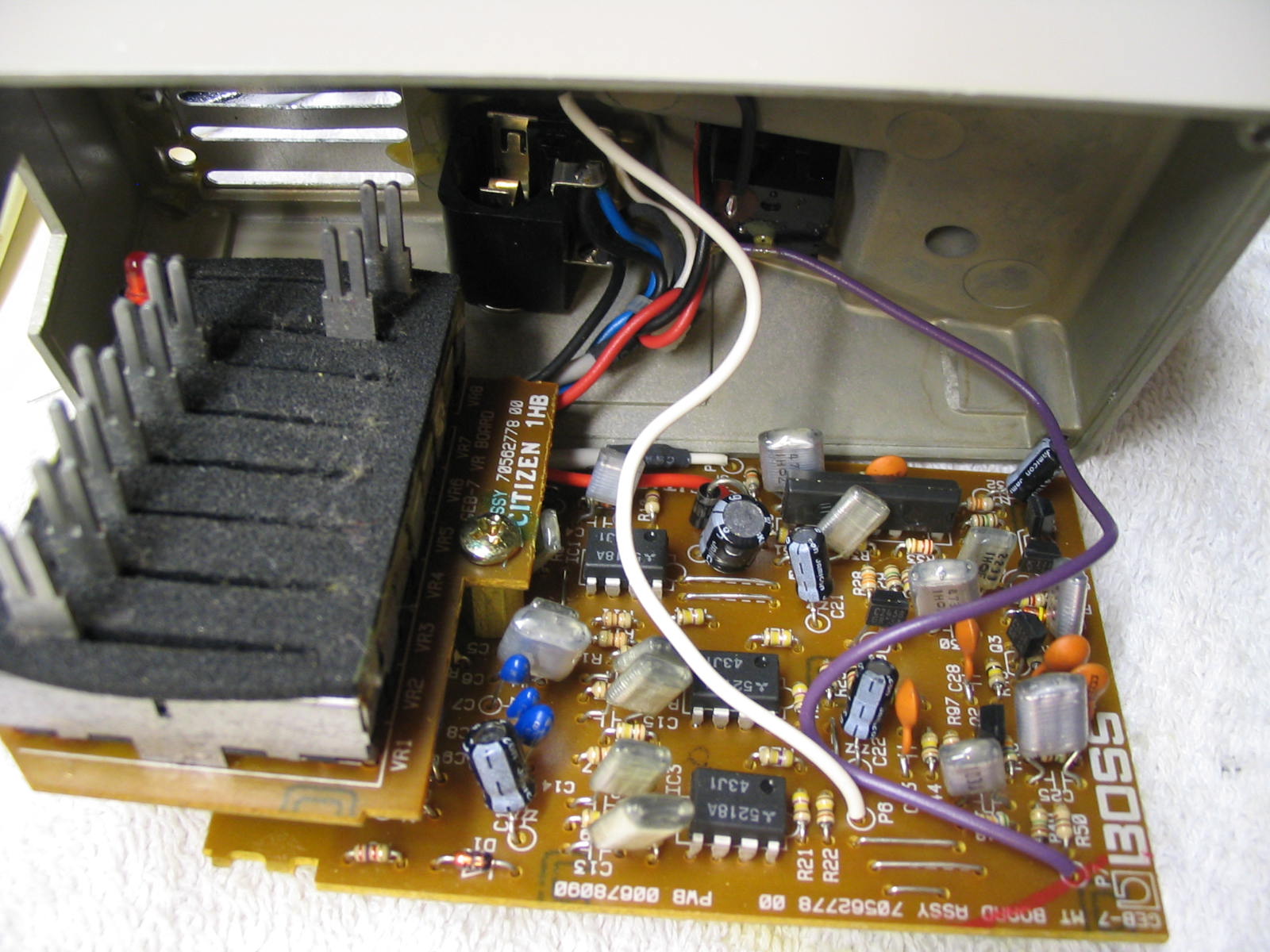

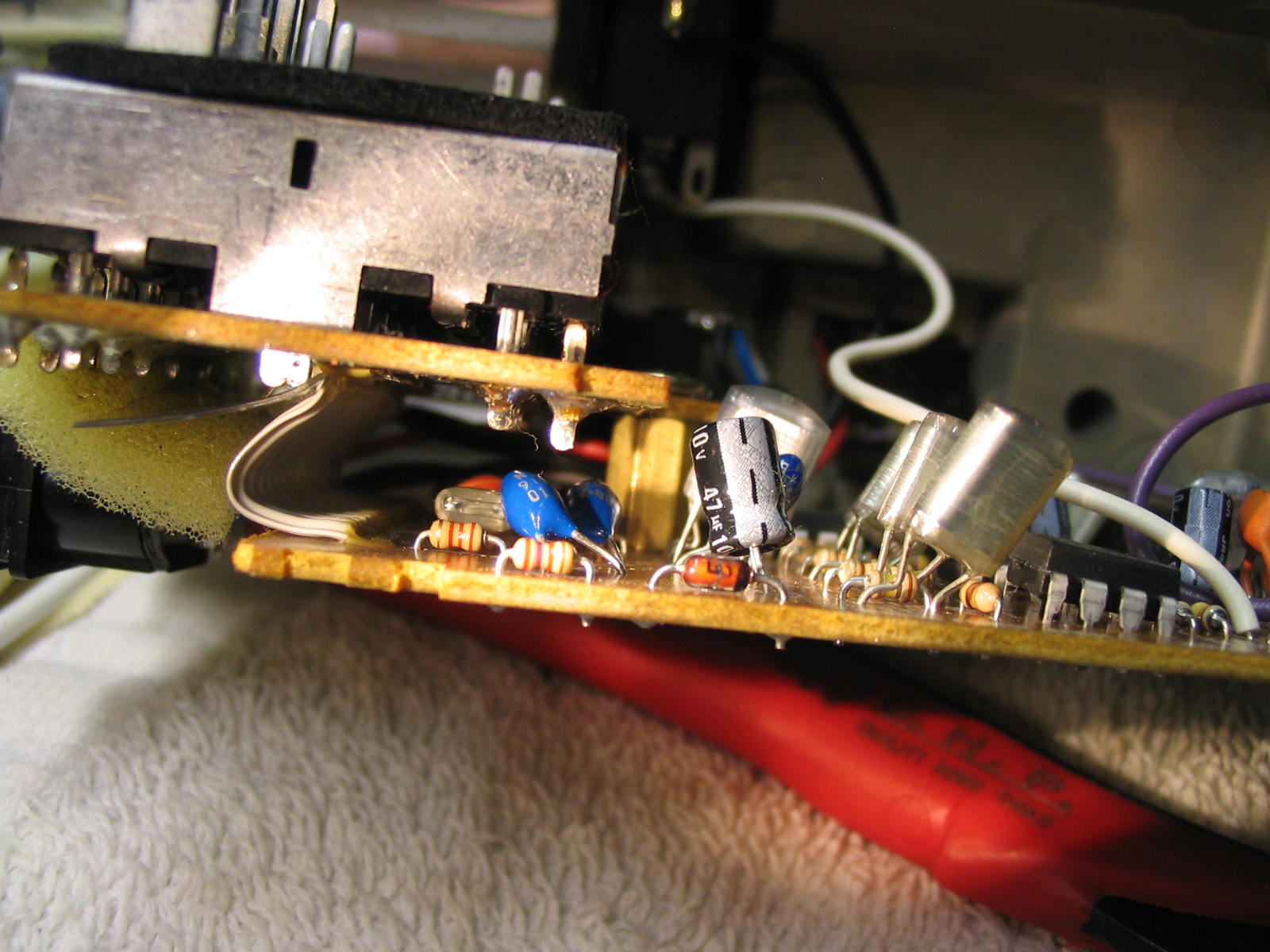

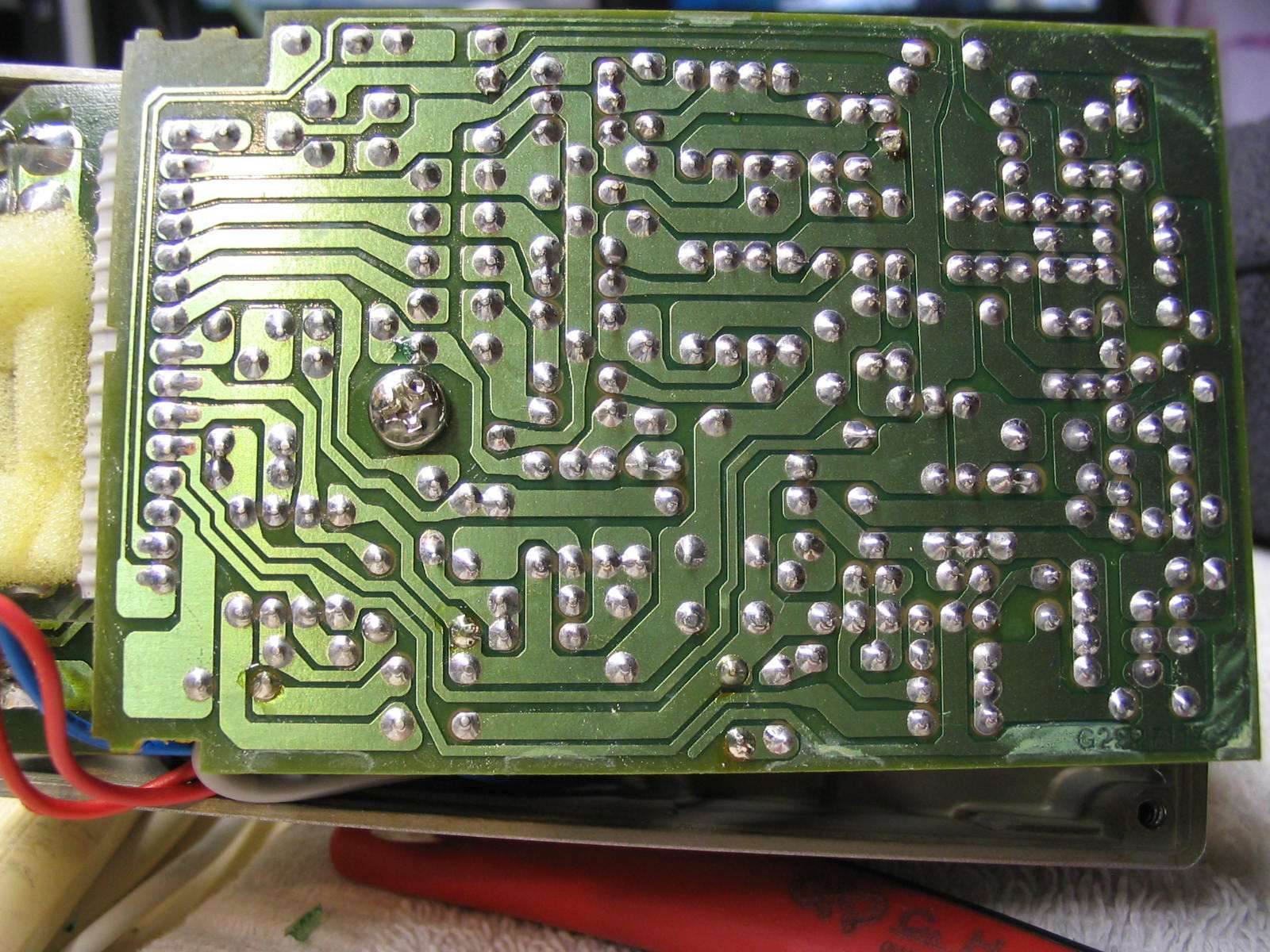

GEB-7 MIT S/N: ZH36019 April 1995
|
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/06/2008 : 09:11:21
|
Hi,
Good to see that the famous 5218 IC also available in DIL case beside of SIL. I did not know that!
Bob,
Thanks for your continuous content list update in your first post, will be very useful over 10-20 pages of this thread especially!
To All,
Because I can see some pictures that some internal wires or other parts can obstacles to see the writings in the ICs (e.g. verivorax's picture about OD-1B - the brown cable above the IC) I would ask you before you take photos please be sure that all IC-informations are visible!
Again: does anyone have SP-1?  I guess yes, therefore would be appreciated to see some internal pictures about!
Thanks and cheers |
Edited by - ssanyee on 04/06/2008 09:17:10 |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/06/2008 : 15:53:34
|

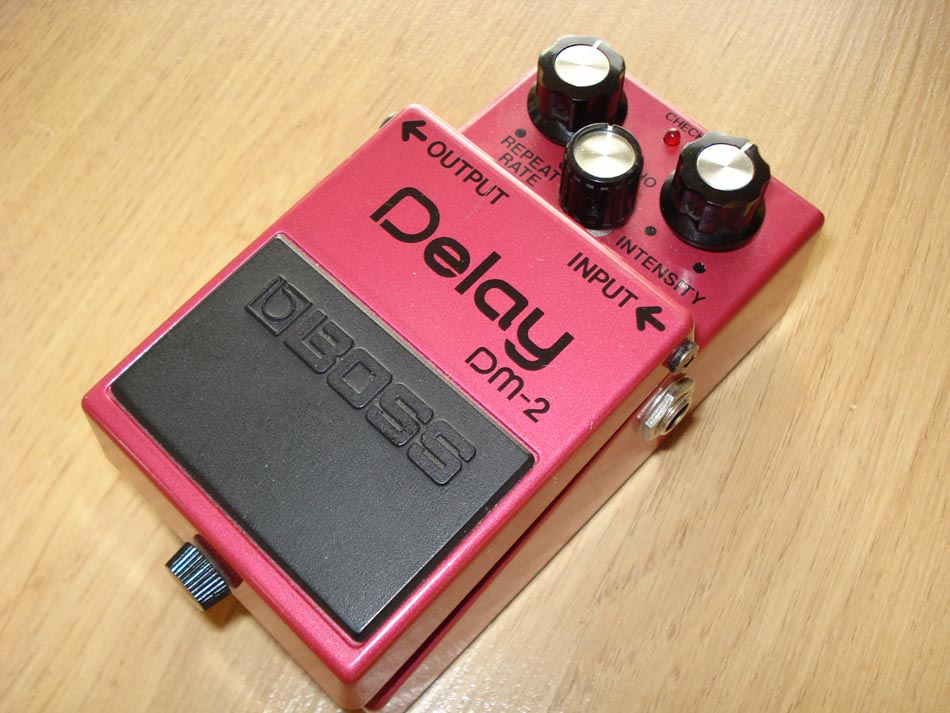

BOSS DM-2, Delay, MIJ, 118600, 1981, October
- as you can see nearly mint, with box and manual and its smell is amazing...
cheers |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 04/06/2008 : 16:05:15
|
Hi ssanyee
Thanks, I will try to keep the index-list up to date.
The IC on the OD-1 (B) is a Raytheon 3403, verivorax wrote it in the text just above the picture.
As for the 5218 in SIP & DIP, if you look at the pics of the analog board, of the MZ-2 that I uploaded,
you will see that it's also, available as a surface mount SOP-8 package.
Maybe you missed it?
Regards Dr. Bob
|
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/06/2008 : 16:18:34
|
quote:
Originally posted by Dr. Bob
Hi ssanyee
Thanks, I will try to keep the index-list up to date.
The IC on the OD-1 (B) is a Raytheon 3403, verivorax wrote it in the text just above the picture.
As for the 5218 in SIP & DIP, if you look at the pics of the analog board, of the MZ-2 that I uploaded,
you will see that it's also, available as a surface mount SOP-8 package.
Maybe you missed it?
Regards Dr. Bob
Hi Bob,
Thanks the info!
Of course it was not a blaim to verivorax just a general request and of course also I have seen the description about Raytheon, but better to see all ICs in full condition - will be even more useful after years
Yes, I know that 5218 existing in SMT type but I did know that in though-hole DIL! BTW, thanks the attention!
cheers |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/06/2008 : 16:38:23
|

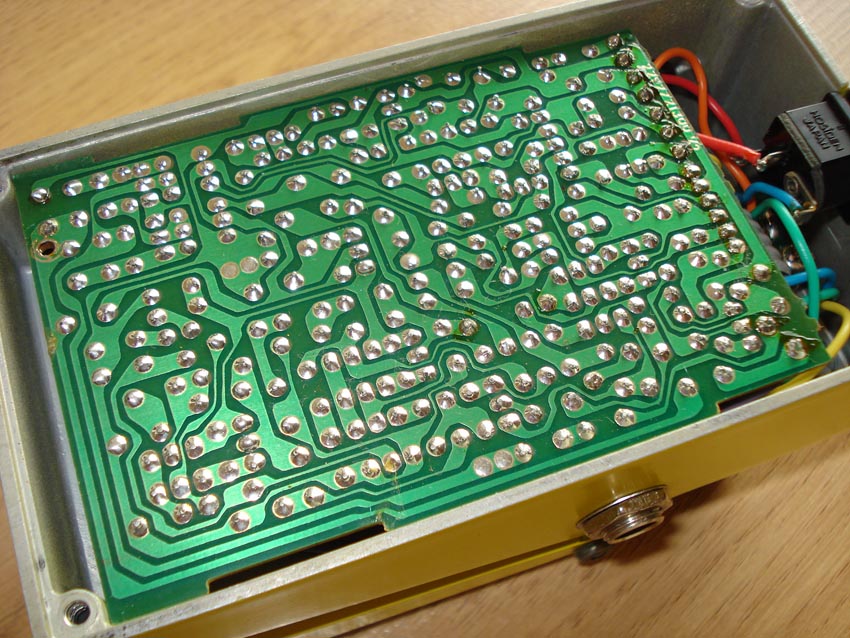

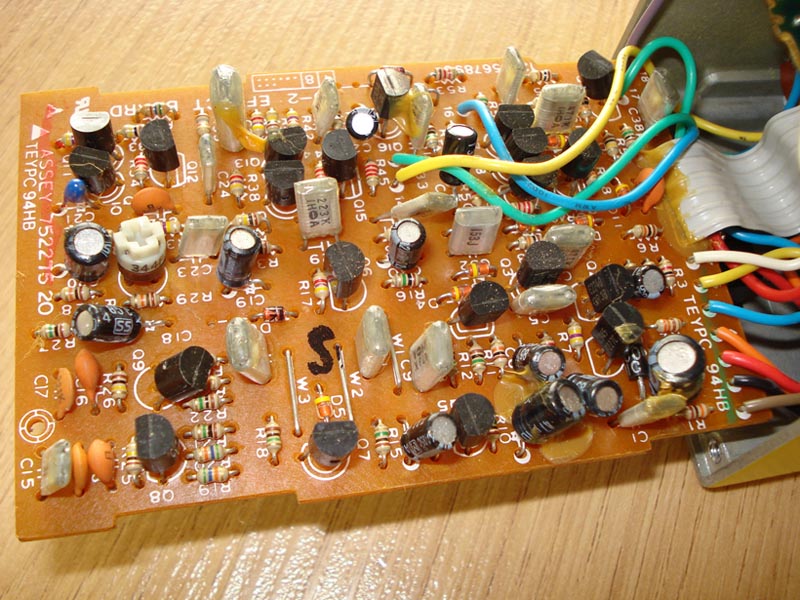

BOSS OD-2, Turbo Overdrive, MIT, IF19379, 1993, June
cheers |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/07/2008 : 21:27:04
|

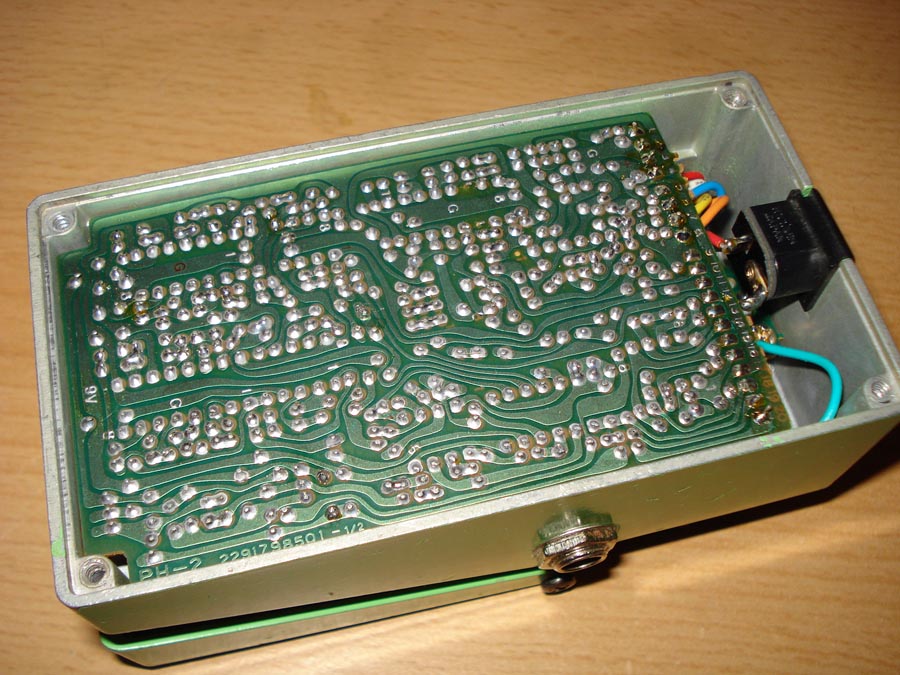

BOSS PH-2, Super Phaser, MIT, ZC69555, 1991, May
cheers |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/07/2008 : 21:33:05
|

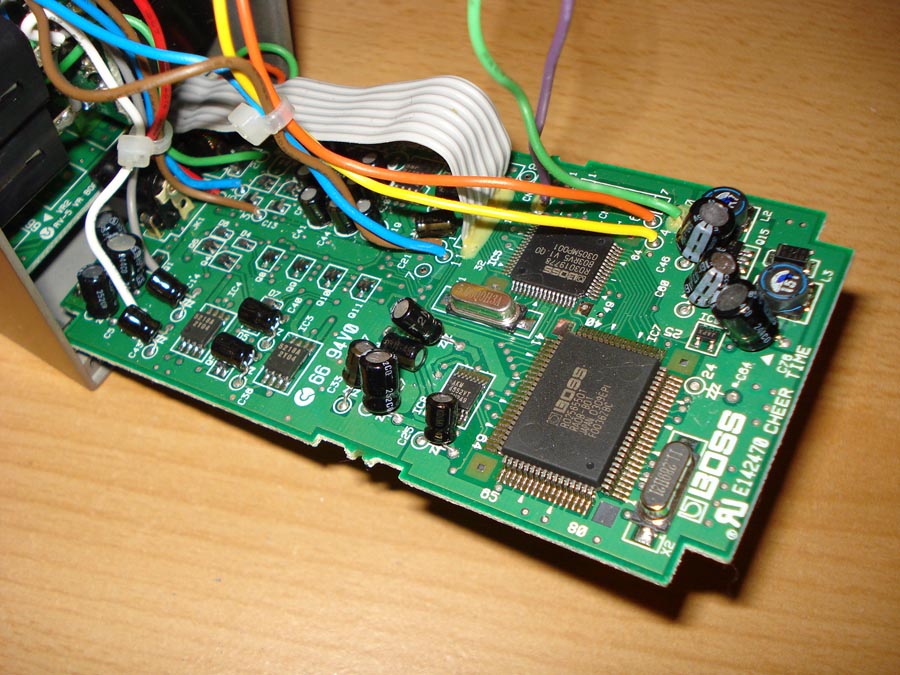

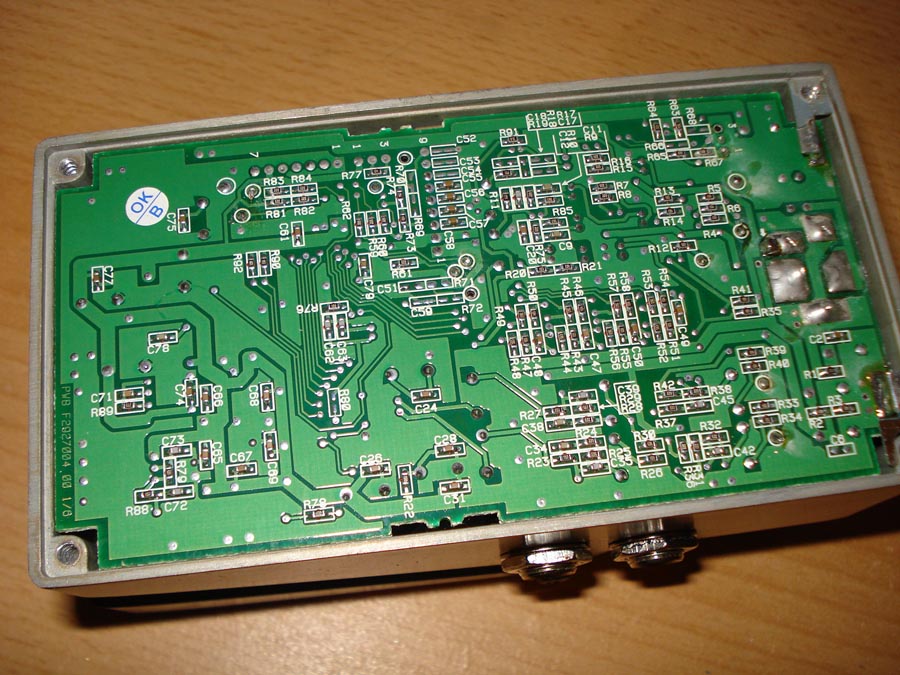

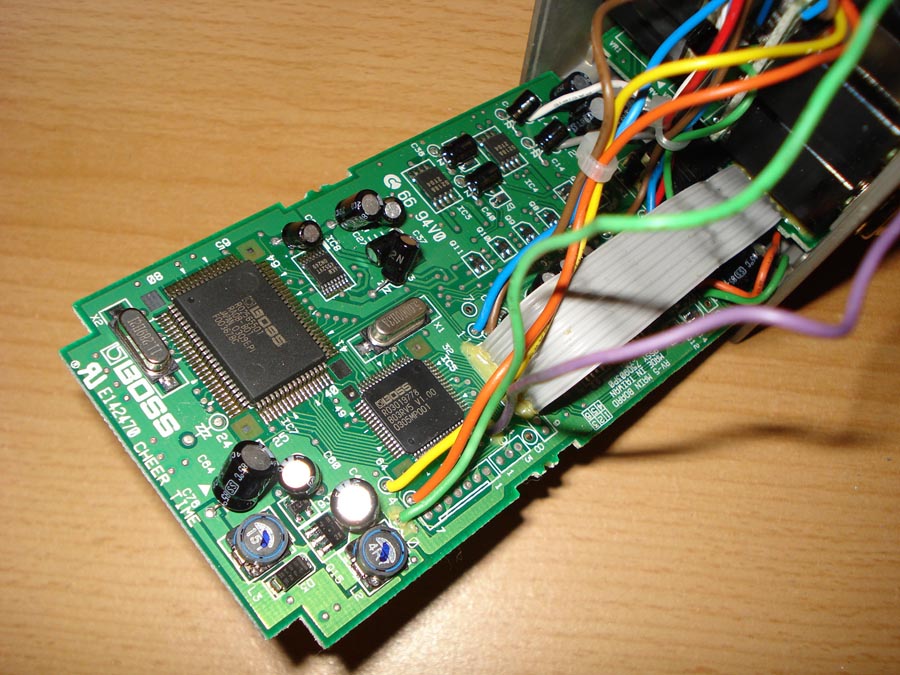

BOSS RV-5, Digital Reverb, MIT, AR02633, 2003, May
cheers |
Edited by - ssanyee on 04/07/2008 21:34:03 |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 04/08/2008 : 21:23:57
|

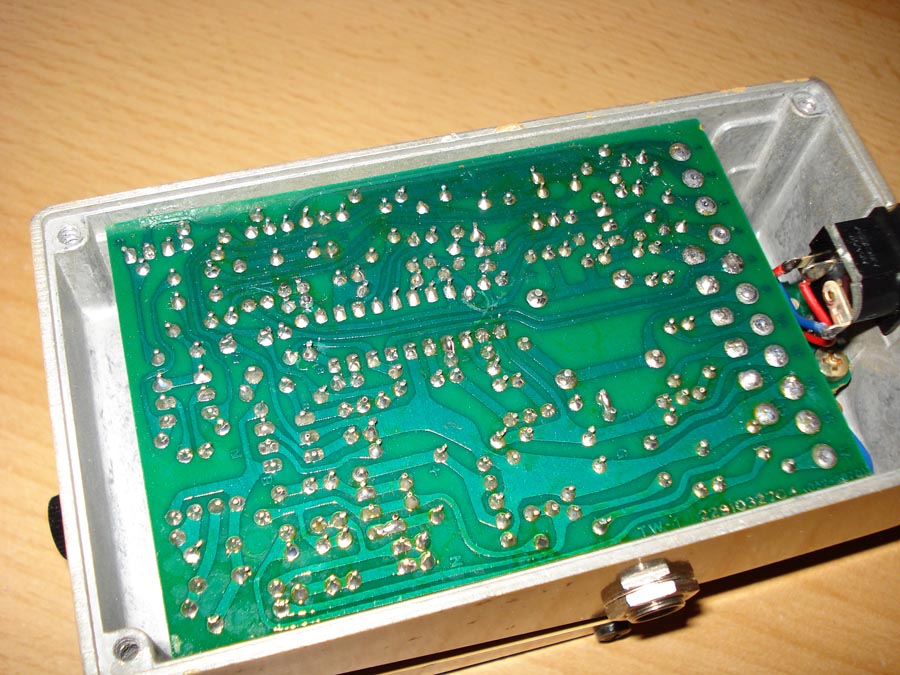

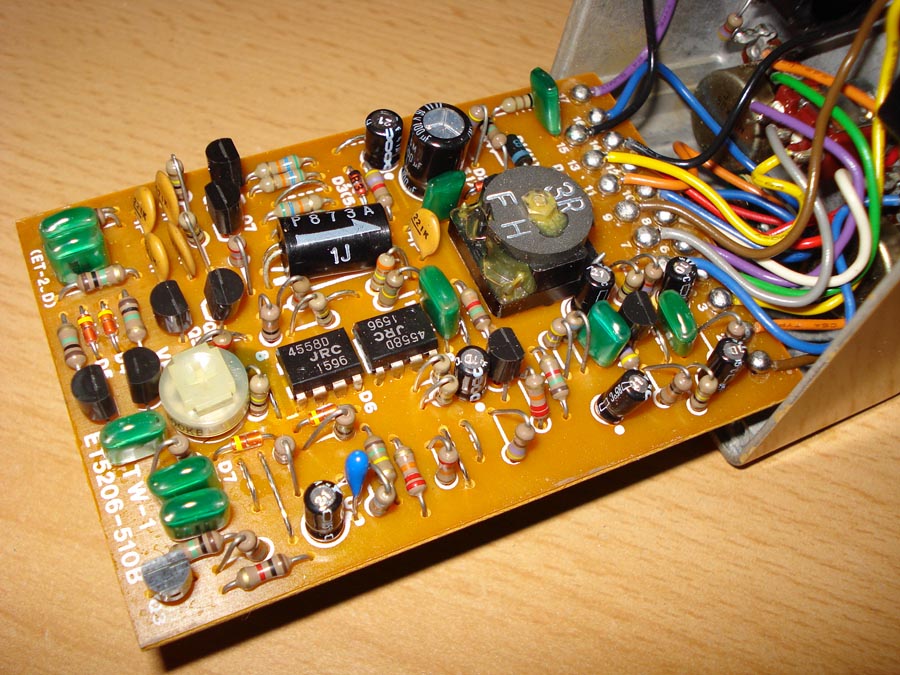

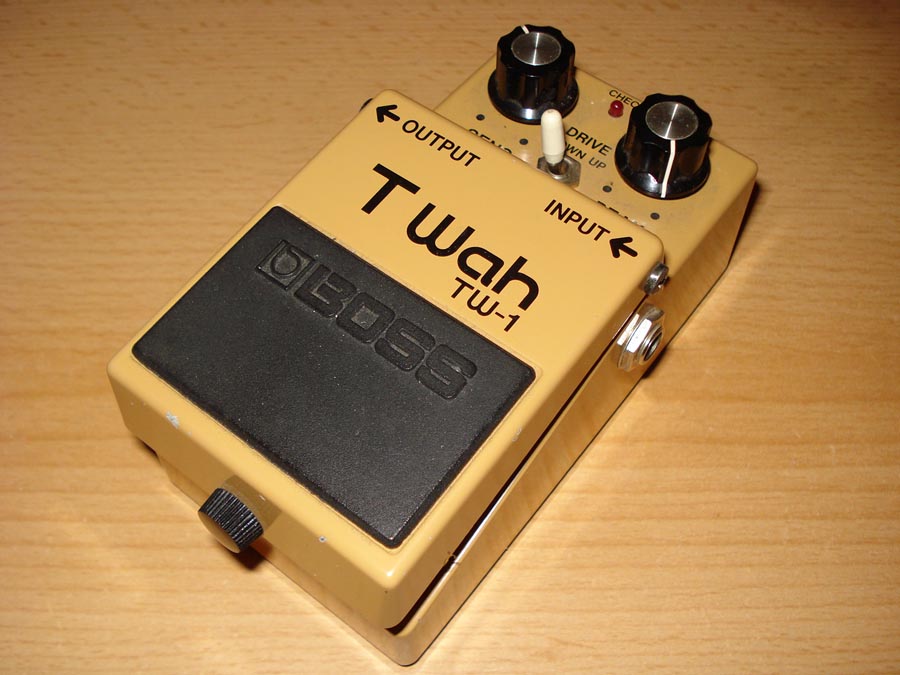

BOSS TW-1, T Wah, MIJ, 162700, 1982, March
cheers |
|
|
|
