 Posted - 03/20/2008 : 09:47:40
|
Hello Plautz,
Welcome to the forum  !
If you have other pedals please do not stop just make pictures and put into this thread!
cheers |
 |
|
|
plautz
Copper Member
Brazil
8 Posts |
Posted - 03/20/2008 : 14:28:14
|
Thanks for all.
As I said, the GE-7 is the only pedal that I have. I�m building my other pedals (Sansamp GT-2, CE-2, etc), because here in Rio de Janeiro musical equipments are too expensive.
I will try to take some pictures of some boss pedals from one friend.
Cheers. |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 03/20/2008 : 15:17:30
|
quote:
Originally posted by plautz
As I said, the GE-7 is the only pedal that I have.
I understood that BOSS type you have only one but I thought other type of pedals perhaps you also have!
Anyway, if you have any internal picture what you want to share with us just go a head!
cheers |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/21/2008 : 01:05:41
|

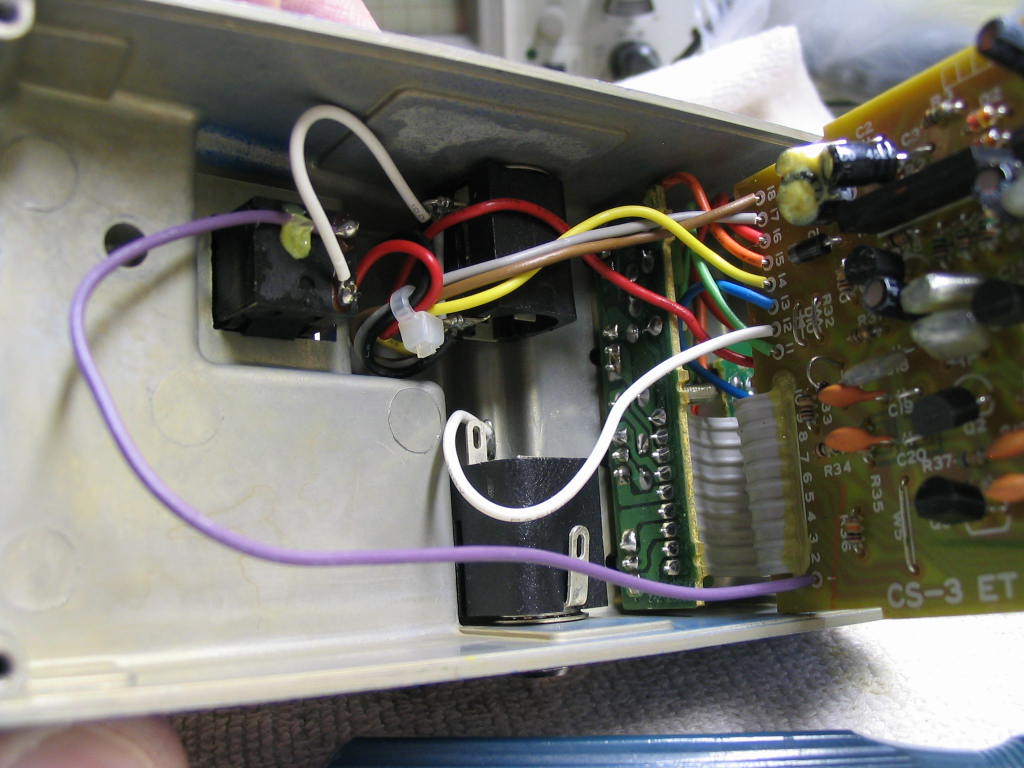

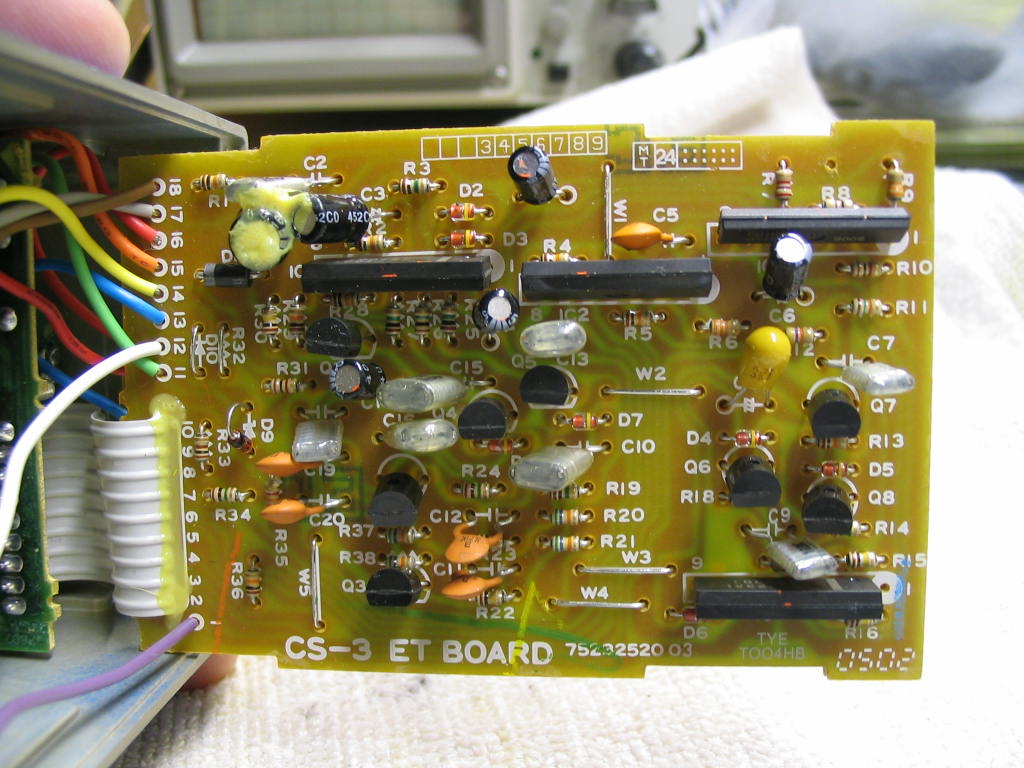

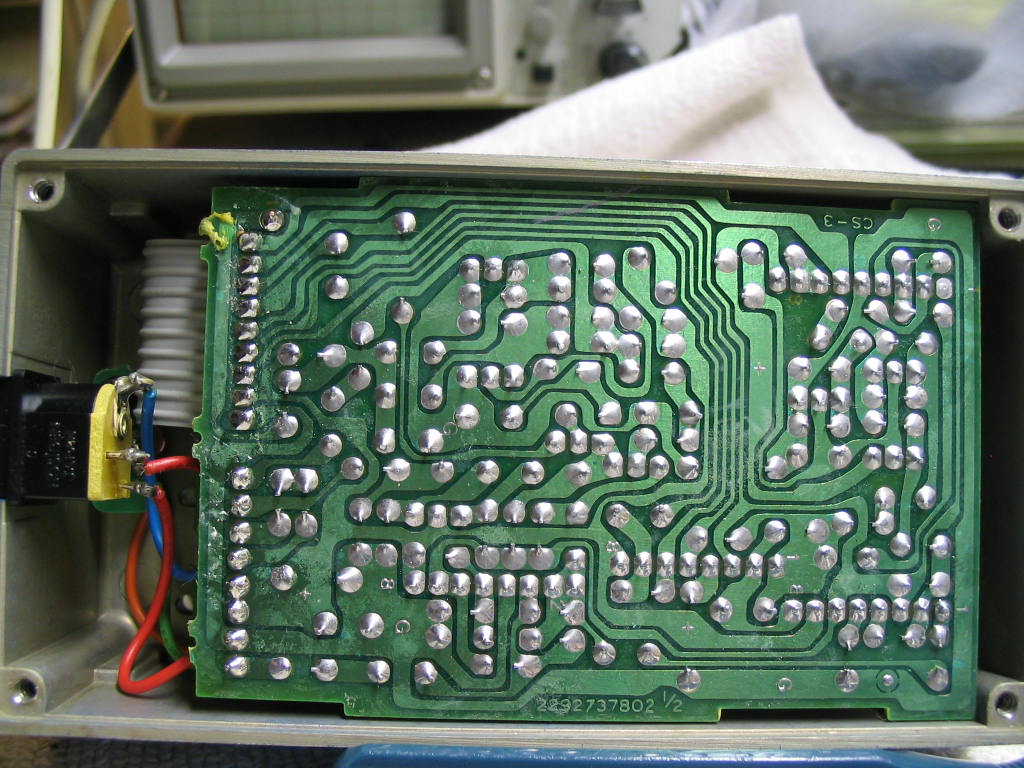

BOSS CS-3 S/N: BT40575 May 2005
 |
|
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 03/22/2008 : 12:47:55
|
Has anyone else noticed the older pedals pcb tracks compared to the newer tracks? The older pcbs have the tracks that look like they were drawn when it was being designed. Notice the irregular shapes and bends in some. The PSM5 is a great example
Guess they switched to a digital program later in production. Everything is all even and layed out smoothly.
A touch of hand craftmanship gone  |
Edited by - ChristoMephisto on 03/22/2008 12:50:27 |
|
|
|
zentropa
Gold Member
USA
837 Posts |
Posted - 03/22/2008 : 15:51:59
|
figured i would add these to here.

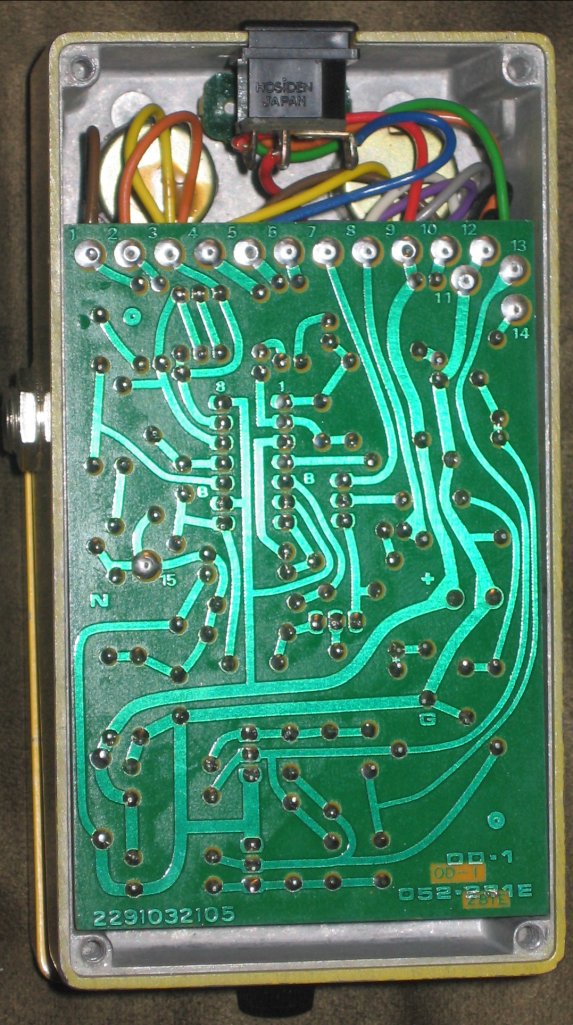

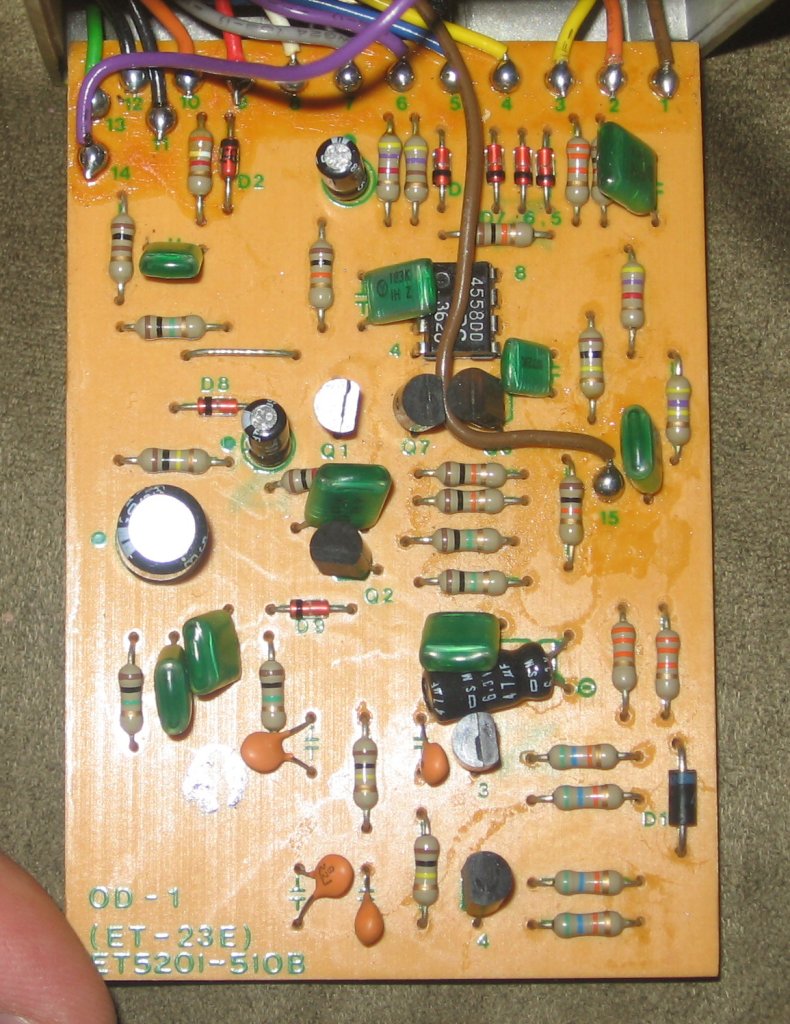

Boss OD-1 revision E
 |
|
|
|
Dr. Bob
Moderator
Australia
6593 Posts |
Posted - 03/22/2008 : 16:09:50
|
quote:
Originally posted by ChristoMephisto
Has anyone else noticed the older pedals pcb tracks compared to the newer tracks? The older pcbs have the tracks that look like they were drawn when it was being designed. Notice the irregular shapes and bends in some. The PSM5 is a great example
Guess they switched to a digital program later in production. Everything is all even and layed out smoothly.
A touch of hand craftsmanship gone
Hi Christo & guys
In the old days pre PCB CAD Auto-routers.
We used to use opaque tape to layout PCB's
That's why you tend to see a lot of curved & wavy tracks & ground planes.
We did them at 2:1 or 4:1 & reduced them photographically onto film.
Film ? remember that stuff.
And the design layout (the look), always reflected on the draftsman that did the artwork.
I still have some of my old designs, archived away in a box somewhere.
Now it's all typically done on some CAD App. with a built in Auto-router.
If yo made a mistake, or needed to do any major modifications, you either had to rip up the old sticky opaque tapes, or start from scratch..
Regards Dr. Bob
|
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/22/2008 : 16:33:33
|
quote:
Originally posted by Dr. Bob
Hi Christo & guys
In the old days pre PCB CAD Auto-routers.
We used to use opaque tape to layout PCB's
That's why you tend to see a lot of curved & wavy tracks & ground planes.
We did them at 2:1 or 4:1 & reduced them photographically onto film.
Film? remember that stuff.
And the design layout (the look), always reflected on the draftsman that did the artwork.
I still have some of my old designs, archived away in a box somewhere.
Now it's all typically done on some CAD App. with a built in Auto-router.
If yo made a mistake, or needed to do any major modifications, you either had to rip up the old sticky opaque tapes, or start from scratch..
Regards Dr. Bob
Yep... been there done that too Dr. Bob! We used to do industrial stuff so could lay the track at one-to-one scale. Black track-laying tape onto OHP transparency film  |
|
|
|
ChristoMephisto
Platinum Member
Canada
1288 Posts |
Posted - 03/22/2008 : 17:00:12
|
Reminds me of when I was in high school and had to go through the whole process of making a metal plate for a printing press. Lay out the artwork, photograph it, develop it a darkroom, mask n tape it, burn the image onto the plate and develop it again in the darkroom.
If there was a mistake, you would have to go through the whole process again |
|
|
|
lightburst
Silver Member
Germany
158 Posts |
Posted - 03/23/2008 : 11:12:57
|
Wow, it took over one year since my last post here. So I have to retrieve a little bit ;)
Here are the pics:

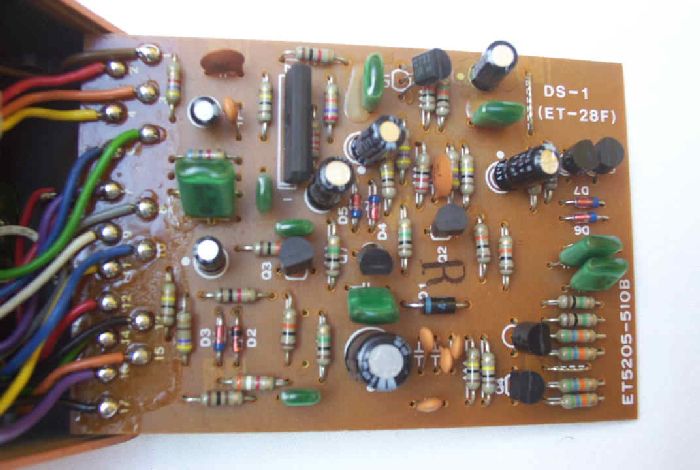

Distortion DS-1 MIJ
Distortion DS-1 MIT - first version

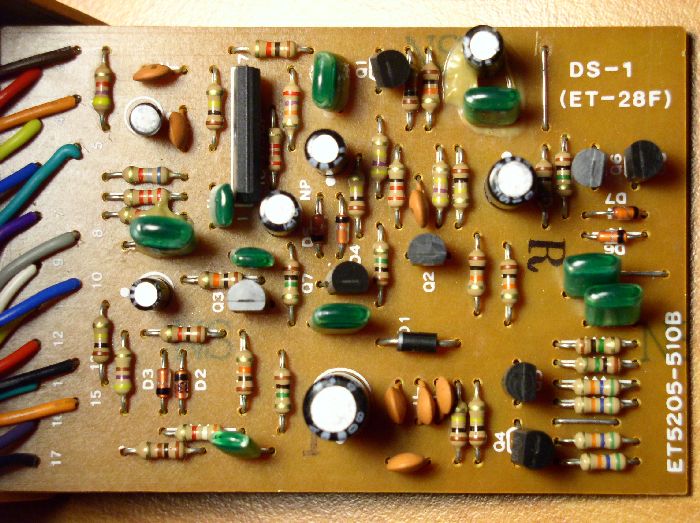

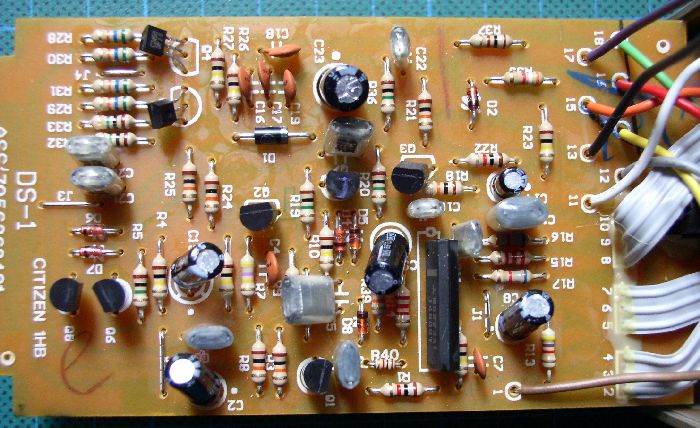

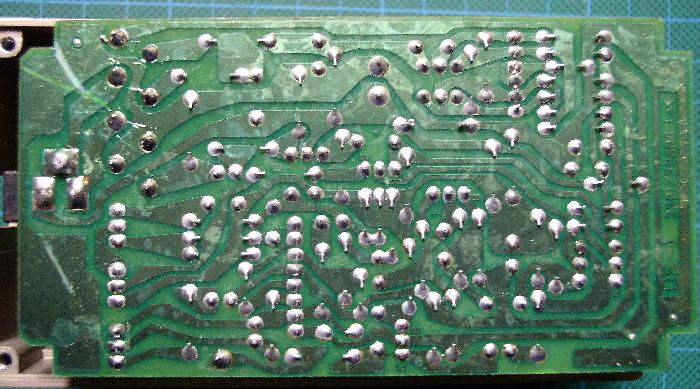

Distortion DS-1 MIT - actual version

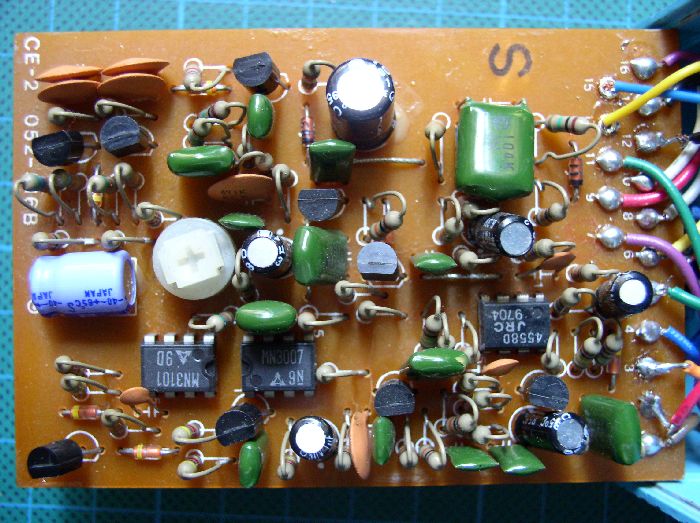

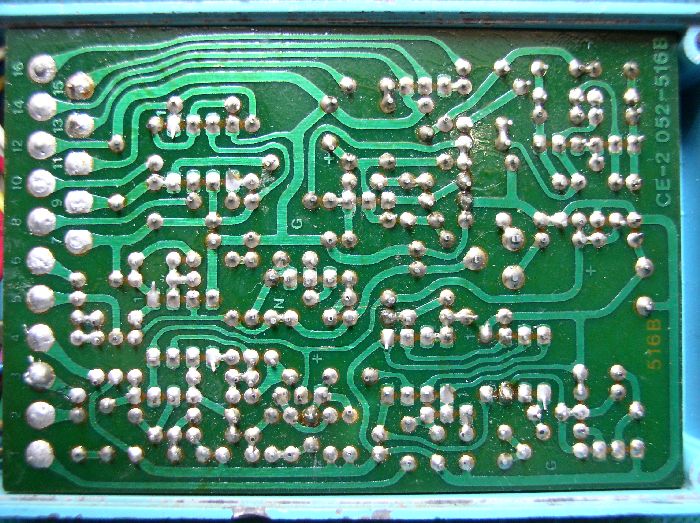

Chorus CE-2 MIJ

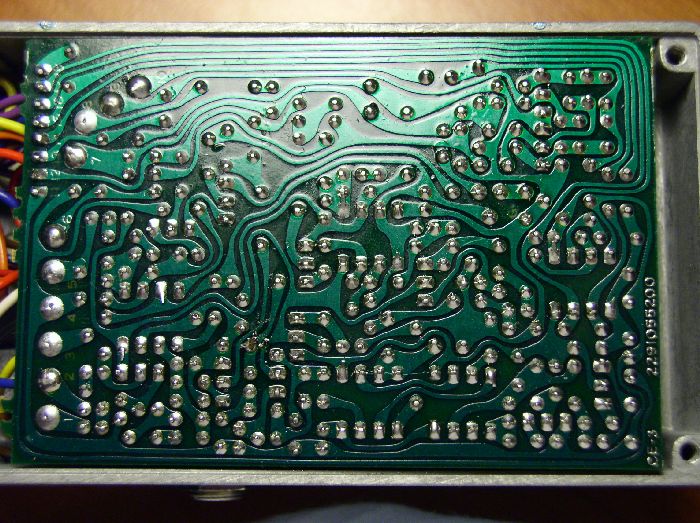

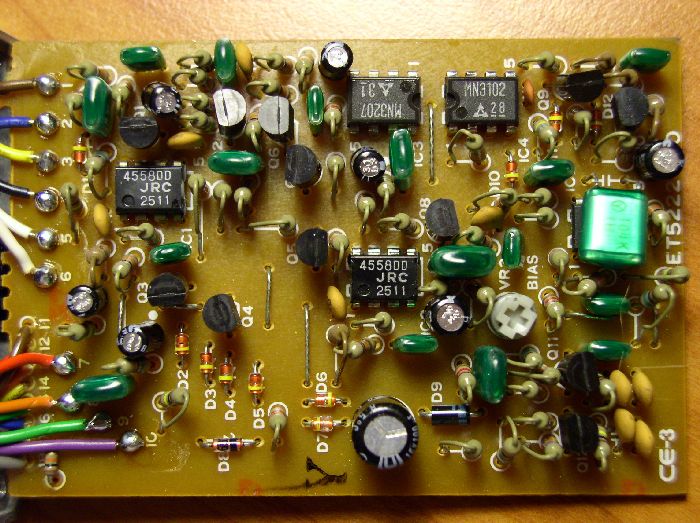

Chorus CE-3 MIJ

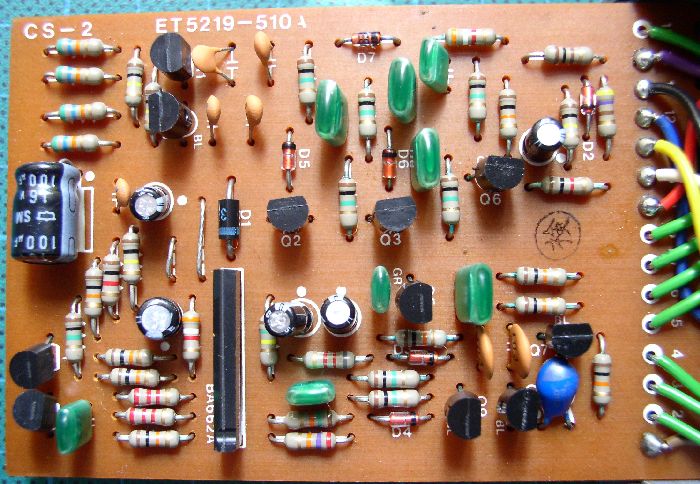

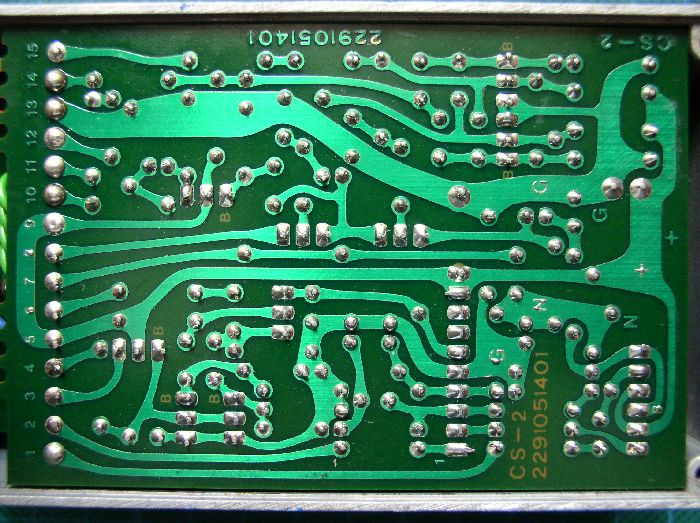

Compression Sustainer CS-2 MIJ

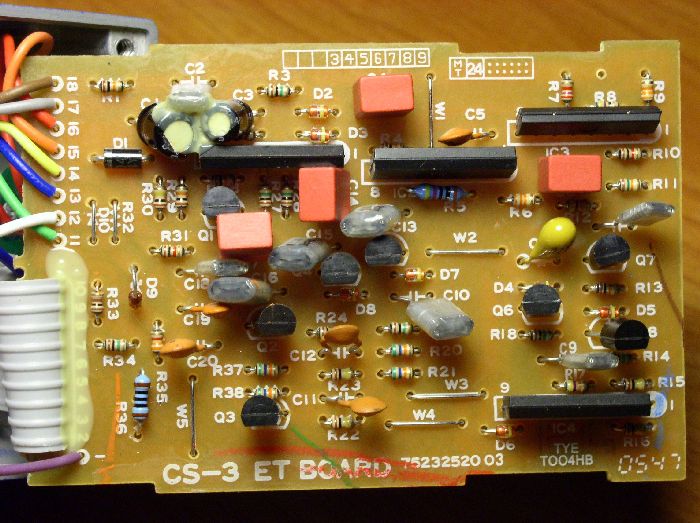

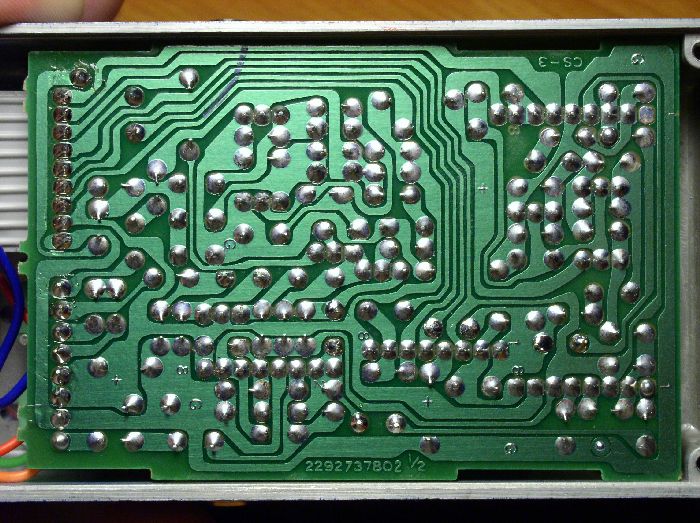

Compression Sustainer CS-3 MIT
slightly modified
to be continued... |
|
|
|
lightburst
Silver Member
Germany
158 Posts |
Posted - 03/23/2008 : 11:28:22
|
Part 2:

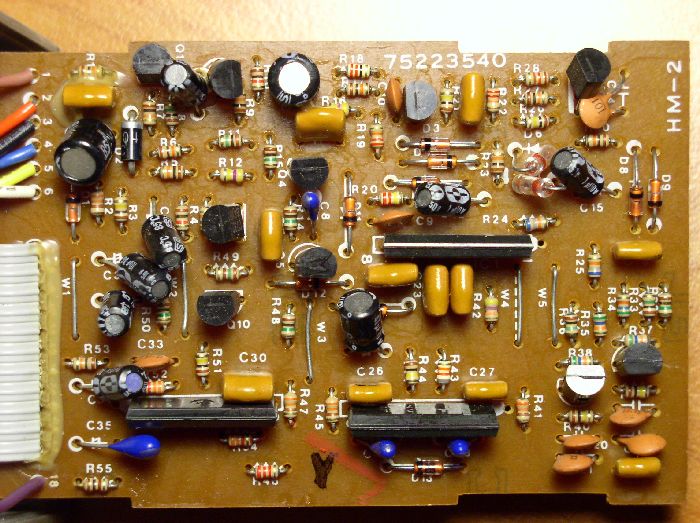

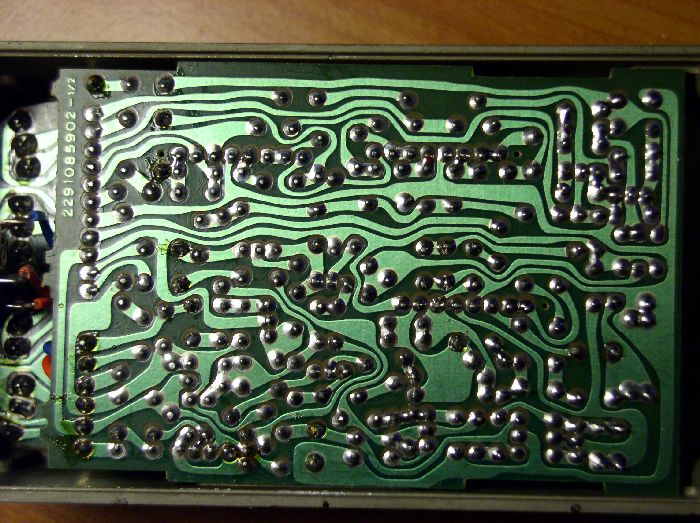

Heavey Metal HM-2 MIT

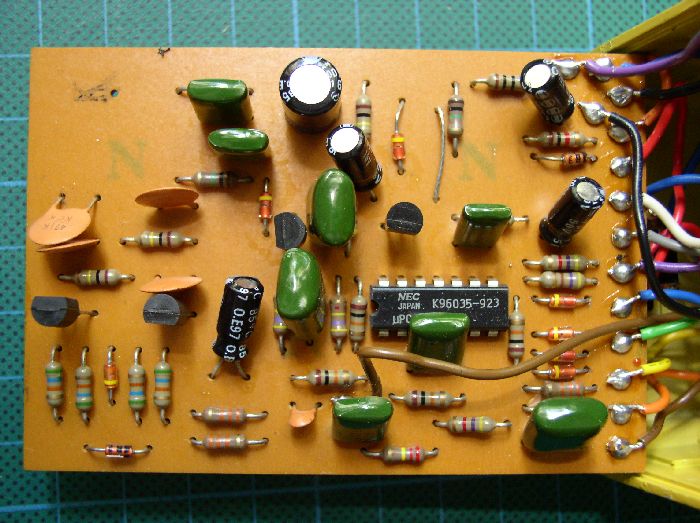

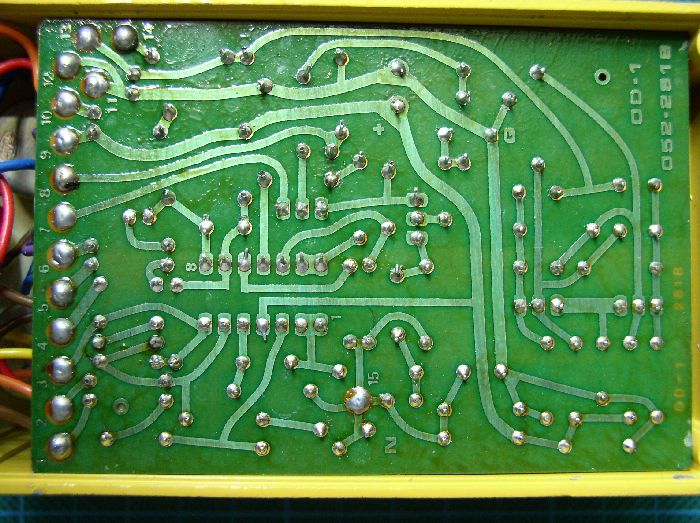

Overdrive OD-1 MIJ rev.B

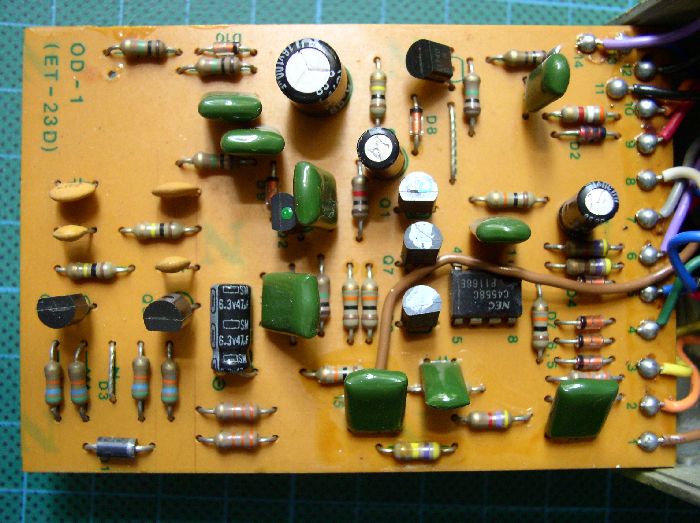

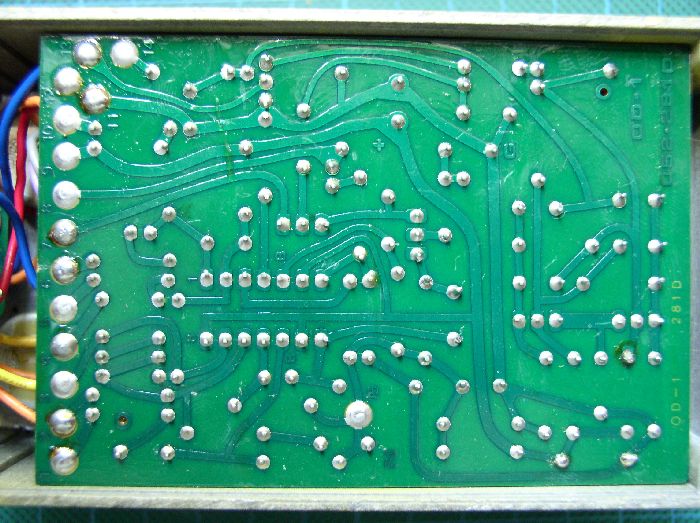

Overdrive OD-1 MIJ rev.D

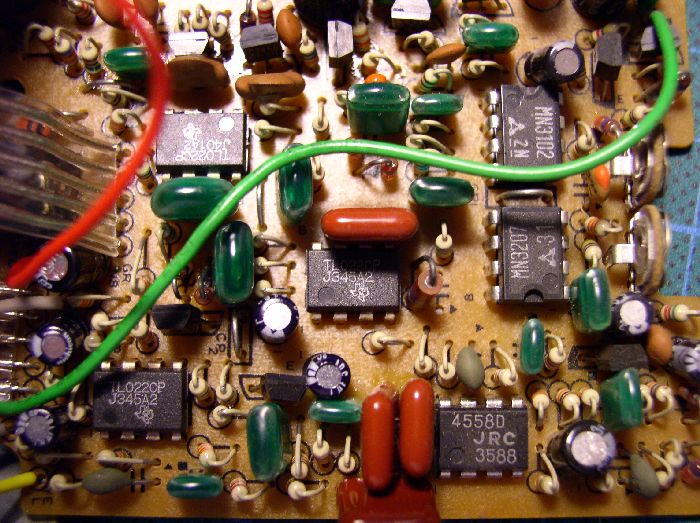

Ibanez Bi-Chorus BC-9

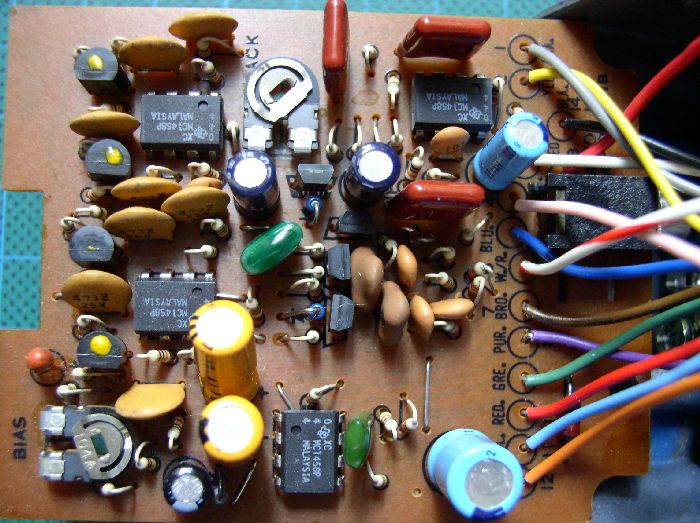

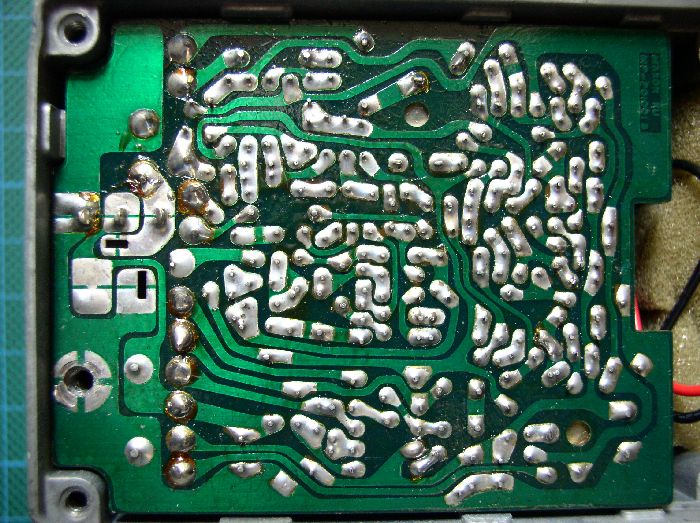

Ibanez Phase Tone PT-909

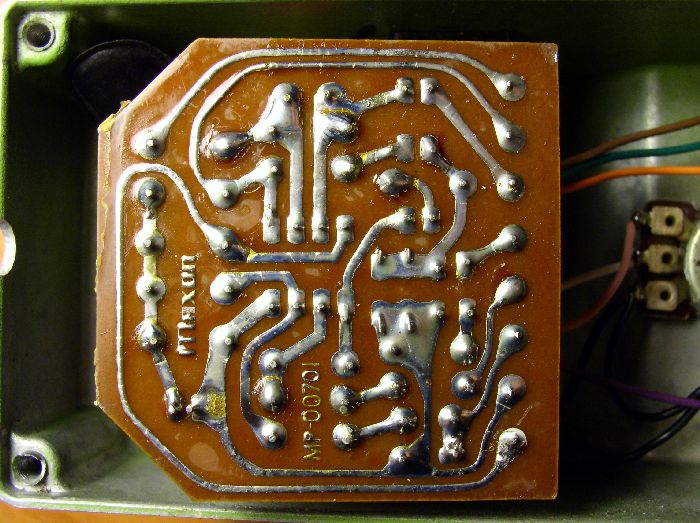

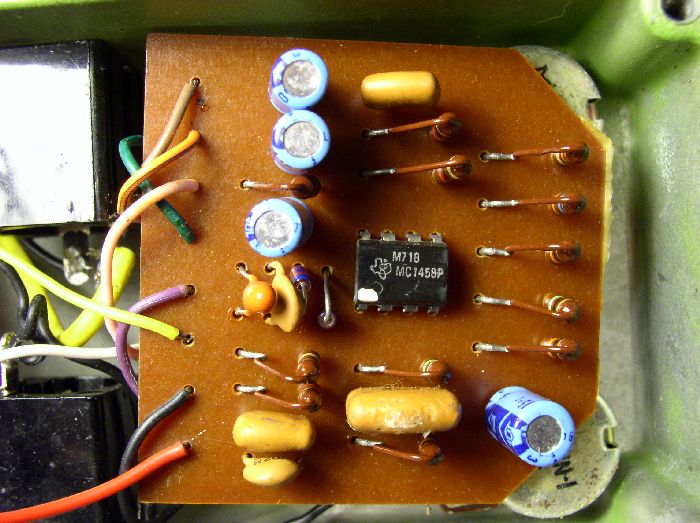

Ibanez OverdriveII
more to come
|
|
|
|
lightburst
Silver Member
Germany
158 Posts |
Posted - 03/24/2008 : 13:32:01
|
Part 3:
Slow Gear SG-1
Super Chorus CH-1
Dual Overdrive SD-2
Compression Sustainer CS-1
Cheers |
|
|
|
Laurie
Double Platinum Member
Canada
4854 Posts |
Posted - 03/24/2008 : 16:09:35
|
quote:
Originally posted by lightburst
Part 3:
Slow Gear SG-1
lightburst - an SG-1 I'm sooooo envious!!
|
|
|
|
happyplucker
Bronze Member
United Kingdom
126 Posts |
Posted - 03/24/2008 : 16:17:15
|
| that was some serious effort lightburst! |
|
|
|
ssanyee
Silver Member
Hungary
288 Posts |
Posted - 03/24/2008 : 18:36:08
|
Does anyone have SP-1?
Would be appreciated to see inside!
cheers |
|
|
|
