Mesjoggah
Gold Member

Netherlands
595 Posts
Posted - 12/05/2008 :  13:09:12  Show Profile  Click to see Mesjoggah's MSN Messenger address  Reply with Quote
Boss PS-3 pitch shifter/delay s/n zg47652 july 1994
Go to Top of Page

DeFrag
Moderator

USA
3409 Posts
Posted - 12/10/2008 :  21:20:48  Show Profile  Visit DeFrag's Homepage  Click to see DeFrag's MSN Messenger address  Reply with Quote
Here's a link to many internal pedal pics:
http://www.beavisaudio.com/gg/index.htm
Go to Top of Page

Dr. Bob
Moderator

Australia
6593 Posts
Posted - 12/11/2008 :  11:41:07  Show Profile  Visit Dr. Bob's Homepage  Reply with Quote
Hi DeFrag

Some very nice pics there.
I like the ones of the Dd-20.

Thanks for the link.

Regards Dr. Bob
4300
Edited by - Dr. Bob on 12/11/2008 11:41:35
Go to Top of Page

samseng
Copper Member

Singapore
1 Posts
Posted - 12/18/2008 :  18:09:16  Show Profile  Reply with Quote
quote:
Originally posted by plautz

Well, this is my first post.
I have only one GE-7 (MIT) that I fix. Serial number is BF64073 and was produced in november 1993. The unit number is 24073.

Solder Side:



Download Attachment: ge7-brd.jpg
125.87�KB

Components Side:



Download Attachment: ge7-boardcompos1.jpg
113.04�KB

Thanks for all and sorry for my Bad English.




Hello everyone. Its my first time posting here and I'm from Singapore.
This looks like its GE-7 MIJ. And IC1 had been replaced with TL072CP.
I have enhance the photo. Refer to Monte Allums site here http://www.monteallums.com/images/GE7_Vin.jpg and the MIT version here http://www.monteallums.com/images/GE7_New.jpg
Go to Top of Page

DeFrag
Moderator

USA
3409 Posts
Posted - 12/18/2008 :  18:32:18  Show Profile  Visit DeFrag's Homepage  Click to see DeFrag's MSN Messenger address  Reply with Quote
Welcome to Bossarea samseng!
Go to Top of Page

MullyFX
Gold Member

Germany
753 Posts
Posted - 12/22/2008 :  17:38:18  Show Profile  Visit MullyFX's Homepage  Reply with Quote
t.c. electronic SPE Sustain + Parametric EQ (original version)
Edited by - MullyFX on 12/22/2008 17:38:39
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 12/22/2008 :  22:49:15  Show Profile  Visit Laurie's Homepage  Reply with Quote

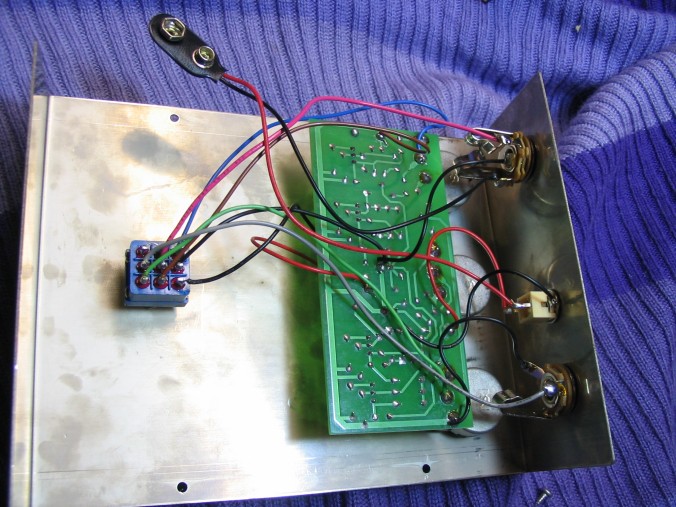

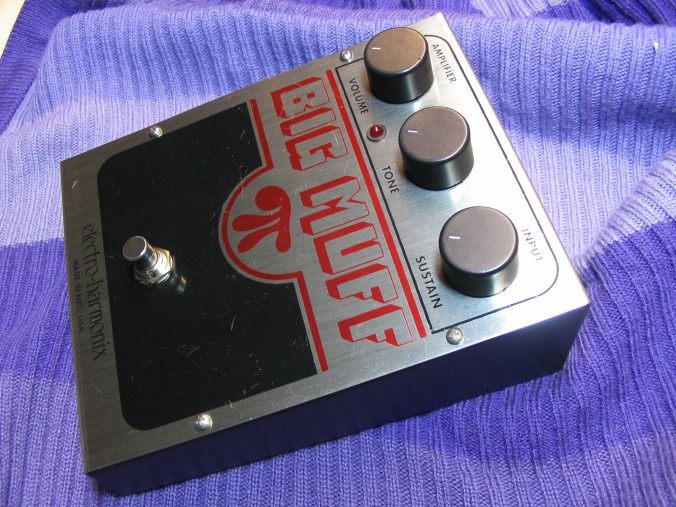

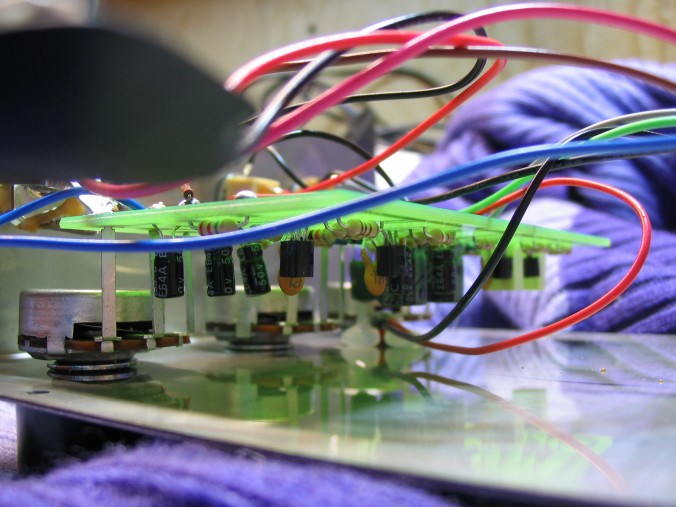

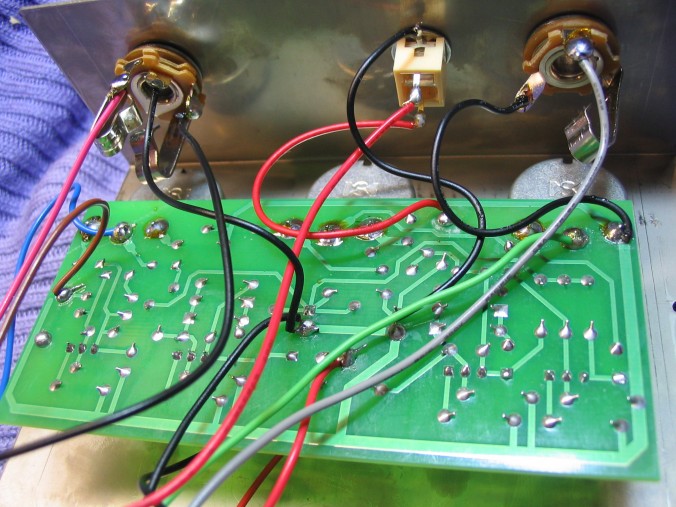

Current version, made in USA Electro-harmonix Big Muff Pi. Date unknown. Serial N/A (these don't have a serial).
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 12/25/2008 :  05:40:36  Show Profile  Visit Laurie's Homepage  Reply with Quote
Boss digital CH-1, MIT, ES59599
Go to Top of Page

Mesjoggah
Gold Member

Netherlands
595 Posts
Posted - 12/25/2008 :  07:47:43  Show Profile  Click to see Mesjoggah's MSN Messenger address  Reply with Quote
Boss HM-2 mij S/N 621900 jan. 1986
Go to Top of Page

Laurie
Double Platinum Member

Canada
4854 Posts
Posted - 12/28/2008 :  19:24:24  Show Profile  Visit Laurie's Homepage  Reply with Quote

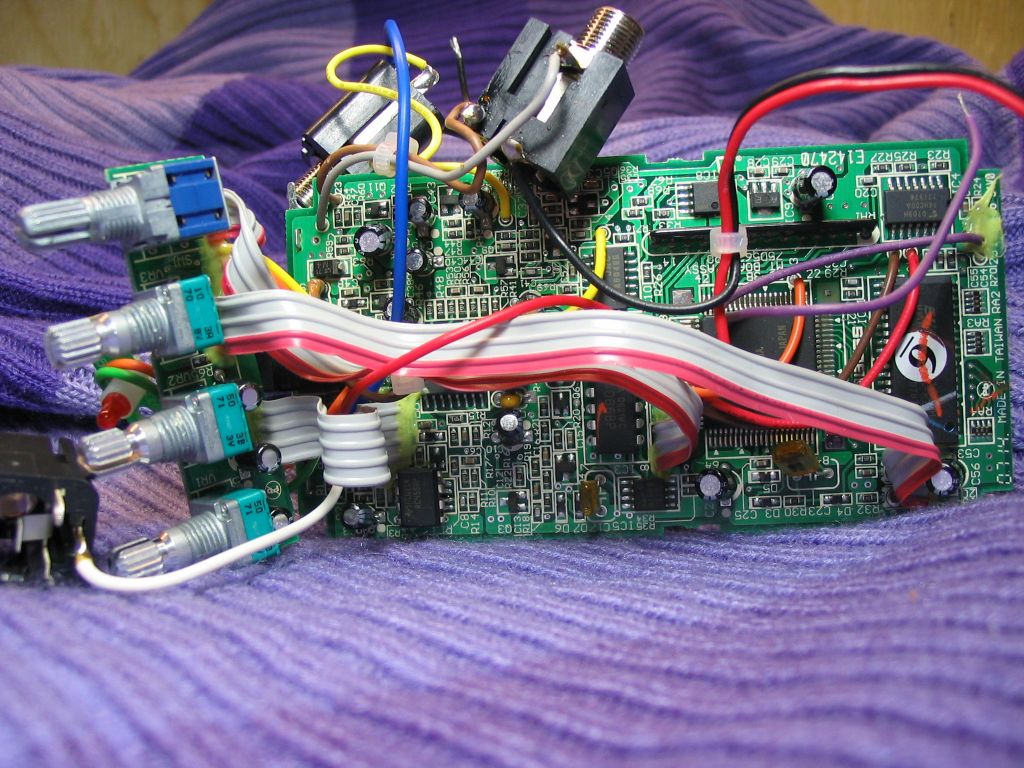

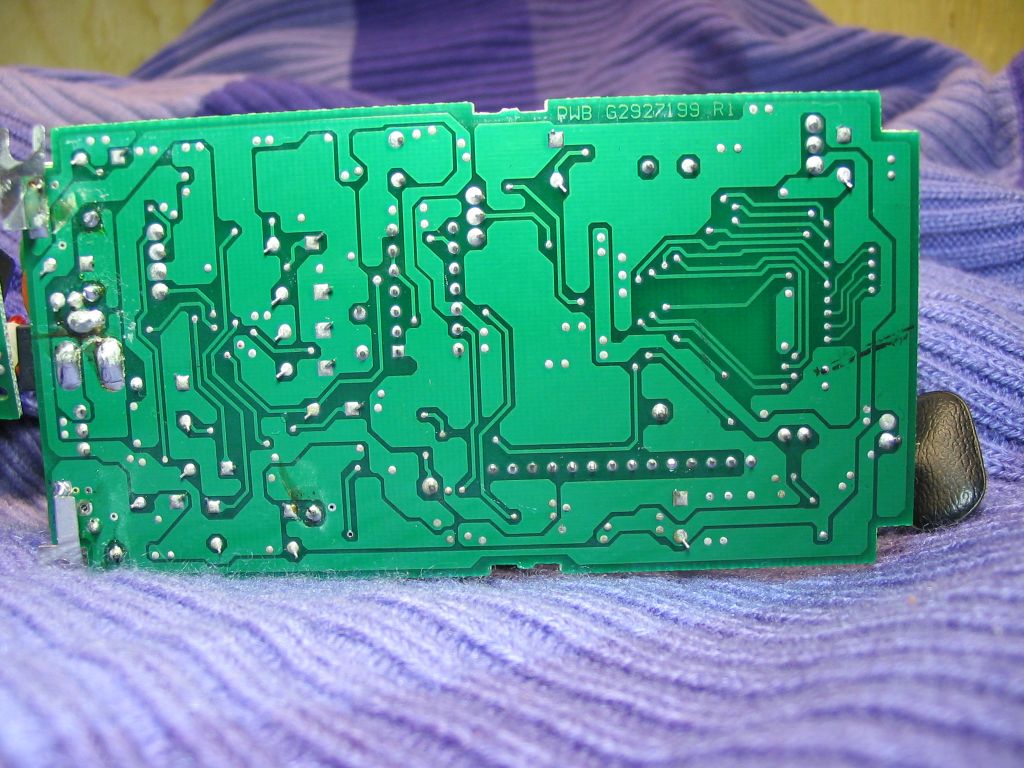

DD-3 "digital" MIT S/N: GW17095

Note: IC1 (4558 SMD opamp) has been replaced by a non SMD version on this board.
Edited by - Laurie on 12/29/2008 06:05:43
Go to Top of Page

verivorax
Platinum Member

Canada
1185 Posts
Posted - 12/30/2008 :  13:17:56  Show Profile  Reply with Quote
I can't believe there's no SD-1 in this thread, at least, according to the index. So I did a twin pic of my two SD-1s for comparison. One has no serial to speak of, but does have the JRC chip. If anyone knows how to date these chips, that'd be handy - I can't find a reference anywhere.

Two SD-1s.. Left - no serial, unknown date, likely MIJ (from original purchaser's memory). Right, #267500, Jan.83. Note the difference in substrate colours.. both chips are JRC4558DD - which I'm assuming should be normal for their age.




Board from #267500. Inset: chip detail from SD-1 of unknown date. Does the code on the 4558DD help to date this in any way?




DC-2 #613300, Dec.85.



solder side.. no actual burnt look - that's photoshop to bring down the flash flare.


better view of the switches:


--

All the flash and flare problems I've been having when taking pics of pedals and internals makes me want to set up a little macro rig with some nice flashes.. hopefully I'll have a chance to do it during the break.
Go to Top of Page

Mesjoggah
Gold Member

Netherlands
595 Posts
Posted - 12/30/2008 :  17:45:33  Show Profile  Click to see Mesjoggah's MSN Messenger address  Reply with Quote
The one on the left is newer than the right one.
Go to Top of Page

verivorax
Platinum Member

Canada
1185 Posts
Posted - 12/30/2008 :  19:00:37  Show Profile  Reply with Quote
That's straightforward enough..

I was wondering about actually dating them.. The GE-7 on this page is from 1993 and its JRC4558DD is coded 32479. The Jan83 SD-1's says "2462". Can we calibrate a rough date-coding system from the JRCs in pedals with known production dates?
Go to Top of Page

fabs
Silver Member

France
213 Posts
Posted - 01/02/2009 :  18:04:12  Show Profile  Reply with Quote
Ibanez OD-9 MIJ 1983
Go to Top of Page

Right Foot Boss
Gold Member

USA
881 Posts
Posted - 01/03/2009 :  06:41:58  Show Profile  Visit Right Foot Boss's Homepage  Send Right Foot Boss an AOL message  Reply with Quote
My first post and second visit to this part of the forum.

A Maxtone distortion.





Sorry forgot the exterior
Edited by - Right Foot Boss on 01/03/2009 06:47:29
Go to Top of Page
